Brother DCP-J772DW Manual de usuario
Reference Guide
Brief explanations for routine operations
DCP-J772DW
DCP-J774DW
MFC-J890DW
MFC-J895DW
Brother recommends keeping this guide next to your Brother machine for quick reference.
Online User's Guide
For more advanced instructions, information, and
product specifications, see the Online User's
Guide at support.brother.com/manuals
User's Guides and Where to Find Them
Which Guide? What's in It? Where Is It?
Product Safety Guide Read this Guide first. Please read the Safety
Instructions before you set up your machine.
See this Guide for trademarks and legal
limitations.
Printed / In the box
Quick Setup Guide Follow the instructions for setting up your
machine, and installing the drivers and
software for the operating system and
connection type you are using.
Printed / In the box
Reference Guide Learn the basic PC-Print, PhotoCapture
Center, Scan, Copy and Fax operations and
basic machine maintenance. See
troubleshooting tips.
Printed or on Brother
Installation Disc / In
the Box
Online User's Guide This guide includes the additional contents of
the Reference Guide.
In addition to information about the PC-Print,
PhotoCapture Center, Scan, Copy, Fax,
Internet services, Mobile Functions and
Brother ControlCenter operations, useful
information is included about using the
machine on a network.
Brother Solutions
Center 1
1Visit support.brother.com/manuals.
For the Latest Driver Updates
Go to your model's Downloads page on the Brother Solutions Center at support.brother.com to
download drivers. To keep your machine’s performance up-to-date, check there for the latest
firmware upgrades.
©2017 Brother Industries, Ltd. All rights reserved.
1
Questions or Problems? Take a Look at our FAQs,
Solutions, and Videos Online.
Go to your model's FAQs & Troubleshooting page on the Brother Solutions Center at
support.brother.com
•Provides several ways to search
•Displays related questions for more information
•Receives regular updates based on customer feedback
Important Note
• This documentation is for both MFC and DCP models. Where it says 'MFC' in this User's
Guide, read 'MFC-xxxx' as 'DCP-xxxx'. DCP models are not equipped with a fax function.
2
Control Panel Overview
3
2
5
41
1. NFC (Near Field Communication)
symbol
(MFC-J890DW/MFC-J895DW)
If your Android™ device supports the NFC
feature, you can print from your device or
scan documents to your device in the
same way.
2. Touchscreen Liquid Crystal Display
(LCD)
Access menus and options by pressing
them on the touchscreen.
3. Menu buttons
(Back)
Press to go back to the previous menu.
(Home)
Press to return to the Home screen.
(Cancel)
Press to cancel an operation.
4. LED Power Indicator
The LED lights up depending on the
machine’s power status.
When the machine is in Sleep Mode, the
LED blinks.
5. Power On/Off
Press to turn the machine on.
Press and hold down to turn the
machine off. The touchscreen will display
[Shutting Down] and will stay on for a
few seconds before turning itself off.
If you turn the machine off using , it
will still clean the print head periodically to
maintain print quality. To prolong print
head life, provide better ink efficiency, and
maintain print quality, keep your machine
connected to a power source at all times.
1General Information
1General Information
3
Touchscreen LCD
Overview
MFC-J890DW/MFC-J895DW
You can switch Home screens by pressing d
or c.
From the Home screens, you can access Wi-
Fi® setup, Shortcuts, Ink levels and Setup
screens.

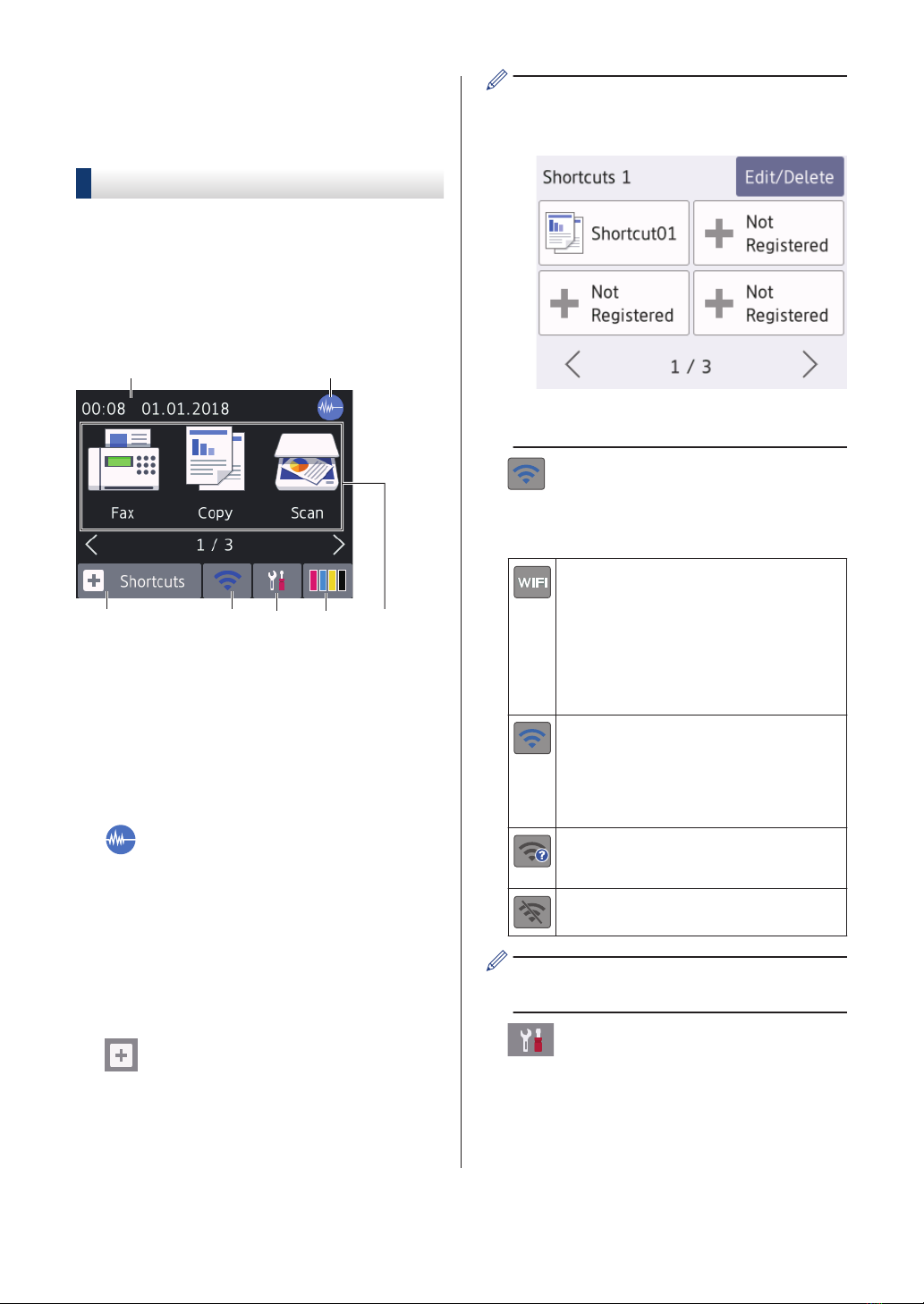

Home Screen
1
7
5
2
346
This screen shows the machine’s status when
the machine is idle. When displayed, it
indicates that your machine is ready for the
next command.
1. Date & Time
Displays the date and time set on the
machine.
2. Quiet Mode
This icon appears when the [Quiet
Mode] setting is set to [On].
The Quiet Mode setting can reduce
printing noise. When Quiet Mode is turned
on, the print speed becomes slower. For
more information, see the Online User's
Guide.
3. [Shortcuts]
Create Shortcuts for frequently-used
operations, such as sending a fax,
copying, scanning, Web Connect and
Apps services.
• There are three Shortcuts screens.
You can program four shortcuts on
each screen.
• To display the other Shortcuts screens,
press d or c.
4. Wireless Status
Each icon in the following table shows the
wireless network status:
Your machine is not connected to
the wireless access point/router.
Press this button to configure
wireless settings. For more
information, see the Quick Setup
Guide.
Wireless network is connected.
A three-level indicator in each of
the Home screens displays the
current wireless signal strength.
The wireless access point/router
cannot be detected.
The wireless setting is disabled.
You can configure wireless settings by
pressing the Wireless Status button.
5. [Settings]
Press to access the [Settings] menu.
4

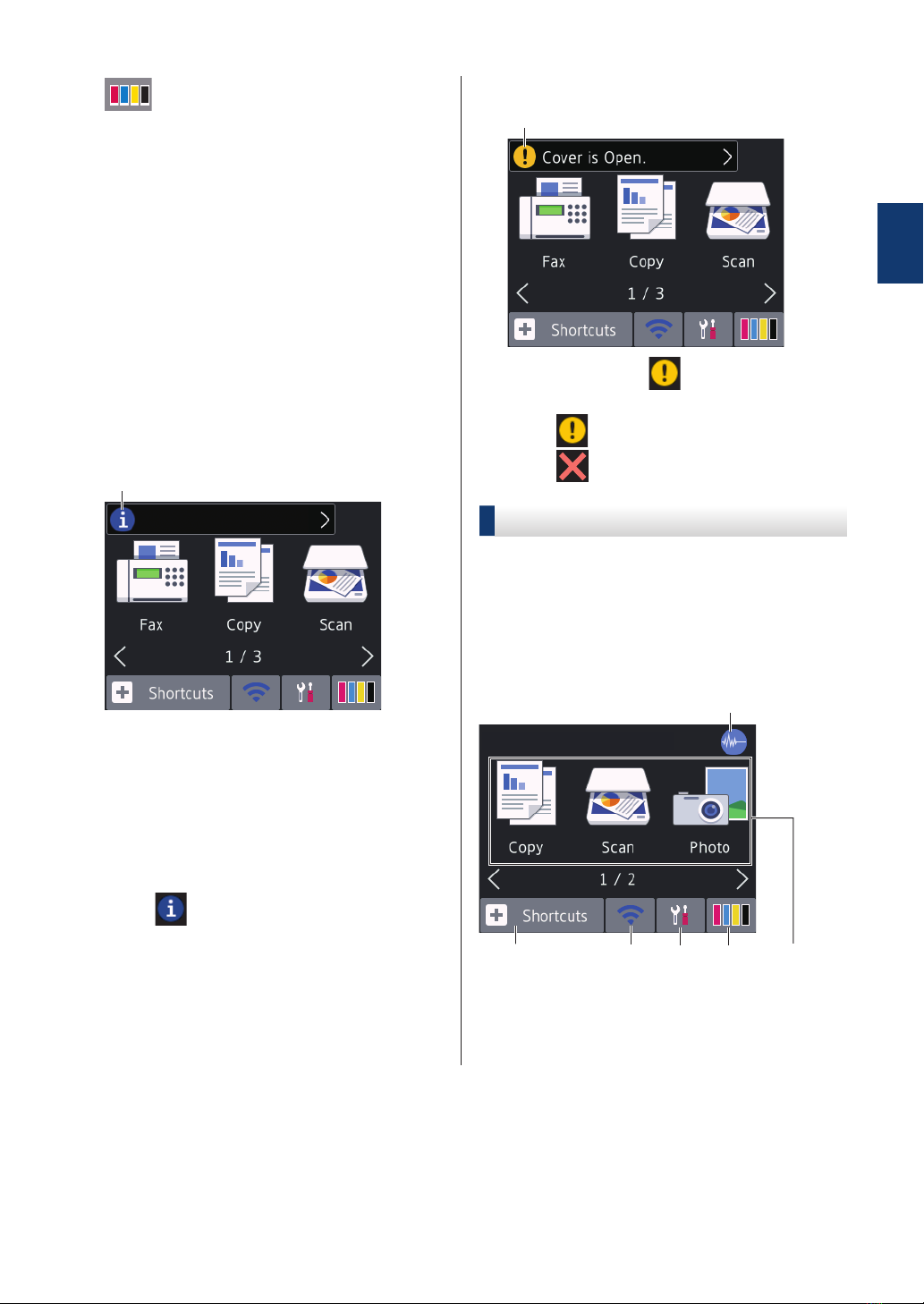

6. [Ink]
Displays the available ink volume. Press
to access the [Ink] menu.
When an ink cartridge is near the end of
its life or having a problem, an error icon is
displayed on the ink colour.
7. Modes:
Press to switch to each mode.
[Fax] / [Copy] / [Scan] / [Photo] /
[Web] / [Apps] / [Download
Software]
For more information on [Web] and
[Apps], see the Online User's Guide.
8. Information icon
8
New information from Brother appears in
the information bar when the notification
settings such as [Message from
Brother] and [Firmware Auto
Check] are set to [On].
(Internet connection is needed, and data
rates may apply.)
Press to view the details.
9. Warning icon
9
The warning icon appears when there
is an error or maintenance message;
press to view the details, and then
press to return to the Home screen.
DCP-J772DW/DCP-J774DW
You can switch Home screens by pressing d
or c.
From the Home screens, you can access Wi-
Fi setup, Shortcuts, Ink levels and Setup
screens.
Home Screen
6
4
1
235
This screen shows the machine’s status when
the machine is idle. When displayed, it
indicates that your machine is ready for the
next command.
1General Information
5
1. Quiet Mode
This icon appears when the [Quiet
Mode] setting is set to [On]. For more
information, see the Online User's Guide.
The Quiet Mode setting can reduce
printing noise. When Quiet Mode is turned
on, the print speed becomes slower.
2. [Shortcuts]
Create Shortcuts for frequently-used
operations, such as copying, scanning,
Web Connect and Apps services.
• There are three Shortcuts screens.
You can program four shortcuts on
each screen.
• To display the other Shortcuts screens,
press d or c.
3. Wireless Status
Each icon in the following table shows the
wireless network status:
Your machine is not connected to
the wireless access point/router.
Press this button to configure
wireless settings. For more
information, see the Quick Setup
Guide.
Wireless network is connected.
A three-level indicator in each of
the Home screens displays the
current wireless signal strength.
The wireless access point/router
cannot be detected.
The wireless setting is disabled.
You can configure wireless settings by
pressing the Wireless Status button.
4. [Settings]
Press to access the [Settings] menu.
5. [Ink]
Displays the available ink volume. Press
to access the [Ink] menu.
When an ink cartridge is near the end of
its life or having a problem, an error icon is
displayed on the ink colour.
6. Modes:
Press to switch to each mode.
[Copy] / [Scan] / [Photo] / [Web] /
[Apps] / [Download Software]
For more information on [Web] and
[Apps], see the Online User's Guide.
7. Information icon
7
New information from Brother appears in
the information bar when the notification
settings such as [Message from
Brother] and [Firmware Auto
Check] are set to [On].
(Internet connection is needed, and data
rates may apply.)
Press to view the details.
6

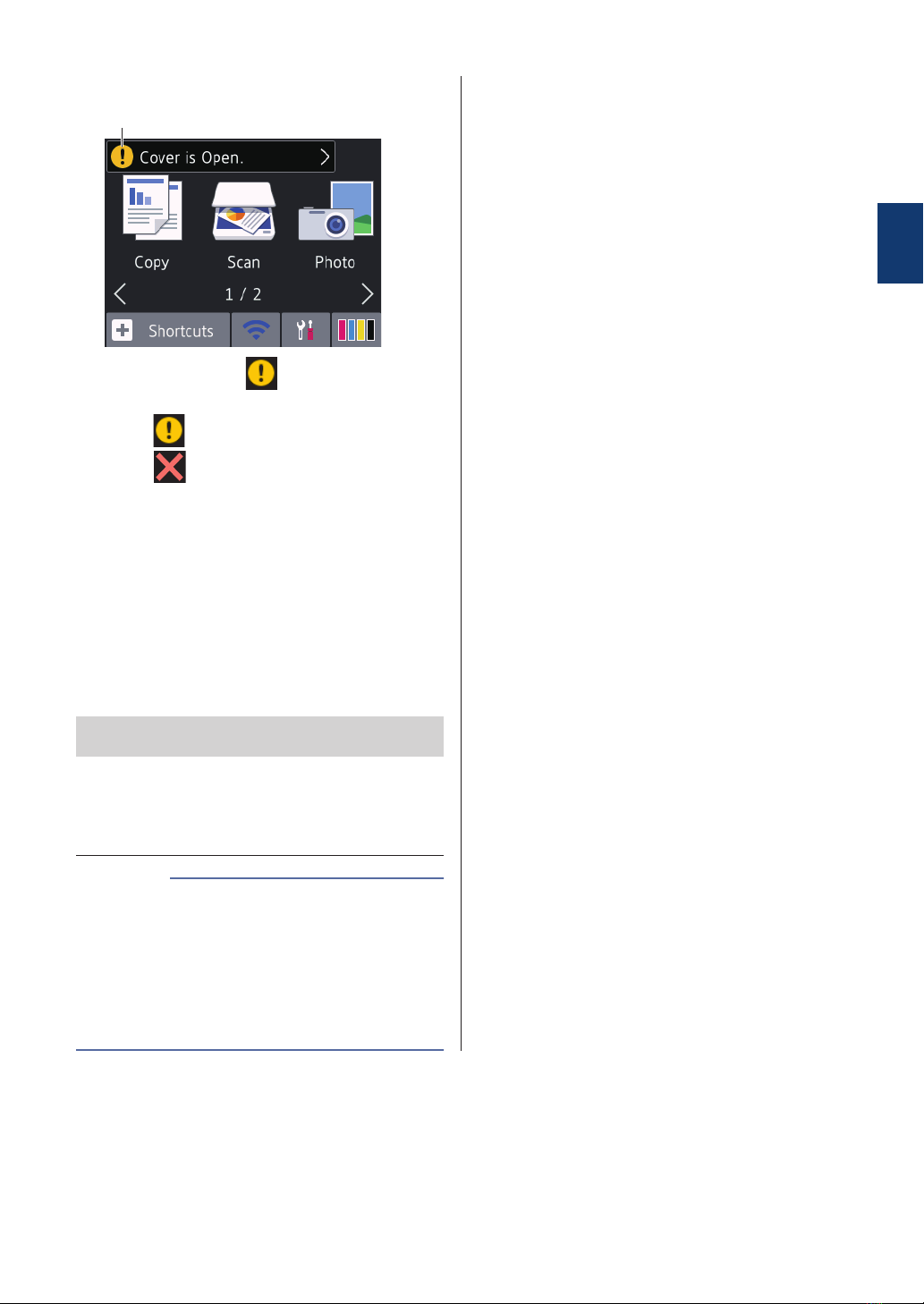

8. Warning icon
8
The warning icon appears when there
is an error or maintenance message;
press to view the details, and then
press to return to the Home screen.
Navigate the
touchscreen
Press your finger on the LCD to operate it. To
display and access all the options, press d c
or a b on the LCD to scroll through them.
IMPORTANT
DO NOT press the LCD with a sharp object
such as a pen or stylus. It may damage the
machine.
• This product adopts the font of ARPHIC
TECHNOLOGY CO., LTD.
• DO NOT touch the LCD immediately after
plugging in the power cord or turning on
the machine. Doing this may cause an
error.
NOTE
1General Information
7

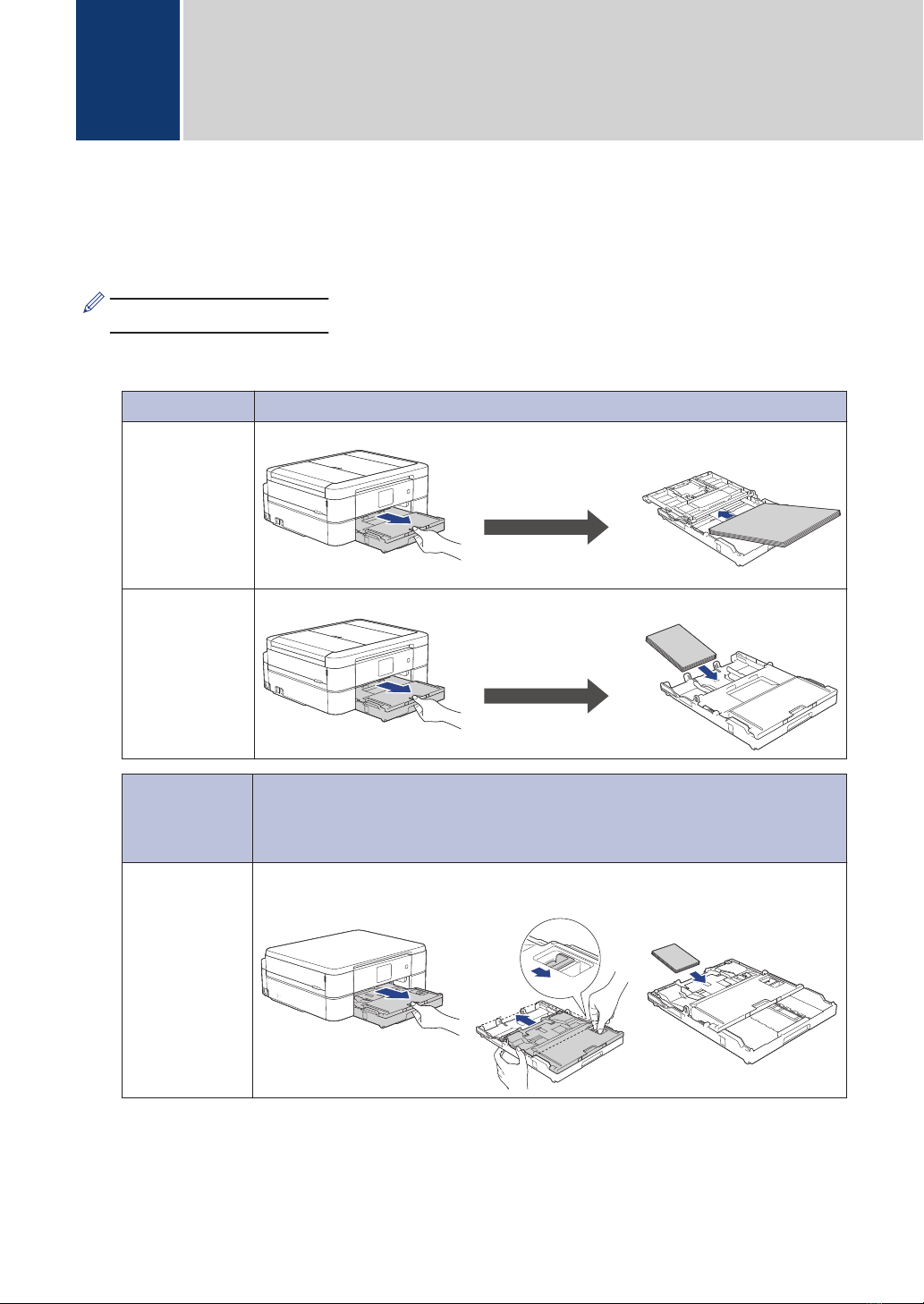

Load Paper
1Load the paper in the paper tray as follows.
Fan the stack of paper well.
The paper size determines the orientation when loading paper.
Tray #1 How to Load Paper
A4/Letter
Executive
A5/A6
Photo 2L
Index card
Envelopes
Adjust the paper
guides.
Printing surface: Face down
Adjust the paper
guides.
Printing surface: Face down
Photo Paper
Tray
(DCP-J772DW/
DCP-J774DW)
How to Load Paper
Photo L
Slide the whole output
paper tray cover. Printing surface: Face
down
2Paper Handling
8

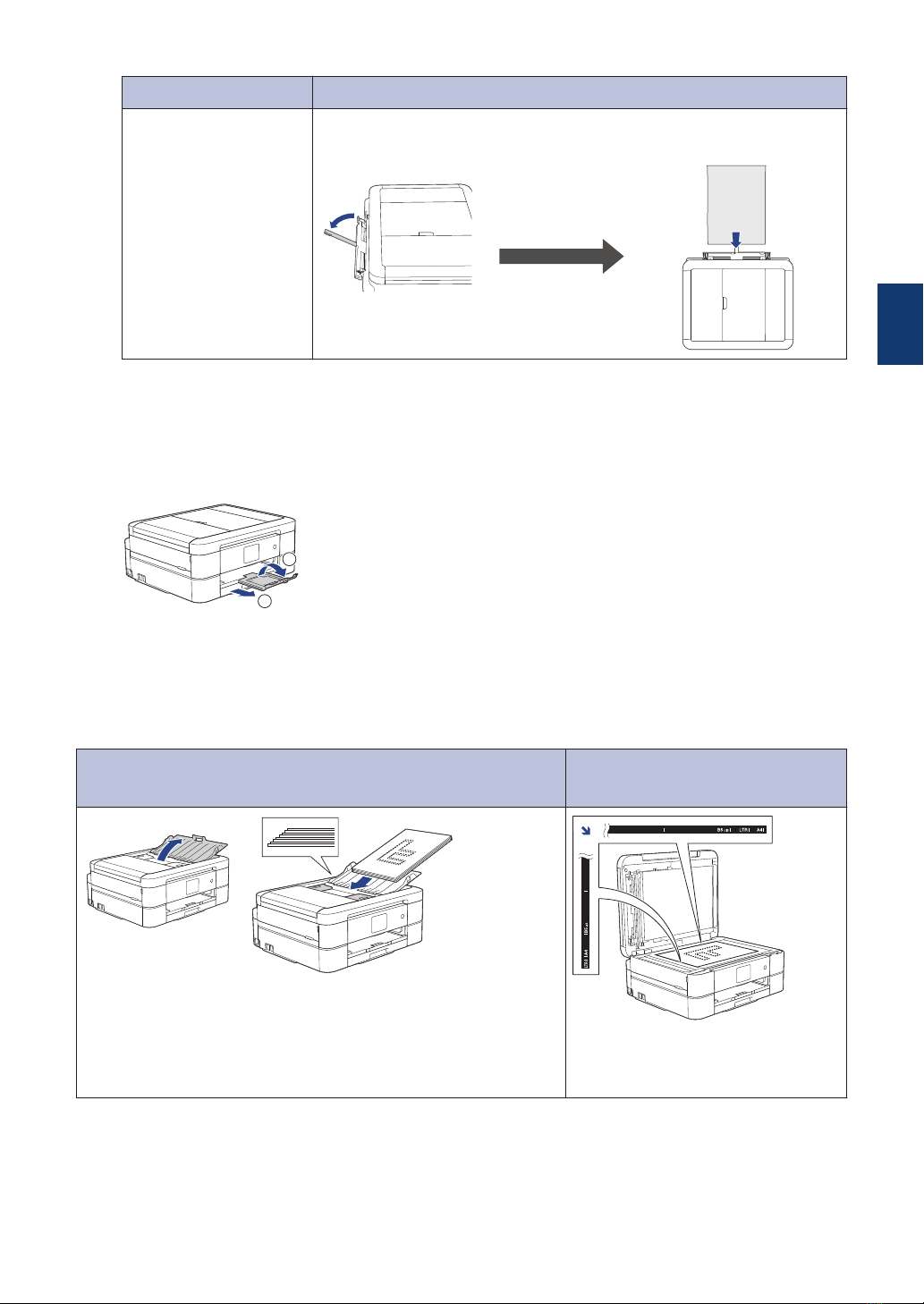

Manual Feed Slot 1 How to Load Paper
A4/Letter
Executive
A5/A6
Photo L/2L
Index card
Envelopes
Adjust the manual feed
slot paper guides.
Printing surface: Face
up
1You can load only one sheet of paper into the manual feed slot at a time.
For more information, see the Online User's Guide: Load Paper.
2Unfold the paper support flap. Change the paper size setting in the machine's menu, if
needed.
2
1
Load Documents
Place the document in the ADF or on the scanner glass as shown in the illustration.
Automatic Document Feeder (ADF)
(MFC-J890DW/MFC-J895DW) Scanner Glass
Place your document face down in the ADF.
Place the document face down in the
upper left corner of the scanner
glass.
2Paper Handling
9
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Otros manuales de Impresora todo en uno de Brother
Brother
Brother MFC 990cw - Color Inkjet - All-in-One Guía de inicio rápido
Brother
Brother MFC 3220C - Color Inkjet - All-in-One Manual de usuario
Brother
Brother DCP-9010CN Manual de usuario
Brother
Brother HL-2280DW Manual de operación y mantenimiento
Brother
Brother MFC-9440CN Manual de usuario
Brother
Brother MFC-J680DW Manual de instrucciones
Brother
Brother MFC-J5945DW Manual de usuario
Brother
Brother MFC 3360C - Color Inkjet - All-in-One Manual de usuario
Brother
Brother HL1210W Manual de usuario
Brother
Brother MFC9030 Manual de usuario
Brother
Brother MFC-J2510 Manual de operación y mantenimiento
Brother
Brother MFC-J280W Manual de usuario
Brother
Brother MFC 250C - Color Inkjet - All-in-One Manual de lista de piezas
Brother
Brother MFC-J4310DW Manual de usuario
Brother
Brother MFC 5890CN - Color Inkjet - All-in-One Manual de usuario
Brother
Brother MFC-9750 Manual de usuario
Brother
Brother MFC-J825DW Manual de usuario
Brother
Brother MFC-J285DW Manual de usuario
Brother
Brother DCP-197C Manual de usuario
Brother
Brother MFC-8440 Guía de seguridad
Manuales populares de Impresora todo en uno de otras marcas
Triumph Adler
Triumph Adler DC 2016 Manual
Epson
Epson WorkForce WF-2510 Guía del usuario
Epson
Epson Stylus Scan 2000 Manual de instalación y operación
Epson
Epson PictureMate Snap PM 240 Manual de instrucciones
Konica Minolta
Konica Minolta bizhub C35 Manual de usuario
Konica Minolta
Konica Minolta BIZHUB 558 Manual de usuario
