Before you can use the machine, you must set up the hardware and install the software.

Please read this “Quick Setup Guide” for the correct setup procedure and installation

instructions.

Keep this “Quick Setup Guide”, User’s Guide and supplied CD-ROM in a convenient place for

quick and easy reference at all times.

Step 1

Setting Up the machine

Step 2

Installing the Drivers & Software

Setup is Complete!

Installing the Drivers & Software

Setting Up

the machine

Windows®

USB

Windows®

Parallel

Windows

NT®4.0

Parallel

Macintosh®

USB

Macintosh®

Network

Windows®

Network

Administrators

DCP-8060

DCP-8065DN

Quick Setup Guide

Version A

Warning Caution Improper Setup Note User’s Guide

Warnings tell you

what to do to prevent

possible personal

injury.

Cautions specify

procedures you

must follow or avoid

to prevent possible

damage to the

machine or other

objects.

Improper Setup

icons alert you to

devices and

operations that are

not compatible with

the machine.

Notes tell you how

you should respond

to a situation that

may arise or give

tips about how the

current operation

works with other

features.

Indicates reference

to the User’s Guide.

Carton components may differ from one country to another.

Save all packing materials and the carton.

Carton Components

Quick Setup Guide

CD-ROMs

For Windows®

For Macintosh®

AC Power Cord

Drum Unit Assembly

(including Toner

Cartridge)

Austraria & New Zealand users: Hong Kong, Malaysia & Singapore users:

The mains plug supplied with this machine is a grounded three pin plug. Make sure that the AC socket will

accept this grounded three pin plug. This machine must be grounded, If in doubt, call a qualified electrician.

Philipine & Thailand users:

The mains plug supplied with this machine is a side grounded two pin plug. Make sure that

the AC socket will accept this side grounded two pin plug. This machine must be grounded,

If in doubt, call a qualified electrician.

■To ensure safe operation the supplied plug must be inserted only into a standard power outlet that is

properly grounded through the standard electrical wiring. None grounded equipment may cause an

electrical shock hazard, and may cause excessive electrical noise radiation.

■The interface cable is not a standard accessory. Please purchase the appropriate interface cable for

the interface you intend to use (Parallel, USB or Network).

■Do NOT connect the interface cable at this time. Connecting the interface cable is done during the

software installation process.

■USB interface cable

Please make sure you use a USB 2.0 interface cable that is no longer than 2.0 meters.

When you use a USB cable, make sure you connect it to the USB port of your computer and not to a

USB port on a keyboard or non-powered USB hub.

■Parallel interface cable

Please make sure you use a Parallel interface cable that is no longer than 2.0 meters.

Use a shielded interface cable that is IEEE 1284-compliant.

■Network cable (DCP-8065DN only)

Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100Base-TX Fast

Ethernet Network.

1. Automatic Document Feeder (ADF)

2. Control Panel

3. Face-down Output Tray

Support Flap (Support Flap)

4. Front Cover

5. Paper Tray

6. Power Switch

7. Document Cover

8. ADF Document Output Support Flap

■Getting Started

DCP-8060

DCP-8065DN

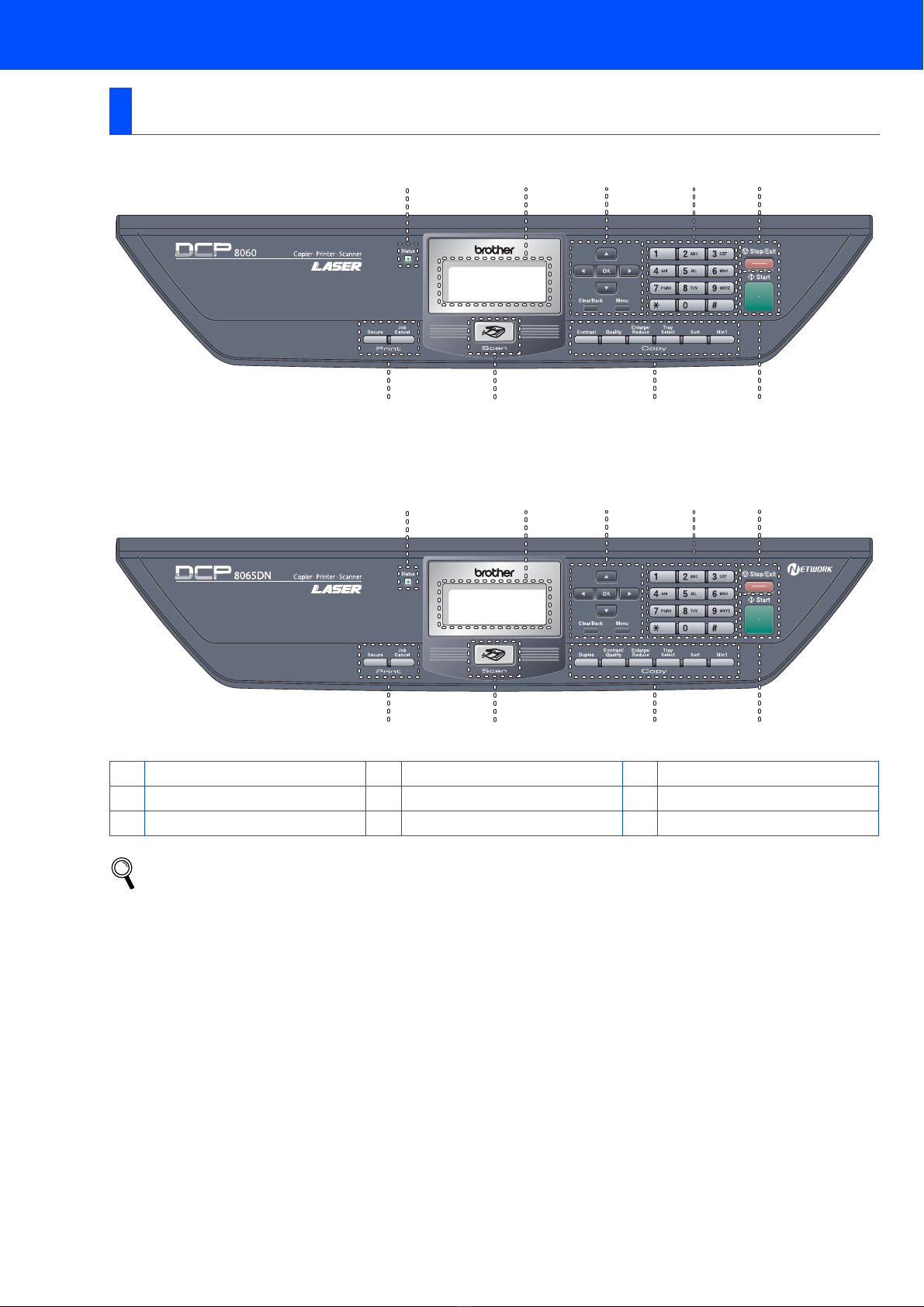

Control Panel

1Status LED 2LCD (Liquid Crystal Display) 3Menu keys

4Dial Pad 5Stop/Exit key 6Start key

7Copy keys 8Scan key 9Print keys

For the details of the control panel, see “Control panel overview” in Chapter 1 of the User’s Guide.

879

1234

879

1234

Table of Contents

Setting Up the machine

1. Install the Drum Unit and Toner Cartridge Assembly .................................... 4

2. Load Paper in the Paper Tray ..........................................................................5

3. Release the Scanner Lock ................................................................................ 6

4. Connect the Power Cord ..................................................................................6

5. Setting the LCD Contrast .................................................................................7

Installing the Drivers & Software

Supplied CD-ROM “MFL-Pro Suite” ................................................................................ 8

For USB Interface Cable Users

(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) ....10

For Parallel Interface Cable Users

(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) ....12

For Windows NT®Workstation Version 4.0 Users ......................................................15

For Network Interface Cable Users (DCP-8065DN only)

(For Windows

98/98SE/Me/NT/2000 Professional/XP/XP Professional x64 Edition)

...17

For USB Interface Cable Users ......................................................................................20

■For Mac OS®9.1 to 9.2 ......................................................................................20

■For Mac OS®X 10.2.4 or greater .......................................................................22

For Network Interface Cable Users (DCP-8065DN only) .............................................25

■For Mac OS®9.1 to 9.2 ......................................................................................25

■For Mac OS®X 10.2.4 or greater .......................................................................27

■ For Network Users and Administrators (DCP-8065DN only)

BRAdmin Professional configuration utility (For Windows®users) ..........................30

BRAdmin Light configuration utility (For Mac OS®X users) ......................................32

■Options and Consumables

Options ............................................................................................................................33

Replacement Consumables ...........................................................................................33

Step 1

Step 2

Setting Up the machine

Do not connect the interface cable.

Connecting the interface cable is

done during the software

installation process.

1Open the front cover by pressing the front

cover release button (1).

2Unpack the drum unit and toner cartridge

assembly.

3Gently rock it from side to side several times

to distribute the toner evenly inside the

cartridge.

4Put the drum unit and toner cartridge into

the machine so that it clicks into place.

5Close the front cover of the machine.

1Install the Drum Unit and Toner Cartridge Assembly

(1)

Step 1

Setting Up

the machine

Windows®

USB

Windows®

Parallel

Windows

NT®4.0

Parallel

Macintosh®

USB

Macintosh®

Network

Windows®

Network

Administrators

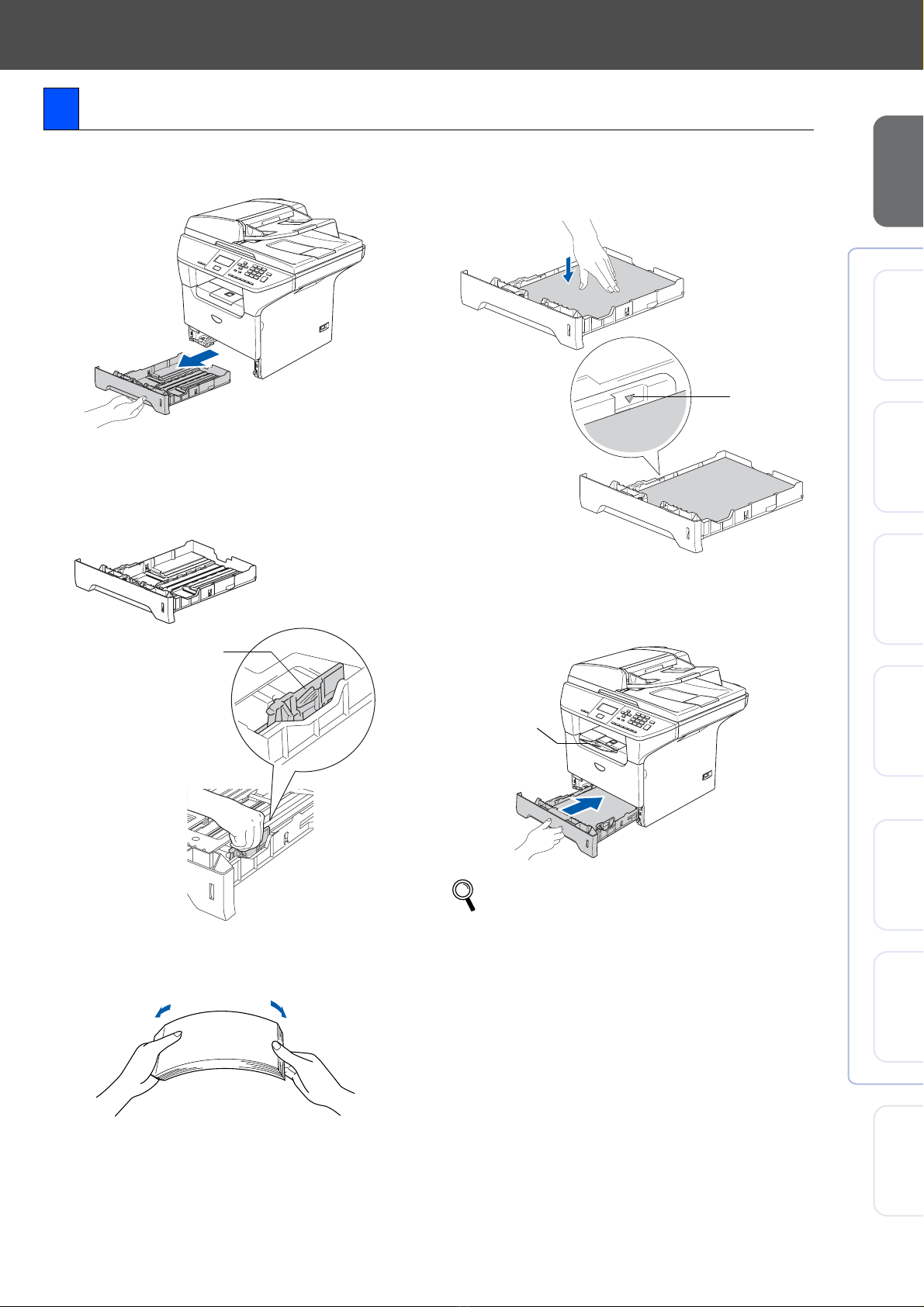

1Pull the paper tray completely out of the

machine.

2While pressing the blue paper guide release

lever (1), slide the adjusters to fit the paper

size. Check that the guides are firmly in the

slots.

3Fan the stack of paper well to avoid paper

jams and misfeeds.

4Put paper in the paper tray.

Check that the paper is flat in the tray and

below the maximum paper mark (1).

5Put the paper tray firmly back into the

machine and unfold the support flap (1)

before you use the machine.

2Load Paper in the Paper Tray

(1)

For details on supported paper

specifications, see “Acceptable paper and

other media” in Chapter 2 of the User’s

Guide.

(1)

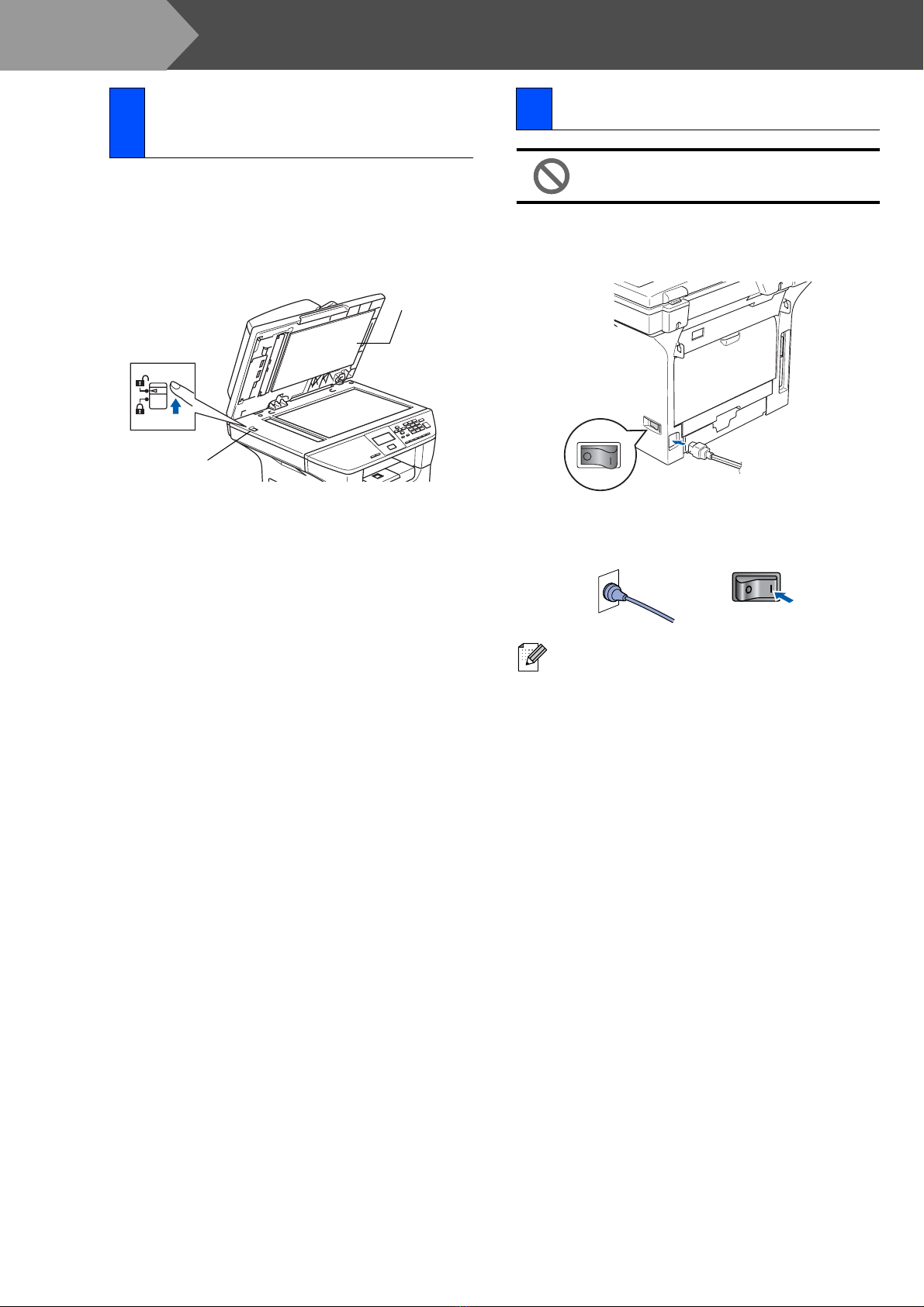

1Push the lever (1) in the direction shown to

unlock the scanner.

(The gray scanner lock lever is located at

the back left side, under the document

cover (2).)

Do not connect the Parallel or USB

cable yet.

1Make sure that the power switch is off.

Connect the AC power cord to the machine.

2Plug the AC power cord into an AC outlet.

Turn the power switch on.

3Release the Scanner

Lock

(2)

(1)

4Connect the Power Cord

If Scanner Locked appears on the LCD,

immediately release the scanner lock and

press Stop/Exit. (See “Release the Scanner

Lock” on page 6.)

Step 1 Setting Up the machine

Setting Up

the machine

Windows®

USB

Windows®

Parallel

Windows

NT®4.0

Parallel

Macintosh®

USB

Macintosh®

Network

Windows®

Network

Administrators

You can change the contrast to help the LCD look

lighter or darker.

1Press Menu.

2Press 1.

3Press 6.

4Press to increase the contrast.

—OR—

Press to decrease the contrast.

Press OK.

5Setting the LCD Contrast

Go to the next page to

install the drivers & software

Installing the Drivers & Software

The CD-ROM includes the following items:

Install MFL-Pro Suite

You can install the MFL-Pro Suite and multifunction

drivers.

Install Optional Applications

You can install additional MFL-Pro Suite software

utilities.

Documentation

View the User’s Guide and other documents in PDF

format (Viewer included). The User’s Guide on the

CD-ROM includes the Software and Network User’s

Guide for features available when connected to a

computer (e.g. printing, scanning and networking

details).

On-Line Registration

You will be pointed to the Brother Product

Registration Web page for quick registration of your

machine.

Brother Solutions Center

Brother contact information and web site links offering

the latest news and support information.

Repair MFL-Pro Suite

(For USB and Parallel cable users only)

If you experience errors while installing the MFL-Pro

Suite, you can use this function to automatically repair

and re-install the software.

Start Here OS 9.1-9.2

You can install the printer driver, scanner driver and

Presto!®PageManager®for Mac OS®9.1 - 9.2.

Start Here OSX

You can install the MFL-Pro Suite that includes the

printer driver, scanner driver and the Brother

ControlCenter2 for Mac OS®10.2.4 or greater. You

can also install Presto!®PageManager®to add OCR

capability to the Brother ControlCenter2 and easily

scan, share and organize photos and documents.

Readme.html

You can get important information and

troubleshooting tips.

Documentation

View the User’s Guide and other document in PDF

format (Viewer included). The User’s Guide on the

CD-ROM includes the Software and Network User’s

Guide for features available when connected to a

computer (e.g. printing, scanning and networking

details).

Brother Solutions Center

You can access the Brother Solutions Center, a Web

site offering information about your Brother product

including FAQs, User’s Guides, Driver updates and

Tips for using your machine.

On-Line Registration

You will be pointed to the Brother Product

Registration Web Page for quick registration of your

machine.

Supplied CD-ROM “MFL-Pro Suite”

MFL-Pro Suite includes Printer Driver,

Scanner Driver, Brother ControlCenter2,

ScanSoft®PaperPort®SE with OCR and

True Type®fonts.

PaperPort®SE is a document management

application for viewing scanned documents.

Step 2

Otros manuales para DCP 8060

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora todo en uno de Brother

Brother

Brother HL-P2500 Manual de usuario

Brother

Brother MFC-250C Manual de usuario

Brother

Brother DCP-J140W Manual de operación y mantenimiento

Brother

Brother DCP-7030 Manual de usuario

Brother

Brother DCP-J525W Manual de operación y mantenimiento

Brother

Brother MFC-8880DN Manual de usuario

Brother

Brother Work Smart MFC-J650dw Manual de operación y mantenimiento

Brother

Brother MFC 7345N - Laser Multifunction Center Guía del usuario

Brother

Brother DCP 165C - Color Inkjet - All-in-One Manual de usuario

Brother

Brother MFC-J825DW Manual de lista de piezas

Brother

Brother MFC-5460CN Manual de usuario

Brother

Brother MFC-5200C Manual de usuario

Brother

Brother MFC MFC-5440CN Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Instrucciones de montaje

Brother

Brother DCP-8080DN Manual técnico

Brother

Brother MFC-8530DN Manual técnico

Brother

Brother MFC 8890DW - B/W Laser - All-in-One Manual de usuario

Brother

Brother DCP-8040 Manual de usuario

Brother

Brother MFC-J815DW Manual técnico

Brother

Brother DCP-J125 Manual de usuario

Brother

Brother MFC-6800 Manual de usuario

Brother

Brother MFC-J5930DW Manual de funcionamiento

Brother

Brother MFC-9440CN Manual de usuario

Brother

Brother MFC-9700 Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Sharp

Sharp MX-2310U Guía

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario

Copystar

Copystar CS 4551ci Manual de usuario

Konica Minolta

Konica Minolta Magicolor 4650EN Manual de usuario
