Brooks Electronics RadioLINK EIB450 Manual de usuario
Instruction Manual
Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your
Alarm Controller. The booklet should be regarded as part of the product.
If you are just installing the unit, the booklet must be given to the householder. The booklet is to be given to any subsequent user.
Model: EIB450
Alarm Controller
Fire and CO
Contents
1. Overview .................................................................................................................................................
2. Installation .............................................................................................................................................
3. House Coding ........................................................................................................................................
4. Operation ...............................................................................................................................................
5. Guarantee .............................................................................................................................................
6. Troubleshooting the RadioLINK .....................................................................................................
7. Technical Specification .....................................................................................................................
8. Getting your Alarm Controller Serviced ......................................................................................
9. System Diagnostics ............................................................................................................................
10. Contact Us ...........................................................................................................................................
3
6
8
13
16
17
18
19
20
24
Page
2
1. Overview
Congratulations on purchasing the single button Alarm Controller for RadioLINK Fire and Carbon
Monoxide (CO) Alarm systems. The Alarm Controller tests and controls Fire, CO and combined (Fire + CO)
RadioLINK Alarm systems.
Alarm Controller functionality
Function Description
Test All the Alarms can be tested from a centralised location
LocateThis will silence all the Alarms in the system except the one sensing Fire or CO
Silence This will silence the source Alarm(s)
Fire Indicator Indicates that a Fire Alarm has been activated
CO IndicatorIndicates that a CO Alarm has been activated
Low Battery IndicatorIndicates that the Alarm Controller battery has reached its end of life (EOL)
Memory
The memory feature only works with some RadioLINK Alarms -
Contact us or visit our website for details.
The memory feature is confined to the system diagnostic mode and is not visible to the end user.
3

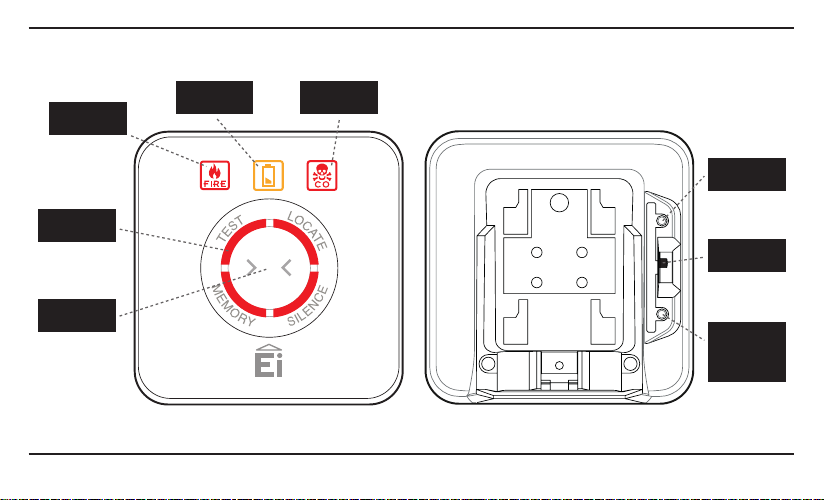

Fire / CO Alarm Controller
Fire
Indicator
House Code
Button
Front View of ControllerRear View of Controller
On / Off
Switch
System
Diagnostics
Mode
Button
Low Battery
Indicator
CO
Indicator
Light
Segments (4)
Test /
Control Button
MODE POWER H.CODE
OFFON
4
Wireless Smoke Alarm System Wireless Smoke &
Carbon Monoxide Alarm System
RF Smoke Alarm
RF Smoke Alarm
RF Smoke Alarm
Alarm Controller
RF Smoke Alarm
Model No. - Alarms Comment
EIB160e and EIB2110e Series Alarms The EIB100MRF RF module must be fitted
EIB140 and EIB2110 Series Smoke Alarms
Due to our continuous improvements policy, product performance and features are being frequently updated" - See Contact Us section
The Alarms must be fitted on EIB168RF RadioLINK bases
EIB605 and EIB650i Series Smoke Alarms
Alarms must be fitted with the correct EIB605 & EIB600 Series RadioLINK module
Ei208W & Ei208DW Carbon Monoxide Alarms The Alarms must be fitted with EIB200MRF RadioLINK modules
EIB170RF & other RadioLINK devices Contact us or visit our website for details
Works
with
RF CO Alarm
Universal Interface RF Smoke Alarm Alarm Controller Universal Interface
5
Typical System Layout
Install the Alarm Controller mounting plate at an accessible point on the
wall 1.4m +/- 0.2m from floor level. Consider an alternative location if
the controller will be operated by a disabled person.
Also consider security and chose a location where it will not be accidently
or otherwise operated.
Turn on the system by sliding the switch to the on position & check the
power up sequence.
A video of the Alarm Controller installation, house coding & operation is
available on our website - see ‘Contact Us’ section.
6
MODE POWERH.CODE
OFFON
Power up sequence
FIRE, BATTERY & CO indicators flash
Each individual segment lights up red
Each individual segment lights blue
Each individual segment lights green
After power up sequence all lights will go off to indicate standby mode.
7
3. House Coding
It is essential to House Code the Alarm Controller to all the other
RadioLINK Alarms and devices in the system to ensure they will not
communicate with nearby systems. Failure to house code the system
may also result in a system malfunction.
Press and hold the House Code button (H CODE) on the back of the
controller until all segments light up blue, then release. The segments
will flash rapidly for a moment on entering house code.
House code all other RadioLINK Alarms and devices in the system.
Consult the instruction manuals on how to house code the Alarms and
devices. It is essential that each individual Alarm / device is put into
house code mode in it’s actual location.
WARNING
8
Fire / CO Alarm Controller
MODE POWERH.CODE
OFFON
Return to the Alarm Controller and check that all segments are
flashing blue. The number of flashes should equal the number of
RadioLINK Alarms and devices in the system. A system with 3 x Smoke
Alarms, 1 x CO Alarm and 1 x Alarm Controller will result in 5 blue
flashes. It may take up to 10 minutes before all 5 flashes are seen.
The flash pattern will repeat every 5 to 10 seconds while the Alarm
Controller remains in house code.
If it fails to flash the correct number of times, then consult the
‘Troubleshooting the RadioLINK’ section of this instruction manual.
Now, walk around the house to verify that all the other RadioLINK
Alarms and devices are giving the correct amount of flashes.
If any of these fail to flash the correct number of times, then consult
the ‘Troubleshooting the RadioLINK’ section of this instruction
manual.
9
Fire / CO Alarm Controller
To complete the commissioning, the system must exit house code
mode.
The units will automatically exit house code after 30 minutes. Once
coded the system will not communicate with any other RadioLINK
Alarms and devices outside the house coded group.
To manually exit house code press the house code (H CODE) button on the
back of the Alarm Controller. When all the segments light up blue, release
the button. This unit will then send an exit house code signal to all the
other RadioLINK Alarms and devices to exit house code.
After a short period the blue light will turn off and the system will return
to standby mode (normal). Depending on the number of RadioLINK
Alarms and devices in the system this period could vary from 5 to 20
seconds.
If you choose to make the Alarm Controller tamper proof remove the
pip (plastic post) using a pliers or similar tool.
Do not do this until the house coding procedure has been completed!
10
MODE PO
W
ON
Fire / CO Alarm Controller
MODE POWERH.CODE
OFFON
