Briteq STAGE PAINTER 12 Manual de usuario

STAGE PAINTER 12

Preliminary User Guide

Official version will follow soon on:

WWW.BRITEQ-LIGHTING .COM

TABLE OF CONTENTS

1. Safety Instruction

2. Technical Specification

3. How To Set The Unit

4. How To Control The Unit

5. Troubleshooting

6. Fixture Cleaning

1. Safety Instruction

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be

sure that they also receive this instruction booklet.

Unpack and check carefully there is no transportation damage before using the unit.

Before operating, ensure that the voltage and frequency of power supply match the power

requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to avoid electric

shock.

The unit is for indoor use only. Use only in a dry location.

The unit must be installed in a location with adequate ventilation, at least 50cm from

adjacent surfaces. Be sure that no ventilation slots are blocked.

Disconnect main power before replacement or servicing.

Make sure there is no flammable materials close to the unit while operating as it is fire

hazard.

Use safety cable when fixes this unit.

Maximum ambient temperature is TA: 40℃. Don’t operate it where the temperature is

higher than this.

In the event of serious operating problem, stop using the unit immediately. Never try to

repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or

malfunction. Please contact the nearest authorized technical assistance center. Always

use the same type spare parts.

Do not touch any wire during operation as high voltage might be causing electric shock.

Warning

To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or

moisture.

Do not open the unit within five minutes after switching off.

The housing, the lenses must be replaced if they are visibly damaged.

Please read carefully the instruction, which includes important

information about the installation, usage and maintenance.

For power supply, do not connect in series much more than 10 units, use

another mains supply for next 10 units.

Caution

There are no user serviceable parts inside the unit. Do not open the housing or attempt

any repairs yourself. In the unlikely event your unit may require service, please contact

your nearest dealer.

Installation

The unit should be mounted via its metal hole on the bracket. Always ensure that the unit

is firmly fixed to avoid vibration and slipping while operating. Always ensure that the

structure to which you are attaching the unit is secure and is able to support a 10 times

weight of the unit.

2. Technical Specification

3/6/9/12/15 channels switchable

Automatically switching between music trig and auto mode

Great built-in programs under Master/Slave mode trigged by music

Individual control of each LED cluster

Sound sensitivity adjustable via the menu

Auto-fading show with 3 different speeds

Specially designed stand for floor operation

LCD display for easy addressing and setting

Voltage：AC 100-240V~50/ 60Hz

Power consumption: 40W

LED: 12 x 3W Tri-Color

Beam Angle:D45

Fuse: T 6.3A

Dimension: 387 x 207 x 95 mm

Weight: 3.9 kgs

3. How To Set The Unit

3.1 Control Panel

Display

To show the various menus and the selected functions

LED

DMX

DMX input present

MASTER

Master Mode

SLAVE

Slave Mode

SOUND

Flashing

Sound activation

Button

To select the programming functions

DOWN

To go backward in the selected functions

To go forward in the selected functions

ENTER

To confirm the selected functions

Microphone

Receive the sound to control the unit

Only for remote control

By connect to the 1/4’’ microphone jack to control the unit for Stand by, Function and Mode

function.

Mains input

Connect to supply mains power.

Mains output

Connect to supply mains power for other units.

Fuse

For over current protection.

DMX input/output

For DMX512 link, use 3/5-pin XLR plug cable to link the unit together.

Safety Ring

Keep the installation safe.

3.2 Main Function

To select any of the given functions, press the MENU button up to when the required one is

showing on the display. Select the function by ENTER button and the display will blink. Use

DOWN and UP button to change the mode. Once the required mode has been selected,

Press ENTER button to store. Back to the main functions without any change press the

MENU button or wait for 1 minute.

Hold MENU button to exit menu mode, the

unit will run the built-in program you

selected At this time you can press UP and

DOWN button to change show, the new

show will effect immediately. If you change

to show 1-8 or Auto Fade, you can press

ENTER button to choose speed. The unit

will run in the speed selected or it will run to

the music.

The main functions are shown on the

drawing:

DMX Address

Press the MENU button up to when the

DMX Address is showing on the display.

Press ENTER button and the display will

blink. Use DOWN and UP button to change

the DMX512 address. Once the address

has been selected, press the ENTER

button to store. Back to the main functions

without any change press the MENU

button (or wait for 1 minute to exit menu

mode).

Channel Mode

Press the MENU button up to when the

Channel Mode is showing on the display.

Press ENTER button and the display will

blink. Use DOWN and UP button to select

the 3 channels mode or 6 channels mode or 9 channels mode or 12 channels mode 15

channels mode. Once selected, press the ENTER button to store. Back to the main

functions without any change press the MENU button (or wait for 1 minute to exit menu

mode).

Show Mode

Press the MENU button up to when the Show Mode is showing on the display. Press

ENTER button, the display will blink. Press DOWN and UP button to select Show 0 (Auto

show), Show 1 or … or Show 8 or Auto Fade, once selected, press MENU button to store

and back to the last menu, then the unit will run to music. If you choose Show 1-8 or Auto

Fade, press the ENTER button to confirm, then you can press DOWN and UP button to

select Speed 1 (slow speed) or Speed 2 (middle speed) or Speed 3 (fast speed), press

ENTER button to store, the unit will run in the speed that selected. Back to the main

functions without any change press the MENU button or wait for 8 seconds.

Color Mode

Press the MENU button up to when the Color Mode is showing on the display. Press

ENTER button, the display will blink. Press DOWN and UP button to select Manu (manual

setting), Color 1 or … or Color 32, once selected, press MENU button to store. If you

choose Maun, press the ENTER button to confirm, you can press DOWN and UP button to

select Red or Green or Blue, press ENTER button to confirm and press DOWN and UP

button to adjust the value, then press ENTER button to store. Back to the main functions

without any change press the MENU button or wait for 8 seconds.

Slave Mode

Press the MENU button up to when the Slave Mode is showing on the display. Press

ENTER button and the display will blink. Use DOWN and UP button to select the slave 1 or

slave 2 mode. Once selected, press the ENTER button to store. Back to the main functions

without any change press the MENU button (or wait for 1 minute to exit menu mode).

Sound State

Press the MENU button up to when the Sound State is showing on the display. Press

ENTER button and the display will blink. Use DOWN and UP button to select the on (sound

control on) or off (sound control off) mode. Once selected, press the ENTER button to store.

Back to the main functions without any change press the MENU button (or wait for 1 minute

to exit menu mode).

Sound Sense

Press the MENU button up to when the Sound Sense is showing on the display. Press

ENTER button and the display will blink. Use DOWN and UP button to adjust the sound

sensitively (1-100) of the unit. Once the value has been selected, press the ENTER button

to store. Back to the main functions without any change press the MENU button (or wait for

1 minute to exit menu mode).

Black Out

Press the MENU button up to when the Black Out is showing on the display. Pressing

ENTER button and the display will blink. Use DOWN and UP button to select the yes (yes

blackout) or no (no blackout) mode. Once selected, press the ENTER button to store. Back

to the main functions without any change press the MENU button (or wait for 1 minute to exit

menu mode).

Back Light

Press the MENU button up to when the Back Light is showing on the display. Pressing

ENTER button and the display will blink. Use DOWN and UP button to select the on (back

light on) or off (back light off 1 minute after auto show) mode. Once selected, press the

ENTER button to store. Back to the main functions without any change press the MENU

button (or wait for 1 minute to exit menu mode).

Auto Test

Press the MENU button up to when the Auto Test is showing on the display. Pressing

ENTER button and the display will show Test… and the unit will run self-test by built-in

program. To go back to the functions press the MENU button.

Manual Test

Press the MENU button up to when the Manual Test is showing on the display. Press

ENTER button and Red 1 will blink, use UP and DOWN button to choose Green 1 or Blue 1

or Red2 or …or Blue 4 or Dimmer or Strobe, press ENTER button to enter, then press UP

and Down button to adjust the value and press ENTER button to choose next optional. Back

to the main functions without any change please press the MENU button.

White Balance

Press the MENU button up to when the White Balance is showing on the display. Press

ENTER button and the r 255 will blink, press UP and Down button to adjust the value, press

ENTER button to store and g 255 will blink on the display, press UP and Down button to

adjust the value, press ENTER button to store and b 255 will blink on the display, press UP

and Down button to adjust the value, and press ENTER button to store. Back to the main

functions without any change please press the MENU button.

Fan Speed

Press the MENU button up to when the Fan Speed is showing on the display. Pressing

ENTER button and the display will blink. Use DOWN and UP button to select Auto Speed

(When the temperature of the unit under 40℃, FAN stops; between 45℃~55℃, FAN runs at

half speed; above 60℃, FAN runs at full speed. The LEDs will be off if the temperature

higher than 75℃) or High Speed, press ENTER button to store. To go back to the functions

press the MENU button.

Fixture Temp

Press the MENU button up to when the Fixture Temp is blinking on the display. Pressing

ENTER button and the display will show the temperature of the unit. To go back to the

functions press the MENU button.

Fixture Time

Press the MENU button up to when the Fixture Time is blinking on the display. Pressing

ENTER button and the display will show the number of working hours of the unit. To go back

to the functions press the MENU button.

Firmware Version

Press the MENU button up to when the Firmware Version is blinking on the display.

Pressing ENTER button and the display will show the version of software of the unit. To go

back to the functions press the MENU button.

4. How To Control The Unit

You can operate the unit in three ways:

1. By master/slave built-in preprogram function

2. By easy controller

3. By universal DMX controller

4.1 Master/Slave Built In Preprogrammed Function

By linking the units in master/slave connection, the first unit will control the other units to

give an automatic, sound activated, synchronized light show. This function is good when you

want an instant show.

2-light show

In slave mode, slave 1 means the unit run as the master unit and slave 2 means 2-light show.

In order to create a great light show, you can set slave 2 on the second unit to get contrast

movement to each other, even if you have two units only.

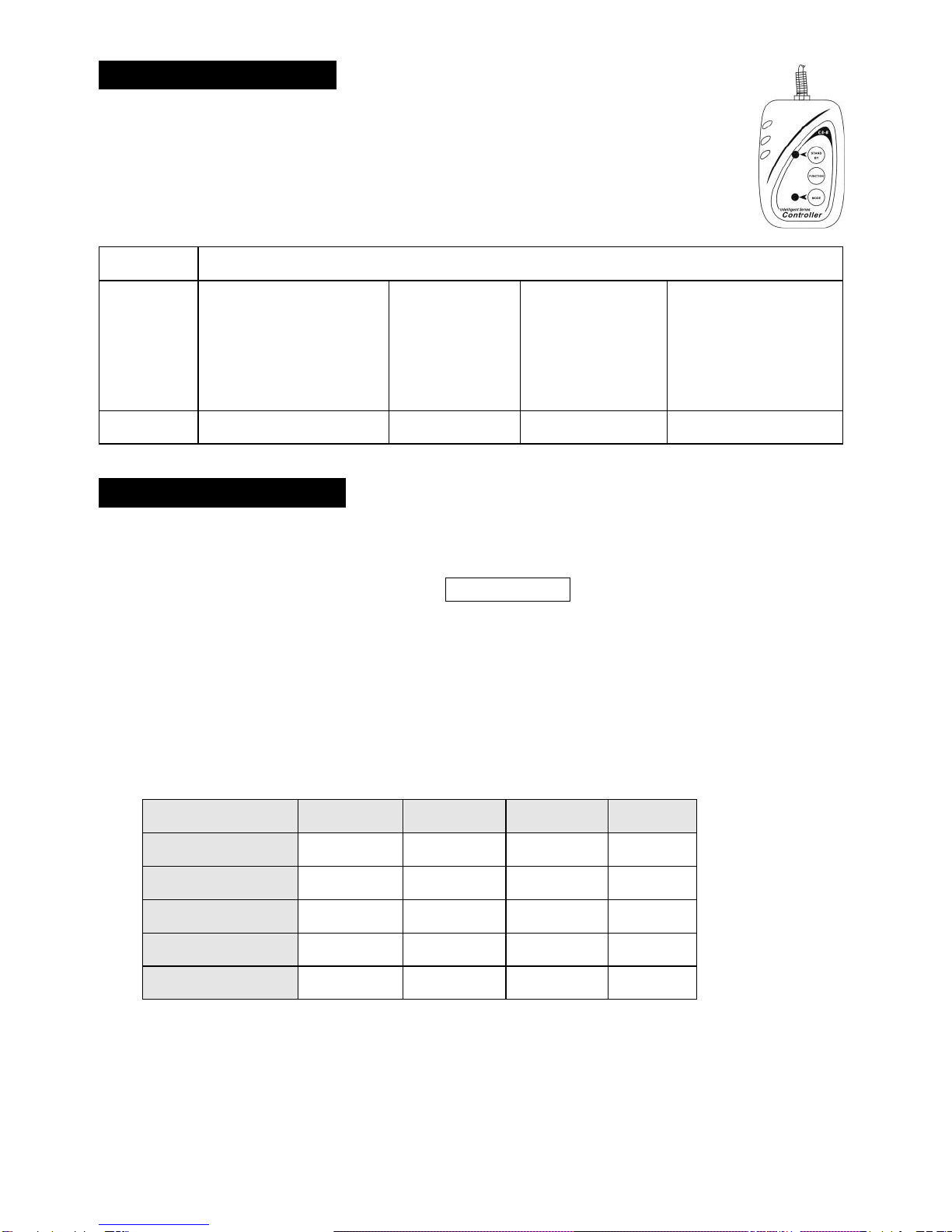

4.2 Easy Controller

The easy remote control is used only in master/slave mode. By connecting to

the 1/4” microphone jack of the first unit, you will find that the remote controller

on the first unit will control all the other units for Stand by, Function and Mode

selection

4.3 DMX Controller

Use universal DMX controller to control the units, you have to set DMX address from 1 to

512 channel so that the units can receive DMX signal.

Press the MENU button up to when the DMX Address is showing on the display. Press

ENTER button and the display will blink. Use DOWN and UP button to change the DMX512

address. Once the address has been selected, press and keep ENTER button to store. To

go back to the functions without any change press the MENU button or wait for 1 minute to

exit menu mode.

Please refer to the following diagram to address your DMX512 channel for the first 4 units:

Channel Mode

Unit 1

Unit 2

Unit 3

Unit 4

3 channels

6 channels

9 channels

12 channels

15 channels

Stand By

Blackout the unit

Function

1. Sync. Strobe

2. Async strobe

3. Sound Strobe

Select

Manua Color

or color 1-32

Select

show 1-8

or Auto fade

Select Speed

1. Slow

2. middle

3. Fast

Mode

Sound (LED OFF)

LED On

Slow blinking

Fast blinking

Tabla de contenidos

Otros manuales de Equipo de iluminación de Briteq

Briteq

Briteq STAGE BEAMER RGB - V1.0 Manual de usuario

Briteq

Briteq Spectra 3D Laser Manual de usuario

Briteq

Briteq LED MEGA BEAM Manual de usuario

Briteq

Briteq Club Laser 7 Manual de usuario

Briteq

Briteq BT-THEATRE 150EZ Manual de usuario

Briteq

Briteq BT-BEAM70 Manual de usuario

Briteq

Briteq Spectra 3D Laser Manual de usuario

Briteq

Briteq MIINI COLOR 7 TC - V1.1 Manual de usuario

Briteq

Briteq BT-CHROMA 800 Manual de usuario

Briteq

Briteq BT-THEATRE 20WW Manual de usuario

Briteq

Briteq BT-54L3 Manual de usuario

Briteq

Briteq BT-GLOWPANEL Manual de usuario

Briteq

Briteq BT-THEATRE 400TW Manual de usuario

Briteq

Briteq BTX 5R BEAM Manual de usuario

Briteq

Briteq BT-LASER2000 RGB Manual de usuario

Briteq

Briteq LED BLINDER WHITE - V1.0 Manual de usuario

Briteq

Briteq BT-NODE28 Manual de usuario

Briteq

Briteq LDP COBWASH Manual de usuario

Briteq

Briteq BTX-700SW Manual de usuario

Briteq

Briteq BT-AKKUPOLE Manual de usuario

Briteq

Briteq BT-36II Manual de usuario

Briteq

Briteq BT-THEATRE 100EC Manual de usuario

Briteq

Briteq BTX 300 Beam Manual de usuario

Briteq

Briteq BT-LASER2000 RGB Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
