Brinno TLC120 Manual de usuario

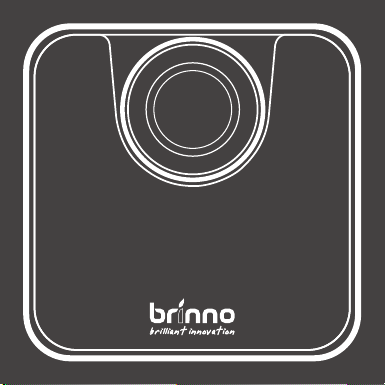

TLC120
Time Lapse Camera
Connecting to a smartphone
P.14
Before you start
Please make sure to follow
these steps before you start:
1. Fully charge the battery.
3. Install the Brinno Camera
App on your phone.
!Smartphone OS
requires:
Android 4.4
or iOS 7.0 above.
3
2
P. 1
2. Insert a SD Card.
(Up to 32 GB)
1
DC IN
5V, 1A
(> 6hrs)
Brinno Camera App
1. Camera:
Connect your smartphone
to Brinno camera.
2. Gallery:
Playback downloaded time
lapse video in app.
1 2
P. 2
1. Connecting to a smartphone
1. Turn on the camera.
2. Turn on Bluetooth and
Wi-Fi on your phone.
3. Open Brinno Camera App.
4. Press “Camera” Button.
5. Select the camera’s
SSID: TLC120-XXXXXX
6. Press “Connect”
ON
OFF
1 2
3 4
Camera
6
5
P. 3
7. Bluetooth is connected
first. If you see Preview
Screen displaying “Wi-Fi
AP Mode Error” , you
need to connect camera
Wi-Fi to preview image.
8. Go to Phone Settings
-> Wi-Fi -> select:
TLC120-XXXXXX
-> Password:
12345678.
(The password is
required for first time
connection.)
7
8
>
Settings Wi-Fi
Choose a network:
Enter password:
TLC120-XXXXXX
12345678
P. 4
9
10
9. Once connected, go back
to Brinno Camera App,
press “Refresh”.
10. Now you see the
preview screen in the
app.
P. 5
2. Record a Time Lapse Video
1. When camera is
successfully
connected to smartphone,
change capture settings:
Scene, Time interval
(Capture rate),
Playback rate. Recommend
settings for new user:
A. Scene: Night
(It suits shootingsfor both
day and night.)
B. Time interval: 5 secs
C. Playback rate: 20FPS
2. Press“Shutter button”to record.
2
A
B
C
1
P. 6
When camera is recording, Wi-Fi
connection will not be working.
3
5.4.3.2.1
3. After the countdown,
the screen will show a
flashing “REC” icon,
now you can exit app.
4. During recording, press
the “Stop button” to
stop recording.
4
P. 7
5. Camera auto processes
time lapse video.
6. When finished, press “OK”
to go back to preview
screen.
5
6
C
!Reconnect to your smartphone
For power saving purpose, camera will turn off Wi-Fi
connection during time lapse video recording.
To re-enable camera preview or playback time lapse
video, you MUST RECONNECT TO camera’s Wi-Fi
after you are done with recording.
>
Settings Wi-Fi
P. 8
3. Playback Time Lapse Video
1. If you can’t see the preview
image, please reconnect
the camera Wi-Fi.
(page 4, step 8-10)
2. When camera is successfully
connected to a smartphone,
select “Gallery” icon.
3. At gallery screen, choose
category icon on the right
bar:
A. “Camera” icon:
Files in the Camera.
B. “Folder” icon:
Files in the App.
C. “Back” icon:
Return to preview screen.
>
Settings Wi-Fi
1
2
3
A
B
C
P. 9
