ASSEMBLY INSTRUCTIONS
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING OR OPERATING YOUR GRILL.
WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT.
The following tool is required to assemble this Brinkmann 4 Burner Gas Grill:
• Phillips Head Screwdriver
20

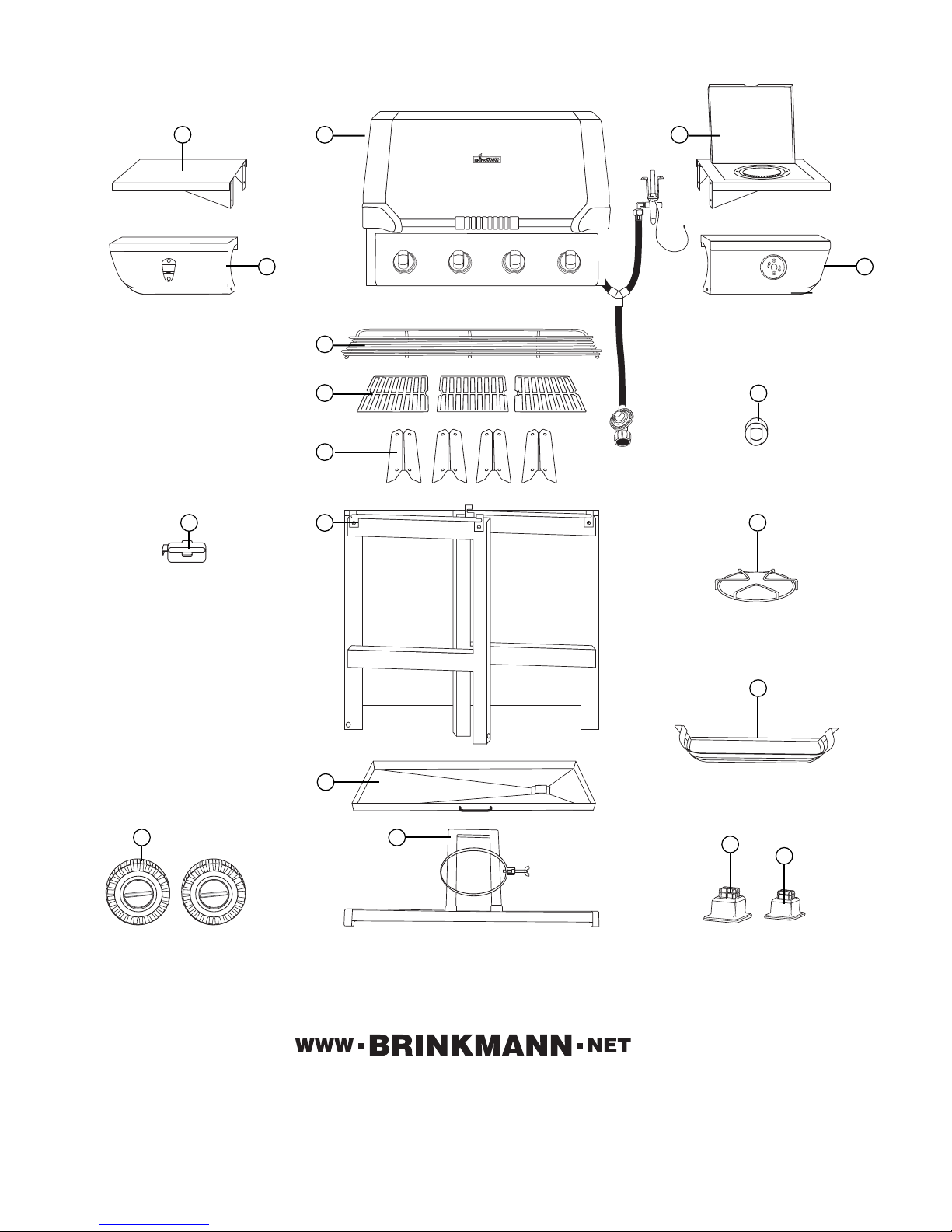

PARTS LIST:
1 Grill Body Assembly
1 Left Side Table
1 Side Burner Assembly
1 Left Side Table Front Panel
1 Side Burner Assembly Front Panel
1 Warming Rack
3 Cooking Grates
1 Side Burner Control Knob
4 Heat Distribution Plates
1
2
3
5
6
7
8
9
1 Grease Cup
1 Foldable Cart
1 Side Burner Grate
1 Accessory Tray
1 Grease Tray
2 Wheel Assembly
1 Tank Holder
1 Large Front Plastic Foot
1 Small Back Plastic Foot
11
12
13
14
15
16
4
10
17
18
FOR COVERS, ACCESSORIES AND OTHER PRODUCTS, PLEASE VISIT US ONLINE AT:
Inspect contents of the box to ensure all parts are included and undamaged.
21
1
2
9
5
11 12
8
3
4
6
10
14
7
15 17
16
13
18
Choose a good, cleared assembly
area and get a friend to help you put
your grill together. Lay cardboard
down to protect grill finish and
assembly area.
CAUTION! Some parts may
contain sharp edges.
Wear protective
gloves if necessary.

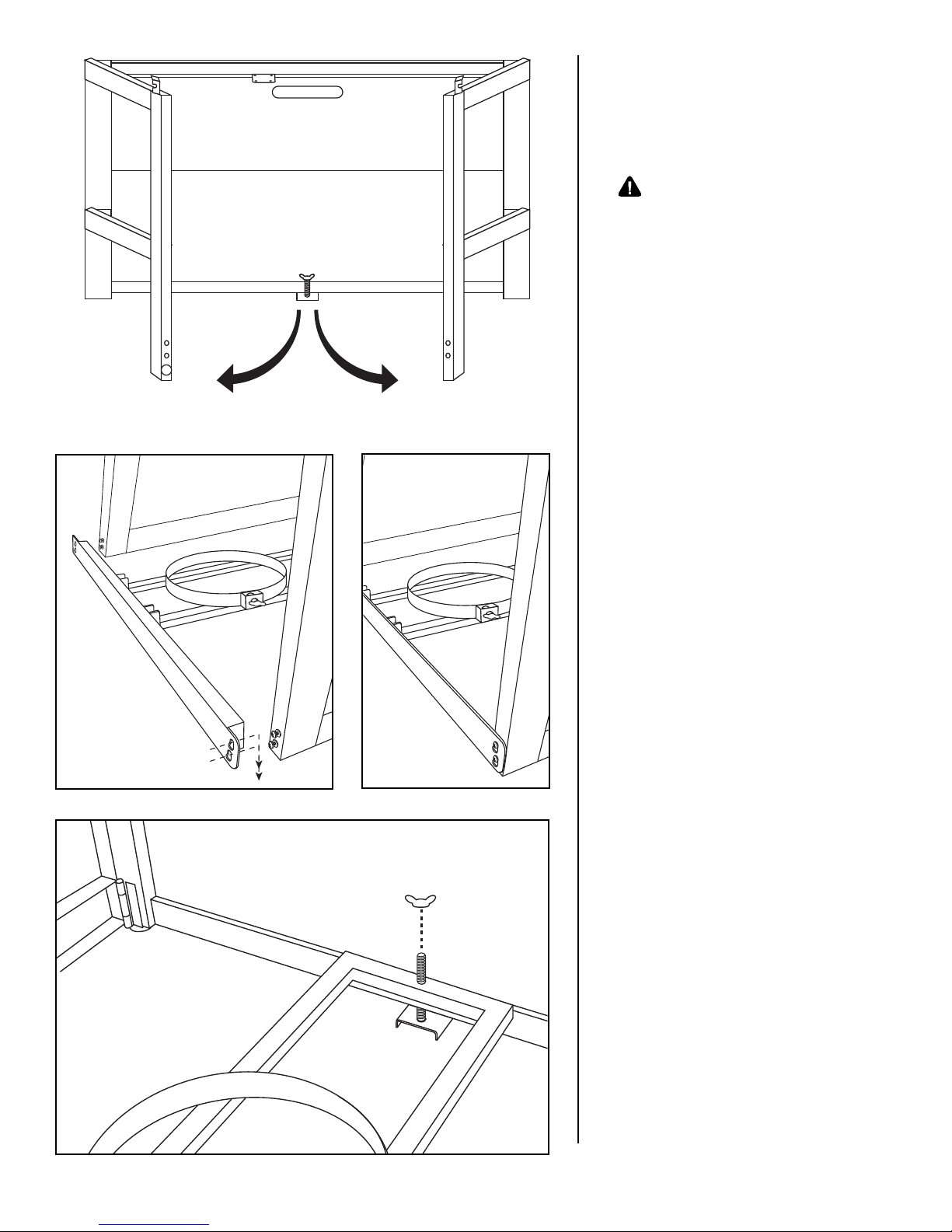

Step 1
Unfold the cart and lock into
place.
Step 2
Attach the tank holder to the cart by
placing keyholes over bolts, slide
down into place and tighten
securely.
Step 3
Remove wing nut from tank holder
bracket bolt. Attach tank holder to
tank holder bracket using pre-
attached wing nut.
22
Step 4
Press large front plastic foot onto
bottom of front left side cart leg. Press
small back plastic foot onto bottom of
back left side cart leg.
Step 5
Insert the wheel assembly through the
cart leg. Secure wheel assembly with
cotter pin.
Step 6
Insert the accessory tray into the tracks
as illustrated.
23
Large Front
Plastic Foot Small Back
Plastic Foot
24
Note: When performing Step 7,
Lift grill body from front and
rear panels to avoid injury to
hands and fingers.
Step 7
With the help of a friend, place grill
body assembly on assembled cart
frame. Rotate the bracket up as
illustrated. Tighten pre-attached bolts
to lock into place.
Grill Body
Assembly
Cart Frame
25
Step 8
Attach front panel to side burner by
inserting pre-attached bolts on side
burner into the keyholes on the
front panel. Tighten bolts securely.
Step 9
Attach front panel to left side table
by inserting pre-attached bolts on
the side table into the keyholes on
front panel. Tighten bolts securely.
Pre-attached
Bolts
Pre-attached
Bolts
Step 10
Remove M6 X 12 mm bolt from left
side of control panel. Attach the
side table assembly to the left side
of firebox. Place table over bolts
and slide toward back of grill, then
tighten securely. Attach left side
table front panel to grill body using
the removed M6 X 12 mm bolt.
Step 11
Remove M6 X 12 mm bolt from
right side of control panel. Attach
the side burner assembly to the
right side firebox. Place side burner
assembly over bolts and slide
toward back of grill, then tighten
securely. Attach side burner front
panel to grill body using the
removed M6 X 12 mm bolt .
26
Side Burner
Igniter Lead
Electrode
27
Note: Loosen the pre-attached
bolts on the burner
assembly bracket before
performing Step 12.
Step 12
Insert the side burner valve
assembly through the holes in the
side burner front panel, then firmly
seat the valve nozzle into the
burner venturi. Rotate burner valve
assembly counterclockwise to lock
in place with keyholes. Then
tighten pre-attached bolts. Place
the side burner control knob on the
side burner valve stem.
Note: Tighten the bolts on the
burner assembly bracket
securely.
Step 13
Place the side burner grate onto
the side burner table.
Step 14
Attach side burner igniter lead wire
to the electrode as illustrated.
Warning: Never use your grill
without leak testing all
gas connections and
hoses. See the section
on “Leak Testing” in
this manual for proper
procedures.
Side
Burner
Valve Burner Venturi
Valve
Nozzle
Bezel
Side Burner
Control Knob
Side Burner
Valve Stem
Keyholes
Burner
Assembly
Bracket
Pre-attached Bolts
28
Step 15
Insert grease tray into tracks on
backside of grill. Hang grease cup
from brackets on bottom of grease
tray.
Step 16
Place the heat distribution plates
on lower level of grill body
assembly directly above burners.
Step 17
Place cooking grates on support
ribs directly above heat
distribution plates.
Step 18
Place warming rack in brackets so
that it sits above the cooking grills.
Grease Tray
Grease Cup
Cooking Grates
Heat
Distribution
Plates
Warming Rack
Brackets
29
Brinkmann 2411 (Assembled)
