Brinkmann Pro Series 2610 Manual de usuario

OFF

HIGH

LOW

OFF

HIGH

LOW

OFF

HIGH

LOW

OFF

HIGH

LOW

MAXIMUM

SIDE BURNER

LOAD = 15 lbs.

1. Read and follow all warnings and instructions

in owner’s manual before lighting.

2. Open lid before lighting burner.

3. Make sure all control knobs are in the OFF position.

4. Select the burner to be lit. Push and turn the control

knob of that burner to HIGH.

5. Press the electronic igniter and hold for 3-5

seconds to light burner.

6. If burner does NOT ignite immediately, turn control

knob to OFF,wait 5 minutes to allow gas to

dissipate and repeat lighting procedure.

7. Repeat Steps 4-6 for lighting each burner. Always

use electronic igniter for lighting each burner.

8. Refer to owner’s manual for match lighting procedure.

9. For assistance, call 1-800-527-0717.

10. To turn off, turn control knobs clockwise until it locks

in OFF position.

GRILL LIGHTING INSTRUCTIONS: SIDE BURNER

LIGHTING

INSTRUCTIONS:

1. Follow Steps

1-3 in GRILL

LIGHTING

INSTRUCTIONS.

2. Push and turn

SIDE BURNER

control knob to

HIGH.

3. Follow Steps

5-10 in GRILL

LIGHTING

FOR OUTDOOR USE ONLY

100

200300

400

500

°F

TO TURN OFF:

Push knob in and turn clockwise until it locks in "OFF" position.

OWNER’S MANUAL

WARNING

HAZARDOUS EXPLOSION MAY

RESULT IFTHESEWARNINGS AND

INSTRUCTIONS ARE IGNORED. READ

AND FOLLOW ALL WARNINGS AND

INSTRUCTIONS INTHIS MANUALTO

AVOID PERSONAL INJURY, INCLUDING

DEATH OR PROPERTY DAMAGE.

ASSEMBLY AND OPERATING INSTRUCTIONS

SAVE THIS MANUAL FOR FUTURE REFERENCE

NOTICE TO INSTALLER:

LEAVE THESE INSTRUCTIONS

WITH THE GRILL OWNER FOR

FUTURE REFERENCE.

Gas Stainless Steel

Outdoor Grill

WE WANTYOU TO ASSEMBLE AND USEYOUR GRILL AS SAFELY AS POSSIBLE.

THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACTYOUR

ATTENTION TO POSSIBLE HAZARDS ASYOU ASSEMBLE AND USEYOUR GRILL.

WHENYOU SEE THE SAFETY ALERT SYMBOL

PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS!

READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY

BEFORE ASSEMBLING AND OPERATING YOUR GRILL.

DANGER

IMPORTANT SAFETY

WARNINGS

FORYOUR SAFETY:

IFYOU SMELL GAS:

1. Shut off gas to the appliance at the LP cylinder and burners.

2. Extinguish any open flame.

3. Open the Lid.

4. If odor continues, leave the area and immediately call your gas supplier or your fire department.

FORYOUR SAFETY:

1. DO NOT store or use gasoline or other liquids with flammable vapors in the vicinity of this or

any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other

appliance to avoid the possibility of explosion.

• Never store a spare LP gas cylinder under or near this grill.

• Never fill the cylinder beyond 80% full.

• A fire causing death or serious injury may occur if the above is not followed exactly.

WARNING

•Never use natural gas in a unit designed for liquid propane gas.

•Never use charcoal briquets or lighter fluid in a gas grill.

•Leak test all connections before first use, even if grill was purchased fully assembled and after

each tank refill.

•Never check for leaks using a match or open flame.

CAUTION! Strong odors, colds, sinus congestion, etc. may prevent the detection of

propane. Use caution and common sense when testing for leaks.

•Always keep gasoline, paint thinner, or other flammable liquids or combustible materials away

from your gas grill.

•DO NOT store flammable products: paper towels, rags, pot holders, etc. in tool drawer.

•Always check the grill prior to each use as indicated in the "Pre-Start Check List" section of this

manual.

•Keep children and pets away from hot grill. DO NOT allow children to use or play near this grill.

•DO NOT leave the grill unattended while in use.

•DO NOT allow the gas hose to come in contact with hot surfaces.

•DO NOT allow grease from drain hole to fall on hose or valve regulator assembly.

•Keep any electrical supply cords away from water or heated surfaces.

•Keep a fire extinguisher on hand acceptable for use with gas products. Refer to your local

authority to determine proper size and type.

•Never place more than 15 pounds on the side burner. DO NOT lean on the side burner shelf.

•For household use only. DO NOT use this grill for anything other than its intended purpose.

•DO NOT use while under the influence of drugs or alcohol.

•Grill is hot when in use.To avoid burns:

•DO NOT attempt to move the grill.

•Lock the wheels so the unit does not accidentally move.

•Wear protective gloves or oven mitts.

•DO NOT touch any hot grill surfaces.

•DO NOT wear loose clothing or allow hair to come in contact with grill.

USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR GAS GRILL.

FAILURE TO ADHERE TO THE SAFETY WARNINGS AND GUIDELINES IN THIS MANUAL

COULD RESULT IN SEVERE BODILY INJURY OR PROPERTY DAMAGE.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

CYLINDER SPECIFICATIONS:

When purchasing or exchanging a cylinder for your gas grill, it must be constructed and marked in

accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation

(DOT) or the National Standard of Canada, CAN/CSA-B339 as applicable with a listed over-filling

prevention device (OPD).

WARNING

LP GAS CYLINDER (NOT SUPPLIED WITH THIS GRILL)

The LP (Liquid Propane) gas cylinder specifically designed to be used with this grill must have

a 20 lb. (9.1 kg) capacity incorporating a Type 1 cylinder valve and an over-filling protection

device (OPD).

•DO NOT connect this grill to an existing #510 POL cylinder valve with Left Hand threads.The

Type 1 valve can be identified with the large external threads on the valve outlet.

•DO NOT connect to a propane cylinder exceeding this capacity.

•DO NOT connect to a cylinder that uses any other type of valve connection device.

INSTALLATION INFORMATION:

The installation of this appliance must be in accordance with:

All applicable local codes, or in the absence of local codes, either:

• National Fuel Gas Code,

• ANSI Z223.1 1988 or latest edition (USA)

• Natural Gas Installation Code: CAN/CGA B149.1 (Canada)

• Propane Installation Code: CAN/CGA B149.2 (Canada)

To check your local codes, see your local LP gas dealer or natural gas company.

This grill was not intended to be connected to a natural gas supply line.

•FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as garage,

shed or breezeway.

•Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to

prevent dangers associated with gas accumulation and toxic vapors.We recommend your grill

be situated at least 10 feet from buildings.

•Maintain a minimum clearance of 24 inches (60 cm) between all sides of grill and walls or other

combustible material. Do not use grill under overhead unprotected combustible construction.

•DO NOT use or install this grill in or on a recreational vehicle and/or boat.

The cylinder must also be equipped with:

•A shut-off valve terminating in a Type 1 gas cylinder valve outlet.

•A Type 1 valve that prevents gas flow until a positive seal is obtained.

•An arrangement for vapor withdrawal.

•A collar to protect the cylinder shut-off valve.

•A safety relief device having direct communication with the vapor space of the cylinder.

•A listed over-filling prevention device (OPD).

•Turn off the cylinder valve when your grill is not in use.

•Handle the tank with care.

•Always secure the cylinder in an upright position.

•Never connect an unregulated LP gas cylinder to your grill.

•DO NOT expose LP gas cylinders to excessive heat or ignition sources.

•DO NOT store a spare LP gas cylinder under or near your grill.

•Allow only qualified LP gas dealers to fill or repair your LP gas cylinder.

•DO NOT allow the cylinder to be filled beyond 80% capacity.

•Read and follow all warnings and instructions that are on the cylinder and that accompany this

product.

•Never store a spare LP gas cylinder under or near your grill.This could cause excess pressure

to be expelled through the vapor relief valve resulting in fire, explosion, or severe personal

injury including death.

NOTE: PROPANE GAS IS HEAVIER THAN AIR AND WILL COLLECT IN LOW AREAS.

PROPER VENTILATION IS EXTREMELY IMPORTANT.

•Keep the ventilation opening(s) of the LP gas cylinder enclosure free and clear from

obstructions and debris.

•DO NOT insert any foreign objects into the valve outlet. Damage to the back-check could

result. A damaged back-check can cause a leak, possibly resulting in explosion, fire, severe

bodily harm, or death.

WARNING

DANGER

WARNING

FILLING THE LP GAS CYLINDER:

•Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder.

•New tanks should be purged prior to filling; inform LP gas dealer if you are using a new tank.

•DO NOT allow the cylinder to be filled beyond 80% capacity. Over-filled tanks can create a

dangerous condition. Over-filled tanks can build-up pressure and cause the relief valve to expel

propane gas vapors.The vapor is combustible and if it comes in contact with a spark source or

flame an explosion causing severe burns, bodily harm, or death could occur.

•Always use a protective cylinder cap when grill is not connected to cylinder.

•If you exchange a cylinder with a qualified exchange program, be sure the cylinder has

a Type 1 valve and an over-filling prevention device (OPD).

INSTALLING THE LP GAS CYLINDER ONTO THE GRILL:

1. Check that the cylinder valve is closed by turning the

knob clockwise.

2. Open cabinet doors and fully extend tank tray.

3. Place the cylinder into the center cut-out of tank tray.

4. Orient the cylinder such that the valve opening faces

the side burner.

5. Fully tighten the wing bolt underneath tank tray

to secure the tank.

6. Attach or detach regulator to the LP gas cylinder only

when cylinder is at rest in tank holder.

HOSE AND REGULATOR:

Your grill is equipped with a Type 1 connection device with

the following features:

1. The system will not allow gas flow from the cylinder until

a positive connection to the valve has been made.

NOTE: The cylinder valve must be turned off before any

connection is made or removed.

2. A thermal device that will shut off the gas flow if the device

is subject to temperatures above 240°F to 300°F (115°C to

150°C). If this should happen, remove the entire regulator

assembly and dispose of properly. A replacement regulator

assembly can be purchased by contacting Brinkmann at

1-800-527-0717.The cause of the excessive heat should

be determined and corrected before

using your grill again.

3. A flow limiting device, when activated, restricts the flow

of gas to 10 cubic feet per hour.

WARNING

•Never use your grill without leak testing all gas connections and hoses. See the section on

"Leak Testing" in this manual for proper procedures.

The pressure regulator and hose assembly supplied with your gas grill is designed to work with an

LP gas supply cylinder.

•DO NOT attempt to connect it to any other fuel supply source such as a natural gas line.

•DO NOT use any other pressure regulator/hose assembly other than the one supplied with your grill.

•DO NOT attempt to adjust or repair the regulator. A replacement regulator can be supplied by

contacting Brinkmann.The regulator is designed to operate at a maximum output pressure of 11

inches of water column (2.74 kPa).

During assembly and/or replacement of the gas cylinder, keep the gas supply hose free of kinks and/or

damage.

Visually inspect the hose assembly prior to each use for evidence of damage, excess wear, or

deterioration. If found, replace the assembly before using your grill. Only the Brinkmann supplied

replacement should be used.

CONNECTING HOSE AND REGULATOR TO AN LP GAS CYLINDER

•Insure the tank valve is CLOSED prior to connecting the LP gas cylinder to your grill.Turn the

valve knob clockwise to properly close the valve. Read and follow all instructions and warnings

on the supply hose safety tags. Read and follow all warnings in this manual concerning the safe

use of LP gas cylinders and the hose and regulator before connecting cylinder to grill. Read and

follow all warnings on the LP cylinder.

1. Check that the cylinder valve is closed by turning the knob clockwise.

2. Check that the grill’s burner knobs are in the OFF positions.

3. Remove the protective plastic cap from the cylinder valve and the connection device.

4. Insert the nipple of connection device into the valve outlet. Insure that the device is centered properly.

5. Turn the large coupling nut clockwise by hand and tighten to a full stop.Take care not to cross thread

the coupling nut onto the cylinder valve. Do not over-tighten the knob onto the valve. Do not use tools

to tighten connection.

NOTE: If you are unable to make the connection, repeat steps 4 and 5.

6. Check that the hose does not contain kinks, does not contact sharp edges, and does not contact

surfaces that may become hot during use.

7. Leak check all fittings before lighting your grill. See section on "Leak Testing" in this manual.

WARNING

LEAK TESTING:

To prevent fire or explosion hazard:

•DO NOT smoke or permit ignition sources in the area while conducting a leak test.

•Perform test OUTDOORS only in a well ventilated area.

•Never perform a leak test with a match or open flame.

•Never perform a leak test while the grill is in use or while grill is still hot.

WHEN TO PERFORM A LEAK TEST:

•After assembling your grill and before lighting for the first time, even if purchased fully assembled.

•Every time the LP gas cylinder is refilled or if any of the gas components are replaced.

•Any time your grill has been moved.

•At least once per year or if your grill has not been used for more than 60 days.

CHECKING FOR LEAKS:

1. Create a mixture of 50% water and 50% liquid dishwashing soap.

2. Open the lid.

3. Insure all burner knobs are set to the OFF position.

4. To turn on the fuel supply, turn the cylinder

valve knob one turn counterclockwise.

5. Apply the soap water mixture to the following:

Supply tank (cylinder) weld

Connection nut to tank valve.

Back side of connection nut to brass

nipple.

Brass nipple connection into regulator.

Regulator connections to gas supply

hoses.

Gas supply hose connection to side

burner valve assembly.

Side burner valve stem cap.

“Y”connector to all three gas supply

hoses .

Gas supply connection to gas manifold.

The full length of gas supply hose

Tank valve to cylinder

WARNING

Watch For Bubbles

DANGER

WARNING

6. Check each place listed (A -K) for growing bubbles which indicates a leak.

7. Turn OFF gas supply at cylinder valve.

8. Turn on control knobs to release gas pressure in hose.

9. Turn control knobs to OFF position.

10. Tighten any leaking connections.

11. Repeat soapy water test until no leaks are detected. DO NOT use the grill if leaks cannot be stopped.

Contact a qualified gas appliance repair service.

12. Turn OFF gas supply at cylinder valve until you are ready to use your grill.

13. Wash off soapy residue with cold water and towel dry.

14. Wait 5 minutes to allow all gas to evacuate the area before lighting grill.

NOTE: The leak test must be performed in an area that has adequate lighting in order to see if

bubbles are developing. DO NOT use a flashlight to check for bubbles.

PRE-START CHECK LIST:

Property damage, bodily harm, severe burns, and death could result from failure to follow these

safety steps.These steps should be performed after the grill has been assembled, stored, moved,

cleaned, or repaired. DO NOT operate this grill until you have read and understand ALL of the

warnings and instructions in this manual.

•Insure that the grill is properly assembled.

•Inspect the gas supply hose for burns, chaffing, kinks, and proper routing before each use. Hose

should be at least 3 inches from hot surfaces.

•Leak check all gas connections and hose. See section on "Leak Testing".

•Ensure that all electrical supply cords are properly grounded and are kept away from water and hot

surfaces.

•Position your grill on level ground in a well ventilated location, a safe distance from combustible

materials and buildings.

•Properly place the empty grease tray under the grease drain hole in the bottom of the

grill to catch grease during use.

Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip

any of the warnings and instructions contained in the preceding sections of this manual.

WARNING

LIGHTING INSTRUCTIONS:

Follow the instructions exactly.

1. OPEN THE GRILL LID before attempting to light a burner so that fumes do not accumulate inside

the grill. An explosion could occur if grill lid is down.

2. Check that all burner control knobs and the cylinder valve are turned to the OFF position.

3. Turn on the fuel supply by rotating the cylinder valve knob counterclockwise to full open.

4. DO NOT stand with head, body, or arms over the grill when lighting.

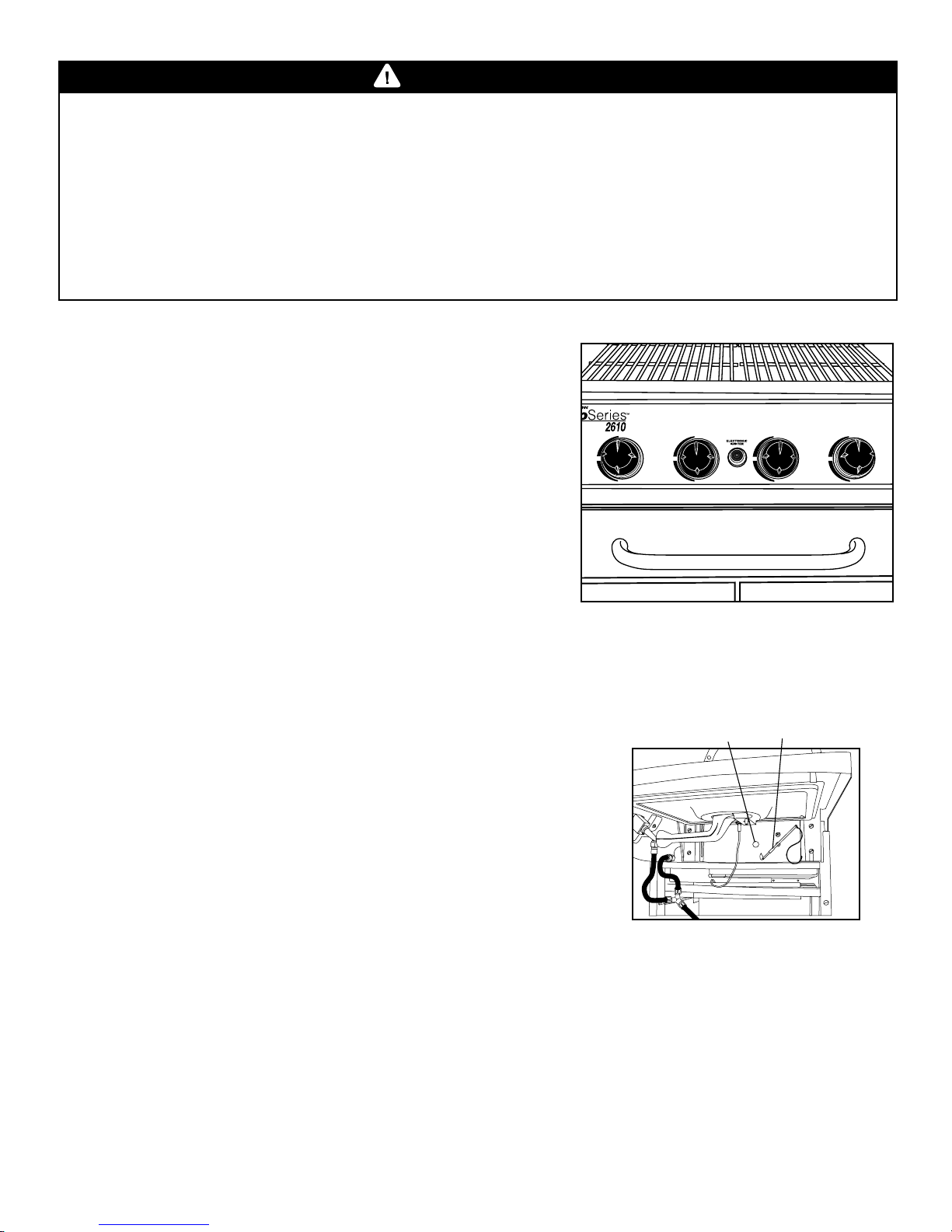

LIGHTING THE MAIN BURNERS:

1. Open lid before lighting burner.

2. Make sure all control knobs are in the OFF position.

3. Select the burner to be lit. Push and turn the control knob of

that burner to the HIGH position.

4. Press the electronic igniter and hold for 3-5 seconds until

burner ignites.

5. If burner does NOT ignite immediately, turn the burner control

knob to OFF, wait 5 minutes for gas to evacuate the grill.

Repeat steps 1 through 5 until burner ignites.

6. If burner does not ignite using the push button igniter wait

5 minutes, see "Match Lighting the Main Burners" section.

7. Once lit, light adjacent burners in sequence by pressing in

and rotating the control knob to the HIGH position.

MATCH LIGHTING THE MAIN BURNERS:

1. Open lid before lighting.

2. Turn the burner control knobs to OFF.

3. Place a paper match in the end of the matchlighter. Strike

the match and place through lighting hole in the right hand

side of the grill to approximately 1/2" (2 to 3 cm) from the

burner.

4. Turn on the FAR RIGHT burner control knob to the HIGH

position.The burner should light within

5 seconds.

5. If the burner does not light, turn the control knob to OFF and wait 5 minutes for gas to evacuate the

grill. Repeat steps 1 through 5 until the burner ignites.

6. Once lit, light adjacent burners in sequence by pressing in and rotating the control knob to the

HIGH position.

7. If the burner does not light within the first few attempts of match lighting, there is a problem with the

gas supply. Turn off the gas at the burner and cylinder. DO NOT attempt to operate the grill until the

problem is found and corrected. See “Trouble Shooting”section of this manual.

WARNING

OFF

HIGH HIGH

LOW

LOW LOW LOW

HIGH HIGH

OFF OFF

OFF

1. Read and follow all warnings and instructions

in owner’s manual before lighting.

2. Open lid before lighting burner.

3. Make sure all control knobs are in the OFF position.

4. Select the burner to be lit. Push and turn the control

knob of that burner to HIGH.

5. Press the electronic igniter and hold for 3-5

seconds to light burner.

6. If burner does NOT ignite immediately, turn control

knob to OFF, wait 5 minutes to allow gas to

dissipate and repeat lighting procedure.

7. Repeat Steps 4-6 for lighting each burner. Always

use electronic igniter for lighting each burner.

8. Refer to owner’s manual for match lighting procedure.

9. For assistance, call 1-800-527-0717.

10. To turn off, turn control knobs clockwise until it locks

in OFF position.

GRILL LIGHTING INSTRUCTIONS: SIDE

LIGH

INST

1. Fol

1-3

2. Pu

3. Fol

5-1

FOR OUTDOOR USE ONLY

Lighting Hole Matchlighter

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Parrilla de Brinkmann

Brinkmann

Brinkmann Porcelain 4 Burner Gas Grill Manual de usuario

Brinkmann

Brinkmann Grill Zone 6355-T Manual de usuario

Brinkmann

Brinkmann Southgate Heavy-Duty Natural Gas Grill Manual de usuario

Brinkmann

Brinkmann HIL-5502-SMK Manual de usuario

Brinkmann

Brinkmann ProSeries 4675 Manual de usuario

Brinkmann

Brinkmann Grand Gourmet 2250 Manual de usuario

Brinkmann

Brinkmann ProSeries 4415 Manual de usuario

Brinkmann

Brinkmann Pro Series 6418 Manual de usuario

Brinkmann

Brinkmann 1575 ProSeries Manual de usuario

Brinkmann

Brinkmann 5 Burner Gas Grill with Smoker Manual de usuario

Brinkmann

Brinkmann Portico Collection Manual de usuario

Brinkmann

Brinkmann Grill King DeLuxe Heavy-Duty Outdoor Charcoal Grill &... Manual de usuario

Brinkmann

Brinkmann 810-1750-S Manual de usuario

Brinkmann

Brinkmann ProSeries 2235 Manual de usuario

Brinkmann

Brinkmann Series 4615 Manual de usuario

Brinkmann

Brinkmann Backyard kitchen Manual de usuario

Brinkmann

Brinkmann 810-3015-S Manual de usuario

Brinkmann

Brinkmann ProSeries 8445 Manual de usuario

Brinkmann

Brinkmann 810-2455-G Manual de usuario

Brinkmann

Brinkmann Smoke 'N Pit OUTDOOR BARBECUE GRILL & SMOKER Manual de usuario

Brinkmann

Brinkmann Grill Zone 810-4415-T Manual de usuario

Brinkmann

Brinkmann Dual Zone Charcoal Grill Manual de usuario

Brinkmann

Brinkmann Elite Manual de usuario

Brinkmann

Brinkmann 810-3810-S Manual de usuario

Manuales populares de Parrilla de otras marcas

Orbegozo

Orbegozo GR 2300 Manual de usuario

bora

bora PT11 Manual de usuario

Klarstein

Klarstein 10031664 Manual de usuario

Garland

Garland MWE3W Manual de usuario

Char-Broil

Char-Broil 463722714 Manual de usuario

Nexgrill

Nexgrill 720-0830HK Manual de usuario

Kenmore

Kenmore 415.16123800 Manual de usuario

Camp Chef

Camp Chef PG24CLAU Manual de usuario

Tucker Barbecues

Tucker Barbecues GTR Series Instrucciones de montaje

Monogram

Monogram ZGG540NCP1SS Manual de usuario

Equipex

Equipex Sodir Savoy Manual de usuario

Gaggenau

Gaggenau VR 414 610 Manual de usuario

Miele

Miele KM 408-1 Manual de usuario

George Foreman

George Foreman GGR50B Manual de usuario

AOG

AOG T series Manual de usuario

Gorenje

Gorenje TG2000CB Manual de instrucciones

Weber

Weber Genesis Silver-B Permamount NG 051701 Manual de usuario

Glen

Glen SA 3037 Manual de usuario
