Brightek U02 Instrucciones de uso



QUICK INSTALL

快速安装

北京炜煌科技发展有限公司

Beijing Bright Technology Development Co.,Ltd





U02/U03

快速安装手册

http://www.whkj.com.cn010‐51655555

●打印机各部件一览 Printer Parts Names



1.密封圈 Seal Ring

2.切刀单元 Cutting Unit

3.滑轴 Sliding Axis

4.滚轴 Platen Roller

5.打印头 Printer Head

6.锯齿 Sawtooth

7.锁扣 Lock

8.纸将尽调节 NPE Adjust

9.纸将尽检测 NPE Check

10.电源指示灯 Power Indicator

11.纸卷 Paper Roll

12.纸轴 Paper Roller

13.数据接口 Interface Connector

14.USB 接口 USB Connector

15.SEL 键 SEL Button

16.LF 键 LF Button

17.电源接口 Power Connector

18.地线 Grounding



按钮开关的操作及指示灯

打印机上电后，电源指示灯常亮为正常状态，电源指示灯闪烁为缺纸。正常

上电后，按 LF 键走纸，SEL 键无效。

自检测方式

打印机断电，按 LF 键不放手同时给打印机上电，上电，松手，打印机就会

打印出自检条。

Operation Specification

After turning on the printer, the indicator light will keep on. When

the light flash, it shows that the paper is lacking, and the printer

can not receive data. After turning on the printer, press the LF

button, the printer will feed paper, and the SEL button is no used,

The Self Test

Press the LF button, do not release and repower the printer at the

same time，and then the printer will print out the self-check scrip.

快速安装手册

http://www.whkj.com.cn010‐51655555

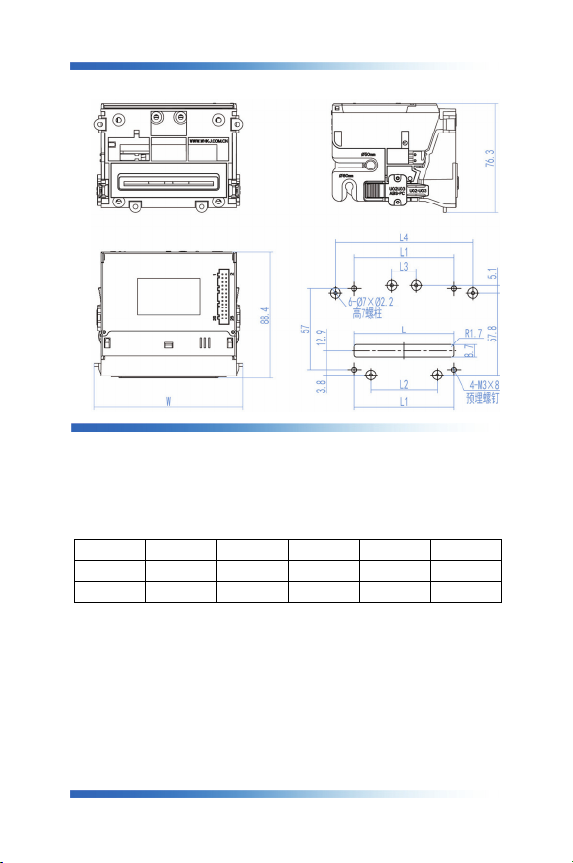

●尺寸 Size



WH-U02 U03 型尺寸 Product Size:

外型尺寸 Outline Dimension: (U02)104.3mmX88.4mmX76.3mm

(U03)126.4mmX88.4mmX76.3mm

安装尺寸 Mounting Dimension:

L L1 L2 L3 L4

U02 70 70 46.5 17.2 96.3

U03 92.1 92.1 68.6 39.3 118.4

快速安装手册

http://www.whkj.com.cn010‐51655555

●安装 Installation



安装方法：

安装方法有两种：一种是安装在金属机箱上，机上有根据尺寸预埋 4 个螺丝，安装时

把切纸单元对准出纸口并套在预埋螺丝上，用配套螺母固定即可；另一种是固定在塑料机

箱上，塑料机柜上根据尺寸设计 6 个固定自拱螺柱，安装时把切纸单元对准出纸口和 6 个

螺柱，用配套的自拱螺丝固定即可。

Installation Method

Method 1: When mounted on a metal plate, fix the cutting unit onto the embedded

four screws of the metal plate, then tighten the nut.

Method 2: When mounted on a plastic plate, fix the cutting unit onto the

embedded six tapping studs of the plastic plate, then tighten the tapping screws.



金属外壳



塑料外壳



φ80

φ50

快速安装手册

http://www.whkj.com.cn010‐51655555

●连接 Connection



通讯连接：

请严格参照公司网站提供产品说明书进行连接。

电源连接：

WH 微打随机提供的一根带有插头的两线电源电缆,插头具有极性保护机构,电源电缆

的红色线接电源正极(+),另一线接电源负极(-)。

注意:

不要将交流 220V 与打印机电源插座直接相连，工作电压应在额定电压

±5%以内,电源极性一定要接正确,否则会给打印机造成永久性损坏,炜煌公

司对此不承担保修义务。

Communication Connection

Please refer to the printer manual on company website.

Power Connection

Notice the power cable, connect the red cord to positive pole, connect the white

cord to the negative pole.

Attention：

Do not connect AC to the printer directly, operating voltage should be within

± 5% rated voltage. Power polarity must be correct, otherwise it will cause

permanent damage to printer, brightek company do not assume maintenance compulsory

upon this.



快速安装手册

http://www.whkj.com.cn010‐51655555

●装纸 Paper Roll



安装步骤：

1.如图 1 箭头方向所示，按压两侧锁扣，并将打印单元取下

2.将纸轴装入纸卷,然后装入打印机纸仓内，将纸轴两边固定在卡槽内(如图 3)，同时注意

纸的方向有药液的一面（光滑面）向下（如图 2）。

3.把打印纸装入后并拉出一截,将纸插入入纸口内，注意把纸放整齐。

4.开机，按下 LF 键使机头转动，如果纸走歪，再按下 LF 键。

5.把打印单元推入复位。

Replacing the Paper Roll

1. As the Fig.1 show, champ the lock both sides with fingers, and draw out the

printer unit

2. Put the new paper on the paper roller, and install the roller firmly on the

printer. Notice the direction of the paper according to Fig.2.

3. Pull out a small amount of paper and insert the paper into the feeder.

4. Power the printer on, press LF button, make the print head to run, and the paper

will come out.

5. Push the printer unit to the original position.

快速安装手册

http://www.whkj.com.cn010‐51655555

●清洁 Cleaning



清洁保养：

热敏打印机使用久了以后，热敏条与滚轴上会留下一些污垢，如果不及时清理会影响到打

印机的使用与寿命。我们建议您不定期做好清理。方法是打开纸舱盖，用棉棒沾少许酒精，

轻轻擦拭打印机热敏头，及纸仓上的滚轴。

Printer Cleaning

If the interior of the printer is dusty, print quality can decline. So please clean

the printer regularly. Open the cover of printer, then wipe the printer head with

a cleaning pen and use a cloth moistened with an alcohol to solution to clean the

paper sensor and the platen roller.



●产品规格一览表 Product Specification

项目 ITEMS 规格 SPECIFICATION

打印方式 Printing method 行式热敏打印 Direct thermal line printing

纸宽 Paper width 57mm/80mm

打印宽度 Print width 48mm/72mm

分辨率 resolution ration 8 dots/mm(384 dots/line / 576 dots/line)

打印头寿命 life of printing head 6,000,000 character lines

打印速度 Printing speed 65mm/sec (when the utilization rate is 25%)

字符大小 Character size 6x8dots, 8x16dots, or 12x24dots

汉字库 Chinese character library GB2312, 16x16dots, or 24x24dots

纸的规格 Paper supplied 57mm wide,50mm

ø/

80mm

接口 Interface Serial(RS232C,TTL)/485/Parallel interface

输入电源 Input power DC 9V～24V, 25W

操作温度 Operating temperature 5℃～50℃

存储温度 Storage temperature -20℃～60℃

操作湿度 Operating humidity 10%～80%

存储湿度 Storage humidity 10%～90%
