QUICK INSTALL
快速安装
北京炜煌科技发展有限公司
Beijing Bright Technology Development Co.,Ltd
A9
快速安装手册
http://www.whkj.com.cn010‐51655555
●打印机各部件一览 Printer Parts Names
1.卡子 Fastener
2.热敏打印头 Printer head
3.LF 键/电源指示灯 LF Button/ Indicator light
4.纸仓 Paper Case
5.纸仓开关 Lock
6.滚轴 Platen Roller
7.SET 键 SET Button
8.电源接口 Power Connector
9.数据接口 Interface Connector
10.固定架 Holder
按钮开关的操作及指示灯
打印机上电后指示灯保持常亮状态，打印机缺纸时指示灯闪，不能接收数据。
正常上电后，LF 键为走纸键，SET 键无效。
自检测方式
打印机断电，按 LF 键不放手同时给打印机上电，松手，打印机就会打印出
自检条。
Operation Specification
After turning on the printer, the indicator light will keep on. When
the light flash, it shows that the paper is lacking, and the printer
can not receive data.
After turning on the printer, press the LF button, the printer will
feed paper, and the SET button is no used.
The Self Test
Press the LF button, do not release and repower the printer at the
same time，and then the printer will print out the self-check scrip.
快速安装手册
http://www.whkj.com.cn010‐51655555

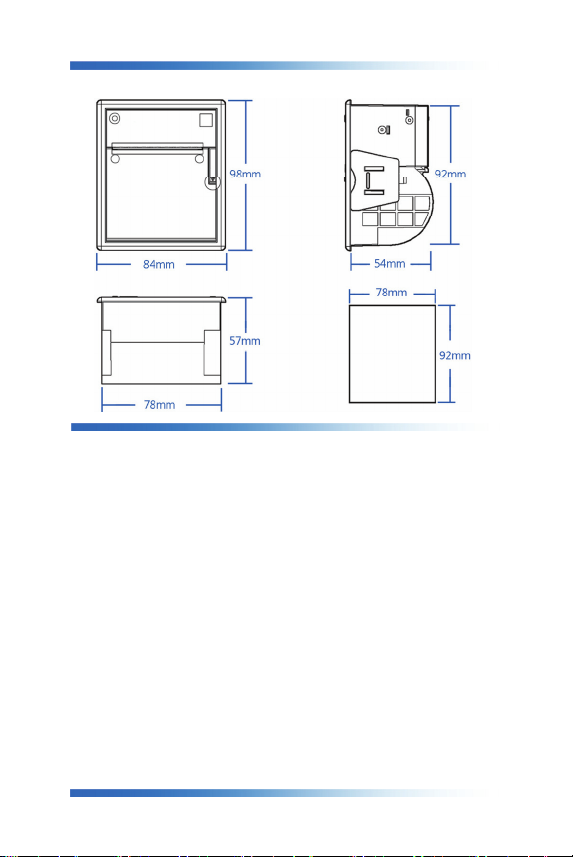

●尺寸 Size
WH-A9 型尺寸 Product Size:
外形尺寸：Outline Dimension： 98mm×84mm×57mm
开口尺寸：Installation Dimension： 78mm（W）×92mm（H）
嵌入深度：Inlaid Deepness： 54mm
快速安装手册
http://www.whkj.com.cn010‐51655555
●安装 Installation
安装方法：
请把打印机嵌入部分插入仪器或设备面板的安装孔内，如图中把卡子装在打印机两侧的固
定架上，并把固定螺丝拧紧，左右对称各一套，安装方法相同。
对于要安装的面板厚度为 0.5～8mm 厚的金属板或塑料板；厚薄不会影响打印机安装的牢
固性。
开口尺寸：78mm+0.5×92mm+0.5
Installation Method
Insert the built-in part of printer into the installing orifice of instrument or
equipment. As the picture show, fix the fastener onto the printer and tighten the
screws.
For the faceplate that will be fixed, it could be metal plate or plastic plate
with thickness from 0.5mm to 8mm. Neither too thick nor too thin would affect the
fastness of the printers.
Installation dimension:78mm+0.5×92mm+0.5.
快速安装手册
http://www.whkj.com.cn010‐51655555
●连接 Connection
通讯连接：
请严格参照公司网站提供产品说明书进行连接。
电源连接：
WH 微打随机提供的一根带有插头的两线电源电缆,插头具有极性保护机构,电源电缆的红
色线接电源正极(+),另一线接电源负极(-)。
注意:不要将交流 220V 与打印机电源插座直接相连，工作电压应在额定电压
±5%以内,电源极性一定要接正确,否则会给打印机造成永久性损坏,炜煌公
司对此不承担保修义务。
Communication Connection
Please refer to the printer manual on company website.
Power Connection
Notice the power cable, connect the red cord to positive pole, connect the white
cord to the negative pole.
Attention： Do not connect AC to the printer directly, operating voltage should
be within ± 5% rated voltage. Power polarity must be correct, otherwise it will
cause permanent damage to printer, brightek company do not assume maintenance
compulsory upon this.
快速安装手册
http://www.whkj.com.cn010‐51655555
●装纸 Paper Roll
安装步骤：
1.如图 2 所示，箭头位置按下旋转扳手，并往外拉旋转扳手，使打印头走纸轴跳出打印头。
2.拉开纸仓盖，把打印纸装入，并拉出一截（超出一点撕纸牙齿），把纸放整齐，同时注
意纸的方向，如图 3 所示，有药液一面（光滑面）向上。
3.合上纸仓盖，打印头走纸轴压齐打印纸后稍用力把打印头走纸轴压回打印头，并把旋转
扳手推入复位。
4.接通打印机的电源，然后按键使机头转动，这时看一下纸是否走歪，待机或关上电源。
Replacing the Paper Roll
1. Unsheathe the circumrotated wrench from the position the arrow point to and
circumgyrate it until the paper cover opened as shown in Fig 2.
2. Undrawn the paper cover, and insert the paper into the printer, then pull out
a small amount of paper. Notice the direction of the paper according to Fig.3.
3. Close the paper cover. Press the platen roller back to the printer head, then
push the circumrotated wrench to the original position.
4. Power the printer on, then press LF button, make the print head to turn, and
the paper will come out. Turn off the power.
快速安装手册
http://www.whkj.com.cn010‐51655555
●清洁 Cleaning
清洁保养：
热敏打印机使用久了以后，热敏条与滚轴上会留下一些污垢，如果不及时清理会影响到打
印机的使用与寿命。我们建议您不定期做好清理。
纸仓盖打开后，用棉棒沾少许酒精，轻轻擦拭打印机热敏头，及纸仓上的滚轴。
Printer Cleaning
If the interior of the printer is dusty, print quality can decline. So please clean
the printer regularly. Open the cover of printer, then Wipe the print head with
a cleaning pen and Use a cloth moistened with an alcohol solution to clean the
paper sensor and the platen roller.
●产品规格一览表 Product Specification
项目 ITEMS 规格 SPECIFICATION
打印方式 Printing method 行式热敏打印 Direct thermal line printing
纸宽 Paper width 57mm
打印宽度 Print width 48mm
分辨率 resolution ration 8 dots/mm (384 dots/line)
打印头寿命 life of printing head 6,000,000 character lines
打印速度 Printing speed 50mm/sec(when the utilization rate is 25%)
字符大小 Character size 6x8dots, 8x16dots, or 12x24dots
汉字库 Chinese character library GB2312, 16x16dots, or 24x24dots
纸的规格 Paper supplied 57mm wide,50mmø
接口 Interface Serial(RS232C／TTL／４８５)/Parallel interface
输入电源 Input power 参照开发手册 According to the development manual
操作温度 Operating temperature 5℃～50℃
存储温度 Storage temperature -20℃～60℃
操作湿度 Operating humidity 10%～80%
存储湿度 Storage humidity 10%～90%
