Briggs & Stratton 030208-1 Guía de configuración

030208-1

(3500W)

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline

Llame: Línea Directa del Generador

1-800-743-4115 M-F 8-5 CT

web: www.briggsandstratton.com

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A. Manual No. 199051A

Revision B (04/18/2006)

Illustrated Parts List

Las Partes ilustradas Listan

3500W Portable Generator

EXPLODED VIEW - MAIN UNIT

3500W Portable Generator

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 M194779GS CRADLE

2 194150GS KIT,Vibration Mount

3 * TPHMS, M8 1.25 x 35

4 186058AGS HOUSING, Engine Adapter

5 NSP ASSY,Alternator (see page 4)

6 * NUT, Hex, M8 - 1.25

7 67989GS NUT, M8 Flange Serrated

8 96796GS WASHER, M8 Flat

9 * WASHER, Lock M8

10 86307GS HHCS, 5/16-24 x 3/4, SEMS

11 24823GS HHCS, 5/16-24 x 7-7/8" Lg

12 * HHCS, M8 - 1.25 x 25

14 191785GS BRACKET, Muffler

15 697815 GASKET, Exhaust

16 * HHCS, M6 1.0 x 12 with LW

17 188301GS MUFFLER

18 * SHCS, M6 - 1.0 x 20

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

22 86494GS SCREW,Wing M6 - 1.0 x 16

21 194153GS KIT,Vibration Mount

23 86292GS SCREW, 10 - 16 x 3/4, Self Drill

24 191790GS SHIELD, Heat

25 191190GS CAP

26 74908GS TAPTITE, M5-0.8 x 10 Lg.

31 196830GS DECAL, Caution Hot Muffler

34 195422GS COVER, RBC with Cap

35 195207GS KIT, Fuel Hose with Clamp

37 B2153GS HHCS, 12 - 14 x 7/8" Self Driller

Item Part # Description

40 194398GS KIT, Fuel Tank Hardware (Includes

Qty of 4)

41 192980GS KIT,Valve,Tank

44 193645GS ASSY,Tank, Fuel (Includes Items 41,

50, 51 & 52)

45 200095GS CAP, Fuel

48 195373GS WIRE, Ground

50 188333GS DECAL, Fuel Level

51 194799GS DECAL, Danger

52 189235GS DECAL, Operating Instructions

55 197798GS DECAL, Fuel Shut Off

58 191743AGS ASSY, Control Panel (see page 5)

59 * NUT, Palut, 3/16"

900 § ENGINE

Parts Not Illustrated

199051GS MANUAL, Operator’s

MS3430 MANUAL, Engine

BB3061GS OIL BOTTLE

195576GS KIT, Decals, Service

199384GS DECAL, Family, CA EVP, 2006

Optional Accessories

100031 STABILIZER, Fuel

§ - Contact Engine Manufacturer

* - Items without part numbers are common fasteners and

are available at your local hardware store.

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton

Power Products Group, LLC.

3500W Portable Generator

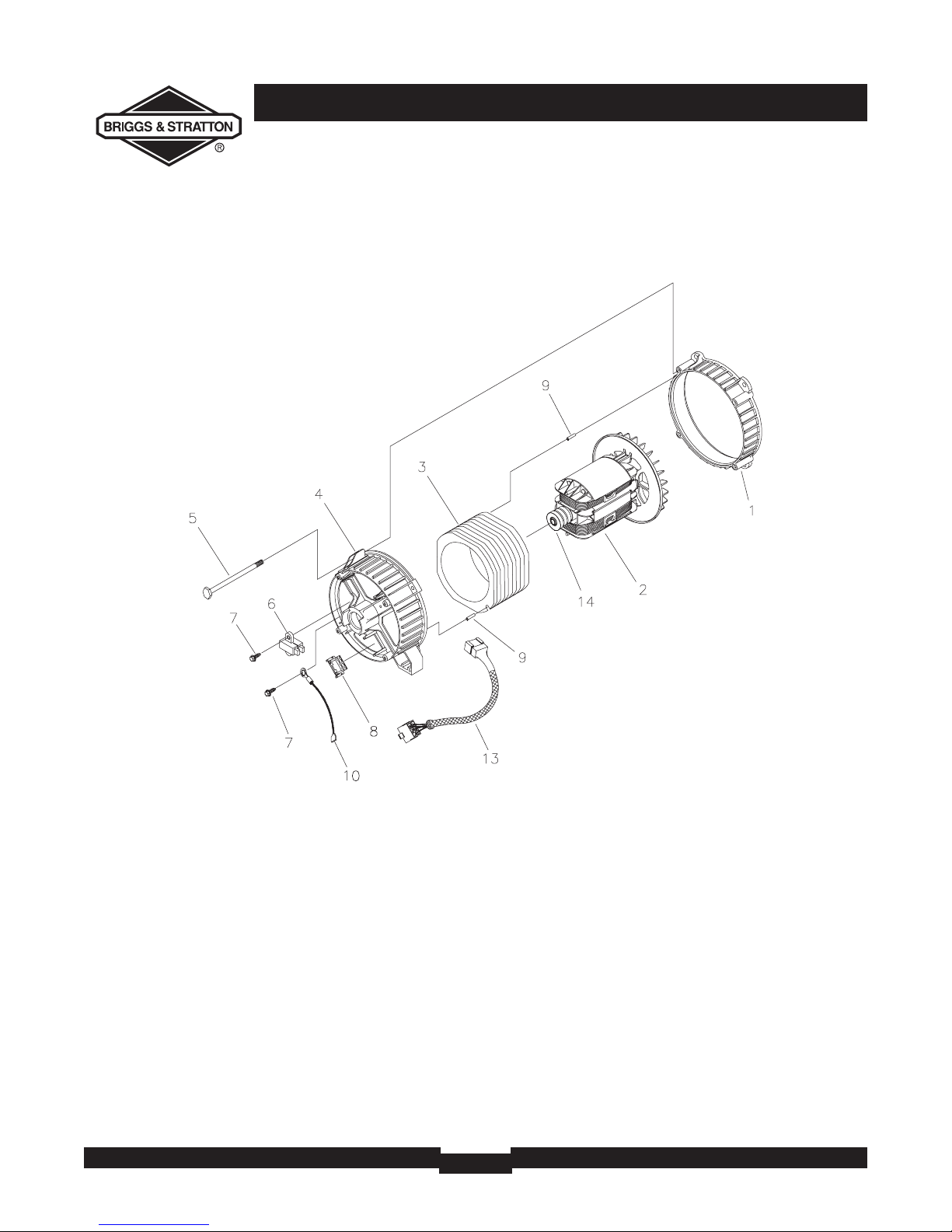

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting,Alternator

2 191685GS ROTOR (Includes Item 14)

3 191686AGS STATOR

4 186060GS RBC, with O-Ring (p/n 189197GS)

5 86308GS HHCS, M6 - 1.0 x 115 SEMS

6 91825GS ASSY, Holder, Rectifier/Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10

10 193428AGS ASSY,Wire, Ground

13 194274GS HARNESS,Wire, Power

14 65791GS BEARING

3500W Portable Generator

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 195112GS KIT, Cover Control Panel

2 188889AGS CONTROL PANEL, Compact

6 68759GS OUTLET, 120V, 20A, Duplex

7 * NUT, Palnut, Pushnut, 5/32

8 84198GS CAP, Breaker, Circuit

9 75207DGS BREAKER, Circuit

10 68867GS OUTLET, 120/240V Locking, 20A

11 * NUT, Palnut, Pushnut, 3/16

12 * PPPHS, M3 - 0.5 x 18

13 93857GS BAR, Retaining

14 188890GS COVER, Back, Control Panel

15 * SCREW, 3 x 18,Tapping

16 22694GS HOUSING, Receptacle

17 * SCREW, 3.5 x 14,Tapping

* - Items without part numbers are common fasteners and

are available at your local hardware store.

3500W Portable Generator

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 189715GS ASSY, Handle (Includes Item 11)

2 94034GS LEG, Mounting

3 52858GS NUT, Locking Hex M8 - 1.25

4 * HHCS, M8 - 1.25 x 45

5 93728GS AXLE

6 197061GS WHEEL

7 87005AGS PIN

8 * WASHER, Flat M12

9 94222QGS NUT, 5/8 - 18 Jam Lock

10 * HHCS, M8 - 1.25 x 20

11 189718GS GRIP, Handle

* - Items without part numbers are common fasteners and

are available at your local hardware store.
