Briggs & Stratton 30386 Guía de configuración

030386

(6200W)

Illustrated Parts List

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Manual No. 197523A Revision - (12/19/2007)

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline

Llame: Línea Directa del Generador

1-800-743-4115 M-F 8-5 CT

web: www.briggsandstratton.com

6200W Portable Generator

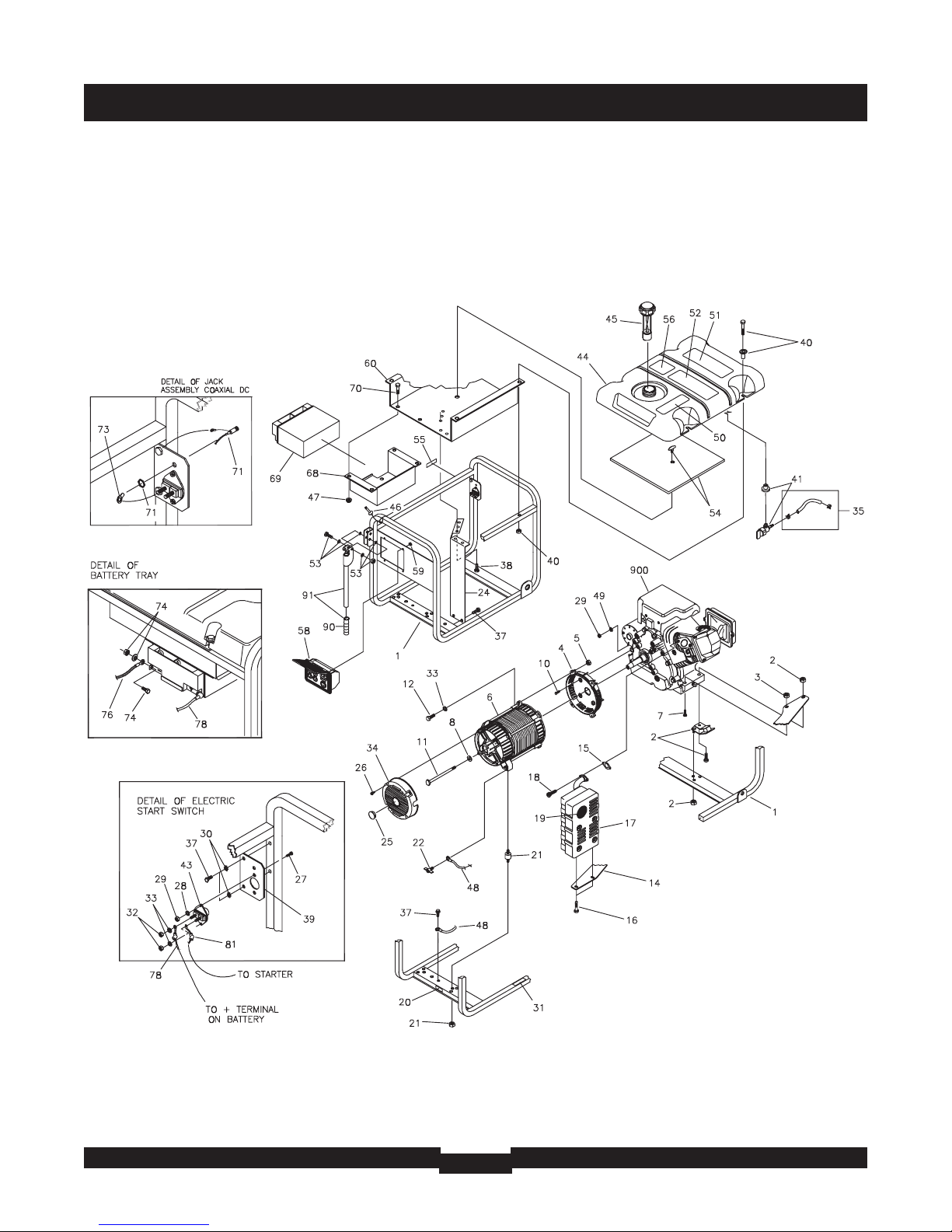

EXPLODED VIEW - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

6200W Portable Generator

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 M197464GS KIT, Cradle (Includes Items 20, 31 &

55)

2 194150GS KIT, Vibration Mount, 45°

3 * NUT, M8 Flange Serrated

4 190220GS HOUSING, Engine Adapter

5 * NUT, Hex, M8-1.25

6 NSP (194080) ASSY, Alternator

7 * TPHMS, M8-1.25 x 35

8 96796GS WASHER, 8.4 x 22.2 x 3

10 190274DGS SBHCS, 3/8-16 x 7/8"

11 187365FGS HHCS, 5/16-24 x 7.44

12 * HHCS, M8 - 1.25 x 25

14 189009GS BRACKET, Muffler

15 695398 GASKET, Exhaust

16 * HHCS, M6-1.0 x 12

17 189008GS MUFFLER

18 204885GS SHCS, M8 - 1.25 x 20

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

21 194153GS KIT, Vibration, Mount

22 86494GS SCREW, Wing M6 - 1.0 x 16

24 194390GS SHIELD, Heat

25 191190GS CAP

26 74908GS TAPTITE, M5-0.8 x 10

27 * HHCS, 1/4 - 20 x 3/4

28 * WASHER, 1/4, Lock

29 * NUT, 1/4 - 20

30 * WASHER, Shakeproof, Ext. #10

31 196830GS DECAL, Hot Muffler

32 * NUT, 5/16 - 24

33 * WASHER, 5/16 - M8 Lock

34 195422GS COVER, RBC, Plastic w/Cap

35 791745 KIT, Fuel Hose (cut to fit)

37 B2153GS SCREW, 12-14 x 7/8 Self Drill

38 56893GS SCREW, 10-24 x 1/2 Crimptite

39 188987GS BRACKET, Switch

40 195477GS KIT, Hardware Tank Fuel (Includes

Qty 4)

41 192980GS KIT, Valve, Tank

43 77282GS SWITCH, Starter

44 194217GS ASSY., Tank, Fuel (Includes Items

41, 50, 51, 52 & 56)

Item Part # Description

I 45 B4363GS CAP, Fuel Gauge

46 B4135GS PIN, with Lanyard

47 77395GS NUT, M6 Flange Lock

48 195373GS WIRE, Ground

49 * WASHER, M6 Shakeproof

50 188333GS DECAL, Instruction, Fuel Level

51 194799GS DECAL, Danger

52 189235GS DECAL, Start Instructions

53 194034GS KIT, Handle Fold-down Hardware

54 194448GS KIT, Insulation with Clip

55 197798GS DECAL, Fuel Shut-off

56 202997GS DECAL, Warning CO

58 191757GS ASSY, Control Panel

59 * NUT, Palnut, 3/16"

60 194389GS SHIELD, Heat

68 195680GS TRAY, Battery

69 193043GS BATTERY, 12V

70 * HHCS, M6 - 1.0 x 12

71 192531GS ASM, Jack, DC

73 58359GS LUG, 5/16 #22/18 I-S

74 193347GS KIT, Battery Hardware

76 185939KGS WIRE ASM, #55

78 189302CGS WIRE ASM, #13

81 189302GGS WIRE ASM, #16

90 198669GS GRIP, Handle

91 B193200GS ASSY, Handle/Grip

900 § ENGINE

Parts Not Illustrated

MS3430 MANUAL, Engine, B&S

197523GS MANUAL, Operator’s

BB3061GS BOTTLE, Oil

43438GS PLUG, 250V, 30A

202180GS DECAL, Family, CA EVP

B4177GS CHARGER, Battery

197787GS KIT, Decals Service

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

6200W Portable Generator

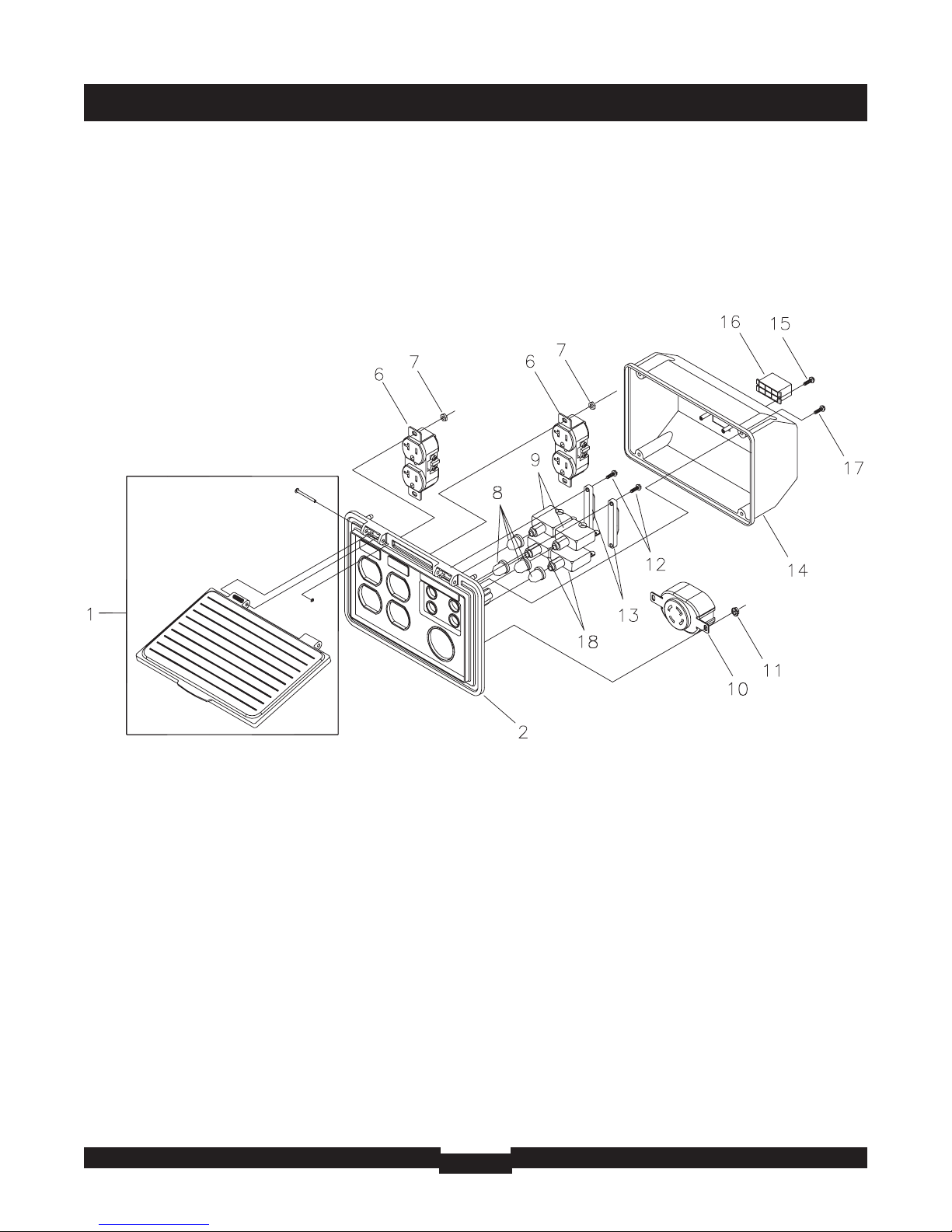

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 195112GS KIT, Control Panel Lid

2 191450GS CONTROL PANEL, Compact

6 68759GS OUTLET, 120V, 20Amp, Duplex

7 * NUT, Palnut, 5/32

8 84198GS CAP, Circuit Breaker

9 75207AGS CIRCUIT BREAKER, 30A

10 43437GS OUTLET, 120/240 Locking, 30A

11 * NUT, Palnut, 3/16

12 * PPPHS, M3- 0.5 x 18

13 93857GS BAR, Retaining

14 188890GS COVER, Back, Control Panel

15 82308GS SCREW, Tapping, STC 3 x 18

16 22694GS HOUSING, Receptacle

17 192241GS SCREW, Tapping, 3.5 x 14

18 75207PGS CIRCUIT BREAKER, 25A

* - Items without part numbers are common fasteners and

are available at your local hardware store.

6200W Portable Generator

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator

2 191876GS ROTOR

3 194006AGS STATOR

4 186060GS RBC, (with O-Ring, p/n 189197GS)

5 86308HGS HHCS, M6 - 1.0 x 140 SEMS

6 66386GS ASSEMBLY, Holder, Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10

10 193428AGS WIRE-A, Ground

11 189769GS REGULATOR, Voltage, AVR

12 194274GS HARNESS, Wire, Power

13 65791GS BEARING

6200W Portable Generator

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 196517GS WHEEL, 10"

2 191265GS E-RING, 5/8

3 191267GGS AXLE, 5/8" x 23.62"

4 * WASHER, 5/8

5 * HHCS, M8 - 1.25 x 20

6 B187101GS LEG, Support

7 87841GS VIBE MOUNT

8 * HHCS, 1/4 - 20 x 1

9 52858GS NUT, M8 - 1.25 Lock

10 192432GS NUT, 1/4 - 20 Serrated Lock

Parts Not Illustrated

187046GS SUBKIT, Hardware

* - Items without part numbers are common fasteners

and are available at your local hardware store.
