Briggs & Stratton 30210 Guía de configuración

Illustrated Parts List

Las Partes ilustradas Listan

Manual No. 196377A

Revision 4 (07/05/2005)

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline - 1-800-743-4115 M-F 8-5 CT

Llamada: Generador Helpline - 1-800-743-4115 M-F 8-5 CT

Web: www.briggsandstratton.com

030210

(7500W)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

7500W Portable Generator

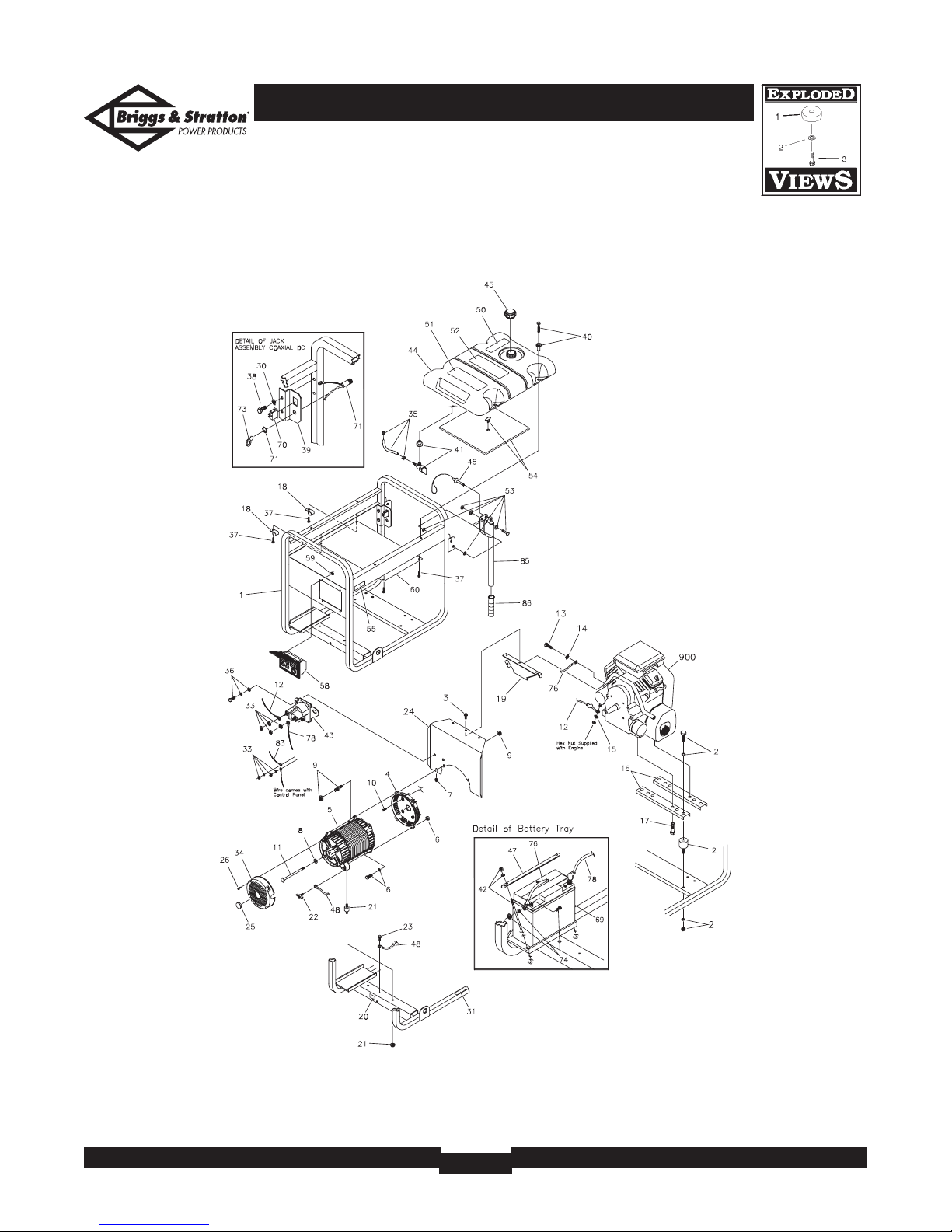

EXPLODED VIEW - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

7500W Portable Generator

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 M196373GS CRADLE

2 194526GS KIT, Engine Support Hardware

3 56893GS CRIMPTITE, 10-24 x 1/2

4 190220GS ADAPTER, Engine

5 NSP ASSY,Alternator (see page 4)

6 194151GS KIT,Adapter Mounting Hardware

7 62265GS GROMMET

8 96796GS WASHER

9 194208GS KIT,Alt to Heat Shield Hardware

10 190274BGS SCREW, SBHC, 3/8-16 x 1"

11 187365CGS HHCS, 5/16 - 24 x 9.29

12 189302BGS ASSY,Wire, #16, Red

13 * HHCS, M8 - 1.25 x 16

14 * WASHER, Shakeproof, Ext. 5/16

15 * WASHER, Shakeproof, Ext. M6

16 M77304GS SUPPORT, Engine

17 75246GS TAPTITE, 3/8 - 16 x 1-1/4

18 55934TGS CLAMP, Hose

19 J93074GS SUPPORT, Heatshield

20 B4986GS DECAL, Ground

21 194155GS KIT,Vibration Mount

22 86494GS SCREW,Wing M6 - 1.0 x 16

23 86292GS SCREW, 10 - 16 x 3/4, Self Drill

24 J194951GS ASSY, Heat Shield

25 191190GS CAP

26 74908GS TAPTITE, M5 - 0.8 x 10

30 * WASHER, Shakeproof, Ext. #10

31 191436GS DECAL, Caution Hot Muffler

33 194211GS KIT, Starter Contact Hardware

34 195422GS COVER, RBC Plastic with Cap

35 194265GS KIT, Hose, Fuel

36 197886GS KIT, Starter Contactor Mtg

Hardware

37 B2153GS SCREW, Self Driller, 12-14 x 7/8

38 195094GS SCREW, 10-16 x .68 Self Drill

39 196492GS ASSY, Switch Starter

40 194398GS KIT, Fuel Tank Hardware

41 192980GS VALVE, Fuel

42 193986GS KIT, Hardware J-Bolt

43 B4769GS CONTACTOR, Starter

44 194217GS ASSY,Tank Fuel (Includes Items 41,

50, 51 & 52)

45 B4363GS CAP,Tank Fuel

Item Part # Description

46 B4135GS PIN, Handle Release

47 M96925GS BRACKET, Battery Hold Down

48 195373GS WIRE, Ground

50 188333GS DECAL, Instruction Fuel Level

51 194799GS DECAL, Danger

52 189235GS DECAL, Start Instructions

53 194034GS KIT, Folddown Handle Hardware

54 196725GS KIT, Insulation w/ clip

55 191435GS DECAL, Fuel Shutoff

58 195661AGS ASSY, Control Panel (see page 5)

59 189164GS PALNUT, 3/16

60 196527GS SHEILD, Heat

69 B4489GS BATTERY

70 192855GS SWITCH, Rocker On/Off

71 196659GS ASSY, Jack, Coax, DC

73 58359GS LUG, 5/16, #22/18

74 193347GS KIT, Hardware Battery

76 185939KGS ASSY,Wire, #55 Blk

78 189302KGS ASSY,Wire, #13 Red

83 192403YGS ASSY,Wire, 18 AWG, Red, 3.5”

85 B193200GS ASSY, Fold Down Handle (Includes

Item 86)

86 189718GS GRIP, Handle

900 § ENGINE

Parts Not Illustrated

196377GS MANUAL, Owners

MS5375 MANUAL, Engine

BB3061BGS BOTTLE, Oil

B4177GS CHARGER, Battery

197005GS KIT, Decal Service

690661 SCREW,Tapping Hex

392390 ARRESTER, Spark

692099 ASSY, Muffler

691513 BRACKET, Muffler

692056 SCREW

690898 CLAMP, Muffler

692539 SCREW

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

7500W Portable Generator

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting,Alternator

2 196707GS ROTOR

3 196706AGS STATOR

4 193336GS RBC, (with O-Ring p/n 189197GS)

5 86308KGS HHCS, M6 - 1.0 x 140 SEMS

6 66386GS ASSY, Holder, Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10

10 193428AGS ASSY,Wire, Ground

11 196708GS HARNESS, Power,T.D.R.

12 189769GS BOARD, Circuit, System Control,

Micro

7500W Portable Generator

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 195112GS ASSY, Control Lid Panel

2 192273DGS CONTROL PANEL, Compact

6 68759GS OUTLET, 120V, 20A, Duplex

7 * NUT, Palnut, Pushnut, 5/32

8 84198GS CAP, Breaker, Circuit

9 75207GS BREAKER, Circuit

10 43437GS OUTLET, 120/240V Locking, 30A

11 * NUT, Palnut, Pushnut, 3/16

12 * PPHMS, 3.5 x 18

13 93857GS BAR, Retaining

14 192274GS BOX, Rear Cover

15 82308GS SCREW,Tapping, STC 3 x 18

16 22694GS HOUSING, Receptacle

17 192241GS SCREW,Tapping, 3.5 x 14

18 192785GS BREAKER, Circuit, 30A

* - Items without part numbers are common fasteners and

are available at your local hardware store.

7500W Portable Generator

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 B4966GS WHEEL

2 * WASHER, 5/8"

3 191267JGS AXLE, 5/8"

4 191265GS E-RING

5 * HHCS, M8 - 1.25 x 20

6 B186927GS SUPPORT,Wheel Kit

7 87841GS MOUNT,Vibration

8 77395GS NUT, M6 Flange Lock

9 * HHCS, M6 - 1.0 x 16

11 * WASHER, Lock M8

* - Items without part numbers are common fasteners and

are available at your local hardware store.
