Briggs & Stratton 040212-1 Guía de configuración

Illustrated Parts List

Les Parties Illustrées Enumèrent

Las Partes Ilustradas Listan

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Vous avez des questions? Vous n'avez pas

besoin d'aller loin pour trouver de l'aide!

Call: Home Standby Helpline

Llamada: Línea Directa de Reserva de Hogar

Appelez: Ligne Directe de Secours À la Maison

1-800-743-4115 M-F 8-5 CT

BRIGGSandSTRATTON.COM

Manual No. 203064GS Rev. A (10/15//07)

12000Rated Watts

Home Generator System

Model / Modelo / Modèle

040212-1

SCHEMATIC

UNIT SCHEMATIC DIAGRAM

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

WIRING DIAGRAM

UNIT WIRING DIAGRAM

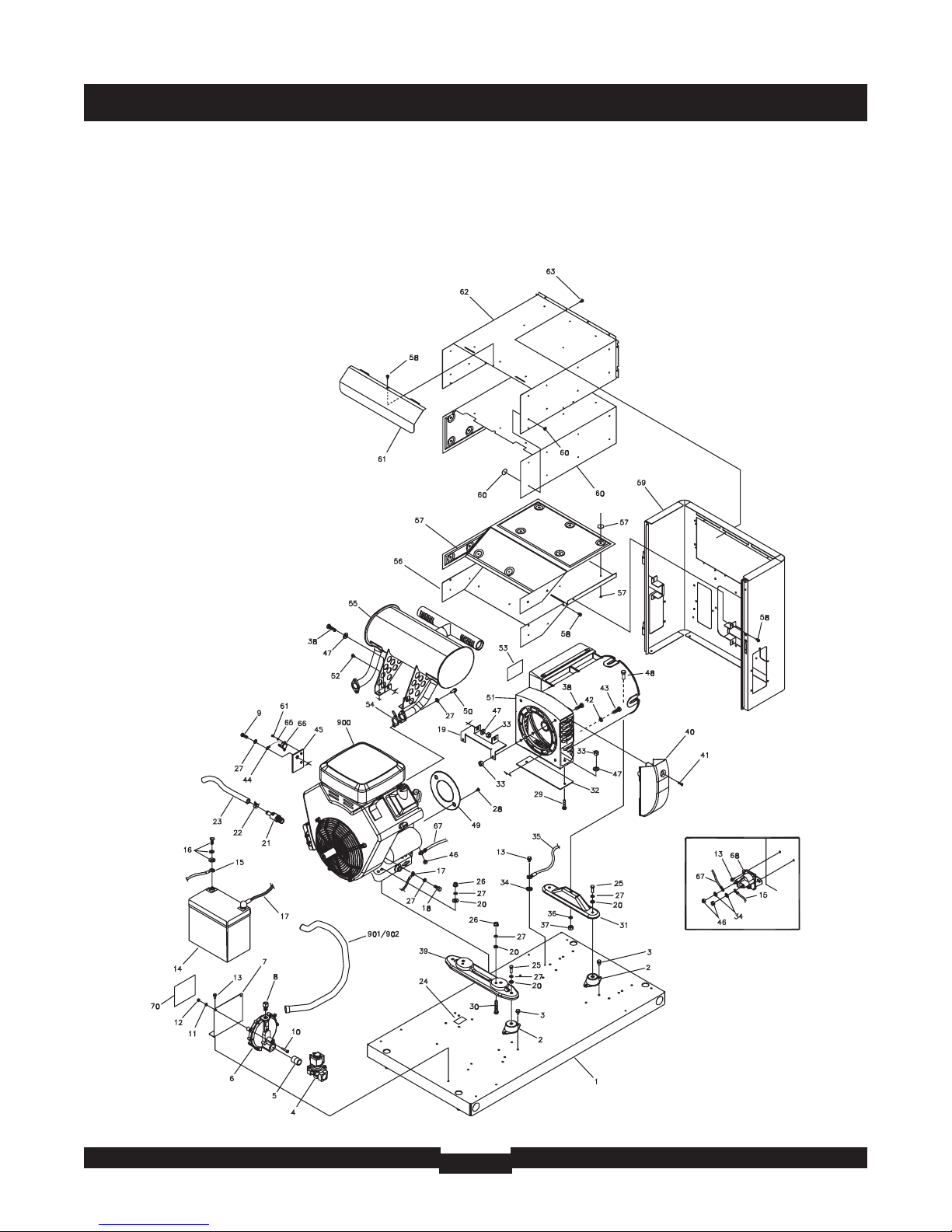

EXPLODED VIEW

UNIT EXPLODED VIEW

PARTS LIST

UNIT PARTS LIST

Item Part # Description

1 T203030GS BASE, Mounting

2 198899GS MOUNT, Vibration

3 24910GS HHS, Trilobular 5/16 - 18 x 1/2

4 194683GS SOLENOID, Gas Fuel

5 194829GS FITTING, Coupling

6 194830GS REGULATOR

7 195936GS BRACKET, Mounting Solenoid

8 202382GS FITTING, 1/2 Flare 3/8 - 18 NPT

9 * HHCS, M8 - 1.25 x 12

10 * HHCS, M6 - 1.0 x 30

11 * WASHER, 1/4 Lock

12 * NUT, M6 - 1.0

13 B4300GS HHS, Trilobular, 1/4 - 20 x 1/2

14 194818GS BATTERY

15 198593BGS WIRE-A, Red

16 198913GS KIT, Battery Hardware

17 185939VGS WIRE-A, Black

18 * HHCS, M8 1.25 x 16

19 201824GS BRACKET, Muffler Mounting Base

20 * WASHER, Flat 5/16 - M8

21 186071GS VALVE, Oil Drain

22 48031JGS CLAMP, Hose Band

23 186430GS HOSE, Oil Drain

24 186649GS DECAL, Oil Drain

25 * HHCS, 5/16 - 18 x 1

26 * NUT, 5/16 - 18

27 * WASHER, Lock 5/16 - M8

28 * HHCS, 5/16 - 24 x 3/4 SEMS

29 * HHCS, 1/4 - 20 x 1

30 * HHCS, 5/16 -18 x 1 - 3/4

31 B198897GS BRACKET, Alt Support

32 200013GS PLATE, Blocking Air, Alt

33 194005GS NUT, 1/4 - 20 Flange, Nylok

34 * WASHER, Shakeproof Ext. M6-1/4

35 186790HGS WIRE, Ground

36 * WASHER, Lock, M10

37 * NUT, Hex, M10 - 1.5

38 * HHCS, 1/4 - 20 x 3/4

39 B198896GS BRACKET, Engine Mounting

40 201817GS DUCT, Air

41 199999GS PTHS, #6 x 1/2"

42 * WASHER, Lock 3/8

43 * HHCS, 3/8 - 16 x 1-1/4

44 186790CGS WIRE

45 186206GS PLATE, Switch Oil Temp

46 * NUT, Hex 1/4 - 20

47 * WASHER, M6, Flat 1/4

48 * HHCS, M10 - 1.5

Item Part # Description

49 B4260GS DISK, Engine Air

50 692062 SCREW

51 NSP ASSY, Alt (see pages 8 & 9)

52 40976GS SHCS, M8 - 1.25 x 20

53 193506GS DECAL, Caution Hot Surface

54 806425 GASKET

55 198758GS MUFFLER

56 194681GS BASE, Muffler Box

57 198928GS KIT, Insulation, Muffler Base

58 56893GS CRIMPTITE, 10 - 24 x 1/2

59 201281GS ASSY, Bulkhead, Alt End w/

Insulation

60 198929GS KIT, Insulation, Muffler Box

61 194682GS COLLECTOR, Muffler Box

62 194680GS BOX, Muffler Top

63 192445GS SCREW. 10 - 32 x 5/8

64 * PPHMS, 4-40 x 0.19

65 * WASHER, Lock #4

66 186205GS SWITCH, Oil Temp

67 198593CGS WIRE-A

68 691656 SOLENOID/BRACKET

70 202896GS DECAL, Requirements, Fuel

900 § ENGINE

901 843644 FUEL HOSE

902 843438 CLAMP

Parts Not Illustrated

199327GS MANUAL, Install

194689GS MANUAL, Operator’s

MS3792 MANUAL, Engine

203061GS KIT, Manual/Accessory HGS

198811GS PAINT, Touchup, Bottle, Metallic

Silver 1/2 oz

B3518GS CAP, Funnel Oil Bottle

202295GS HOSE, Flex

198866GS KIT, Led Remote

203064GS MANUAL, IPL

198918GS KIT, Decals, Service

Optional Accessories

199475GS PAINT, Touchup, Spray, Silver, 12oz

6030 KIT, Cold Weather (Includes Battery

and Oil Warmers)

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

EXPLODED VIEW

ENCLOSURE EXPLODED VIEW

PARTS LIST

ENCLOSURE PARTS LIST

Item Part # Description

1 197275GS PAD, Mounting w/ Holes

2 T203030GS BASE, Mounting

3 198915GS ASSY, Bulkhead, Eng End

. . . . . . Bulkhead, Eng End

. . . . . . . Decal, Fuel Inlet

. . . . . . . Seal, Foam

. . . . . . . Seal, Foam Engine Air

. . . . . . . Bushing, 1-1/2

. . . . . . . Bushing, 1-3/8

. . . . . . . Plug, Dome 1-1/2

. . . . . . . Pin, Hinges with Hardware

4 198891GS ASSY, Door, Eng. End

. . . . . . . Weldment, Door Eng End

. . . . . . . Insulations

. . . . . . . Barrel, Hinges with Hardware

5 198910GS ASSY, Duct, Engine Air

. . . . . . . Decals

. . . . . . . Lug, Ground Connect w/Hardware

. . . . . . . Bracket, Mounting Breaker

w/Hardwire

6 198917GS ASSY, Support, Rail

. . . . . . . Support Rail Eng. End

. . . . . . . Seal, Foam

. . . . . . . Decal, Rainproof

7 B4300GS HHS, Trilobular, 1/4-20 x 1/2

8 186173GS BUSHING, Snap, 1-3/8"

9 197493GS BUSHING, Snap, 1-1/2"

10 198461GS PLUG, Dome, 1-1/2"

11 * HHCS, 3/8 - 16 x 1

12 * WASHER, Flat, 3/8 - M10

13 * WASHER, Lock 3/8

14 * NUT, 3/8 - 16

15 198892GS ASSY, Door

. . . . . . . Weldment Door

. . . . . . . Insulation

. . . . . . . Barrel Hinges with Hardware

. . . . . . . Decals

Item Part # Description

16 199629GS SEAL, Foam, Engine Air

17 203303GS INSULATION, Engine Door, Bottom

18 195733GS MOUNT, Tie Wrap

19 195935GS DUCT, Rubber Alt

20 203029GS ADAPTER, Alt.

21 198893GS ASSY, Roof/Siderails

. . . . . . . Weldment Roof/Siderails

. . . . . . . Insulation

22 201281GS ASSY, Bulkhead, Alt End

. . . . . . . Decal, Caution Hot Muffler

. . . . . . . Seal, Foam

. . . . . . . Pin, Hinges with Hardware

. . . . . . . Bracket, Muffler

23 77816AGS DECAL, Caution Hot Muffler

24 194679GS COVER, Air Intake Alt

25 198926GS ASSY, Vent, Exhaust

26 B1797GS CLIP, Tree

27 198927GS ASSY., Vent, Alt.

28 198888GS SEAL, Foam

29 194694GS COVER, Air Intake Engine

30 203302GS INSULATION, Engine Door, Top

31 197312GS SEAL, Foam

32 196397GS INSULATION, Front/Rear Door

33 195597GS INSULATION, Roof

35 198460GS PLUG, Dome

36 192940GS RETAINER, Hose

38 198890GS KIT, Door, Hinge

39 194828GS SET, Latch Key

40 198889GS KIT, Door Latch

* - Items without part numbers are common fasteners and

are available at your local hardware store.

EXPLODED VIEW

ALTERNATOR EXPLODED VIEW

PARTS LIST

ALTERNATOR PARTS LIST

Item Part # Description

1 192970GS BRACKET, Drive End

2 192973GS SCREEN, Protection

3 B4908GS BOLT, Shaft Stay

4 * SCREW, Socket Head Cap

5 192969GS FRAME and Stator

6 192962GS PLUG, Rubber Grid

7 192966GS GRID

9 192967GS BOX, Terminal Lid

10 192968GS TERMINAL BOARD

11 * WASHER, Flat, #10 - M5

12 * NUT, 10 - 32

13 192974GS CAPACITOR

14 * PPHMC, 10 - 32 x 3/4

15 192972GS DIODE

16 192971GS ASSY, Rotor

17 * SCREW, M8 x 1.25 x 35mm

18 * WASHER, Shakeproof, Ext M6 - 1/4

19 * NUT, 1/4 - 20

*Items without part numbers are common fasteners, available at local hardware stores.

EXPLODED VIEW

CONTROL PANEL EXPLODED VIEW
