Brickhouse Security Eon 3.0 Manual de usuario

Eon 3.0 GPS Tracker

User’s Guide

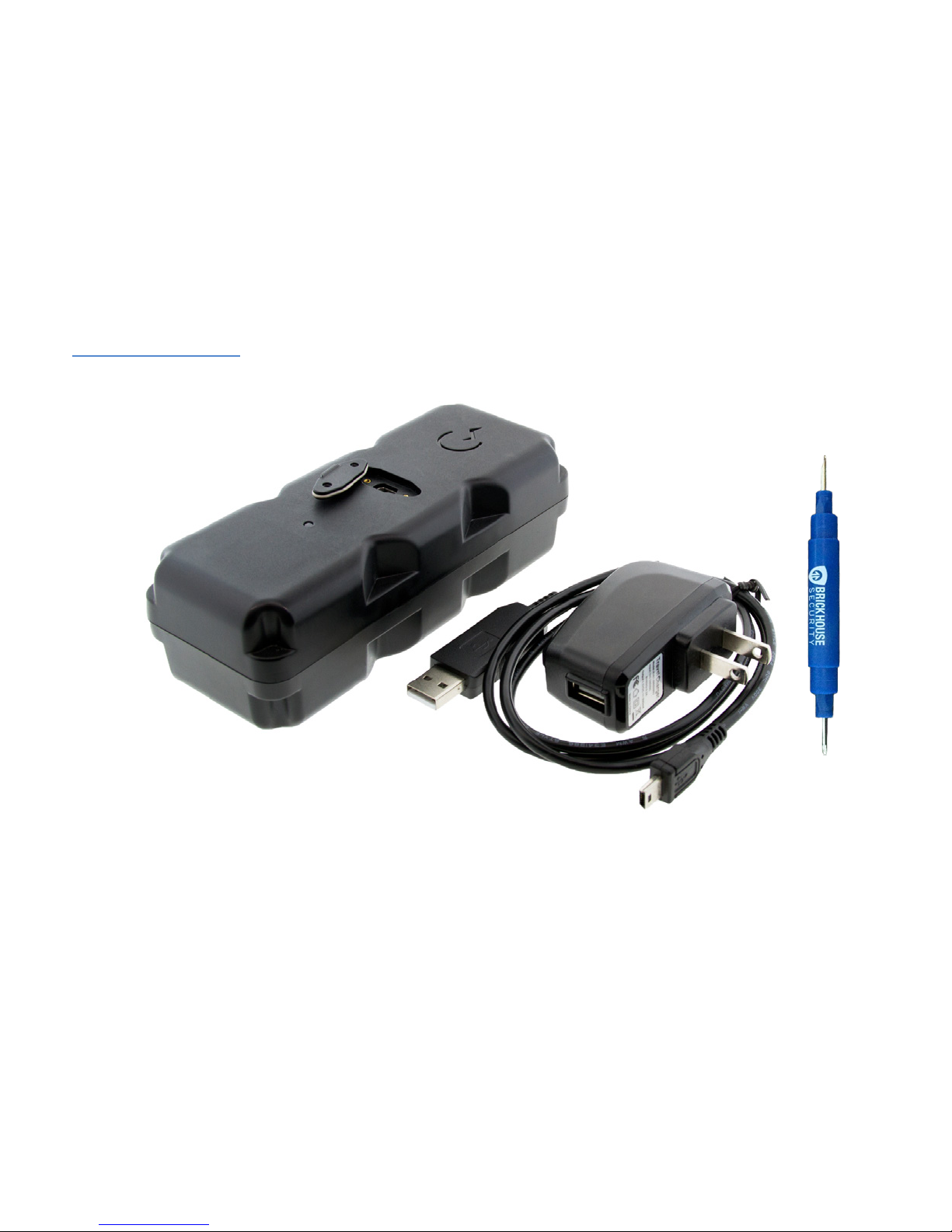

What’s Inside

1. Eon 3.0

2. Wall Charger

3. Screwdriver Kit

1. Charging Port

2. LED Light Indicator

3. Built-In Magnetic Mounts

LED Lighting Guide

At initial plugin, the LED will glow blue-green for a few seconds. The LED will

blink red to indicate that the tracker is charging and will blink green when the

device is fully charged. The LED blinks blue to indicate that the device has

received GPS signal and blinks green indicating that the device is connecting to

the cellular network.

Getting Started

The rst step in using your Eon 3.0 GPS Tracker is to charge it for 24-48 hours

by plugging it in using the included wall adapter. To access the USB charging

socket, unscrew the two screws holding down the waterproong ap with the

included screwdriver. Once the device has been fully charged, unplug the device

from the charger, and reattach the waterproof ap.

You should have received an email containing your default login information

before the device arrived. Make sure that the above steps are taken before trying

to log in and begin tracking.

Take the device out for a 20-30 minute drive; this will help the device calibrate to

the platform. The Eon 3.0 is motion activated only and will track once a minute

when it senses motion for an extended period.

Placing Your Device

The Placement of the Eon 3.0 is important and dependant on the type of object

you’re tracking.

The device will always give the most

accurate location data when it has a

clear view of the sky. It is capable of

transmitting and receiving through

materials like glass, plastic, and

cloth, but it’s not able to transmit

through metals or concrete; keep

this in mind when placing the

device. Avoid placing the device in

the trunk of a vehicle. The Eon 3.0

also may not report from a glove

compartment or underneath a seat. *Place in green zones for best results.

This interference can vary from vehicle to vehicle, so we recommend trying

dierent locations on your particular vehicle and seeing which placement yields

the most accurate reporting.

If you’re looking to track covertly, the device is weather resistant and contains

built-in magnets. When placing the device beneath a vehicle, be sure that the

BHS sticker is facing down, towards the ground, and that it is as near the edge

of the vehicle as possible.

If you are tracking an asset such as a large container, you will need to mount the

device with the magnets facing down towards the metal surface and the sticker

facing the sky.

Tracking Your Device

To track your Eon 3.0, enter www.BrickhouseSecurity.com in your browser

window. Hover your cursor over the Login tab on the top right of the website

and click on GPS. Enter your login information and press the Login button. The

tracking page will appear, and the device’s last reported location will be centered

on the map. If you have multiple devices on your account, the rst 3 that were

registered will be automatically selected and appear on the map.

Navigation Arrows Change Map View

Zoom Bar Dashboard Last Known Location

Along the bottom of your screen will be your dashboard.

Tracking information is displayed using Google Earth Maps, so navigation is

similar to what most people have grown used to in using internet-based mapping

solutions. You can use the Navigation arrows and Zoom Bar to move around the

map, or drag the map using your mouse and zoom using a click-wheel mouse.

At the bottom of the pop-up window are the Zoom, Street View, and Live Tracker

buttons.

• Zoom will perform the same task as using the Zoom bar on the left side of the

map; zooming in on the icon you have selected.

• Street View will open up a separate window displaying Google’s Street View,

if available.

The BrickHouse shield icon will appear where a tracker transmitted most

recently. Click on an icon to bring up a pop-up box. This will show your tracker’s

name, the distance it has traveled on this trip, what direction it was moving

in, speed, battery information, and start and stop locations. Start will display

the beginning location of the current trip, and the time it was recorded. Stop

will display the most recent location from the device, as well as the time it was

reported.

The More tab is not currently active. Future updates to the platform will utilize

this tab.

The GeoFence tab allows you to create quick geofences, based on the location

you are currently viewing and route the device was following. Use the Circular

GeoFence radio button to create a perimeter around the location you are

clicked on. Use the Route GeoFence radio button to create a boundary that

will follow the entire trip your device was on.

Give the GeoFence a name in the GeoFence Name window, and add a short

description in the Description box (optional).

Use the Action dropdown box to choose if you would like an alert created

when the device enters the chosen area, exits the area, or both. Use the Radius

box to choose how large the area will be. You can enter values below a mile

as decimals. For example: A half-mile radius geofence would be entered as .5.
