the Oracle™

Instruction Book - BES980

• Carefully read all

instructions before

operating and save for

future reference.

• Remove any packaging

material and promotional

labels or stickers before

using the Oracle®for the

ﬁrst time.

• To eliminate a choking

hazard for young children,

remove and safely discard

the protective cover ﬁtted

to the power plug of this

appliance.

• Do not place the product

near the edge of a bench

or table during operation.

Ensure the surface is level,

clean and free of water and

other substances.

• Do not let the cord hang

over the edge of a bench or

table, or become knotted.

Keep away from hot gas or

electric burner, or where it

could touch a heated oven.

• This appliance can be

used by children aged

from 8 years and above

if they have been given

supervision or instruction

2Breville Recommends

Safety First

6 Components

9 Features

10 Assembly

11 Functions

28 Care & Cleaning

34 Troubleshooting

Contents

BREVILLE

RECOMMENDS

SAFETY FIRST

At Breville we are very safety

conscious. We design and

manufacture consumer

products with the safety of you,

our valued customer, foremost

in mind. In addition we ask

that you exercise a degree of

care when using any electrical

appliance and adhere to the

following precautions.

IMPORTANT

SAFEGUARDS

READ ALL

INSTRUCTIONS BEFORE

USE AND SAVE FOR

FUTURE REFERENCE

concerning use of the

appliance in a safe way and

understand the hazards

involved. Cleaning and

user maintenance shall not

be made by children unless

they are aged from 8 years

and above and supervised.

Keep the appliance and

its cord out of reach of

children aged less than

8 years.

• Appliances can be used

by persons with reduced

physical, sensory or mental

capabilities or lack of

experience and knowledge

if they have been given

supervision or instruction

concerning use of the

appliance in a safe way and

understand the hazards

involved.

• Children shall not play

with the appliance.

• Regularly inspect the

supply cord, plug and

actual appliance for any

damage. If found damaged

in any way, immediately

cease use of the appliance

and return the entire

appliance to the nearest

authorised Breville Service

Centre for examination,

replacement or repair.

• Keep the appliance and

accessories clean. Follow

the cleaning instructions

provided in this book. Any

procedure not listed in

this instruction booklet

should be performed at an

authorised Breville Service

Centre.

• The installation of a

residual current device

(safety switch) is

recommended to provide

additional safety protection

when using electrical

appliances. It is advisable

that a safety switch with a

rated residual operating

current not exceeding

30mA be installed in the

electrical circuit supplying

the appliance. See your

electrician for professional

advice.

NOTICE TO CUSTOMERS

REGARDING MEMORY

STORAGE

Please note that in order to

better serve our customers,

internal memory storage

has been imbedded into

your appliance. This

memory storage consists

of a small chip to collect

certain information about

your appliance including

the frequency of use of the

appliance and the manner

in which your appliance

is being used. In the event

your appliance is returned

for service, the information

collected from the chip

enables us to quickly and

efﬁciently service your

appliance. The information

collected also serves

as a valuable resource

in developing future

appliances to better serve

the needs of our consumers.

The chip does not collect

any information regarding

the individuals who use the

product or the household

where the product is used.

If you have any questions

regarding the memory

storage chip please contact

us at privacy@breville.com

SPECIFIC

INSTRUCTIONS

FOR BES980 THE

ORACLE®

• This appliance is

recommended for

household use only. Do

not use this appliance for

any purpose other than its

intended use. Do not use in

moving vehicles or boats.

Do not use outdoors.

• If the appliance is to be:

- left unattended

- cleaned

- moved

- assembled; or

- stored

• Always switch Off the

espresso machine by

pressing the POWER

button to Off, switch Off

at the power outlet and

unplug.

• Ensure the product is

properly assembled before

ﬁrst use.

• Do not use any other

liquid apart from cold

mains/town water. We

do not recommend the

use of highly ﬁltered, de-

mineralized or distilled

water as this may affect the

taste of the coffee and how

the espresso machine is

designed to function.

• Ensure the portaﬁlter

is ﬁrmly inserted and

secured into the group

head before starting an

extraction. Never remove

the portaﬁlter during the

extraction process.

• Do not touch hot surfaces.

Allow the product to cool

down before moving or

cleaning any parts.

• Use caution after milk

texturing as the ‘Auto

Purge’ function may purge

hot steam when the steam

wand is lowered.

• Use caution when

operating machine as

metal surfaces are liable to

get hot during use.

• Use caution when using

the de-scale feature as hot

steam may be released.

Before de-scaling, ensure drip

tray is empty and inserted.

Refer to page 31 for further

instructions.

SPECIFIC

INSTRUCTIONS

FOR WATER FILTER

• Filter cartridge should be

kept out of reach of children.

• Store ﬁlter cartridges in a

dry place in the original

packaging.

• Protect cartridges from heat

and direct sunlight. Do not

use damaged ﬁlter cartridges.

• Do not open ﬁlter cartridges.

• If you are absent for a

prolonged period of time,

empty the water tank

and replace the cartridge.

prolonged period of time,

empty the water tank and

replace the cartridge.

SAVE THESE INSTRUCTIONS

Components

A. Integrated conical burr grinder

With removable 280g bean hopper.

B. Top-ﬁll 2.5L removable water tank

With integrated water ﬁlter and backlit level

indicator.

C. Grind Size dial

Select the desired espresso grind size to suit

your coffee beans.

D. GRIND LCD

Displays current grind settings.

E. Main LCD

Displays current settings and simpliﬁes

programming.

F. 1 CUP and 2 CUP buttons

With preset shot durations, manual override

or reprogrammable durations/volumes.

G. Grind outlet

With auto grind, dose & tamp function.

H. Heated 58mm group head with embedded

element

I. 58mm full stainless steel portaﬁlter

J. Drop down swivel foot

Lifts the machine upwards for easy

maneuverability.

K. Heated cup warming tray

L. HOT WATER button

Press to start and stop the ﬂow of hot water

from the hot water outlet.

M. LONG BLACK dial

With preset and customisable settings.

N. Steam lever

With one touch auto milk texturing (down

position) and manual milk texturing (up

position).

O. Steam LCD

Displays current milk temperature and

texture settings.

P. SELECT dial

Select the desired milk temperature and

texture. Also use this dial in conjunction

with the MENU button to set the

programmable functions.

Q. Cool touch steam wand

With integrated temperature sensor.

R. Dedicated hot water outlet

Delivers hot water for Long Black and

preheating cups.

S. Descale access point

T. Tool storage tray

Houses accessories when not in use.

U. Removable drip tray

With Empty Me! indicator.

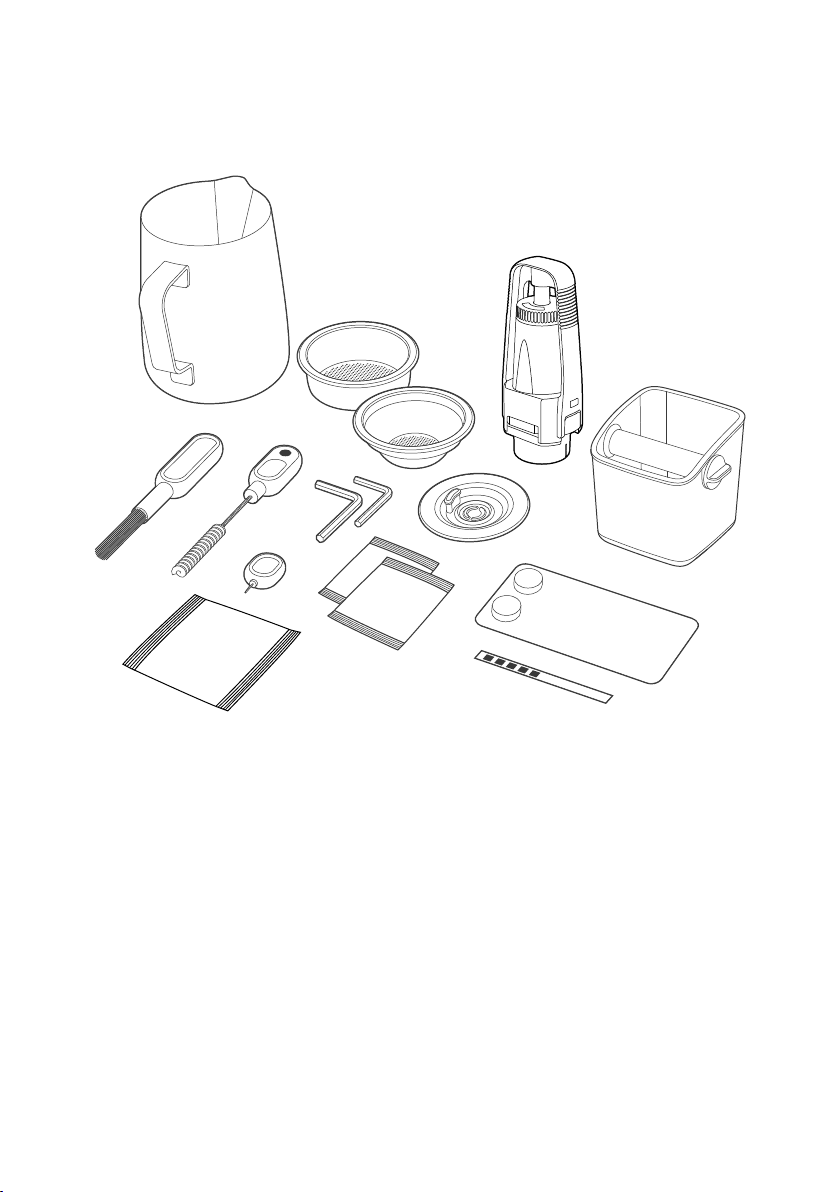

ACCESSORIES

A. Stainless steel milk jug

B. 2 cup ﬁlter basket

C. 1 cup ﬁlter basket

D. Water ﬁlter holder with ﬁlter

E. Cleaning disc

F. Mini grinds bin

G. Burr brush

All parts of the Oracle®

that come into contact with coffee,

water and milk are BPA Free.

H. Grind outlet brush & tamp removal magnet

I. Cleaning tool for steam wand tip

J. Allen key

K. Steam wand cleaning powder

L. Water hardness test strip

M. Espresso cleaning tablets

N. Descaling powder

HANDS FREE AUTOMATIC

GRIND, DOSE & TAMP

Automatically grinds, doses and tamps the

required amount of coffee, mess free.

GRIND SIZE DIAL

Adjustable grind settings from ﬁne to coarse

for optimal espresso extraction.

PRECISION CONICAL BURRS

Maximise ground coffee surface area for a full

espresso ﬂavour.

AUTOMATIC HANDS FREE

MILK TEXTURING

Automatically textures milk to the selected

temperature and style from silky smooth

latté to creamy cappuccino. Automatic purge

removes residual milk from the steam wand

when returned to the downward position.

SIMULTANEOUS COFFEE & STEAM

Dedicated stainless steel espresso and steam

boilers for simultaneous milk texturing and

espresso extraction.

PRECISION CONTROL

Electronic PID Temperature Control

Electronic temperature control delivers precise

water temperature for optimum espresso

ﬂavour. Programmable.

Actively Heated Group Head

Commercial size 58mm group head with

embedded element for thermal stability during

extraction.

Regulated Extraction Pressure

Over pressure valve (OPV) limits maximum

pressure for optimal espresso ﬂavour.

Low Pressure Pre-Infusion

Gradually increases water pressure to

gently expand grinds for an even extraction.

Programmable.

Dual Pumps

Dedicated espresso and steam boiler pumps.

Programmable Shot Temperature

Adjust water temperature to achieve optimal

espresso ﬂavour depending on coffee origin

and degree of roast.

ADDITIONAL FEATURES

One Touch Long Black

Delivers hot water directly into the cup after

espresso extraction. Preset and customisable

settings.

Shot Clock

Displays duration of the espresso shot

being extracted.

Auto Start

Switches machine on at a speciﬁed time.

Auto Off

Switches machine off after a speciﬁed time from

5 - 20 mins.

The Oracle®

Features

Assembly

BEFORE FIRST USE

Machine Preparation

Remove and discard all labels and packaging

materials attached to your espresso machine.

Ensure you have removed all parts and

accessories before discarding the packaging.

Remove the water tank located at the back of

the machine by pulling down the water tank

handle. Remove the plastic bag containing the

water ﬁlter and water ﬁlter holder. Clean parts

and accessories (water tank, portaﬁlter, ﬁlter

basket, jug) using warm water and a gentle dish

washing liquid. Rinse well then dry thoroughly.

TIP

To easily manoeuvre your machine, use the

drop down swivel foot located under the drip

tray. When turned to UNLOCK, the swivel foot

drops down and lifts the machine upwards,

making it easier to access the removable water

tank or reposition the machine to another

location.

INSTALLING THE WATER FILTER

• Remove the water ﬁlter and water ﬁlter holder

from the plastic bag.

• Soak the ﬁlter in cold water for 5 minutes.

• Wash the ﬁlter holder with cold water.

• Set the reminder for next month of

replacement. We recommend to replace the

ﬁlter after 3 months.

• Insert the ﬁlter into the two parts of the ﬁlter

holder.

• To install the assembled ﬁlter holder into the

water tank, align the base of the ﬁlter holder

with the adapter inside the water tank.

Push down to lock into place.

• Fill the water tank with cold water before

sliding back into position at the back of the

machine and locking into place.

NOTE

Replacing the water ﬁlter after three months

or 40L will reduce the need to descale the

machine. Filters can be purchased at Breville

webpage.

NOTE

DO NOT use highly ﬁltered, demineralised or

distilled water in this machine. This may affect

the taste of the coffee.

Otros manuales para the Oracle BES980

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cafetera de Breville

Breville

Breville PrimaLatte Manual de usuario

Breville

Breville BES840XL Manual de usuario

Breville

Breville BES878BTR Manual de usuario

Breville

Breville 800ES Manual de usuario

Breville

Breville BVE850 Manual de instalación y funcionamiento

Breville

Breville Cafe Venezia BES250 Manual de usuario

Breville

Breville vcf011 Manual de usuario

Breville

Breville Caffeo ECM2 Manual de usuario

Breville

Breville AquaStation Chilled Manual de usuario

Breville

Breville Barista Touch BES880 Manual de usuario

Breville

Breville NESPRESSO PIXIE BEC430 Manual de usuario

Breville

Breville Dual Boiler BES920 Manual de usuario

Breville

Breville the Oracle BES980XL Manual de usuario

Breville

Breville Nespresso Vertuo Creatista Manual de usuario

Breville

Breville Cafe Venezia BES250XL Manual de usuario

Breville

Breville Barista Touch BES880BSS2JAN1 Manual de usuario

Breville

Breville NESPRESSO PIXIE BEC430 Manual de usuario

Breville

Breville Nespresso Essenza Mini Manual de usuario

Breville

Breville the Bambino BES450 BSS Manual de usuario

Breville

Breville Duo-Temp Pro Manual de usuario

Breville

Breville Oracle Manual de usuario

Breville

Breville NESPESSO MY MACHINE CREATISTA PLUS Manual de usuario

Breville

Breville the Duo-Temp BES800XL Manual de usuario

Breville

Breville BES810 Manual de usuario

Manuales populares de Cafetera de otras marcas

Taurus

Taurus Livorno 6 Manual de usuario

Delta-q

Delta-q QUICK Manual de usuario

Bunn

Bunn LCA-1 Guía de solución de problemas

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instrucciones de instalación

Saeco

Saeco Vienna Plus Sup 018M Manual de usuario

DeLonghi

DeLonghi DC300 Manual de usuario

INCAPTO

INCAPTO BXCO1470E Manual de usuario

Bosch

Bosch TASSIMO finesse TAS16B Series Manual de usuario

Exido

Exido 245-072 Manual de usuario

Animo

Animo OptiVend Choco Manual de usuario

Siemens

Siemens TQ505DF Series Manual de usuario

DeLonghi

DeLonghi ECI341 Manual de usuario

Krups

Krups KT406511 Manual de usuario

Cimbali

Cimbali M32 Classic Manual de usuario

Philips

Philips HL3844N Manual de usuario

Bosch

Bosch TES 515 SERIES Manual de usuario

Tekmatix

Tekmatix TMFM - 65 Manual de usuario

Scarlett

Scarlett SC-CM33005 Manual de usuario

Breville the Oracle BES980 Manual de usuario

Manuales populares de Cafetera de otras marcas
