the Barista Touch™

Instruction Book - BES880

BREVILLE

RECOMMENDS

SAFETY FIRST

At Breville we are very safety

conscious. We design and

manufacture consumer

products with the safety of you,

our valued customer, foremost

in mind. In addition we ask

that you exercise a degree of

care when using any electrical

appliance and adhere to the

following precautions.

IMPORTANT

SAFEGUARDS

READ ALL

INSTRUCTIONS BEFORE

USE AND SAVE FOR

FUTURE REFERENCE

•Carefully read all

instructions before

operating and save for

future reference.

•Do not touch hot surfaces.

Use handles or knobs as

advised in this instruction

book.

•To protect against

ﬁre, electric shock and

injury to persons do not

immerse the power cord,

plug, or appliance itself

in water or other liquids.

•Close supervision is

necessary when any

appliance is used by

or near children.

•If the appliance is to be:

- left unattended

- cleaned

- moved

- assembled or

- stored

2Breville Recommends

Safety First

7Components

11 Functions

22 Care & Cleaning

26 Troubleshooting

31 French

Contents

Always switch off the

appliance by pressing the

POWER button to off and

unplug from the power

outlet.

•Always allow the

appliance to cool before

cleaning, moving or

storing.

•It is recommended to

regularly inspect the

appliance and power cord.

Do not use the appliance

if there is damage to

the power cord or plug,

or after the appliance

malfunctions or has been

damaged in any way.

Immediately stop use and

call Breville Consumer

Support.

•The use of accessory

attachments not

recommended by Breville

may result in ﬁre, electric

shock or injury to persons.

•Do not let the power cord

hang over the edge of a

table or counter-top, or

touch hot surfaces.

•Do not place the

appliance near the edge

of a table or counter-top.

Ensure the surface is level,

clean and free of water

and other substances.

•Do not place the

appliance on or near a hot

gas or electric burner.

Do not place it in, or allow

it to come in contact with

a heated oven.

•Do not operate the

appliance if it is in

an enclosed space,

or within a cupboard.

•This appliance is

recommended for

household use only.

Do not use this appliance

for anything other than its

intended use. Do not use

outdoors. Do not use in

moving vehicles or boats.

SPECIFIC

INSTRUCTIONS

FOR BES880

•It is recommended to plug

the espresso machine into

a properly grounded and

dedicated circuit, separate

from other electrical

appliances.

•Avoid contact with

moving parts.

•Check bean hopper

for presence of foreign

objects before using.

•Use only cold water in

the water tank. Do not

use any other liquids. Do

not use highly ﬁltered,

demineralized or distilled

water as this may affect

the taste of the coffee and

how the espresso machine

operates.

•Ensure the portaﬁlter

is ﬁrmly inserted and

secured into the group

head before starting an

extraction. Never remove

the portaﬁlter during the

extraction process.

•Use caution after milk

texturing as the auto

purge function will purge

hot steam when the steam

wand is lowered.

•Caution must be used

during descaling as hot

steam may be released.

Before descaling, turn

off the machine, allow

to cool for at least 1 hour

and ensure the drip tray is

empty and fully inserted.

For instructions, refer

to 'Descale', page 21.

•Do not attempt to open

or service the espresso

machine.

•For any maintenance

other than cleaning,

call Breville Consumer

Support or visit a Breville

Authorized Servicer.

SPECIFIC

INSTRUCTIONS FOR

WATER FILTER

•Filter cartridge should

be kept out of reach of

children.

•Store ﬁlter cartridges

in a dry place in the

original packaging.

•Protect cartridges from

heat and direct sunlight.

•Do not use damaged ﬁlter

cartridges.

•Do not open ﬁlter

cartridges.

•If you are absent for a

prolonged period of time,

empty the water tank and

replace the cartridge.

SHORT CORD

INSTRUCTIONS

Your Breville appliance is

ﬁtted with a short power

cord to reduce personal

injury or property damage

resulting from pulling,

tripping or becoming

entangled with a longer

cord. Longer detachable

power cords or extension

cords are available and

may be used if care is

exercised. If an extension

cord is used, (1) the marked

electrical rating of the

cord set or extension cord

should be at least as great

as the electrical rating of

the appliance, (2) the cord

should be arranged so

that it will not drape over

the counter-top or table

where it can be pulled

on by children or tripped

over unintentionally and

(3) the extension cord

must include a 3-prong

grounding plug.

BREVILLE ASSIST®

PLUG

Your Breville appliance

comes with a unique

Assist®Plug, conveniently

designed with

a ﬁnger hole to ease

removal from the power

outlet.

FOR HOUSEHOLD USE ONLY

SAVE THESE INSTRUCTIONS

Components

A. ½lb bean hopper

With locking system for easy removal,

storage and transfer of coffee beans.

B. Integrated conical burr grinder

C. Touch screen control panel

Displays current settings and provides

touch interface.

D. GRIND SIZE selector

Espresso grind settings from ﬁne to coarse.

E. POWER button

F. Integrated removable 54mm tamper

G. Grind outlet

H. Hands free grinding cradle

I. 54mm stainless steel portaﬁlter

With commercial style spouts.

J. Removable wet & dry coffee separator

drip tray

With Empty Me! tray full indicator.

K. 68 fl.oz (2L) removable water tank

With replaceable water ﬁlter to reduce

impurities and scale.

L. Group Head

M. Dedicated hot water outlet

N. Extra-tall cup clearance for tall mugs

O. Easy clean steam wand

For automatic milk texturing.

P. Milk temperature sensor

Q. Storage tray (located behind drip tray)

Houses accessories when not in use.

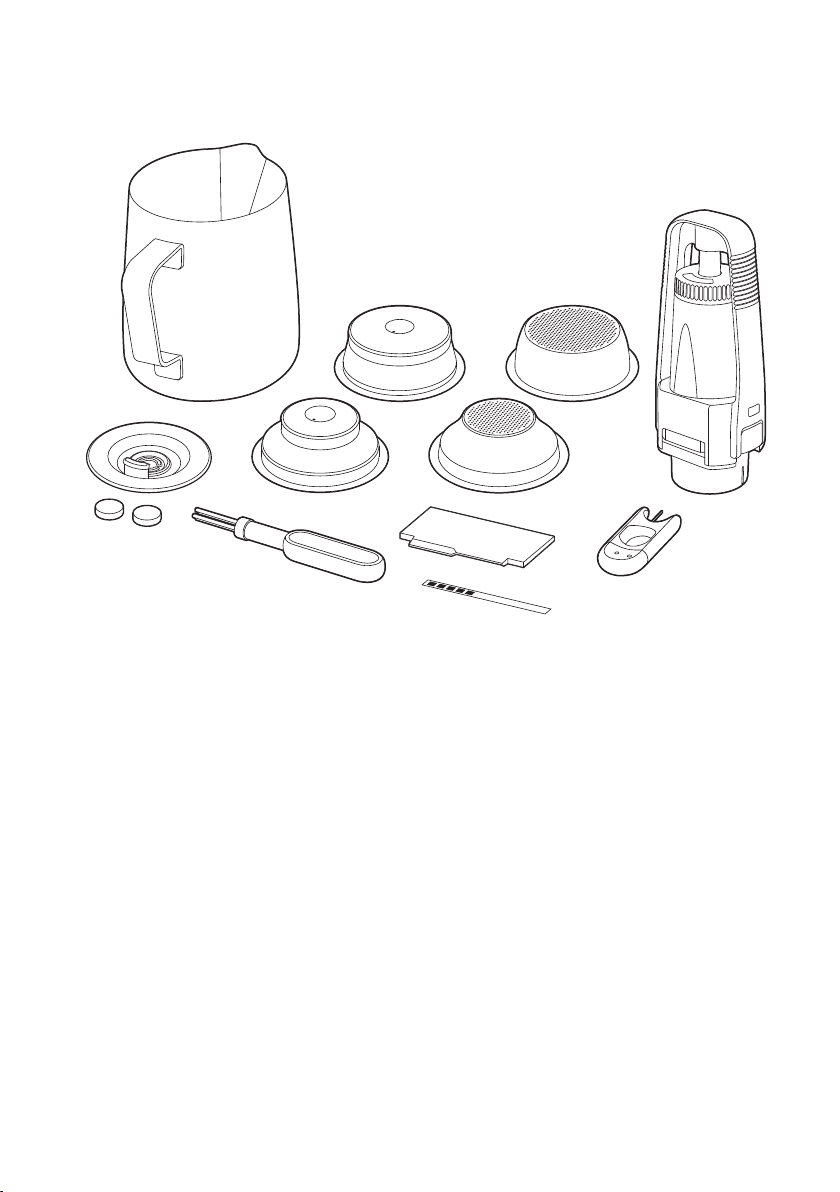

ACCESSORIES

1. Stainless steel milk jug

2. Cleaning disc

3. Cleaning tablets

4. Dual Wall ﬁlter baskets (1 cup & 2 cup)

Use with pre-ground coffee.

5. Single Wall ﬁlter baskets (1 cup & 2 cup)

Use when grinding fresh whole coffee

beans.

All parts of the Barista Touch™

that come into contact with coffee,

water and milk are BPA Free.

7 8 9

4 5

6. Water ﬁlter and holder

7. Cleaning brush

8. The Razor™ precision dose trimming tool

9. Steam wand cleaning tool

10. Water hardness test strip

COLOR TOUCH SCREEN

CONTROL PANEL

Swipe & Select from the drinks menu.

Adjust your shot volume, milk texture or milk

temperature, then save it as your personal

favorite.

AUTOMATIC HANDS FREE MILK

TEXTURING

Automatically textures milk to the selected

temperature and style from silky smooth

latté to creamy cappuccino. Automatic purge

removes residual milk from the steam wand

when returned to the downward position.

RAPID HEAT UP

Innovative heating system achieves ideal

extraction temperature in 3 seconds.

INTEGRATED CONICAL

BURR GRINDER

Stainless steel conical burrs maximize ground

coffee surface area for a full espresso ﬂavor.

Upper and lower burrs are removable for

cleaning.

ADJUSTABLE GRIND SIZE

Espresso grind settings from ﬁne to coarse for

optimal extraction.

ADJUSTABLE GRIND AMOUNT

Adjust the amount of fresh ground coffee

dosed into the ﬁlter basket to suit the ﬁneness

or coarseness of the grind.

AUTOMATIC DOSING

Use the FILTER SIZE button to tell the

machine if you are using a 1 CUP or 2 CUP

ﬁlter basket. The grinder will dispense the

required amount of ground coffee for a single

or double cup dose.

HANDS FREE GRINDING

Auto stop for hands free grinding directly into

the portaﬁlter.

THE RAZOR™ DOSE

TRIMMING TOOL

Patented twist blade trims down the puck

to the right level for precision dosing and a

consistent extraction.

ADJUSTABLE TEMPERATURE

CONTROL

For optimum coffee ﬂavor.

PID TEMPERATURE CONTROL

Electronic PID temperature control for

increased temperature stability.

INSTANT HOT WATER

Dedicated hot water outlet for making

Americanos and pre-heating cups.

LOW PRESSURE PRE-INFUSION

Applies low water pressure at the start of

the extraction to gently expand grinds for

an even extraction.

VOLUMETRIC CONTROL

Preset 1 & 2 cup volumes, manual over-ride or

programmable shot volumes.

DRY PUCK FEATURE

Removes excess water from the ground coffee

in the ﬁlter basket after extraction for easy

disposal of the coffee puck.

Barista Touch

Features

Assembly

BEFORE FIRST USE

Machine Preparation

Remove and discard all labels and packaging

materials attached to your espresso machine.

Ensure you have removed all parts and

accessories before discarding the packaging.

Remove the packaging and the plastics bags

containing the water ﬁlter and water ﬁlter

holder. Clean parts and accessories (water tank,

portaﬁlter, ﬁlter basket, jug) using warm water

and a gentle dish washing liquid. Rinse well

then dry thoroughly.

INSTALLING THE WATER FILTER

• Remove the water ﬁlter and water ﬁlter holder

from the plastic bag.

• Soak the ﬁlter in cold water for 5 minutes.

• Wash the ﬁlter holder with cold water.

• Set the reminder for next month of

replacement. We recommend to replace the

ﬁlter after 3 months.

• Insert the ﬁlter into the two parts of the ﬁlter

holder.

• To install the assembled filter holder into the

water tank, align the base of the ﬁlter holder

with the adapter inside the water tank.

Push down to lock into place.

• Fill the water tank with cold water before

sliding back into position at the back of the

machine and locking into place.

NOTE

Replacing the water ﬁlter after three months

or 10.6 USgal / 40L will reduce the need to

descale the machine. Filter can be purchased

at Breville webpage.

NOTE

DO NOT use highly ﬁltered, demineralised or

distilled water in this machine. This may affect

the taste of the coffee.

Functions

FIRST USE

1. Press POWER button to turn the

machine on.

2. Follow the instructions on screen to guide

you through ﬁrst use setup.

3. After completing setup, the machine will

tell that it is ready to use.

GuideExit

Your Barista Touch is now ready

Select the guide to find out more about your Barista Touch

or exit to proceed to your drink selection

The machine is now in STANDBY mode.

4. Touch "Guide" and the machine will guide

you step by step to make your ﬁrst coffee.

Touch the and go to the Drinks Menu or

<to repeat the Setup. To repeat the Guide at

any time, go to Settings Menu.

NOTE

If your water hardness is either 4 or 5 when

tested, we strongly recommend you change to

an alternate water source.

Filtered, bottled spring or mineral water will

extend both the life of your built-in filter and

descale intervals as well as superior taste.

Please ensure to test the water hardness of the

alternative water source you've chosen and

input into the machine accordingly. Avoid

using overly filtered water, like RO water

unless some mineral content is being added

back to the ﬁnal water. Never use distilled

water, or water with no or low mineral content

as this will affect both the taste.

GRINDING OPERATION

Insert bean hopper into position on-top of the

machine. Turn dial to lock into place.

Fill hopper with fresh beans.

TIP

We recommend quality 100% Arabica beans

with a 'Roasted On' date stamped on the bag,

not a 'Best Before' or 'Use By' date. Coffee beans

are best consumed between 5–20 days after

the 'Roasted On' date. Stale coffee may pour too

quickly from the portaﬁlter spouts and taste

bitter and watery.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Cafetera de Breville

Breville

Breville the Barista Pro Manual de usuario

Breville

Breville Ikon BES400 Manual de usuario

Breville

Breville Precision Brewer Thermal Manual de usuario

Breville

Breville Bar Italia ESP4 Manual de usuario

Breville

Breville Aroma Fresh BCM120 Manual de usuario

Breville

Breville the YouBrew BDC600XL Manual de usuario

Breville

Breville ICED VCF155 Manual de usuario

Breville

Breville Ikon BES400 Manual de usuario

Breville

Breville Duo-Temp 800ESXL Manual de usuario

Breville

Breville Dual Boiler BES920 Manual de usuario

Breville

Breville ESP8XL - 2 Manual de usuario

Breville

Breville Dual Boiler BES920 Manual de usuario

Breville

Breville the Oracle BES980 Manual de usuario

Breville

Breville BES840XL Manual de usuario

Breville

Breville BES810 Manual de usuario

Breville

Breville the Bambino Plus Manual de usuario

Breville

Breville vcf011 Manual del operador

Breville

Breville Barista Max+ Manual de usuario

Breville

Breville NESPRESSO PIXIE BEC430 Manual de usuario

Breville

Breville Coffee Express Manual de usuario

Breville

Breville AquaStation Chilled Manual de usuario

Breville

Breville YouBrew Manual de usuario

Breville

Breville Flow VCF139 Manual de usuario

Breville

Breville VCF045X Manual de usuario

Manuales populares de Cafetera de otras marcas

Taurus

Taurus Livorno 6 Manual de usuario

Delta-q

Delta-q QUICK Manual de usuario

Bunn

Bunn LCA-1 Guía de solución de problemas

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instrucciones de instalación

Saeco

Saeco Vienna Plus Sup 018M Manual de usuario

DeLonghi

DeLonghi DC300 Manual de usuario

INCAPTO

INCAPTO BXCO1470E Manual de usuario

Bosch

Bosch TASSIMO finesse TAS16B Series Manual de usuario

Exido

Exido 245-072 Manual de usuario

Animo

Animo OptiVend Choco Manual de usuario

Siemens

Siemens TQ505DF Series Manual de usuario

DeLonghi

DeLonghi ECI341 Manual de usuario

Krups

Krups KT406511 Manual de usuario

Cimbali

Cimbali M32 Classic Manual de usuario

Philips

Philips HL3844N Manual de usuario

Bosch

Bosch TES 515 SERIES Manual de usuario

Tekmatix

Tekmatix TMFM - 65 Manual de usuario

Scarlett

Scarlett SC-CM33005 Manual de usuario
