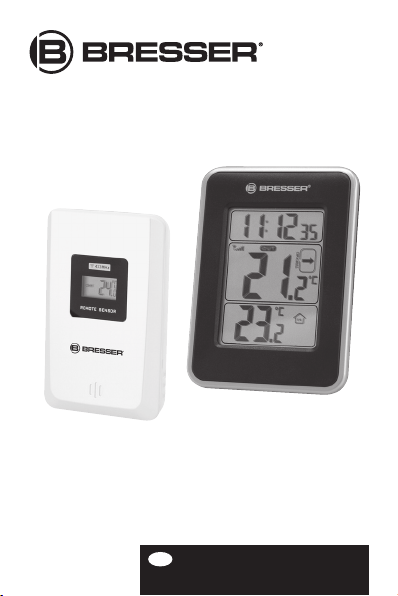

Bresser Temeo io Manual de usuario
GB
INSTRUCTION MANUAL
Temeo io
Art. No. 7000004
2
A
Fig. 1
B
3
Fig. 2
Fig. 3
H
G
I
J
1)
B
C D
E
F
4
About this Instruction Manual
These operating instructions are to be
considered a component of the device. Please
read the safety instructions and the operating
instructions carefully before use. Keep these
instructions for renewed use at a later date. When
the device is sold or given to someone else, the
instruction manual must be provided to the new
owner/user of the product.
This product is intended only for private use. It was
developed as an electronic medium for the use of
multimedia services.
General Warnings
RISK OF CHOKING!
Keep packaging material, like plastic bags and
rubber bands, out of the reach of children, as these
materials pose a choking hazard.
RISK OF ELECTRIC SHOCK!
This device contains electronic components that
operate via a power source (batteries). Children
should only use the device under adult supervision.
Only use the device as described in the manual;
otherwise, you run the risk of an electric shock.
RISK OF CHEMICAL BURN!!
Leaking battery acid can lead to chemical burns.
Avoid contact of battery acid with skin, eyes and
mucous membranes. In the event of contact, rinse
5
the affected region immediately with a plenty of
water and seek medical attention.
RISK OF FIRE/EXPLOSION!
Use only the recommended batteries. Do not short-
circuit the device or batteries, or throw them into
a fire. Excessive heat or improper handling could
trigger a short-circuit, a fire or an explosion.
NOTE!
Do not disassemble the device. In the event of a
defect, please contact your dealer. The dealer will
contact the Service Centre and can send the device
in to be repaired, if necessary.
Do not immerse the unit in water.
Do not subject the unit to excessive force, shock,
dust, extreme temperature or high humidity, which
may result in malfunction, shorter electronic life
span, damaged batteries and distorted parts.
Use only the recommended batteries. Always replace
weak or empty batteries with a new, complete set of
batteries at full capacity. Do not use batteries from
different brands or with different capacities. Remove
the batteries from the unit if it has not been used for
a long time.
The manufacturer is not liable for damage related to
improperly installed batteries!
6
SCOPE OF DELIVERY (Fig. 1)
Main unit (A), remote sensor (B), instruction manual
Required batteries (not included with purchase):
4 pieces of micro batteries (1.5V, type AAA)
PARTS OVERVIEW
Main Unit (Fig. 2)
(1) Display – Temperature trend, indoor- and
outdoor temperature, as well as current time.
(3) MIN/MAX/+ button –
Changes the value for one
setting. Allows switching between MIN and MAX
values. Press and hold for 2 seconds to initialize
receiving the RC signal from the remote sensor.
(3) SET button – Enter time and date setting mode.
(4) Battery compartment
(5) Table stand – Add if station is to be placed on
a flat surface.
Remote sensor (Fig. 3)
(6) Outdoor temperature
(7) Battery compartment
(8) Wall mount hole – This hole makes it possible
to mount the remote sensor on a wall.
(9) °C/°F button – This button selects between
Celsius (°C) and Fahrenheit (°F).
(10) Table stand – Foldable. Use this stand to
place the device on a flat surface
7
BEFORE YOU START
IMPORTANT!
1. Insert batteries for remote units before doing so
for the main unit.
2. Place the main unit as close as possible to the
remote unit.
3. Position the remote unit and main unit within the
effective transmission range.
When changing batteries always change batteries
in the main unit as well as all remote units and
replace them in the correct order, so the remote
connection can be re-established. If batteries
are exchanged in only one of the devices (i.e. the
remote sensor) the signal can’t be received or can’t
be received correctly.
Note, that the effective range is vastly affected by
building materials and position of the main and
remote units. Due to external influences (various
RC devices and other sources of interference), the
maximum distance can be greatly reduced. In such
cases we suggest to position the main unit and the
remote sensor at other places. Sometimes all it
takes is a relocation of one of these components
of a few inches!
Though the remote unit is weather proof, it should
be placed away from direct sunlight, rain or snow.
DE
GB
FR
IT
ES
Garantie / Warranty
8
POWER SUPPLY
Remote sensor
1. Open the battery compartment door.
2. Install 2 batteries (AAA size 1.5V) strictly
according to the polarities shown.
3. Reinsert the battery compartment door.
Main unit
1. Open the battery compartment door.
2. Install 2 batteries (AAA size 1.5V) strictly
according to the polarities shown.
3. Reinsert the battery compartment door.
Low battery warning
When it is time to replace the batteries, the
respective low battery indicator will be shown
next to the indoor temperature display (batteries
for main unit) or near to the outdoor temperature
(batteries for remote sensor).
USING TABLE STAND OR WALL MOUNTING
The main unit can be placed on a flat surface. The
remote unit also can be placed on a flat surface or
mounted on a wall using the recessed screw hole.
OPERATION
Receiving measurements and time signal
Once batteries are placed in the remote unit, it
will start transmitting temperature readings at
roughly 45 second intervals. As soon as batteries
9
are installed in the main unit it will start searching
for a signal from the remote sensor for about 3
minutes. Upon successful reception of the signal,
the outdoor temperature will be displayed on the
main unit. The main unit will automatically update
its readings at about 45 second intervals.
Temperature
1. Press the SET/°F/°C button to switch the
displayed temperature between °C and °F.
2. Once the battery is installed, the main unit
will start displaying the interior measurement
information. The main unit will display the
information from the remote sensor for the first
time approximately 3 minutes after the power
supply was established.
Max/Min records of temperature and humidity
1. Press the MIN/MAX/+ button repeatedly to
switch between the current temperature and the
values of the MIN and MAX recordings.
2. In MIN/MAX temperature display mode, hold
MIN/MAX/+ button to reset all indoor and
outdoor MIN/MAX records to current values.
3. The MIN/MAX temperature values will be
recorded automatically.
4. The MIN/MAX temperature records automatically
will be reset at 0:00 o’clock (12:00 a.m.) every day.
Temperature trend
The temperature trend is calculated from the values
DE
GB
FR
IT
ES
Garantie / Warranty
10
of different measurement periods and will be
displayed as follows:
Rising
Steady
Falling
Main unit signal receiving check
The transmission range is about 30 meters from the
remote station to the main unit (in open area). The
main unit should receive the temperature/humidity
information from the transmitter within 3 minutes
after set-up.
Should the main unit not receive information from
transmitter within 3 minutes after setting up, please
check following steps:
1. Press and hold MIN/MAX/+ button for 2-3 sec to
re-start receiving from the transmitter; the data
will normally be received within 3 minutes.
2. If the first step does not yield a desirable solution,
please remove the batteries and re-install them
(hardware reset).
At the same time, please make sure the following:
1.
The main unit as well the as transmitter should be
at least 5~6.5 feet (1.5~2 meters) away from any
interfering sources, such as computer monitors or
TV sets.
2. The main unit should not stand close to metal
window frames.
