BrandMotion AVMS-3701v3 Manual de usuario

! INSTALLATION!INSTRUCTIONS!

AVMS-3701v3 Instructions 11-27-17.doc Page 1 of 9

2007-2018 (JK) Jeep Wrangler 360º System for

Factory MyGig Display

(Kit # AVMS-3701v3)

Please read thoroughly before starting installation and check that kit contents are complete.

Items Included in the Kit:

Tools & Supplies Needed:

MyGig 6.1” factory display interface

Interface Video/Power harness

360º camera module

IR and remote control (not required)

Key box power/image buttons

Rear camera and Front camera

Front lower bumper mount and harness

Rear spare tire adjustable camera mount

2 side mount cameras w/pods and harnesses

Video output RCA cable

Power input harness

2 side camera templates

Mounting screws and gaskets

These instructions

Wire strippers

Wire cutters

Electrical tape

Zip ties

Plastic panel removal tools

Digital Volt Meter / BCM safe test light

Screwdriver

Socket set

Wrench

Uni Bit

Drill

Safety Precautions:

•Work in well ventilated area that is clear of obstructions.

•Secure vehicle with tire chucks in both front and rear of tires.

•Turn vehicle accessories OFF and ensure ignition key is in OFF position.

•Wear safety goggles and snug fitting clothes.

•Use tools only for their intended purpose and which are in good repair.

•Only perform this task if confidence, skill, and physical ability permit.

! INSTALLATION!INSTRUCTIONS!

AVMS-3701v3 Instructions 11-27-17.doc Page 2 of 9

NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color

instructions, as well as an installation video, please visit www.brandmotion.com

REAR CAMERA INSTALL

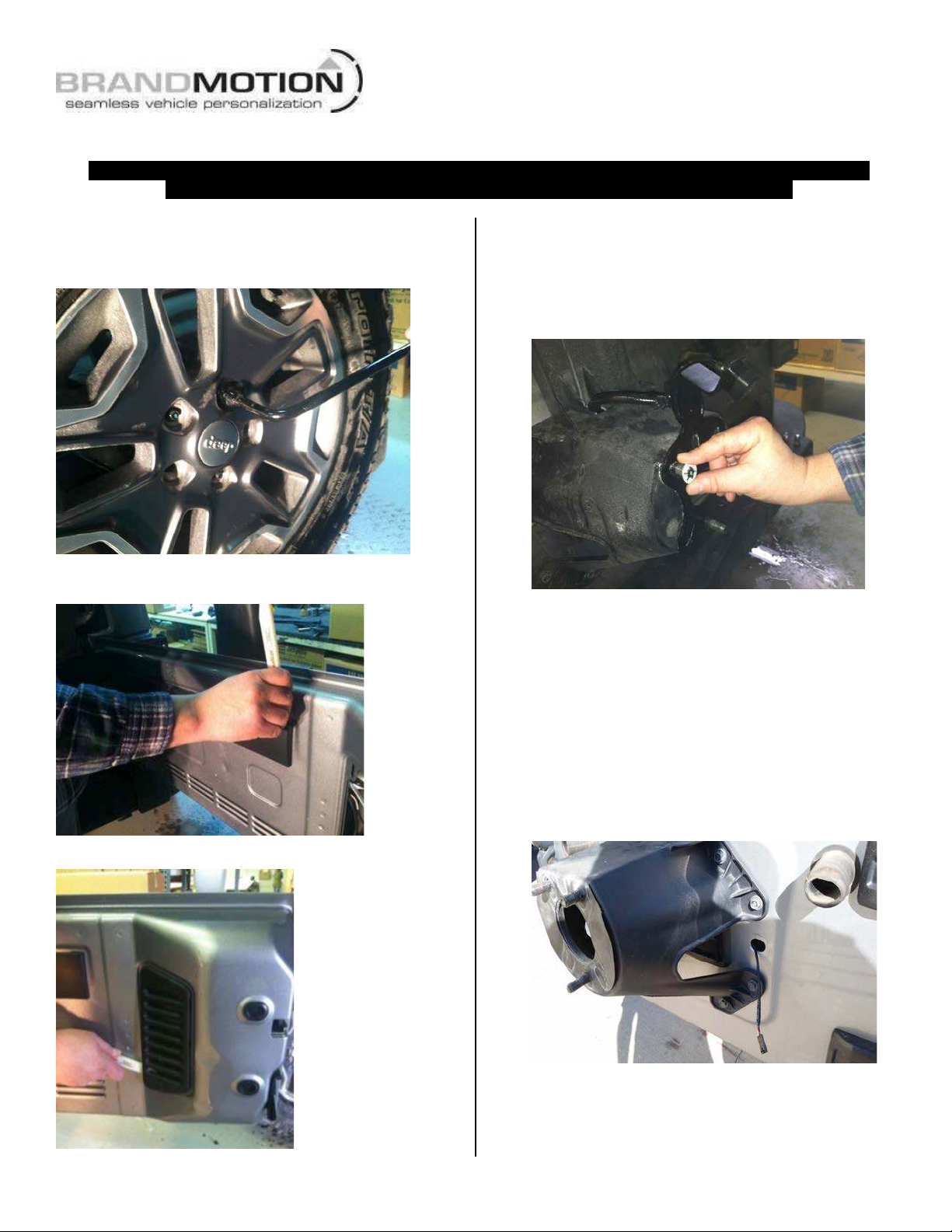

1. Remove the spare tire off of the carrier.

(Use caution when removing tire.)

2. Open rear gate and remove trim from inside

of gate by using plastic panel removal tool.

3. Mount the bracket on the rear tire mount, after

bracket is on, slide on the 3 push nuts over the

studs.

4. Run the harness into the rear gate through the

factory gromet.

5. Run rear camera harness through top hole of

tire carrier.

! INSTALLATION!INSTRUCTIONS!

AVMS-3701v3 Instructions 11-27-17.doc Page 3 of 9

Adjustment Bracket for Camera Clearance using

Phillips Screwdriver and 3/8” Wrench or Socket Drive

Note: Short Bracket has been designed for Factory

offset wheels. Use the Long Bracket for wheels with

larger offsets.

6. Remount spare tire on carrier. (MAKE SURE NOT

TO PINTCH THE CAMERA HARNESS.)

7. Use a T20 Torx bit to remove subwoofer box.

8. Using a plastic trim removal tool, pry off rear

seat belt closeout.

9. Using a plastic trim removal tool, remove rear

access panel to expose 10mm bolt, and remove

bolt.

! INSTALLATION!INSTRUCTIONS!

AVMS-3701v3 Instructions 11-27-17.doc Page 4 of 9

10. Run the rear camera harness alone the

factory harness. Use zip ties to secure to

the factory harness.

11. Run the camera harness through the factory

cloth door boot, use a long zip tie or a fish

tape.

12. Finish running the harness to the front

glove box area on the passenger side of the

vehicle.

13. Remove the glove box to gain access to the

back side.

SIDE CAMERA INSTALL

1. Place template stickes under the side mirrors.

The arrow should be perpenduiculr to the

vehicle body, pointing away for the vehicle.

! INSTALLATION!INSTRUCTIONS!

AVMS-3701v3 Instructions 11-27-17.doc Page 5 of 9

2. Repeat for other side mirror as well.

3. Remove the door panel from the vehicle,

remove trim behind door handle and remove the

trox screw.

4. Remove the inter trim on the pull handle to gain

access to the two screws.

5. Remove the (2) Torx in the lower front of the

door.

6. With the door panel remover, unplug the mirror

harness and connect a pull wire to be able to

pull the harness back through the door.

7. Remove (2) Torx bolts on the inter door frame

to remove mirror. (when bolts are taken out the

mirror might fall, hold on to the mirror while

doing this.

8. Remove the mirror and pull harness through the

door.

! INSTALLATION!INSTRUCTIONS!

AVMS-3701v3 Instructions 11-27-17.doc Page 6 of 9

9. Repeat for the other side.

10. Compare the mirrors to see it the templates are

in the same place and angle on both.

11. Remove the (3) Torx screws from inside the mirror.

We can get behind the mirror glass to do this. (In

the picture the glass is remover to show location of

the screws.

12. Remove the mirror glass by gently lifting on the

tabs.

13. Drill the hole in the template for the camera and

the (2) mounting screws.

! INSTALLATION!INSTRUCTIONS!

AVMS-3701v3 Instructions 11-27-17.doc Page 7 of 9

14. Mount the left camera in the pod marked LH.

Then mount the pod to the mirror using

supplied screws.

15. Run the camera harness though the back-side of

the mirror and out the mounting base.

16. Attach the camera harness and the mirror

harness to the pull wire, that is already run

through the door and pull the harnesses to the

inside of the vehicle.

! INSTALLATION!INSTRUCTIONS!

AVMS-3701v3 Instructions 11-27-17.doc Page 8 of 9

17. Notch the grommet to allow room for the

camera harness.

18. Remount the mirror to the vehicle with the (2)

Torx bolts.

19. Insert the camera pins into the connector for

the camera.(If they were removed for

installation)

20. Reconnect the mirror harness in the door.

21. Run the camera harness along the factory

harness in the door.

22. Run the camera wire through the factory door

sleeve. Use a long zip tie or a fish tape.

23. Run the camera wire to behind glove box area

to connect to the 360º brain.

24. Reinstall door panel and mirror glass.

25. Repeat for other side.

FRONT CAMERA INSTALL

1. Front camera will mount under the front bumper

on the metal bumper.

2. Mark location of the camera on the metal

bumper. These next steps will vary due to the

! INSTALLATION!INSTRUCTIONS!

AVMS-3701v3 Instructions 11-27-17.doc Page 9 of 9

different types of factory and aftermarket

bumpers available for the Jeep Wrangler.

3. The camera needs to have a clear view of the

road below and out in front of the vehicle.

4. You can use the plastic mount provided for the

front camera. Or make your own.

5. The white sticker on the camera is up.

6. Route the camera harness into the vehicles

interior through the factory grommet in the

firewall. Run the harness over behind the glove

box area.

2 BUTTON KEYPAD LOCATION

1. Place the keypad somewhere easy to get to like

in front of the center console.

2. Run the keypad harness over to the glove box

area.

3. For factory display radios, the power button on

the key pad turns on the system and the

interface to show the image on the factory

display below 7 MPH.

4. For aftermarket radios or displays the power

button will turn on the video output labeled

CVBS. The video output labeled CVBS RV is on

when every the ignition is on.

WIRING UP THE 360º MODULE and the

MyGig INTERFACE

1. The yellow wire is connected to constant power.

It can be found behind the radio on the 22—pin

gray plug pin 1- YELLOW/RED.

2. The red wire is connected to accessory. It is

supplied from the interface. Connect the red

from the 360 module to the red accessory

output on the interface.

3. Blue is connected to reverse. It is supplied from

the interface. Connect the blue wire from the

360 module to the purple reverse output on the

interface.

4. Connect the RCA from the 360 module labeled

CVBS 1

to the interface RCA labeled AUX.

5. Connect the RCA from the 360 module labeled

CVBS 2

to the interface RCA labeled REAR

CAMERA input.

6. On the back of the radio unplug the factory gray

harness and plug in the gray T-harness in to

the back of the radio where the factory harness

was just unplugged. Plug the factory gray plug

into the other end of the T-harness.

7. Plug the white 22—pin plug into the open plug

on the back of the radio.

8. Check the system, by turning on the ignition and

shifting into reverse.

9. You should see the backup camera. (If not the

RCA’s are connected backwards.)

10. Calibrate the system.
