Bracketron RoadTripper BT5-548-2 Manual de usuario
RoadTripper Bluetooth
FM Transmitter™
BT5-548-2
USER MANUAL
The built-in MP3/WMA decoder chip can transmit music
files on your smartphone or MP3 player to your car stereo
wirelessly. It also provides hands-free calling via Bluetooth
on your smartphone.
INTRODUCTION
³ Operating Voltage: 12V-24V
³ USB Output: 5V/2.1A (maximum)
³ Operating Temperature: 0~50C or 32~122F
³ Supported Music Formats : MP3/WPA
³ Signal to Noise Ratio: >60dB
³ Distortion: <0.1%
³ Frequency Response: 20Hz-15Khz
³ Channel Separation:>60dB
³ Bluetooth Version: Version 2.1+EDR
³ Bluetooth Sound Processing : A2DP (Advance Audio Distri-
bution Profile) function supported
³ Bluetooth Transmission Distance: 10 meters or 33 feet
³ Effective distance of Bluetooth microphone: Up to 2 meters
or 6.5 feet
³ FM Frequency: 87.5~108Mhz
³ FM Mode: Stereo Digital PLL
SPECIFICATIONS

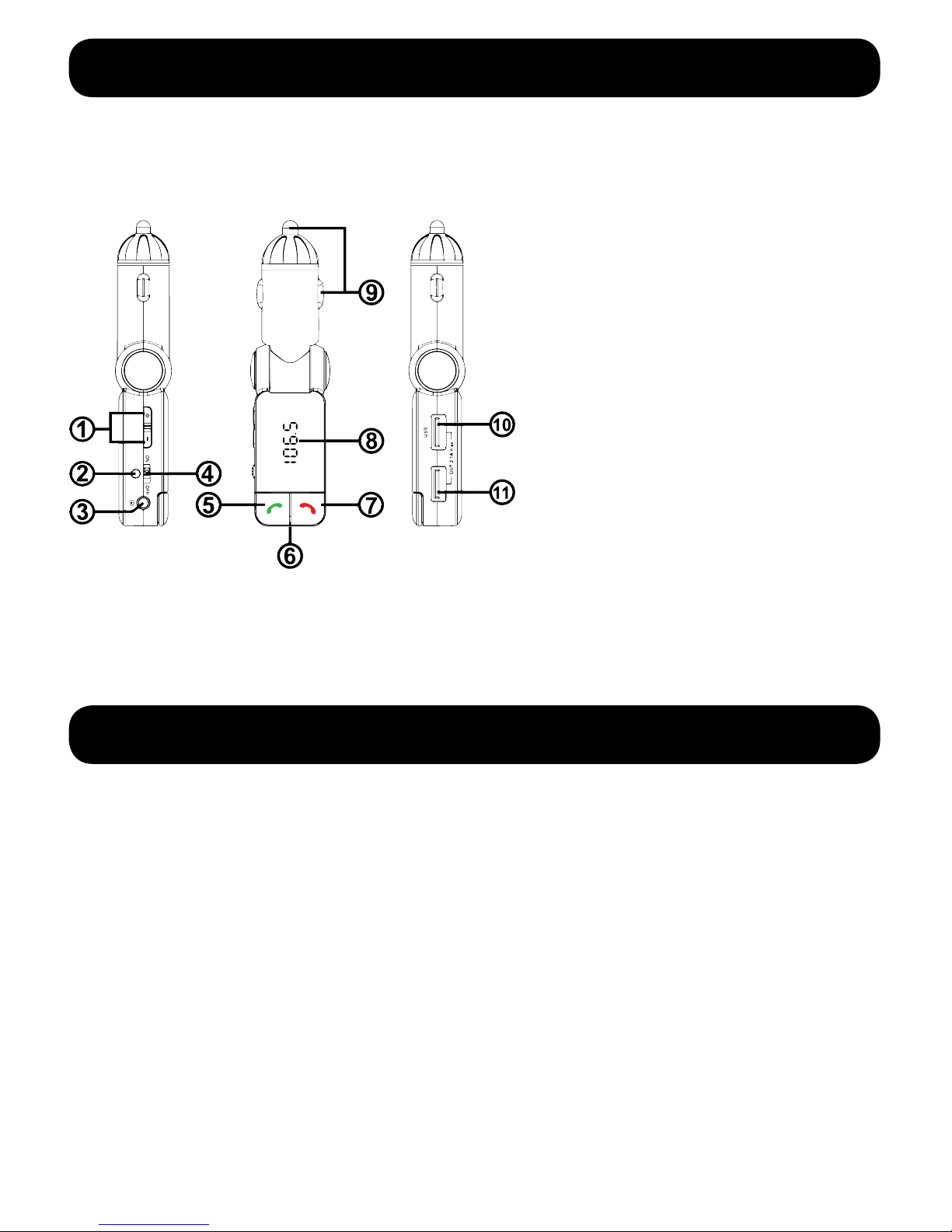

CONTROLS
1. Volume or FM
Frequency up(+)/down(-)
2. Power Indicator LED
3. Auxiliary Audio Input
4. Power Switch
5. Play/Pause; Answer/
Redial
6. Microphone
7. Hang Up/FM Frequency
Mode/ Volume Mode
8. LED Frequency Display
9. Cigarette Lighter Power
Adapter 12V-24V
10&11. USB ports output
5V/2 .1A (maximum)
FEATURES
³ Adjustable Display Angle
³ FM Transmitter
³ LED Frequency Display
³ Auxiliary Audio Input
³ Answer/hang up/reject/redial via Bluetooth
³ Bluetooth stereo music play
³ Call Echo Cancellation and Noise Reduction (CVC) technol-
ogy
³ Dual USB port provides power to devices up to 5V/2.1A
³ Automatic frequency memory function
³ To pair your phone, connect the transmitter.
³ Turn on your car engine or put the ignition key position into
ACC (accessory) mode to enable power to your cigarette
lighter socket.
³ Plug the transmitter into the cigarette lighter socket and
switch its power to ON. The product will start up and LED
will display the current radio station once it is powered.
³ Enable the Bluetooth function of your phone while the
transmitter is ON and search for “BT FM Transmitter” device,
which will display on your phone.
³ Select “BT FM Transmitter” and “connect/pair”
BLUETOOTH PAIRING
³ Making a Call: Dial the phone number and press the call
button on your phone, while connected to the transmitter
and the call sound will be heard through your car speakers.
³ Answering a Call: If there is an incoming call while con-
nected to the transmitter, press key to answer the call.
In answering the call, press key to switch between the
mobile phone microphone and the product microphone.
Press key to hang up.
³ Rejecting a Call: For calls you do not wish to answer, you
may press key to reject.
HANDSFREE CALLING
PLAYING MUSIC ON YOUR PHONE
³ This product supports A2DP function, which allows you to
play music on your phone. Music will be transmitted to your
car stereo via FM transmitter function of the product so that
you can enjoy music with higher quality.
³ Plug the transmitter into the car cigarette lighter socket and
switch power to ON. Make sure your phone’s Bluetooth is
“paired” with the transmitter. If not, follow the steps under
“Bluetooth Pairing”.
³ Turn the car stereo ON and choose FM radio mode.
Choose an open station/frequency where there is no radio
broadcast.
³ Adjust the transmitter’s FM radio station to match the
FM radio station of your car stereo by pressing/holding
button for a few seconds. The digital radio station frequency
on the LED display will flash. Change the radio station up/
down by short pressing “+|-” keys . Hold +|- keys to increase/
decrease the radio station quickly. Radio Station frequency is
adjustable within 87.5 - 108.
³ Example: If your car’s FM radio station is set to 107.7, set
the transmitter to the same frequency (display should show
“107.7”).
³ Once the radio station frequencies are matched, simply
play the music by selecting “play” on your phone’s music
player.
³ You can also control your music player through the trans-
mitter by pressing key to play/pause or pressing “+|-” keys
to select the next/last song (note: some phones with older
operating systems may not support this function).
The transmitter has dual charging USB ports. Each USB port
supports the maximum output of 5V/2.1A. If both ports are
used at the same time, the total current is no more than 2.1A.
DUAL USB PORTS
Should you wish to play music from a MP3 player that does
not support Bluetooth, insert the included auxiliary audio
cable with one end inserted to the MP3 player’s audio output
and the other end to the auxiliary audio input on the trans-
mitter. Press “+|-” to turn up/down the volume.
AUDIO INPUT MODE
³ Never turn the volume up too loud when FM is working
so as to avoid sound distortion. Please adjust the volume
through the car stereo
³ Some phones may not support automatic connection if they
are powered on after the power failure. If so, please connect
them manually.
³ Do not use this product in the environment with high tem-
perature, dust or moisture.
³ Avoid dropping the product to prevent damage.
OTHER INFORMATION
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
Including interference that may cause undesired operation.
IMPORTANT!
DO NOT RETURN PRODUCTTOTHE RETAILER.
IFYOU NEED ASSISTANCE OR REPLACEMENT PARTS,
CALL USTOLL FREE:1-866-237-4443 HOURS MON-FRI 9AM-5PM(CT)
LIMITEDWARRANTY
Bracketron,Inc.warrants this product against defects in
material or workmanship for a period of one (1) year from
the date of purchase. Bracketron,at its option,may repair or
replace with new or refurbished product,any product which
Bracketron determines to be defective. “Refurbished”means
any product that has been returned to its original specifi-
cations.To obtain warranty services,you must deliver the
product,freight prepaid,to Bracketron,Inc.at 5624 Lincoln Dr.,
Edina,MN.55436. A dated purchase receipt MUST accompany
the returned product. This LimitedWarranty shall apply to
any repair or replacement product for the remainder of the
original LimitedWarranty or for a period of ninety (90) days
– whichever is longer.BRACKETRON SHALL NOT BE LIABLE
FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIEDWARRANTY ONTHIS
PRODUCT. FURTHER,EXCEPTTOTHE EXTENT PROHIBITED BY
APPLICABLE LAW,ANY IMPLIEDWARRANTY OF MERCHANT-
ABILITY OR FITNESS FOR A PARTICULAR PURPOSE ONTHIS
PRODUCT IS LIMITED IN DURATIONTOTHE DURATION OF
THISWARRANTY.
RoadTripper Bluetooth
FM Transmitter™
BT5-548-2
MANUEL DE L’UTILISATEUR
La puce de décodage MP3/WMA intégrée peut trans-
mettre, sans fil, des fichiers de musique de votre téléphone
intelligent ou votre lecteur MP3 sur votre chaîne stéréo pour
automobile. Il vous permet également de faire des appels
mains libres sur votre téléphone intelligent par le biais de
Bluetooth.
INTRODUCTION
³ Tension de fonctionnement : 12 V - 24 V
³ Sortie USB : 5 V/2,1 A (maximum)
³ Température de fonctionnement : 0 - 50 °C ou 32 - 122 °F
³ Formats de musique pris en charge : MP3/WPA
³ Rapport signal sur bruit : > 60 dB
³ Distorsion : < 0,1 %
³ Réponse de fréquence : 50 Hz - 15 kHz
³ Séparation des canaux : > 60 dB
³ Version Bluetooth : version 2.1 + EDR
Traitement de son Bluetooth : fonction A2DP prise en charge
(profil de distribution audio avancée)
Distance de transmission Bluetooth : 10 mètres ou 33 pieds
Portée effective du microphone Bluetooth : jusqu’à 2 mètres
ou 6,5 pieds
Fréquence FM : 87,5 à 108 MHz
Mode FM : stéréo numérique PLL
CARACTÉRISTIQUES

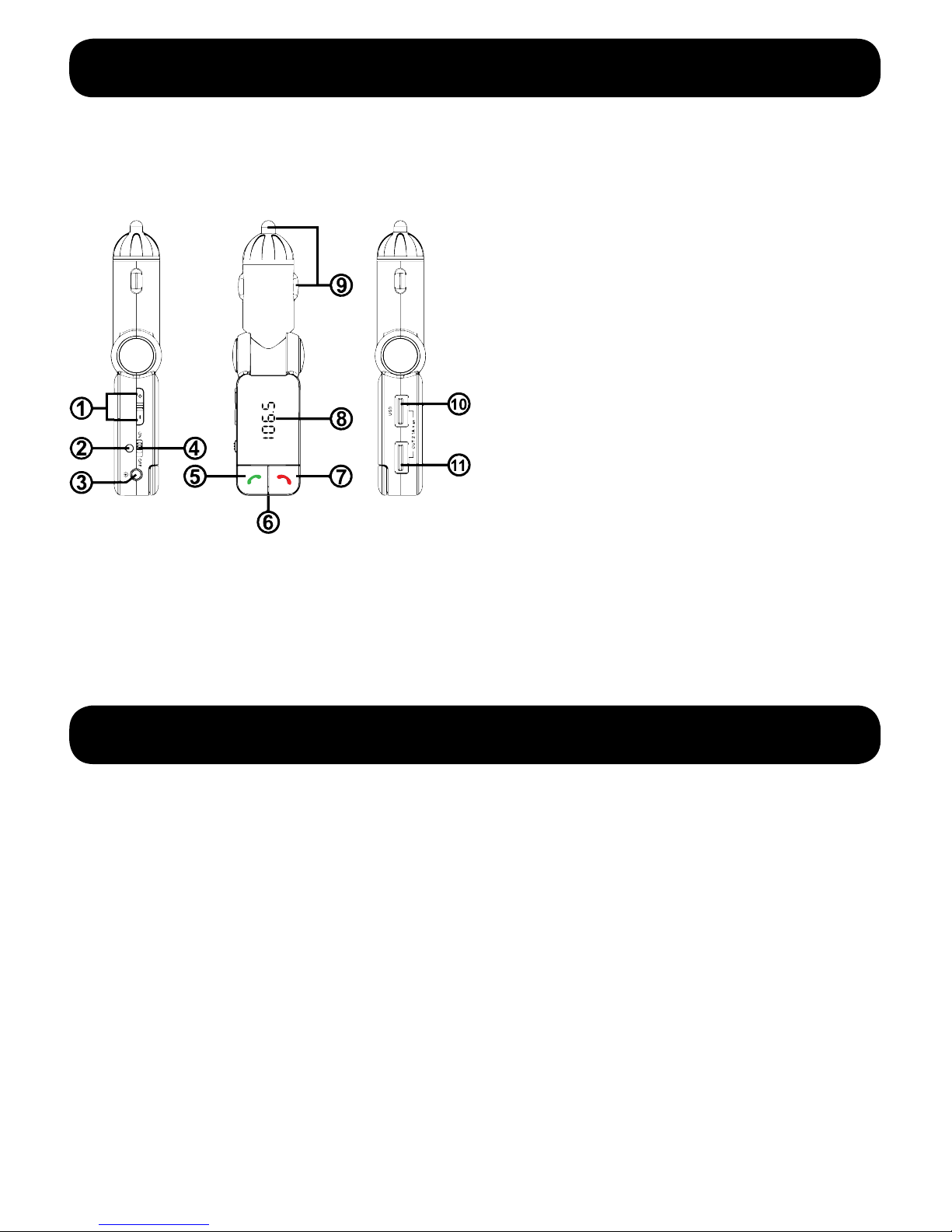

COMMANDES
1. Volume ou fréquence
FM vers le haut (+) / bas (-)
2. Indicateur d’alimentation DEL
3. Entrée audio auxiliaire
4. Interrupteur d’alimentation
5. Lecture/Pause; Réponse/
Recomposition
6. Microphone
7. Raccrocher/Mode fréquence
FM/Mode de volume
8. Affichage DEL de la
fréquence
9. Adaptateur d’alimentation de
l’allume-cigare 12 V - 24 V
10 et 11. Sortie des ports USB
5V / 2,1 A (maximum)
FONCTIONNALÍTES
³ Angle d’affichage réglable
³ Émetteur FM
³ Affichage de la fréquence DEL
³ Entrée audio auxiliaire
³ Répondre/Raccrocher/Rejeter/Recomposition via Bluetooth
³ Lecture de la musique stéréo Bluetooth
³ Technologie d’annulation de l’écho lors d’appels et réduction
du bruit (CVC)
³ Double port USB fournit l’alimentation aux appareils jusqu’à
5 V / 2,1 A
³ Fonction de mémorisation automatique de fréquence
