B+B Sensors TagTemp Manual de usuario

Operating Manual

TagTemp Temperature Data Logger

0568 0037-01

V1.0x G

B+B Thermo-Technik GmbH

Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

TagTemp USB Temperature Logger

0568 0037-01

0141 0315-92 28.11.2022

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

Seite 1von 14

Technische Änderungen vorbehalten

Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com

CONTENTS

1Foreword...........................................................................................................................................................................................................1

2GENERAL ADVICE ..........................................................................................................................................................................................1

2.1. Labels.....................................................................................................................................................................................................1

2.1 Warning Advice...........................................................................................................................................................................................1

2.2 Security Advices..........................................................................................................................................................................................2

3Introduction .......................................................................................................................................................................................................2

3.1 Identification................................................................................................................................................................................................2

3.2 Light Signals................................................................................................................................................................................................3

4TECHNICAL SPECIFICATIONS.......................................................................................................................................................................3

5Operation ..........................................................................................................................................................................................................4

6Device Configuration.........................................................................................................................................................................................4

7NXperience Software........................................................................................................................................................................................4

7.1 Installation...................................................................................................................................................................................................4

7.2 Running NXperience...................................................................................................................................................................................4

7.2.1 General Parameters ..........................................................................................................................................................................5

7.2.2 Channels Parameters........................................................................................................................................................................5

7.2.3 Configuration of LOG Register ..........................................................................................................................................................6

7.2.4 Finalization ........................................................................................................................................................................................6

7.3 Downloding and Data Visualisation.............................................................................................................................................................7

7.3.1 Downloading Data .............................................................................................................................................................................7

7.3.2 Visualizing Data.................................................................................................................................................................................7

8LOGCHART II Software....................................................................................................................................................................................8

8.1 Installing LogChart II ...................................................................................................................................................................................8

8.2 Running LogChart II....................................................................................................................................................................................8

8.3 Configuring the Device................................................................................................................................................................................9

8.4 Stop / Pause / Resume Buttons................................................................................................................................................................10

8.5 Downloading Data.....................................................................................................................................................................................10

8.6 Visualizing Data ........................................................................................................................................................................................11

8.6.1 Chart Window..................................................................................................................................................................................11

8.6.2 Data Table Window .........................................................................................................................................................................11

8.6.3 General Information Window...........................................................................................................................................................12

8.7 Exporting Data ..........................................................................................................................................................................................12

8.8 Diagnostics................................................................................................................................................................................................12

9Battery Replacement ......................................................................................................................................................................................12

10 Most frequently encountered problems.....................................................................................................................................................13

11 Questions?................................................................................................................................................................................................13

TagTemp USB Temperature Logger

0568 0037-01

0141 0315-92 28.11.2022

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

Seite 1von 14

Technische Änderungen vorbehalten

Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com

1FOREWORD

Dear customer,

We thank you for having purchased the TagTemp USB Temperature Logger and are very glad that you decided in favour of a product of B+B

Thermo-Technik GmbH. We hope this product will fully satisfy you and will assist you effectively in your work.

This Device has been developed to be technically highly up-to date. This product has been designed in accordance with the regnant European

and German national directives and rules. For a proper and effective usage of the product the customer shall observe the following Operating

Instructions. In the case that against one’s expectations any troubles occur which you cannot resolve yourself, please contact our service

centers or your salesperson. We go after giving you rapid and competent help to minimize the risk of long-time outfalls.

The following operating Instruction is an indispensable part of this Product. It contains important advices for the starting up and further

use of the device

2GENERAL ADVICE

This documentation contains information which must be paid in attention to assure a highly effective and secure use of the supplied product

Please read through the following instructions and make yourself familiar with the handling of the product before you insert it in your processes.

Keep this document always readily to hand so you can consult it by need.

2.1. Labels

Symbol

Meaning

Descripton

Advice

It is necessary to read the following advice before beginning the operations. The

used symbols in the manual acts first as eye catcher for security risks. The

symbols do not replace the security advice. The text must be read to the end

Necessary to observe This symbol designates important advice and tips that are necessary for the

success a work step. They must be followed to get good results

2.1 Warning Advice

Symbol

Meaning

Symbol

Meaning

This symbol advises the user of danger for

persons, material, or environment. The text gives

information that must be necessarily followed to

avoid any risks

Caution against electromagnetic fields (BGV A8,

GUV-V A8/W12)

Caution against hot surfaces (BGV A8, GUV-V

A8/W26) and hot liquids or substances

Caution against severe cold

(BGV A8, GUV-V A8/W17)

Caution against liquids and hot substances Caution against dangerous high electrical voltage

(BGV A8, GUV-V A8/W08)

Caution against dangerous ex-plosive substances

(BGV A8, GUV-V A8/W02) Caution against dangerous ex-plosive atmosphere

(BGV A8, GUV-V A8/W21)

Caution against mobile engines (W29)

Caution against moving parts

Electronic waste

TagTemp USB Temperature Logger

0568 0037-01

0141 0315-92 28.11.2022

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

Seite 2von 14

Technische Änderungen vorbehalten

Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com

2.2 Security Advices

B+B Thermo-Technik GmbH assume no liability for damages occurred through failure to observe these security advices. A usage non conform

to the instructions given in this manual can damage the device

BODY AND PROPERTY DAMAGES

The national and local standards for electrical installations must be se strictly observed.

The use of the device is strictly reserved / restricted to properly schooled / qualified operators.

The system is not adequate for use in atmosphere with explosion danger.

Do not use the system in a high electric or magnetic field area

ENSURING OF PRODUCT SECURITY

The system must be operated only within the limits given in the technical Data

Exposing the system to hot temperatures (higher than the operating temperature) will cause damages in the electronic

circuits and also damage the housing

USAGE ACCORDING TO PURPOSE

Please use the product only for the purposes for which it is conceived. In case of doubt, please first contact B+B Thermo-

Technik GmbH

DISOPOSAL

Please return the device to B+B Thermo-Technik GmbH after expiration of its lifetime

3INTRODUCTION

TagTemp-USB is a small portable electronic temperature logger. Its internal sensor measures local environment temperature and logs such

values in an electronic memory. Logged data, or ACQUISITIONS, can be later viewed and analyzed on a PC where they can be opened in

tabular and graph forms.

The NXperience and LogChart II software enables to set up the device operation mode. It is also used for viewing acquisitions. Other

parameters such as end of measurements, logging interval, etc., are easily defined through the NXperience and LogChart II software.

Acquisitions can also be exported to be analyzed in other applications, such as spreadsheet programs

3.1 Identification

The identification label is on the device body. Check if the features described are in accordance with your order.

IGURE

Front view of the device

TagTemp USB Temperature Logger

0568 0037-01

0141 0315-92 28.11.2022

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

Seite 3von 14

Technische Änderungen vorbehalten

Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com

3.2 Light Signals

Status LED indicator: This visual indicator reports the status of operation of device through the number of flashes that occur in an interval of 5

seconds. The states of operation are:

One flash: The device is waiting to start the log in memory (standby) or completed a series of logs in memory

Two flashes: The device is performing logs in memory

Three flashes: The device is or has gone through an alarm condition and is not performing logs in memory

Four flashes: The device is or has gone through an alarm condition and is performing logs in memory.

4TECHNICAL SPECIFICATIONS

Measuring Range

-20.0 °C (-4 °F) to 70.0 °C (158 °F)

Accuracy

± 0.5 °C @ 25 °C (± .9 °F @ 77 °F)

± 1 °C (± 1.8 °F) max. over the full scale

Note: An eventual constant systematic error can be compensated using the OFFSET

parameter in the NXperience or LogChart II software

Measurement Resolution

0.1 °C (32.18 °F).

Memory Capacity

32.000 (32 k) logs

Measurement Interval

5 seconds min to 18 hours max

Power Supply

3.0 V lithium battery (CR2032), built-in

Battery Autonomy (estimated)

More than 400 days – 1-minute acquisition interval

More than 500 days – 30-minute acquisition interval.

Operating Temperature

20.0 °C (-4 °F) to 70.0 °C (158 °F).

Housing

PC - ABS

Ingress Protection

Device suitable for applications requiring up to IP67 degree of protection. See chapter

SPECIAL CARE.

Dimensions

55 x 37.5 x 15 mm.

Device-PC data transfer time

Proportional to the number of logs. 20 seconds to 32.000 logs.

PC Interface

Micro-USB cable

NXperience Software

Configurator software for Windows 10, 8,7, and XP. Menus in Portuguese, English,

French or Spanish.

Sets up, reads and displays data on the screen.

LogChart ll Software

Configurator software for Windows 8, 7, and XP. Menus in Portuguese, English, French

or Spanish.

Sets up, reads, and displays data on the screen.

Certification

TagTemp USB Temperature Logger

0568 0037-01

0141 0315-92 28.11.2022

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

Seite 4von 14

Technische Änderungen vorbehalten

Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com

5OPERATION

To operate the device, you must install NXperience software or LogChart II software on a PC, as instructed in the SOFTWARE NXPERIENCE

and SOFTWARE LOGCHART II chapters of this manual. The communication between device and PC must be performed using a USB

connector.

The configuration that defines the operation mode of the device must be previously created in the NXperience or LogChart II software. Each

parameter must be defined, and the consequences must be observed.

The device starts and stops registering as defined in the settings

6DEVICE CONFIGURATION

To perform a configuration, the device must be connected to the USB port of the PC.

7NXPERIENCE SOFTWARE

7.1 Installation

NXperience software allows you to explore all the features of the device by communicating through its USB interface. It is also a complete tool

to perform the analysis of the data logged by TagTemp-USB.

To install NXperience, just execute the NXperienceSetup.exe file, available from our website.

7.2 Running NXperience

When you open NXperience, the main window is displayed as shown in Fig 3

You should click Configure, and then click Read Device

To mitigate problems, insert or remove the USB cable

carefully.

If you find it difficult to connect, make sure that the cable is

properly seated. No use of force is required.

IGURE

Communication via USB cable

FIGURE 3NXperience main Window

TagTemp USB Temperature Logger

0568 0037-01

0141 0315-92 28.11.2022

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

Seite 5von 14

Technische Änderungen vorbehalten

Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com

7.2.1 General Parameters

INFORMATION

•Device Tag: Allows you to set a name for the digital channel. The field accepts up to 16 characters.

•Serial Number: Shows the device unique identification number.

•Model: Shows the device model name.

•Firmware Version: Shows the firmware version recorded in the device.

•Memory Capacity: Shows memory space still available for new logs.

•Logging Status: Informs if the device is registering or not.

•Battery Level: Shows the device's battery charge level.

CLOCK

•PC Date/Time: Shows the date and time of the computer.

•Date/Time: Shows the date and time of the device when it was read by NXperience.

7.2.2 Channels Parameters

TEMPERATURE

•Tag: Allows you to set a name, which will be used as channel identification during a download, for the channel. The field allows up to

16 characters.

•Input Type: Shows the type of sensor supported by the device.

•Unit: Allows you to define the unit °C or °F

•Mode: Allows you to define how the value measured will be registered. Options are:

oInstant: The value logged will be exactly the value measured at each interval defined. Measurement is taken at the end of

the defined interval. The minimum interval between measurements is 5 seconds.

oMaximum: The value logged will be the maximum value found within ten consecutive measurements taken within a

predefined interval. The minimum interval between measurements is 50 seconds

oMinimum: The value logged will be the minimum value found within ten consecutive measurements taken within a

predefined interval. The minimum interval between measurements is 50 seconds.

FIGURE 4General Parameters

IGURE

Channels Parameters

TagTemp USB Temperature Logger

0568 0037-01

0141 0315-92 28.11.2022

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

Seite 6von 14

Technische Änderungen vorbehalten

Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com

oMedium: The registered value will be the average of ten measurements made on logging interval. The minimum time

between each record is 50 seconds.

•Lower Alarm: Allows you to enable and configure a lower alarm setpoint (option available only if the log Start Mode is set to

"Immediate Start" or "Date/Time").

•Minimum: Displays the minimum temperature supported by the device.

•Upper Alarm: Allows you to enable and configure a higher alarm setpoint (option available only if the log Start Mode is set to

"Immediate Start" or "Date/Time").

•Maximum: Displays the maximum temperature supported by the device.

•Lower Setpoint: When the measured temperature is lower than the value set in this parameter, the device will start the logs (option

available only if the log Start Mode is set to ""Setpoint").

oMinimum: Displays the minimum temperature supported by the device.

•Upper Setpoint: When the measured temperature is higher than the value set in this parameter, the device will start the logs (option available only

if the log Start Mode is set to "Setpoint").

oMaximum: Displays the maximum temperature supported by the device.

•Offset: Allows you to make small adjustments to the channel readings. The configured offset will be added to all readings performed. An offset up to

± 3 ° C (± 5.4 ° F) can be set for temperature setting. This allows to decrease (and even zero) the temperature measurement error

7.2.3 Configuration of LOG Register

LOG

•Log Interval: Allows you to select the frequency (in hours, minutes or seconds) with which a log must be made and logged in the

memory.

•Estimated Time: Based on the value set in the Log Interval, shows the estimated time for the memory to fill.

MEMORY MODE

•Circular Memory: Logs are continuous, replacing old logs with new ones as the number of logs overpasses the memory capacity.

•Full Memory: Logs can be stored up to the full memory capacity is reached.

START MODE

•Immediately: Start as soon as set up is ready and sent (OK) to the device.

•Date/Time: Logs start at predefined date and time.

•Setpoint: Logs start when a certain temperature value is reached. In this option, the setpoint value is set in the Channels field, in the Upper

Setpoint and Lower Setpoint parameters (these options appear only when this log mode is selected)

7.2.4 Finalization

CONFIGURATION

•Send Configurations and Start Logs: Allows you to send the configuration to the device and start the logs.

•Save to File: Allows you to save the configuration to a file that can later be used.

•Memory Download: Allows you to download logs from memory.

LOG CONTROL

•Start/Resume: Allows you to start or resume logs that have been interrupted by the Pause command, without discarding logs that are

in the device's memory, using the configured parameters.

•Pause: Allows you to stop logs, allowing them to be resumed in the future using the Start/Resume button.

•Stop: Allows you to permanently stop logs, so that the device will only re-register when it receives a new configuration

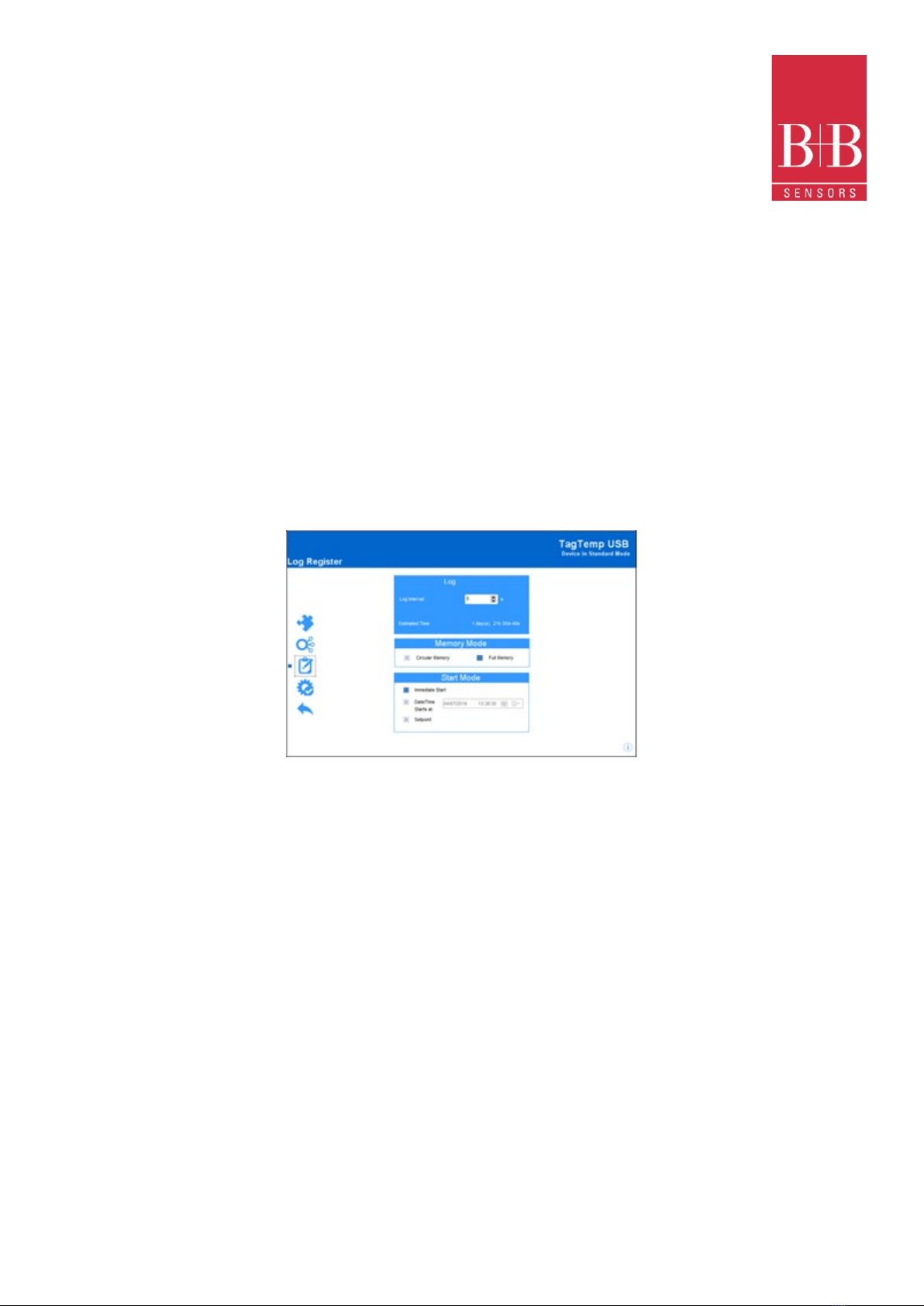

FIGURE 6LOG REGISTERS

TagTemp USB Temperature Logger

0568 0037-01

0141 0315-92 28.11.2022

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

Seite 7von 14

Technische Änderungen vorbehalten

Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com

IGURE

NXperience Chart Window

IGURE

Data View Table

7.3 Downloding and Data Visualisation

Data downloaded are send from device to PC. Data can be downloaded any time: at the end of the logging process or while they are being

acquired.

If data download takes place during the logging process, the process will not be interrupted, following the device configuration

7.3.1 Downloading Data

Data download is accomplished by clicking the button Download Logs in the Download screen from NXperience.

During data transference, a status bar indicates remaining data to be transferred. Data downloading time is proportional to the number of readings logged

7.3.2 Visualizing Data

At the end of values transfer, the data will be displayed in a graphical form

7.3.2.1 Chart Window

It is possible to select a region of the chart to zoom in. Zoom commands can be accessed through zoom icons from the task bar.

It is also possible to select an area from the chart to zoom in by clicking and dragging the mouse, thus creating a zoom region starting from the upper left corner

on the chart area.

The graphic curves can be vertically dragged with a right-click and dragging the mouse up and down

7.3.2.2 Data View Table

Values are presented in a tabular form, listing the measurement time and value.

F8C ti f Pt100 S

TagTemp USB Temperature Logger

0568 0037-01

0141 0315-92 28.11.2022

B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen

Seite 8von 14

Technische Änderungen vorbehalten

Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com

IGURE

Information table

IGURE

LogChart II Main Window

7.3.2.3 General Information Table

This window shows some information about the device whose data were just read and its configuration

7.3.2.4 Other Features

Check the NXperience Operations Manual for more information on the other features offered by the software, such as exporting to other

formats, filter logs, chart junction, etc.

8LOGCHART II SOFTWARE

8.1 Installing LogChart II

The LogChart II, application is used to configure the parameters for data transfer. To install the LogChart II, run the file LC_II_Setup.exe

available on our web site.

8.2 Running LogChart II

When you open LogChart II, the main window is displayed

Otros manuales para TagTemp

Tabla de contenidos

Otros manuales de Registrador de datos de B+B Sensors

B+B Sensors

B+B Sensors LogBox-RHT-LCD Manual de usuario

B+B Sensors

B+B Sensors LogBox RHT Manual de usuario

Manuales populares de Registrador de datos de otras marcas

TESTO

TESTO 176 Manual de usuario

HT Italia

HT Italia XL421 Manual de usuario

HBM

HBM SOMAT XR CX22B-R Manual de usuario

Agtrix

Agtrix 380i Manual de usuario

Hobo

Hobo H8 Pro Manual de usuario

Beijing ART Tech

Beijing ART Tech PCI2320 Manual de usuario

Athena

Athena GET SL1 Manual de usuario

Motec Systems

Motec Systems C185 Manual de usuario

Beijing ART Tech

Beijing ART Tech USB2832 Manual de usuario

Rotronic

Rotronic HygroLog HL20 Manual de usuario

MRC

MRC DW-6092 Manual de usuario

Racelogic

Racelogic VBOX LapTimer Manual de usuario

Edu-Logger

Edu-Logger 900-240 Manual de usuario

Elma

Elma DT173 Manual de usuario

MadgeTech

MadgeTech PRTemp140 Hoja de especificaciones

Comet

Comet U0121M Manual de usuario

pico Technology

pico Technology PT-104 Manual de usuario

Soil Instruments

Soil Instruments GTecLink Manual de usuario
