Boyo VTM43ML Manual de usuario

VTM43ML

VTM43MW (Miracast WiFi Dongle included)

User’s Manual

4.3” Rear View Mirror Monitor

With Smartphone Mirroring

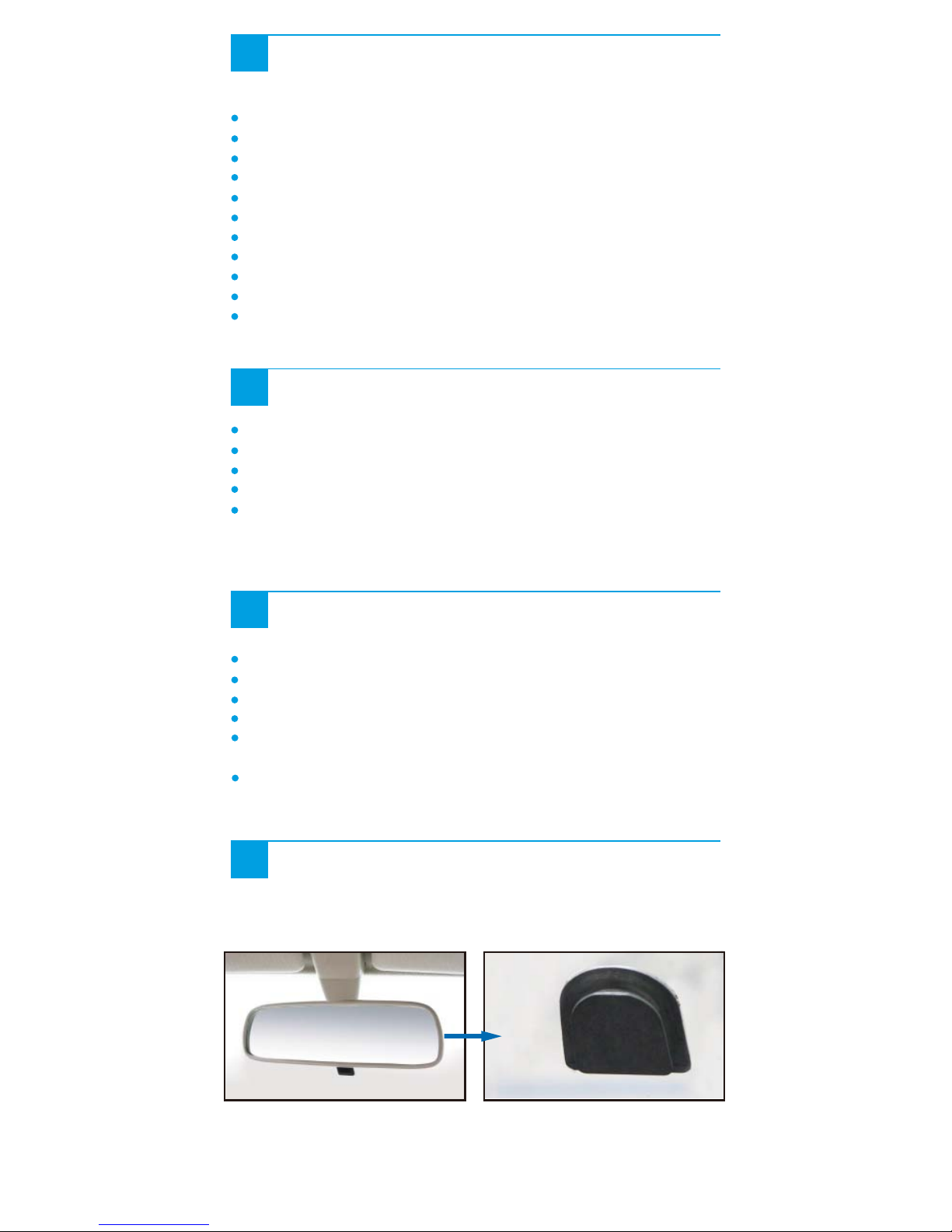

4.1 Remove the original car factory mirror

Car factory original mirror The plate on the windshield

Package Content

Features

3 Specification

How to install mirror monitor

The packing box contains the following accessories, please confirm:

Rear view mirror monitor (1)

Main harness (1)

Wire cover (1)

Zip ties (6)

Remote control and battery (1)

USB Cable

HDMI to MHL adapter cable (1)

Universal Windshield adapter mount metal base (1)

Mounting Bracket Arm (1)

Miracast WiFi dongle (VTM43MW only)

L-Shape HDMI-to-HDMI cable (VTM43MW only)

Back up camera display

Automatic brightness adjustment

0.16 inch glass and car factory OEM bracket

Adjustable Back up guide line

Wireless Miracast compatible with Android/ iOS

smartphones (optiona l with dongle)

Screen Size: 4.3 inch

Display Screen: TFT-LCD

Aspect Resolution:

480(H) X 272(V) (4.3inch)

Working Voltage: DC 12V

Three video Inputs: Two RCA video Inputs

one HDMI Input ( Reverse trigger wire)

Signal System: PAL / Auto / NSTC

4.2 Install mirror monitor on the plate

When the camera needs to be installed at the rear of vehicle, a good

position is usually at the top of the license plate where there is an under

ledge.

vehicle. There are many methods to remove the original rear view

Tech America, Inc. will not be responsible for any damage caused to

your car by improper installation of the mirror.

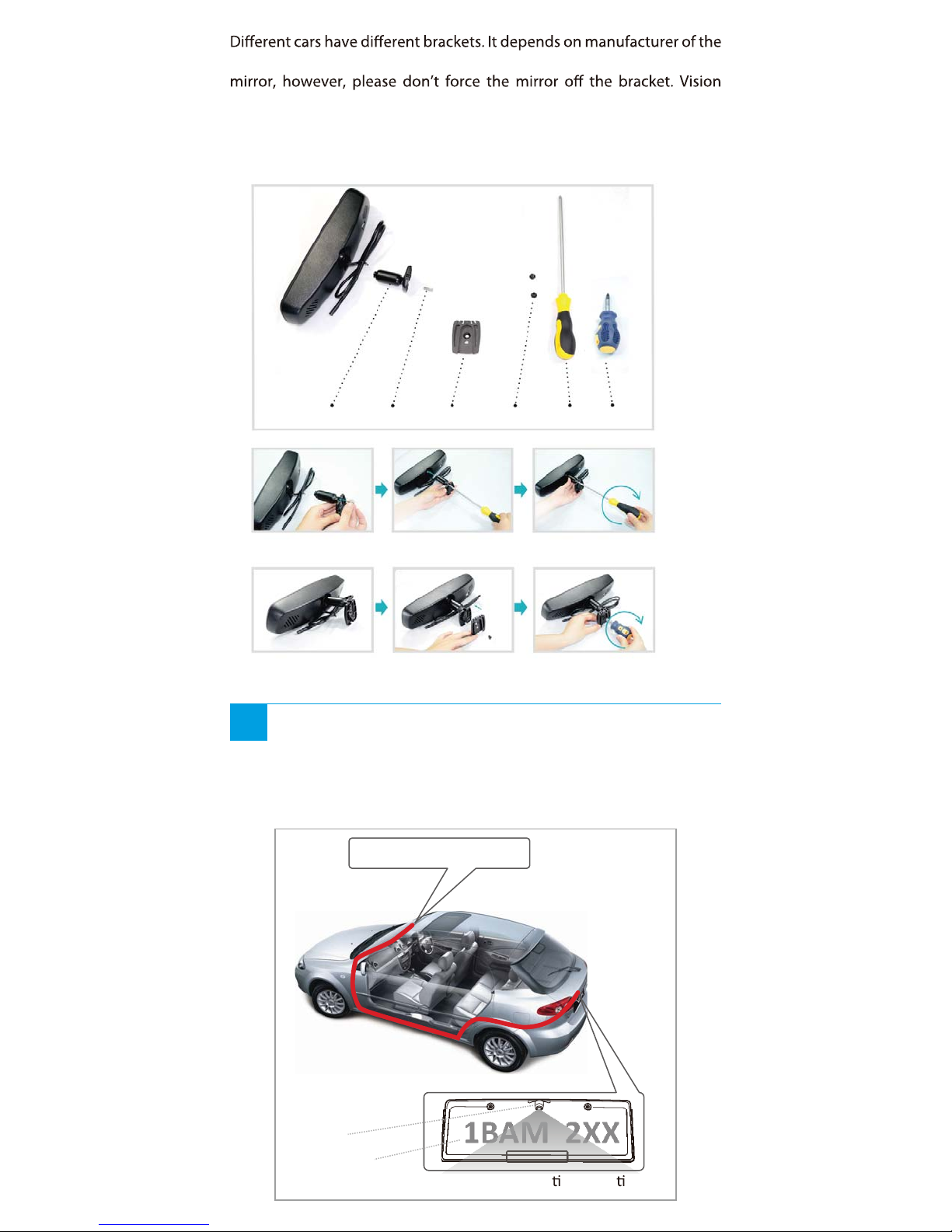

How to Install Reverse Camera

Rearview mirror monitor

1BAM 2XX

Camera

License Plate

General installa on loca on

Two ball joints bracket Screw (M5X19) Adapter Screw (M6X8) Long Screwdriver Short Scredriver

Put the screw(M5*19) in the

pipeline of the two ball joints

bracket

Connecting the two ball joints

bracket and rearview mirror by

using the screw and screwdriver

Rotate the screwdriver clockwise,

and x the two ball joints bracket

and rearview mirror

Finish the rst step, then need to

x the adapter to bracket

Connecting the rearview mirror

bracket and adapter, then xed

the screw of adapter

Clockwise rotary screwdriver, to

ensure the bottom block is xed

tightly on the bracket

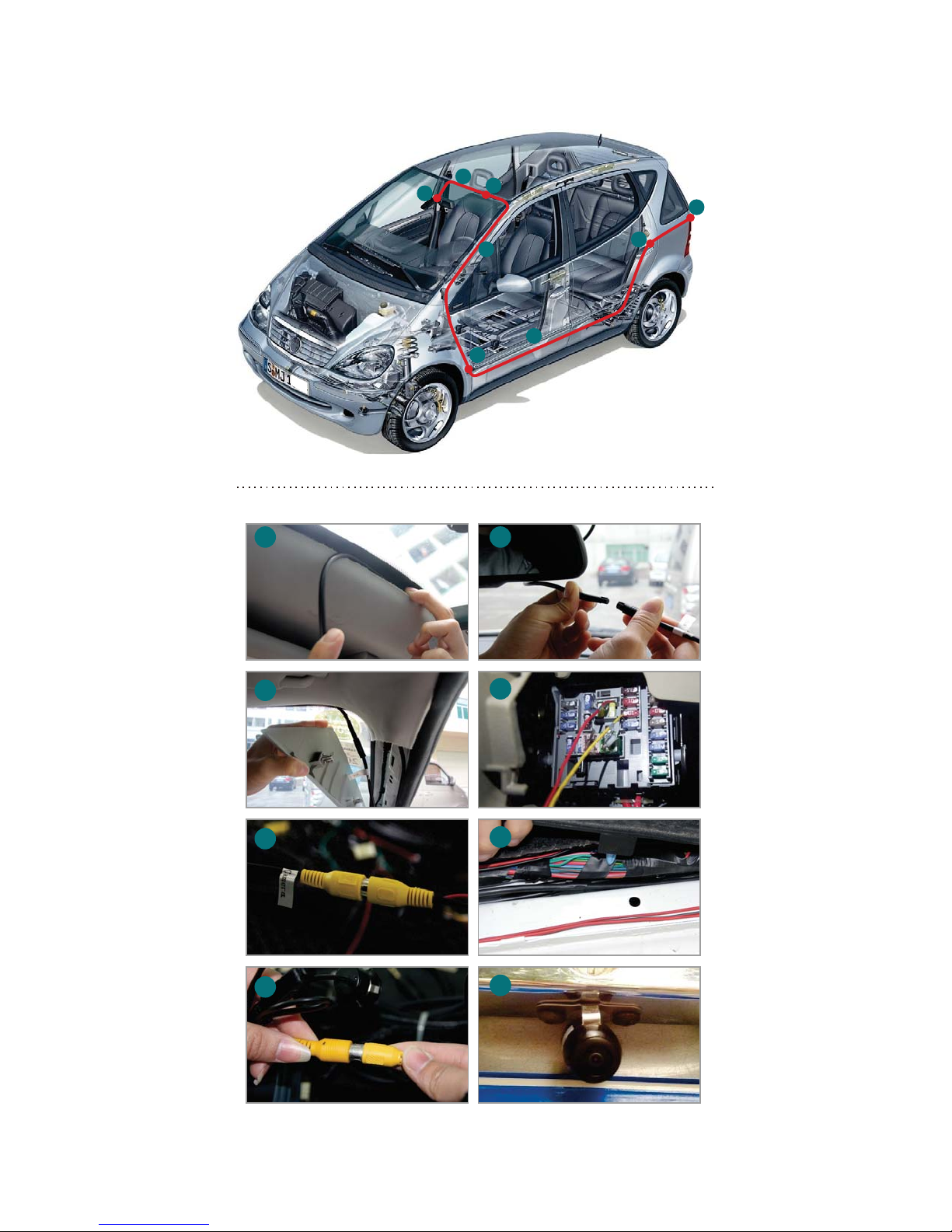

After the mirror is mounted, you need to run the cable along the roof

lining and down the pillar so you can connect to power and the rear

view camera.

Rear view mirror monitor

5779

Mirror monitor power harness

Car camera extension cable Camera (not included)

Video in 1

Green wire to back up light 12V DC

To back up camera Video 2

Red wire to ACC +12V

Black wire to GND

Connect

Please align the connectors

at each other, otherwise the

connector will be easy to break.

Red: Camera power to reverse power 12VDC

Black to GND

16.4 feet cable

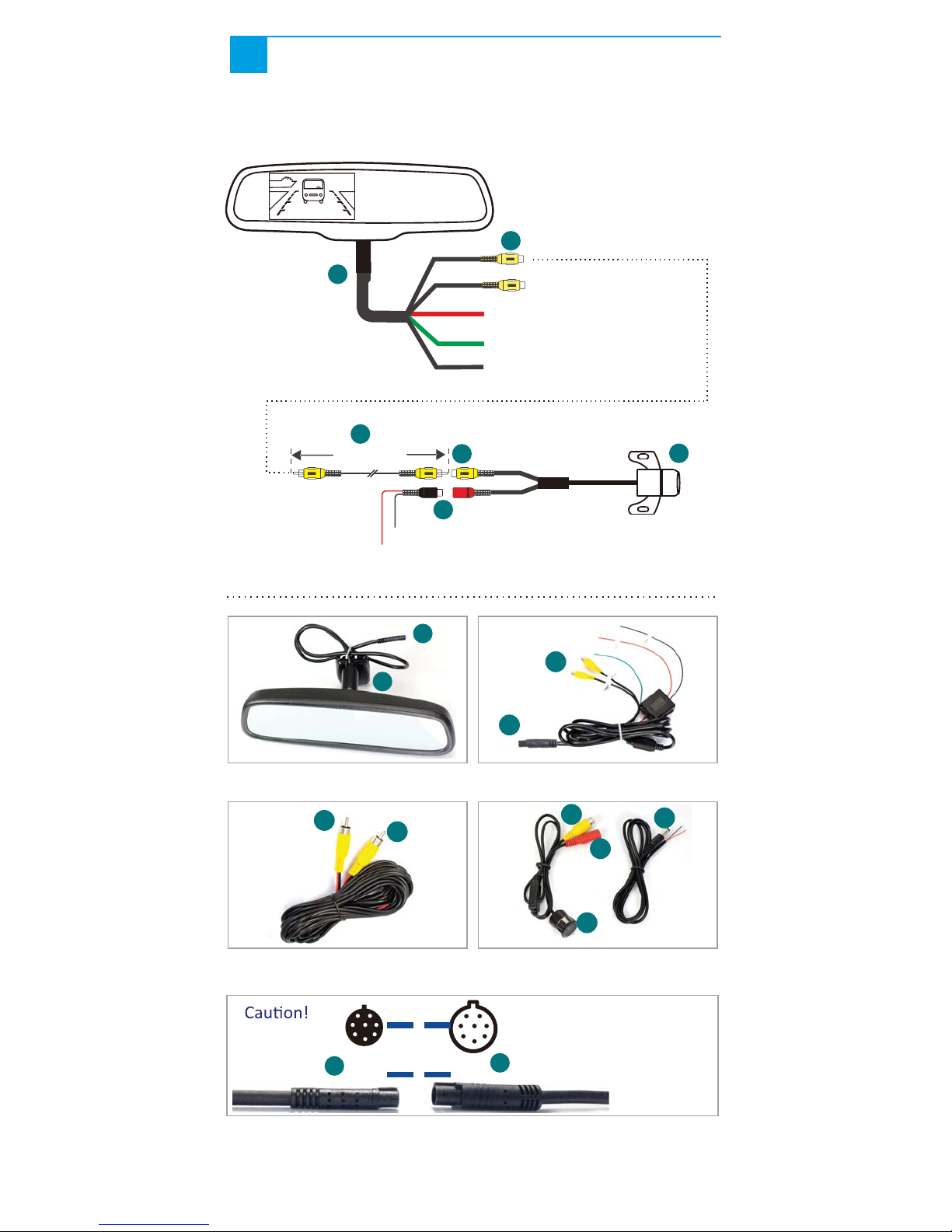

Connections

1. Icons on touch-buttons are MENU, SEL, +, -;

2. SEL: In the absence of MENU button, short press SEL button to switch to

the Video screen, short press again to switch back to HDMI video screen

(HDMI, VIDEO1, VIDEO2 will cycle through).

If there is no signal input, “Video no signal input” will display on the screen,

3 seconds later it will return to the previous screen automatically.

press power button is to shutdown.

shutdown , long press power button can make it work again.

2. Swipe from the bottom on your iPhone or ipad, and hit (Air Play), then

select the Dongle, switch on the screen mirroring;

You will see your iPhone or iPad full screen mirrored on the display monitor;

3. Network set-up

Open Safari and enter Dongle IP address showing on screen;

If connect successfully, you will see your router name as wireless network

name;

Note: for iPhone users, please use safari instead if youtube app for online

youtube video, after you successfully connect the dongle to the router,

any other iPhone or iPad connected to your home router will be able to

mirror through its airplay as well.

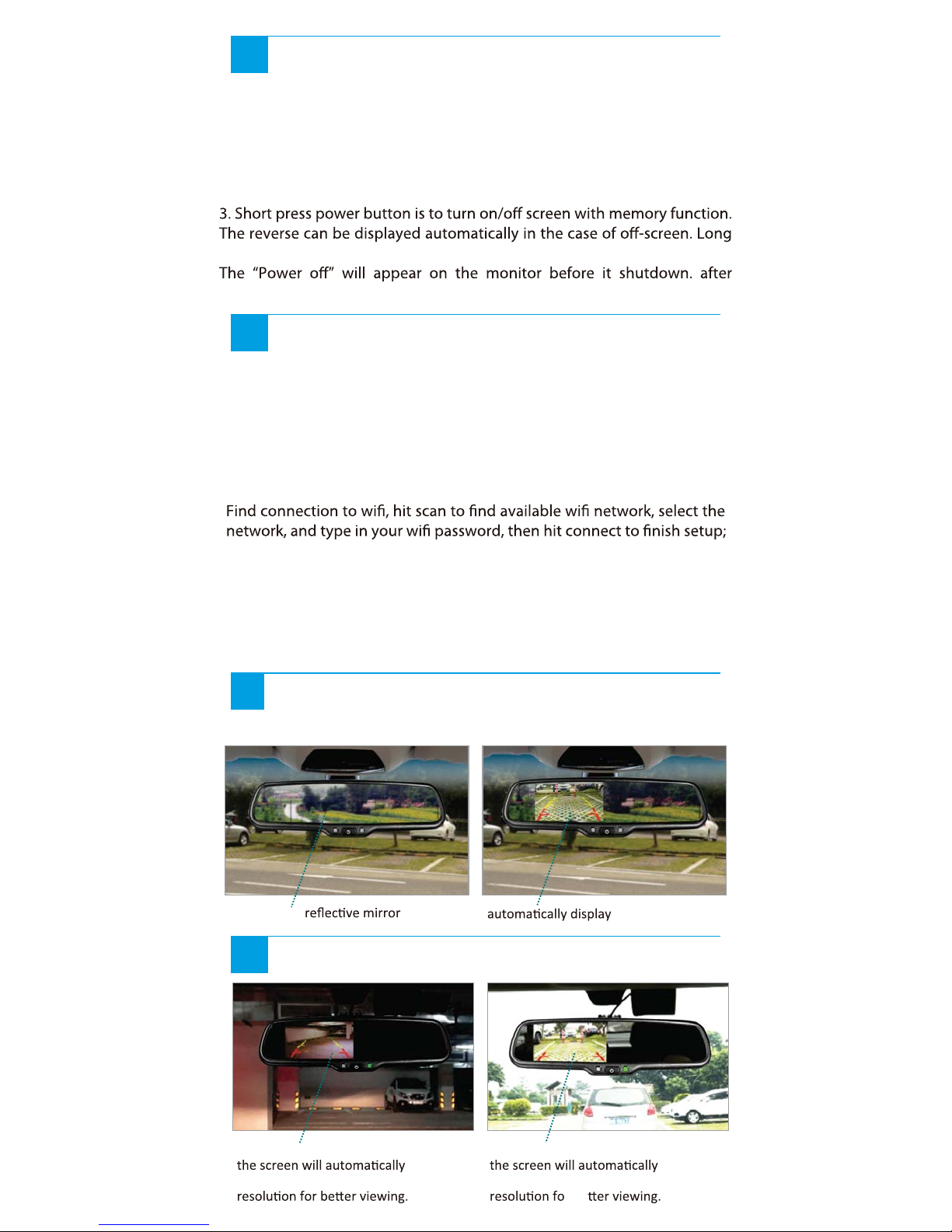

Unit Operation

How to setup WiFi Dongle miracast

Back up camera display

When the car is in reverse, the monitor will automatically display backup camera.

A perfect

SEL

Automatic brightness adjustment

When ambient light is weak,

reduce the brightness and adjust

When ambient light is strong,

increase the brightness and adjust

r be

SEL

1. On the smartphone device, search the WiFi device for the dongle and

connect using password:“12345678”.

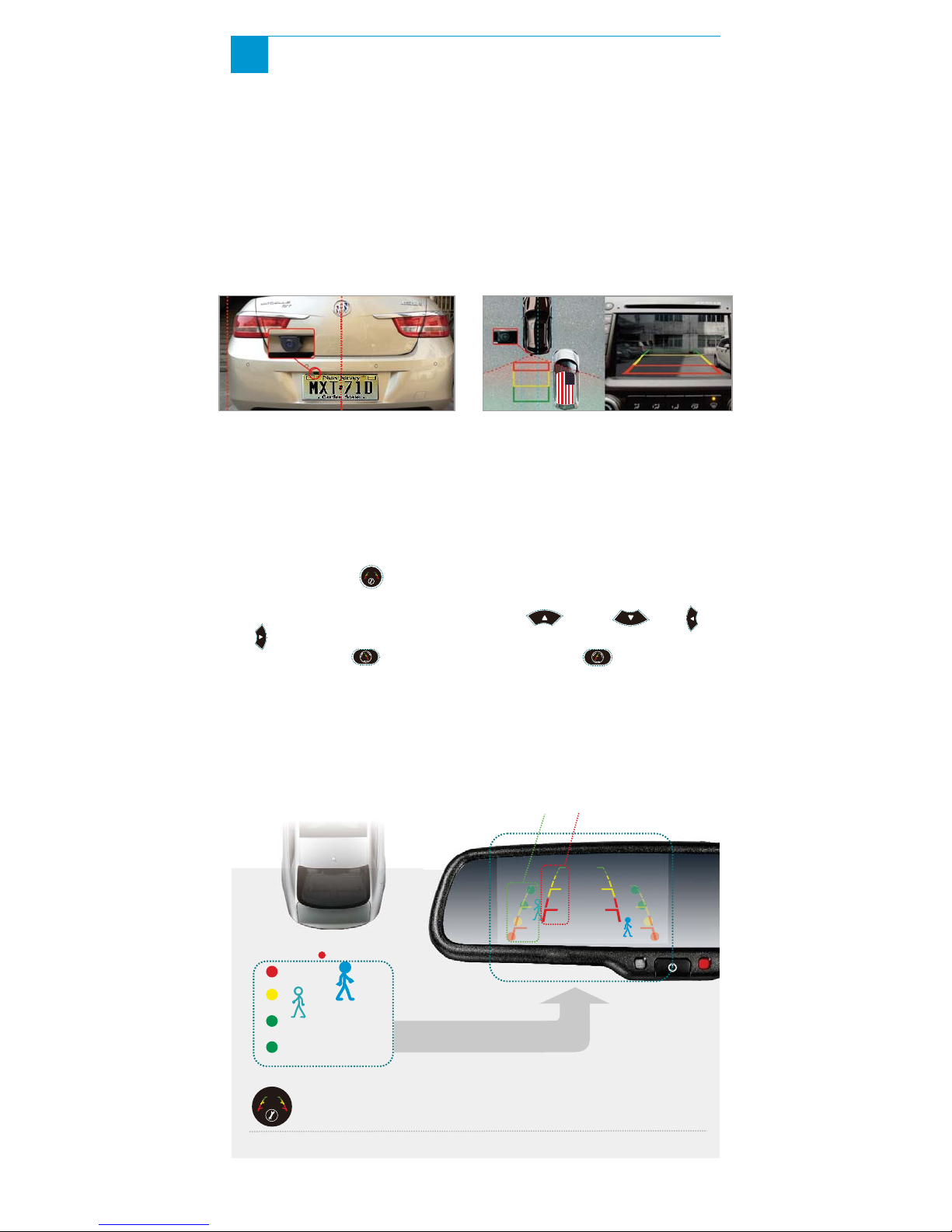

Adjustable guide line

11.1 What the regular guide line will be

11.2 Wide View Guideline Adjustment

Regular guide line is xed. VTM43ML/VTM43MW parking lines are fully

adjustableto suit your needs .Most aftermarket cameras support the xed

guide line, however, it doesn'tgive accurate position and distancefor the

obstacles. The xed guide line is not accurate enough for drivers. There is

big dierencebetween regular, xed guide lines and car'sreal guide lines,

especiallywhen the camera is mounted behind the left or right side of the

car. It may cause accidents.

According to the site of standard referenceline, we can put reference

objects suchas desks in the backarea of car. Compared with the marked

referenceobjects, we can adjust the sites and angleof two guide lines

displayed on the monitor. You will get the accurate and safety guide lines

oncethey coincide with the referenceobjects.

Press setting button is to enter into “guide line adjustment” mode. The

system is defaulted to adjust left guide line rst. Press the button again will

switchto adjust the right guide line. The up ,down ,left and

right buttons are to adjust the correspondent location of guide lines. The

clockwise rotation and contra rotation buttons are to adjust the

angleof guide lines. It is easy to operate and calibrate. After nishing

calibration, switchthe reverse gear to save the information.

Caution: keep the remote control 1.64 feet-3.28 feet from rear view

mirror when you use the remote to adjust the parking guide lines.

Display on the monitor

Wrong position

Right position



SEL

ion

switch

the

rev

ion: kee

the re

or when you us

Reverse clockwise

Clockwise

Down

Right

Rotate the guide lineMove the guide lineRemote control

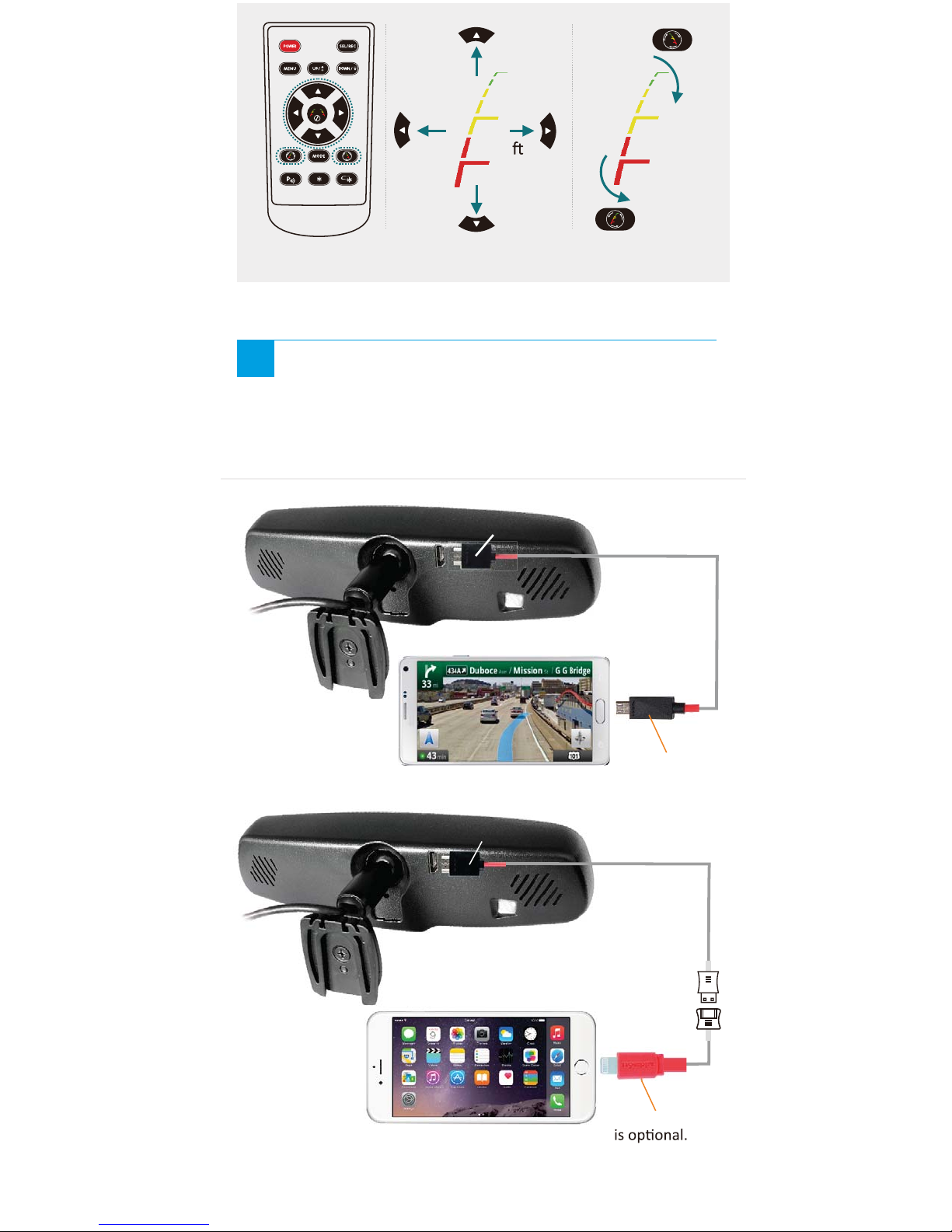

Screen synchronization

This rear view mirror can synchronize with the Android or iOS device

screen through the HDMI cable. You can operate your smartphone

on the rear view mirror such as dialing a call, listening to music, using

the navigation and so on.

HDMI

Android Device MHL

IOS Device

Lightning adapter

Sold separately.

HDMI
