Boya BY-XM6 RXU Manual de usuario

用户手册

User Manual

BY-XM6 RXU

BY-XM6 RXD

WMic5-RXD

WMic5-RXU

WMX-2-L-RX

WMX-2-C-RX

Ultracompact 2.4GHz

Dual-channel Wireless

Microphone System

2.4GHz 迷你双通道无线麦克风系统

BOYA BY-XM6 systems are incredibly lightweight, ultracompact and

easy-to-use wireless microphone systems for up to 2 people.

The microphone delivers exceptional, broadcast-quality sound to

DSLR, mirrorless and video cameras, smartphones, tablets,

computers, etc.

It is ideal for content creation, vlogging, mobile journalism, and

more.

Model In the box

General Introduction

Available Kits

BY-XM6-S1

BY-XM6-S2

BY-XM6-S3

BY-XM6-S4

BY-XM6-S5

BY-XM6-S6

1×BY-XM6 TX 1×BY-XM6 RX

2×BY-XM6 TX 1×BY-XM6 RX

1×BY-XM6 TX 1×BY-XM6 RXD

2×BY-XM6 TX 1×BY-XM6 RXD

1×BY-XM6 TX 1×BY-XM6 RXU

2×BY-XM6 TX 1×BY-XM6 RXU

Product Structure

Wireless Transmitter BY-XM6 TX

1. OLED display

- For more details, please refer to“OLED Display Operation Guide”.

2.Belt clip

3.Charging contacts

Function

SET

Operation

On home screen, short press to adjust mic gain.

On menu screen, short press to select dierent functions

or values shown on the display.

On home screen, long press to enter the menu screen.

On menu screen, long press to enter the displayed menu.

Then, long press again to conrm your option.

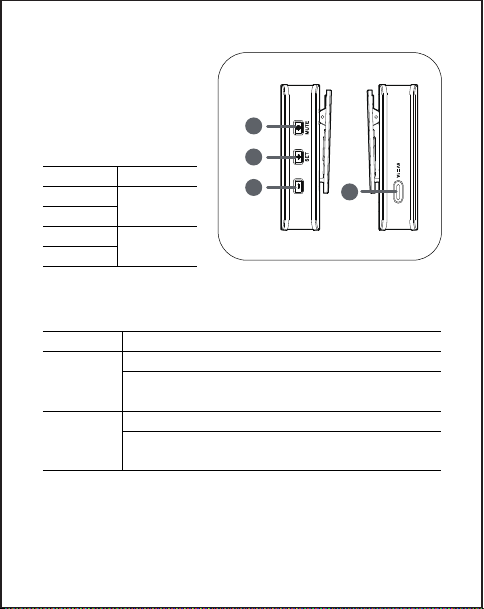

5. +/SET button

Function

Power ON

Power OFF

Mute ON

Mute OFF

Operation

Long press

Short press

4. Power/Mute button

6. - button

- On home screen, short press to adjust mic gain.

- On menu screen, short press to select dierent functions or values

shown on the display;

- long press to return to home screen.

7. USB-C charging port (DC 5V)

8. Built-in microphone

9. MIC/LINE IN jack

- It can be connected to the supplied 3.5mm lavalier microphone,

or other 3.5mm TRS microphones or line-in devices.

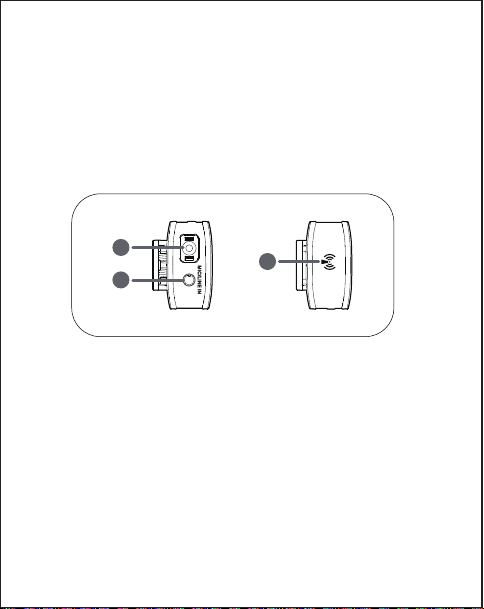

10. Antenna

Wireless Receiver BY-XM6 RX

1. OLED display

- For more details, please refer to“OLED Display Operation Guide”.

2.Belt clip

3.Charging contacts

Function

Power ON

Power OFF

Mute ON

Mute OFF

Operation

Long press

Short press

Function

SET

Operation

On home screen, short press to increase volume.

On menu screen, short press to select dierent functions

or values shown on the display.

On home screen, long press to enter the menu screen.

On menu screen, long press to enter the displayed menu.

Then, long press again to conrm your option.

4. Power/Mute button

5. +/SET button

6. - button

- On home screen, short press to decrease volume.

- On menu screen, short press to select dierent functions or

values shown on the display;

- long press to return to home screen.

7. USB-C charging port (DC 5V)

8. 3.5mm headphone output

- Connect headphones for audio monitoring.

9. LINE OUT jack

- Connect the BY-XM6 RX to a smartphone, tablet, camera,

recorder or mixer with the supplied output cables.

10. Antenna

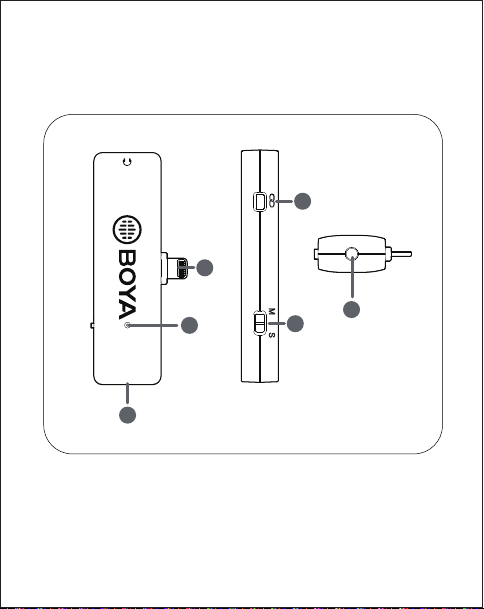

BY-XM6 RXD: Compact Receiver with

Lightning Connector

1. Lightning connector

- It can be connected to an iOS Lightning device.

2. Status indicator

Status

Unpaired

Pairing

Paired Successfully

Indicator

Slowly ashing blue light

Quickly ashing blue light

Solid blue light

3. Pair button

4. Mono/Stereo switch

- The output mode can be toggled between mono and stereo.

When in mono mode, the audio from the left and right channel

will be mixed. When in stereo mode, the audio from the left and

right channel will be separated to the left and right of the stereo

output.

5. 3.5mm headphone jack

- Connect headphones for audio monitoring.

6. Antenna
