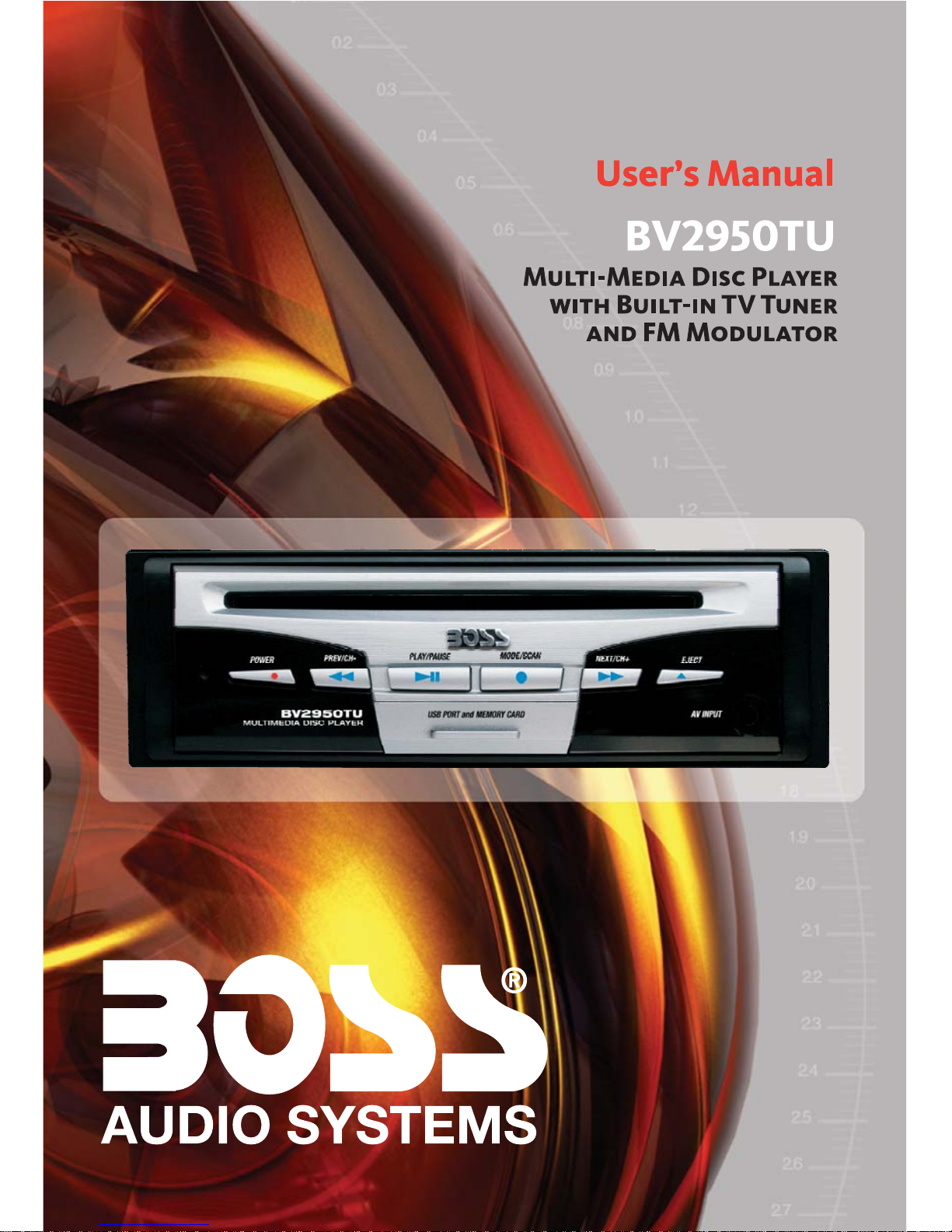

Boss Audio Systems BV2950TU Manual de usuario

BV2950TU User’s Manual - page 1

Multi-Media Disc Player

with Built-in TV Tuner

and FM Modulator

Congratulations on your purchase

of a Multi-Media Disc Player.

It has been designed, engineered

and manufactured to bring you the

highest level of performance and

quality, and will afford you years of

listening pleasure.

Thank you for making a your

choice for mobile video entertainment.

USER’S MANUAL

Page CONTENTS

2 Safety Information

3 Installation

4 Power Connections

5 Audio Connections

6 Operation

6 Features and Controls

8 Using The Remote Control

9 General Operation

10 CD/MP3 Operation

11 DVD/VCD Operation

15 Data Disc Play Operation

16 Memory Card Play Operation

16 USB Device Operation

16 AV In Operation

17 T

18 Setup

18 System Setup

19 Language Setup

20 Audio Setup

20 Digital Setup

20 Specifications

21 Troubleshooting

V Operation

22 Additional Information

FM Modulator Operation

BV2950TU

Safety Information

Caution:

This mobile DVD player is a class 1 laser

product. However, this mobile DVD

player uses a visible/invisible laser beam

which could cause hazardous radiation

exposure if directed. Be sure to operate

the mobile DVD player correctly as

instructed.

Use of controls or adjustments or

performance of procedures other than

those specified herein may result in

hazardous radiation exposure.

Do not open covers and do not repair

yourself. Refer servicing to qualified

personnel.

Warning:

Region management information

- To reduce the risk of fire or electric

shock, do not expose this equipment to

rain or moisture.

- To reduce the risk of fire or electric

shock, and annoying interference, use

only the recommended accessories.

- This device is intended for continuous

operation.

This product incorporates copyright

protection technology that is protected by

method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this copyright

protection technology must be

authorized by Macrovision Corporation,

and is intended for home and other

limited viewing uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

This mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

Disc notes

Handling and cleaning

Disc cleaning

- Dirt, dust, scratches and warped discs

will prevent proper operation.

- Do not place stickers or make scratches

on discs.

- Do not bend discs.

- A disc should always be kept in its case

when not in use to prevent damage.

- Do not place discs in the following

places:

1.Direct sunlight.

2.Dirty, dusty and damp areas.

3.Near car heaters.

4.On the seats or dashboard.

Use a dry soft cloth to wipe the surface. If

the disc is quite dirty, use a soft cloth

slightly moistened with isopropyl

(rubbing) alcohol. Never use solvents

such as benzene, thinner or conventional

record cleaners as they may mar the

surface of the disc.

You can playback the following discs:

DVD VIDEO/DVD AUDIO

VIDEO CD/AUDIO CD

MP3/WMA/JPEG/MPEG4

Label side up

Do not touch

the underside

of the disc

Do not bend

Wipe the disc from center toward the outside edge

Preparing new discs with rough spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the disc will not be

BV2950TU User’s Manual - page 2

BV2950TU User’s Manual - page 3

Rough spots on outside edge

Notes:

- Choose a mounting location where the unit will not distract the driver.

- Before installing the unit, connect the wiring temporarily and make sure it is all connected

properly and the unit and the system works.

- Use only the parts included with the unit to ensure proper installation. The use of unauthorized

parts can cause malfunctions.

- Consult with your nearest dealer if installation requires the drilling of holes or other modifications

of the vehicle.

- Install the unit where it does not get in the driver's way and cannot injure the passenger if there is

a sudden stop, like an emergency stop.

- If installation angle exceeds 30° horizontal, the unit may not perform properly.

- Avoid installing the unit where it will be subject to high temperature, such as from direct sunlight,

or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

The unit is designed for home-use and car-use. When installed in the car, please follow the

installation instructions below.

Installation

properly seated and the player will not

play the disc. Therefore, remove the

rough edges in advance by using a

ballpoint pen or pencil as shown on the

right. Press the side of the pen or pencil

against the inside and outside edges of

the disc.

Ball point pen

or pencil

Rough spots on inside edge

SCREW

M5x25

SCREW

M4x5

SCREW

M4x5

REMOVE THE SCREWS WHICH LOCK THE DVD MECHANISM

Notes:

1. First remove the two transport screws that lock the DVD mechanism. Then attach the

brackets on both sides of unit with screws (m4X5). Finally, install the unit with screws

(m5X25).

2. When locating the bracket, you can slide the screw (m5X25) to left side or right side

as necessary. In the figure above, select two holes from those marked 1, 2, 3 and 4 to

secure the bracket.

BV2950TU User’s Manual - page 4

Power Connections

Using Cigarette Lighter Adaptor

Use the conversion cable to obtain DC 12V power supply input through the AC/DC

ADAPTER or the cigarette lighter according to the illustrations shown below:

Using Wired Connection to Vehicle Battery

According to the illustrator below, install the unit in the car and obtain DC 12V power

supply input.

CONSTANT 12 VOLTS (YELLOW)

GROUND (B-) (BLACK)

IGNITION SWITCH (ACC+) (RED)

FUSE(3A)

Audio Connections

Using Head Unit RCA Audio Inputs

IR Sensor

If you need to mount the DVD player in a location where the control panel is

inaccessible, or where the line-of-sight between the remote control and the face of the

player is interrupted, connect the remote sensor as shown in the diagram above.

Mount the IR Sensor in a convenient location which is in direct line-of-sight with the

use location of the remote control. Point the remote control in the direction of the

sensor to operate the player.

To Audio system inputs

RIGHT

Red

LEFT

White

VIDEO

Yellow

To Video system inputs

Using Built-in FM Modulator to Send Audio to Head Unit

To Car Antenna

BV2950TU User’s Manual - page 5

BV2950TU User’s Manual - page 6

Operation

Features and Controls

Front panel

Remote Control

-/--

BV2950TU User’s Manual - page 7

1. POWER

3MODE

6. EJECT

7. DISC Slot

8. AV IN

9. USB

10. SD/MMC

11.IRSENSOR

12. RESET

13. DISP

14. A-B

15. RPT

16. ZOOM

17.▲/▼/◄/►

18. ENTER

Press this button to turn the unit on/off.

Press this button to pause playback.

Press it again to resume playback.

Press this button to switch between DVD and

AV modes.

Press this button to skip back one track.

Press this button to skip to the next track.

Press this button to eject the disc from the disc

slot (7).

Gently insert a disc (with the printed side up)

into the disc slot (7) until you feel some

resistance.

JACK

Connect external audio/video equipment to

the unit through the AV IN terminals.

PORT

CARD SLOT

Press RESET button (12) to restore the

default settings.

Press this button to display disc information

during playback.

A-B repeat allows a selected passage to be

repeated playback.

Use this button to switch from the different

modes available.

Press this button to zoom in or out of the video

image.

In some menus, buttons serve as

cursor buttons to move up/down/left/right.

Use this button to confirm the Track/Chapter

selected by the numeric buttons or selected

with the cursor buttons on TV screen.

disc

▲/▼/◄/►

19. SETUP

20. TITLE/PBC

TITLE/PBC

21. 0~9

22. AUDIO

AUDIO

23. SUB-T

24. MUTE

25. ANGLE

26. VOL+/VOL-

27. MENU

28.

29.

30. GOTO

31. ■ STOP

32. PROG

33. RDM

Press the button to enter into the System

Setting menu.

In DVD or VCD (with PBC on) mode,

press button to display the TITLE

menu that is stored on disc.

Numeric buttons are used for Track/Chapter

selections and other functions.

On multi-audio sound track disc, press this

button to change the sound track.

Changes the subtitle language on multi-

subtitle language DVD disc.

Press to silence the audio output. Press it

again to resume the previous volume level.

Change the view angle on multi-angle DVD

disc.

Press the VOL+ to increase the volume level.

Press the VOL- to decrease the volume level.

Press this button repeatedly to

Press the button to search forward rapidly.

Press the button to search in reverse rapidly.

Press the button to select the bookmark that

you set.

Press once to pause playback. Press it again

to stop playback.

Press this button to play the tracks in an order

which you have programmed.

Press the button to play all tracks on the disc

in a random order. Press again to cancel this

function.

step through

and select an FM frequency between 87.7MHz

and 88.9MHz.

BV2950TU User’s Manual - page 8

Preparing and using the remote

control

Battery replacement

* Before using the remote control, please

take the transparent insulator strip off the

bottom of remote control.

-Do not subject the remote control to

excessive shock.

-Donotputinapocket.

-Keep away from food, moisture and

dirt.

-Do not place in direct sunlight.

The remote control uses a lithium button

type battery, model CR 2025 3V. Do not

use any other kind of battery in the

remote. Follow these instructions when

installing or replace the battery.

* Point the remote control at the remote

sensor (11) from no more than 6 feet

away.

* If the IR sensor is exposed to direct

sunlight, the remote control may not be

able to communicate with it properly. You

may need to relocate or shield the IR

sensor.

* If you are more than 30 away from

being directly in front of the IR sensor,

the remote control may be unable to

communicate properly.

* The remote control is a small,

lightweight precision device. To avoid

damage, short battery life, operational

errors and poor response, observe the

following:

1. Remove the battery holder by

pressing the locking tab with your thumb

and slide the battery holder out.

Using The Remote Control

3. Closing the cover

Gently push in the holder until it is

securely locked into place.

2. Replacing the battery

Replace the battery with the same type of

battery and the (+) side facing up.

Tabla de contenidos

Otros manuales de Receptor de coche de Boss Audio Systems

Boss Audio Systems

Boss Audio Systems BV9980BT Manual de usuario

Boss Audio Systems

Boss Audio Systems BV6500 Manual de usuario

Boss Audio Systems

Boss Audio Systems MP3-3O8OR Manual de usuario

Boss Audio Systems

Boss Audio Systems 650UA Manual de usuario

Boss Audio Systems

Boss Audio Systems BV500 Manual de usuario

Boss Audio Systems

Boss Audio Systems CD-3030R Manual de usuario

Boss Audio Systems

Boss Audio Systems BV7342B Manual de usuario

Boss Audio Systems

Boss Audio Systems BV760B Manual de usuario

Boss Audio Systems

Boss Audio Systems MR1315WUA Guía del usuario

Boss Audio Systems

Boss Audio Systems 630UASB Manual de usuario

Boss Audio Systems

Boss Audio Systems 740UA Manual de usuario

Boss Audio Systems

Boss Audio Systems 622UA Manual de usuario

Boss Audio Systems

Boss Audio Systems CD-3090R Manual de usuario

Boss Audio Systems

Boss Audio Systems BV9967B Manual de usuario

Boss Audio Systems

Boss Audio Systems BV9557 Manual de usuario

Boss Audio Systems

Boss Audio Systems 634U Manual de usuario

Boss Audio Systems

Boss Audio Systems BVS13.3B Manual de usuario

Boss Audio Systems

Boss Audio Systems 775DI Manual de usuario

Boss Audio Systems

Boss Audio Systems 638UA Manual de usuario

Boss Audio Systems

Boss Audio Systems 611UAB Manual de usuario

Boss Audio Systems

Boss Audio Systems 812UAB Manual de usuario

Boss Audio Systems

Boss Audio Systems BV3550 Manual de usuario

Boss Audio Systems

Boss Audio Systems DVD-5000B Manual de usuario

Boss Audio Systems

Boss Audio Systems 755DBI Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
