Boss Audio Systems BV500 Manual de usuario

BV - 500

AUDIO SYSTEMS

OWNER’S MANUAL

IN-DASH LCD MONITOR/TV TUNER/

AM-FM RECEIVER/CD CHANGER CONTROLLER

Congratulations on your purchase of a Audio Systems

Mobile Audio/Video System. This receiver/monitor has been

built to deliver the highest quality video reproduction. We are

sure you'll enjoy watching your favorite movies with this

component as a part of your multimedia. For best results

please consult a professional mobile electronics installer for

application advice or troubleshooting. To guarantee top

performance we recommend using The Link installation

accessories such as RCA interconnects, power cables, and

speaker wire. Thank you for choosing Audio Systems

products for your mobile entertainment system. We can't change

the world, but we can make it sound and look better.

INSTALLATION

Notes:

• Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

• Before finally installing the unit, connect the wiring temporarily and make sure it is

all connected up properly and the unit and the system work properly.

• Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

• Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

• Install the unit where it does not get in the driver’s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

• If installation angle exceeds 30˚ from horizontal, the unit might not give its optimum

performance.

• Avoid installing the unit where it would be subject to high temperature, such as from

direct sunlight, or from hot air, from the heater, or where it would be subject to dust,

dirt or excessive vibration.

INSTALLATION HARDWARE

30˚

Bracket (A)

(2 pcs)

Bracket (B)

(2 pcs)

Double sided

tape (2 pcs)

Lever

(2 pcs)

Hexagonal Bolt

(M6 x 12) (4 pcs)

Tapping Screw

(M5 x 25) (1 pcs)

Nut

(M5) (1 pcs)

Plain Washer

(M5) (1 pcs)

Spring Washer

(M5) (5 pcs)

Spring Washer

(M6) (4 pcs)

Tapping Screw

(M5 x 12) (4 pcs)

Mounting Bolt

(M5 x 5) (8 pcs)

Mounting Bolt

(M4 x 5) (4 pcs)

Strap (1 pcs)

MOUNTING THE TUNER UNIT

1. Bracket (A) 5. Tapping Screw with Washer (M5 x 12)

2. Mounting Bolt (M5 x 5) 6. Spring Washer (M6)

3. Bracket (B) 7. Spring Washer (M5)

4. Hexagonal Bolt with Washer (M6 x 12) 8. Double Sided Tape

CAUTION: Most states and local governments have laws and/or ordinances prohibiting

the viewing of TV or video while driving. This is for your safety. We advocate full

compliance with all applicable laws with regards to mobile entertainment systems.

Please consult your local authorities for more information.

INSTALLING THE DISPLAY UNIT

Before installing the display unit, please remove the backstrap screw and wiring

harress. This unit can be properly installed either from “front” (convertional DIN Front-

mount) or “rear” (DIN Rear-mount installation, utilizing threaded screw holes at the

sides of the unit chassis). For details, refer to the following illustrated installation

methods.

DIN FRONT-MOUNT

Installing the unit

1. Dashboard

2. Mounting Bracket

After inserting the holder into the

dashboard, select the appropriate tabs

according to the thickness of the

dashboard material and bend them

outwards to secure the bracket in place.

3. Display Unit

Step 1 Step 2

(Fig. 1)

182

1. Dashboard

2. Nut (M5)

3. Spring Washer

4. Tapping Screw with Washer (M5 x 25)

5. Screw

6. Plain Washer

7. Backstrap

Be sure to use the backstrap to secure

the back of the unit in place.

The backstrap can be bent by hand to

the desired angle.

Note: The trim piece, backstrap, and mounting

bracket are not used for REAR-MOUNT.

Removing the unit

1. Lever

Insert the levers supplied with the unit

into the grooves at both sides of the unit

as shown in figure until they click.

Pulling the levers upward and out to

makes it possible to remove the unit.

DIN REAR-MOUNT

Installation using the screw holes on the both sides of the unit.

Fastening the unit to the factory radio

mounting bracket.

1. Select a position where the screw holes

of the bracket and the screw holes of

the main unit become aligned (are fitted),

and tighten the screws at 2 places on

each side.

Use either truss screws (5 x 5mm) or

screws (4 x 5mm), depending on the

shape of the screw holes in the bracket.

2. Screw

3. Factory Radio Mounting Bracket

4. Dashboard or Console

5. Hook and Screw (Remove this part)

Note: The frame, strap, and half-sleeve are

not used for REAR-MOUNT.

(Fig. 2)

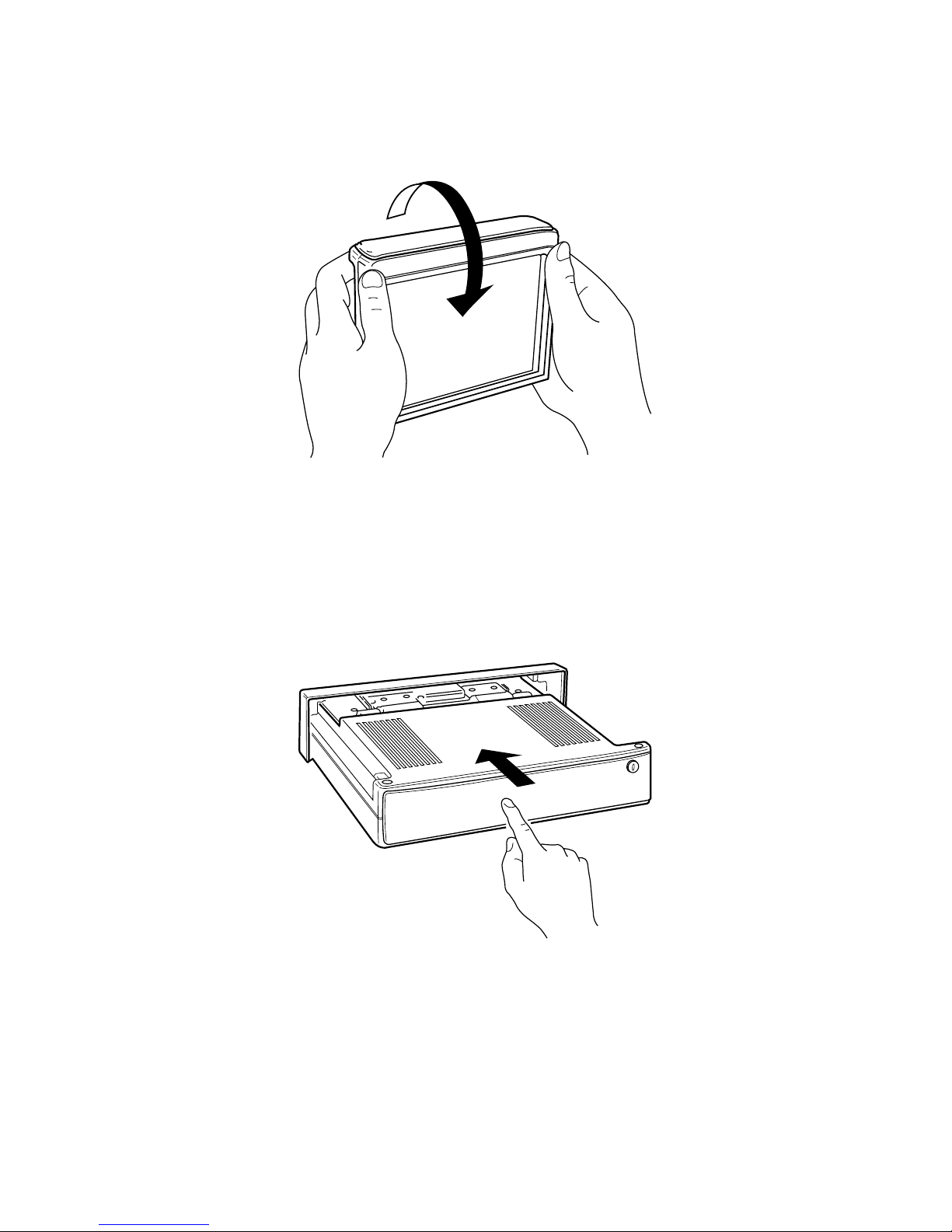

HOW TO OPEN AND CLOSE THE SCREEN DISPLAY

1. Press release button then carefully pull the monitor out toward you.

2. Turning the display upward.

3. Adjust the viewing angle as shown. Adjustment should be made slowly using

minimal force.

Release Button

4. To close the unit, turn the display to the center position then fold it down.

The monitor must be centered and folded down before the unit can be closed

properly.

5. Push the panel in until is “clicks” into the locked position.

ELECTRICAL CONNECTION

CAUTION: If this monitor is mounted in a location that allows viewing from the driver’s

seat, the unit must be wired to prevent video operation (TV, DVD, VCP, video games,

etc.) while the vehicle is being driven.

1. When the gray (TV control) wire is connected to the parking brake switch (in most

late model vehicles) The BV-500 will not operate in the TV mode while the parking

brake is engaged.

2. There are two operation formats for interfacing a CD Changer. Before completing

the installation, connect the CD Changer to the BV-500, turn on the power, and

select the CD mode. If the changer functions normally, the mode switch (located

on the front of the tuner module) is in the correct position. If not, move the A-B

switch to the other position.

RADIO/TV MAIN UNIT

(VIEW FROM REAR)

TV DIVERSITY ANTENNA INPUT

CDC INPUT

GREY

TV CONTROL

GREY/BLACK

TV DIVERSITY ANTENNA INPUT

RADIO ANTENNA INPUT

TO CD CHANGER

BLUE/WHITE POWANT

REAR

Rch SPK

VIOLET

VIOLET/BLACK

FRONT

Rch SPK

GREY

GREY/BLACK

REAR

Lch SPK

GREEN

GREEN/BLACK

FRONT

Lch SPK

WHITE

WHITE/BLACK

TO POWER SUPPLY

RED ACC

YELLOW MEMORY

BLACK GROUND

CHOKE

BOX

RADIO CONTROL

CDC SET

A B

TO SELECT CD CHANGER FORMAT

AV INPUT

VIDEO AUDIO–R AUDIO–L

AV1

AV2

FROM VIDEO/AUDIO SOURCE

RADIO CONTROL

TV MONITOR

RADIO/TV MAIN UNIT

(VIEW FROM FRONT)

DISPLAY UNIT

TV MONITOR

REAR RCA CABLE

(FOR RCA LINE VERSION ONLY)

75ohm RF WIRE (BLACK)

VIDEO OUTPUT

Rch RED

Lch WHITE

(GREY)

FRONT RCA CABLE

Rch RED

Lch WHITE

(BROWN)

BLACK CABLE

BLACK PLUG

BLACK/GREY CABLE

GREY PLUG

OPERATION

23 26 27 22 1 28 425 91024

12 19 20 211817 3 146 851

11 716 2 1329

GENERAL OPERATION

• ON/OFF

Switch on the unit by pressing PWR button (1). When system is on, press it again

to turn it off.

• FACEPLATE RELEASE

Press REL button (2) to draw out the faceplate, push the panel to draw in.

When the faceplate is drawn out, turn the faceplate upward and adjust TV display.

• SELECTING SOUND MODE

Press SEL button (6) to move display through volume, bass, treble, balance and

fader functions. Use (7) and (8) buttons to adjust the selected mode.

When mode has not been adjusted for several seconds, display returns to previous

display status (e.g. radio display or CDC display).

Volume

Adjust volume level using (7) and (8) buttons.

Bass

Press SEL button (6) for one time. Adjust bass level using (7) and (8) buttons.

Treble

Press SEL button (6) for two times. Adjust treble level using (7) and (8) buttons.

Balance

Press SEL button (6) for three times. Adjust sound balance between left and right

speakers using (7) and (8) buttons.

Fader

Press SEL button (6) for four times. Adjust sound balance between front and rear

speakers using (7) and (8) buttons.

• SELECTING PLAYING MODE

When the screen display is drawn in, press MOD button (12) to select desired

playing mode between radio and CDC. When the screen display is drawn out, the

unit would automatically switch into TV mode. By pressing MOD button (12), you

can select desired playing mode among TV, radio and CDC.

CAUTION: The installation must be done in a way that prevents TV operation while

driving. During this time you may choose between radio and CD (Changer) modes.

• MUTE

Press MUT button (3) to cut down sound output, “MUTE” appears on display.

Press it again to resume the previous volume level.

• SETTING THE CLOCK

Press DSP button (5) to change the display into clock display. While the current

time is appeared on the display, press it again to return to frequency showing.

Time Setting

- Set hours:

Holding down DSP button (5) for several seconds, and the clock is blinking on

the display, press button (14) to adjust the hour.

VOL BAS TRE BAL FAD

(Volume) (Bass) (Treble) (Balance) (Fader)
