Bose FreeSpace 102F Manual de usuario

Bose®FreeSpace®Model 102F Loudspeaker

Installation Guide*

Installationsvejledning*

Installationsanleitung*

Guía de instalación*

Guide d’installation*

Guida all’installazione*

Installatiehandleiding*

Installationsanvisning*

* For use by trained installers only

* Kun til brug for erfarne installatører

* Montage ausschließlich durch ausgebildetes Installationspersonal

* Para uso exclusivo de instaladores capacitados

* Réservé aux installateurs ayant suivi une formation

* Solo per l’uso da parte di installatori professionisti

* Uitsluitend voor gebruik door ervaren installateurs

* Ska endast användas av utbildade installatörer

Installation

EnglishDeutschFrançais DanskEspañolItaliano

Svenska Nederlands

Package Contents

Kassen indeholder

Packungsinhalt

El paquete contiene

Contenu de l’emballage

Contenuto della confezione

Inhoud van de verpakking

Paketets innehåll

Bose

FreeSpace

Model102FLoudspeaker

InstallationGuide*

Installationsvejledning*

Installationsanleitung*

Guía deinstalación*

Guided’installation*

Guidaall’installazione*

Installatiehandleiding*

Installationsanvisning*

*Foruseby

trained installersonly

*Kunt

ilbr ugforerfarne installatører

*Montageausschließlichdurch ausgebildetes Installationspersonal

arauso exclusivo deinstaladorescapacitados

*Réservé aux installateursaya ntsuivi unefor mation

*Soloper l’uso da par tedi installatoriprofe ssionisti

*Uitsluitendvoor gebruikdoorervareninstallateurs

*Skaendastanvändas av utbildade installatörer

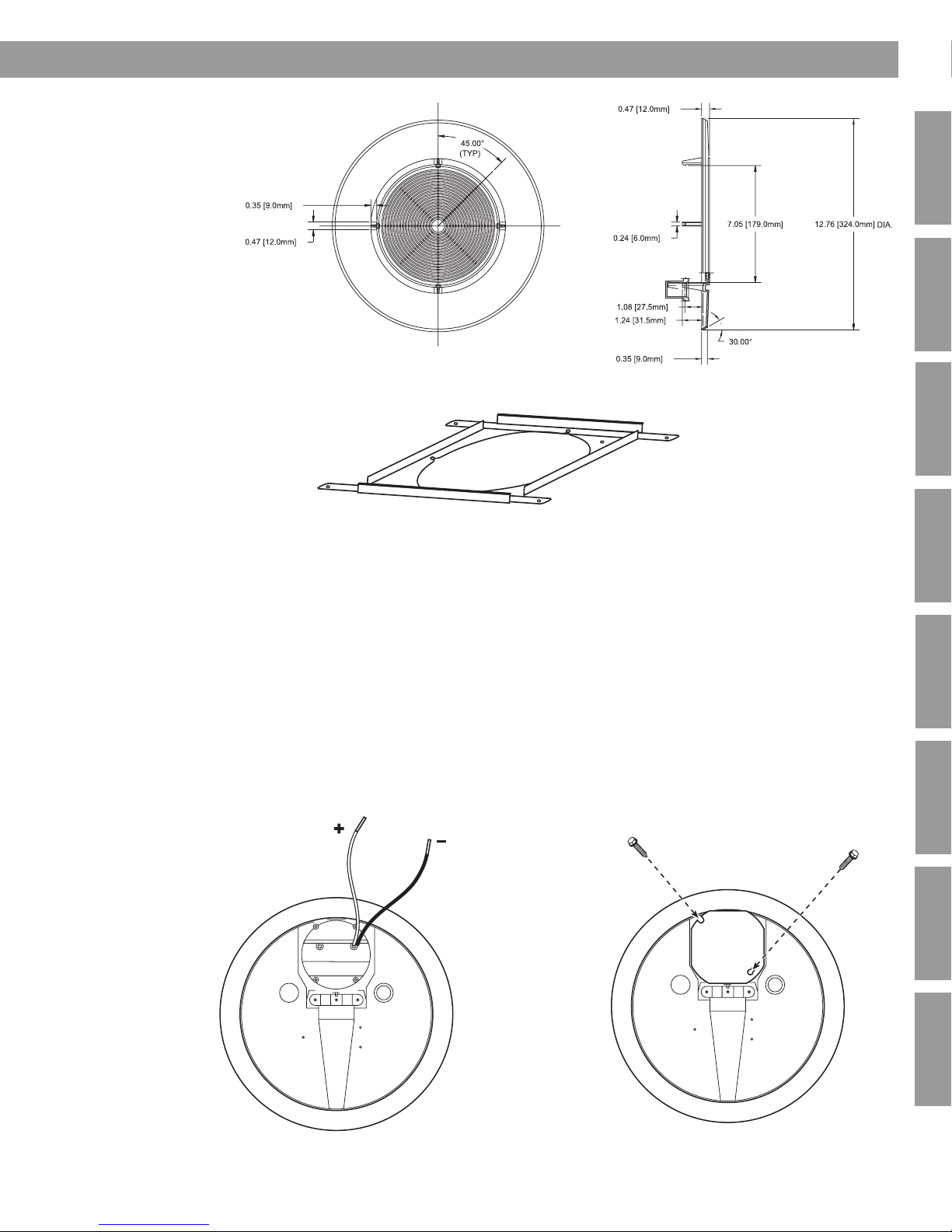

Dimensions

Mål

Abmessungen

Dimensiones

Dimensions

Dimensioni

Afmetingen

Dimensioner

Installation

English Français Italiano SvenskaNederlands

Dansk Deutsch Español

Choices

Valgmuligheder

Optionen

Opciones

Au choix

Opzioni

Keuzes

Alternativ

Connections

Tilslutninger

Anschlüsse

Conexiones

Raccordements

Collegamentielettrici

Verbindingen

Anslutninga

Rough-in

102-FB

Grille

102-G

Black

Sort

Schwarz

Negro

Noir

Nero

Zwart

Svart

White

Hvid

Weiß

Blanco

Blanc

Bianco

Wit

Vit

Installation

EnglishDeutschFrançais DanskEspañolItaliano

Svenska Nederlands

Options

Valgmuligheder

Optionen

Opciones

Au choix

Opzioni

Keuzes

Alternativ

Installation

English Français Italiano SvenskaNederlands

Dansk Deutsch Español

Transformer tap setting

Transformer tapsætning

Einstellen der Transformator-abgriffe

Ajuste del cambiador de la relación de transformación

Position des réglages du transformateur

Trasformatore: impostazione delle potenze intermedie

Aftakkings-instelling van de transformator

Tappinställning för transformator

Model 102F, 70V

Switch Setting Power Rating

OFF —

•2Watt

•4Watt

•8Watt

•16Watt

HIGH 25 Watt

Remove grille

Fjern gitter

Verkleidung abnehmen

Retirar rejilla

DŽmontage de la grille

Togliere la griglia

Afdekplaat verwijderen

Ta bort fronten

Model 102F, 100V

Switch Setting Power Rating

OFF —

•2Watt

•5Watt

•9Watt

•16Watt

HIGH 25 Watt

Installation

EnglishDeutschFrançais DanskEspañolItaliano

Svenska Nederlands

1and 2shown with optional

channel bracket or Bose®

rough-in bracket. Channel

brackets are available from

Lowell Manufacturing Co.

(www.lowellmfg.com,

800-325-9660) Model SS24.

Use of Metal Backcans

Note: The Bose 102F loudspeaker does not fit into tapered, stackable backcans.

The requirement for backcan use with loudspeakers in a commercial or public space is

usually based on the local inspector’s interpretation of applicable codes. The Bose 102F

loudspeaker fits into these standard 8-inch backcans:

• Atlas/Soundolier (314-349-3110) models 95-8-7 and 96-8-7. Removal of the batting

material is required for both models.

• Lowell Manufacturing Co. (www.lowellmfg.com, 800-325-9660) Models CP87 and XCP87-S

(without torsion receptacles). Removal of the batting material is required for both models.

J-nut

8-32 x 1.25 hex screw

Mounting

Montering

Aufbau

Montaje

Fixation

Installazione

Monteren

Montering

English Français Italiano SvenskaNederlands

Dansk Deutsch Español

Safety and Regulatory Compliance

The Bose®Model 102F (70V and100V versions) is UL listed for safety as:

• General Purpose Loudspeakers per UL1480, UL Category UEAY, File

Number S 5591.

• Suitable for use indoors in damp locations.

• Suitable for installation using Class 1, Class 2 or Class 3 wiring methods in accordance

with NFPA-70, National Electric Code®, 2002, Article 640.

The FreeSpace®Model 102F, all versions, is suitable for use in air handling (plenum) spaces

with use of a metal backcan (reference page 6):

• UL-2043, Fire Test and Visible Smoke Release for Discrete Products and their Accessories

Installed in Air Handling Spaces

• NFPA-70, National Electrical Code, 2002, Article 300.22(C)

• NFPA-90A, 2002, Installation of Air Conditioning and Ventilation Systems, Paragraph

4.3.10.2.6.5

The Model 102F also complies with the following specifications:

EMC Directive as signified by the CE mark. The complete

Declaration of Conformity can be found on www.bose.com.

Framingham, MA 01701-9168 USA

279311 AM Rev.01 CCM-001669
