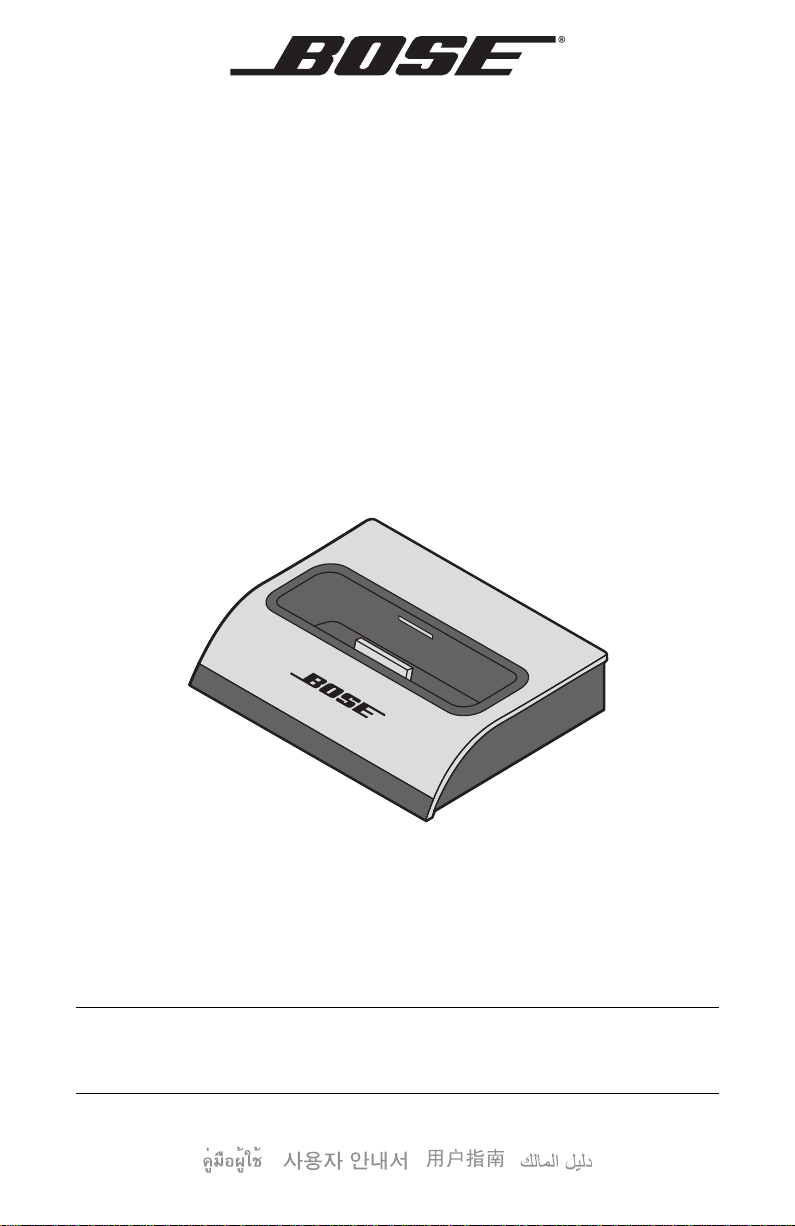

Bose WAVE CONNECT KIT Manual de usuario

WAVE®CONNECT KIT

Owner’s Guide | Bedienungsanleitung | Guía de usuario

Notice d’utilisation | Manuale di istruzioni | Gebruiksaanwijzing

| | |

2012 Bose Corporation, The Mountain,

Framingham, MA 01701-9168 USA

AM352834 Rev 01

WAVE®CONNECT KIT

Connect Kit for iPod_Cover_5.5x8.5.auto.fm Page 1 Wednesday, January 4, 2012 9:56 AM

Tab 3, 11

Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 Tab2, 10

2 – English

IMPORTANT SAFETY INSTRUCTIONS

Please read this owner’s guide

Please take the time to follow the instructions in this owner’s guide carefully. It will help

you set up and operate your system properly and enjoy all of its advanced features.

Please save this owner’s guide for future reference.

WARNING: T

o reduce the risk of fire or electrical shock, do not expose the product to

rain or moisture.

WARNING:

not expose this apparatus to dripping or splashing, and do not

place objects filled with liquids, such as vases, on or near the apparatus. As with

any electronic products, use care not to spill liquids into any part of the system.

Liquids can cause a failure and/or a fire hazar

The lightning flash with arrowhead symbol within an equilateral triangle alerts the

user to the presence of uninsulated, dangerous voltage within the system enclo-

sure that may be of sufficient magnitude to constitute a risk of electrical shock.

The exclamation point within an equilateral triangle, as marked on the system,

is intended to alert the user to the presence of important operating and

maintenance instructions in this owner’s guide.

Class B emissions

This product complies with the Canadian ICES-003 Class B specifications.

WARNING: Do not place any naked flame sources, such as lighted candles, on or near

the apparatus.

CAUTION: Make no modification to the system or accessories. Unauthorized altera-

tions may compromise safety, regulatory compliance, and system performance.

CAUTION: Bose recommends using a high-quality, safety agency-approved

(i.e. UL, ETL) surge suppressor on all electronic equipment.

This product conforms to all EU directive requirements as applicable by law. The

complete Declaration of Conformity can be found at www.Bose.com/compliance.

Note: Where the mains plug or appliance coupler is used as the disconnect device, such

disconnect device shall remain readily operable.

Note: The product must be used indoors. It is neither designed nor tested for use outdoors,

in recreation vehicles, or on boats.

Note: This product is intended to be used only with the power supply provided.

CAUTION: Long-term exposure to loud music may cause hearing damage. It is best to

avoid extreme volume when using headphones, especially for extended periods.

Replay_OG Wave.book Page 2 Tuesday, November 15, 2011 4:12 PM

English – 3

Tab 6, 14

Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions – for all components before using this product.

2. Keep these instructions – for future reference.

3. Heed all warnings – on the product and in the owner’s guide.

4. Follow all instructions.

5. Do not use this apparatus near water or moisture – Do not use this product

near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a

swimming pool, or anywhere else that water or moisture are present.

6. Clean only with a dry cloth – and as directed by Bose Corporation. Unplug this

product from the wall outlet before cleaning.

7. Do not install near any heat sources, such as radiators, heat registers, stoves,

or other apparatus (including amplifiers) that produce heat.

8. Protect the power cord from being walked on or pinched, particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

9. Only use attachments/accessories specified by the manufacturer.

10. Unplug this apparatus during lightning storms or when unused for long

periods of time – to prevent damage to this product.

11. Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way: such as power-supply cord or

plug is damaged; liquid has been spilled or objects have fallen into the

apparatus; the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped – Do not attempt to service this product

yourself. Opening or removing covers may expose you to dangerous voltages or

other hazards. Please call Bose to be referred to an authorized service center

near you.

12. To prevent risk of fire or electric shock, avoid overloading wall outlets,

extension cords, or integral convenience receptacles.

13. Do not let objects or liquids enter the product – as they may touch dangerous

voltage points or short-out parts that could result in a fire or electric shock.

14. See product enclosure for safety-related markings.

15. Use proper power sources –Plug the product into a proper power source,

as described in the operating instructions or as marked on the product.

Replay_OG Wave.book Page 3 Tuesday, November 15, 2011 4:12 PM

4 – English

Tab 3, 11

Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 Tab2, 10

Contents of your kit

Compatibility

This kit is compatible with most iPod models (see page 15 for a complete list).

For the Wave®connect kit to work as expected, your iPod must have the latest version

of iPod software installed. If you need to upgrade, visit the Apple website and follow the

instructions there.

Dock with adapter insert RCA audio cable 3.5 mm audio cable

Power pack AC power cord

Replay_OG Wave.book Page 4 Tuesday, November 15, 2011 4:12 PM

English – 5

Tab 6, 14

Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15

USING YOUR WAVE®CONNECT KIT

Recommended placement

We recommend that you place the dock to the right of your Bose®Wave®music system

or Acoustic Wave®music system so the iPod has minimal effect on AM reception.

Be sure the IR sensor on the front of the dock is visible and aligned with the

Wave®system IR sensor so both products respond to the remote.

Dock

for

iPod

Wave®

music system

IR sensor

Dock for iPod

IR sensor

Acoustic Wave®

music system

IR sensor

Replay_OG Wave.book Page 5 Tuesday, November 15, 2011 4:12 PM

6 – English

Tab 3, 11

Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 Tab2, 10

USING YOUR WAVE®CONNECT KIT

Connecting the products

Please be sure to make all other connections before plugging your Wave®system into a

power outlet.

Use the supplied audio cable that is appropriate for your Wave®system.

For a Wave®music system or Wave®radio: Use the mini audio cable and connect

AUDIO OUT on the dock to AUX IN.

For an Acoustic Wave®music system: Use the RCA audio cable and connect AUDIO

OUT on the dock to AUX IN.

3.5 mm audio cable

AUX IN

AUDIO

OUT

Dock

for iPod

Wave®

music system

AUDIO

OUT

Acoustic Wave®

music system

RCA audio cable

Dock

for iPod

Replay_OG Wave.book Page 6 Tuesday, November 15, 2011 4:12 PM

English – 7

Tab 6, 14

Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15

USING YOUR WAVE®CONNECT KIT

For a Wave®music system or Acoustic Wave®music system with Multi-CD

Changer: Use the RCA audio cable and connect from AUDIO OUT on the dock to

AUX 1 L and R.

RCA audio cable

AUX 1

L and R

Dock

for iPod

AUDIO

OUT

Wave®music system

with CD changer

RCA audio cable

AUX 1

L and R

AUDIO

OUT

Acoustic Wave®

music system

with CD changer

Dock

for iPod

Replay_OG Wave.book Page 7 Tuesday, November 15, 2011 4:12 PM

8 – English

Tab 3, 11

Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 Tab2, 10

USING YOUR WAVE®CONNECT KIT

Connecting the dock to power

1. Connect the free end of the power pack cable to the dock.

2. Connect the AC power cord to the power pack.

3. Plug the AC power cord into an AC (mains) outlet.

3.5 mm audio cable

to the system

Power pack connector

AC power cord

Dock for

iPod

Power

pack cable Power pack

AC power plug

Replay_OG Wave.book Page 8 Tuesday, November 15, 2011 4:12 PM

English – 9

Tab 6, 14

Tab 2, 10 Tab 3, 11 Tab 4, 12 Tab 5, 13 Tab 8, 16Tab 7, 15

USING YOUR WAVE®CONNECT KIT

Controlling your iPodand Wave®system

The remote that came with your Wave®music system or Wave®radio can also control

the Wave®connect kit. (The remote is not included in the connect kit.)

Most of the remote control buttons are described in the owner’s guide that came with

your Wave®system. The remote buttons described below provide added features.

Important note: The Sleep button and three Alarm buttons on the remote control affect

system sound sources only. They do not control the iPod and cannot be set for use with

that source.

Note: The Stop/Eject button does not appear on the Wave®radio remote control.

The response to some remote commands depends on which source (Radio/CD/iPod/

AUX) is playing. If the remote does not work as you expect, press the button for that

source to reset the intended mode of operation.

Note: The remote originally included with the Wave®radio II did not include a Play/Pause

button. However, the system will still function properly once you initiate playback on the

iPod. If you own this system and prefer to purchase a remote control that includes a Play/

Pause button, please contact Bose using the contact information provided on page 16.

AUX

• Switches between iPod and

AUX (switches between the

input jacks on the Multi-CD

Changer).

See the Multi-CD Changer

guide for more information.

On/Off

Turns off iPod.

Seek/Track

• Single press

skips one track.

•Pressandhold

scans quickly

through a track.

Tune/MP3

• Moves from one

playlist to the

next.

Play/Pause

• Pauses or resumes iPod play.

Radio

• Selects the radio

source.

• Turns off iPod.

• Selects the Wave®music system

CD source.

• Turns off iPod.

Replay_OG Wave.book Page 9 Tuesday, November 15, 2011 4:12 PM

10 – English

Tab 3, 11

Tab 8, 16 Tab 7, 15 Tab 6, 14 Tab 5, 13 Tab 4, 12 Tab2, 10

USING YOUR WAVE®CONNECT KIT

The remote that came with your Acoustic Wave®music system can also control the

Wave®connect kit.

Most of the remote control buttons are described in the owner’s guide that came with

your Wave®system. The remote buttons described below provide added features.

The response to some remote commands depends on which source (FM/AM/CD/iPod/

AUX) is playing. If the remote does not work as you expect, press the button for that

source to reset the intended mode of operation.

AUX

• Switches between iPod and

AUX (switches between the

input jacks on the Multi-CD

Changer).

See the CD changer guide

for more information.

On-Off

Turns off iPod.

Seek/Track

• Single press

skips one track.

• Press and hold

scans quickly

through a track.

Tune/Playlist

• Moves from one

playlist to the next.

Play/Pause

• Pauses or resumes iPod play.

FM or AM

• Selects the

FM or AM source.

• Turns off iPod.

• Selects the Acoustic Wave®music

system II CD source.

• Turns off iPod.

Replay_OG Wave.book Page 10 Tuesday, November 15, 2011 4:12 PM

Tabla de contenidos

Otros manuales de Estación de acoplamiento de Bose

Bose

Bose SOUNDDOCK PORTABLE DIGITAL MUSIC SYSTEM Manual de usuario

Bose

Bose Lifestyle 525 Series III Manual de usuario

Bose

Bose SOUNDDOCK PORTABLE DIGITAL MUSIC SYSTEM Manual de usuario

Bose

Bose SoundDock 10 Bluetooth Manual de usuario

Bose

Bose SoundLink Wireless Music System Manual de usuario

Bose

Bose SoundDock 10 Bluetooth Manual de usuario

Bose

Bose SoundLink Wireless Music System Manual de usuario

Bose

Bose SoundDock Series III Manual de usuario

Bose

Bose SOUNDDOCK PORTABLE DIGITAL MUSIC SYSTEM Manual de usuario

Bose

Bose SOUNDDOCK PORTABLE DIGITAL MUSIC SYSTEM Manual de usuario

Bose

Bose SoundLink Wireless Music System Manual de usuario

Bose

Bose SoundDock 10 Bluetooth Manual de usuario

Bose

Bose Acoustic Wave music system II. Manual de usuario

Bose

Bose SOUNDDOCK PORTABLE DIGITAL MUSIC SYSTEM Manual de usuario

Bose

Bose SoundDock 10 Bluetooth Manual de usuario

Bose

Bose SOUNDDOCK PORTABLE DIGITAL MUSIC SYSTEM Manual de usuario

Bose

Bose SoundDock 10 Bluetooth Manual de usuario

Bose

Bose SOUNDDOCK PORTABLE DIGITAL MUSIC SYSTEM Manual de usuario

Bose

Bose SoundDock 10 Bluetooth Manual de usuario

Bose

Bose SOUNDDOCK PORTABLE DIGITAL MUSIC SYSTEM Manual de usuario

Manuales populares de Estación de acoplamiento de otras marcas

Sony

Sony Dream Machine XDR-DS12iP Manual de usuario

Acer

Acer USB Type-C Dock II Manual de usuario

ATEN

ATEN UC-2000 Manual de usuario

Xcellon

Xcellon HDD-202 Manual de usuario

Dok

Dok CR09 Manual de usuario

Philips

Philips BTM630/12 Manual de usuario

IOGear

IOGear Travel Pro GUD3C09 Manual de usuario

RKI

RKI SDM-E2 Manual de usuario

iHome

iHome iP15 Manual de usuario

VITURE ONE

VITURE ONE MOBILE DOCK Manual de usuario

Lindy

Lindy 42984 Manual de usuario

CipherLab

CipherLab 8001 Manual de usuario

Pyle

Pyle PIPDSP2 Manual de usuario

Avol

Avol AS2350 Manual de usuario

Datalogic

Datalogic JoyaTouch Manual de usuario

Philips

Philips DC190/79 Manual de usuario

Targus

Targus DOCK315EUZ Manual de usuario

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Manual de usuario
