FlexiDome and Dinion cameras |1

Reveal every detail with

FlexiDome 2X and Dinion 2X

2 |FlexiDome and Dinion cameras

Reveal more details in your surveillance

images with FlexiDome and Dinion cameras

When clarity counts, rely on Bosch cameras to provide the best level of detail to match your application and

budget. We understand high performance CCTV surveillance and our products consistently incorporate

the latest advances to satisfy your needs.

Whatever your surveillance application demands, there’s an ideal solution in our award-winning FlexiDome

and Dinion families of analog cameras. This comprehensive range includes our advanced Dinion 2X models

together with the high-performance DinionXF and professional-standard Dinion cameras. You have a

choice of color or monochrome options, as well as complete FlexiDome cameras incorporating the same

unparalleled technology.

Just as video capture mixes red, green and blue to make white

light, you can mix Dinion fixed cameras and FlexiDome dome

cameras to cover every area of your facility – indoors and

outdoors – and reveal every detail.

DinionDinion 2X

DinionXF

FlexiDome and Dinion cameras |3

Even in the harshest lighting conditions, the ﬂagships

of our camera lines – the FlexiDome 2X and Dinion 2X

– give you the highest level of image quality. We have

engineered these cameras to perform ﬂawlessly in

natural and artiﬁcial light so you always get the best

results. Strong backlighting, high-contrast or low-light

scenes – the 2X cameras handle it all with ease and

expose details not visible to the naked eye.

FlexiDome 2X and Dinion 2X

The clearest images, day or night

The next generation of image quality

Dinion 2X and FlexiDome 2X are the newest generation

of Bosch's industry-leading image capture solutions.

Each builds upon the achievements of the Dinion and

FlexiDome families which redeﬁned the standards for

image quality, ﬁrst with 10-bit, then 15-bit image

processing.

Now the 2X generation with 20-bit technology raises the

bar even higher and delivers on the promise of revealing

every detail – even in difﬁcult settings and low light.

FlexiDome Series

1 Bit 3 Bit 10 Bit

Dinion

FlexiDome

15 Bit

DinionXF

FlexiDomeXF

20 Bit

Dinion 2X

FlexiDome 2X

Image processing

Bosch's innovative 2X Digital Signal Processing chip

combines dual sensor exposure and wide dynamic range

performance to deliver the world's first 20-bit image

processing for outstanding results in every setting.

4 |FlexiDome and Dinion cameras

Are you looking for a dome camera that produces the

highest quality surveillance images? The FlexiDome 2X

Day/Night is the solution for you. It combines the

precise performance of our advanced 2X 20-bit

processing and wide dynamic range sensor with a

rugged, stylish dome.

FlexiDome 2X

Tough-as-nails domes with 20-bit processing

Tough enough for almost any application

From arctic temperatures to blazing sun or heavy rain, the

FlexiDome 2X handles it all, easily coping with rough

treatment in tough locations.

Clear imaging in difﬁcult lighting conditions

Strong backlighting or high contrast scenes are no

problem, thanks to the camera’s wide dynamic range.

Low light situations are handled easily, ensuring high-

quality image capture day or night.

Capture nighttime scenes with

amazing detail with FlexiDome's

infrared illumination sensitiviy

Stands up to attack with

impact-resistant bubble

Privacy masking can hide

sensitive scene content

Compensates for backlighting

with Smart BLC

Completely sealed against water,

dust and other contaminants

VDN-498 FlexiDome 2X camera u

FlexiDome and Dinion cameras |5

Enhanced low-light performance

Capture what the human eye cannot see with

Bosch’s 2X DSP technology, wide dynamic range and

20-bit digital image processing

More detail in harsh lighting conditions

Data from the highest light and lowest light image

sources is analyzed pixel by pixel and combined to

produce the most detailed picture possible

Guaranteed performance around the clock

Get clear imaging 24/7 with 2X image processing that

dynamically adapts to scene changes and infrared

illumination that boosts nighttime performance

Stands up to the elements

Resist damage from wind, rain and ﬂying debris plus

attempts at tampering or breaking the housing

Complete package convenience

Get an attractive, rugged dome, advanced 2X

camera and choice of optimized, high-speed lens

in one package

The field-proven endurance of

FlexiDome is ideal for:

Foyers and lobbies

Warehouses and loading docks

Prisons and correctional facilities

Airport baggage and storage areas

Stadiums

6 |FlexiDome and Dinion cameras

Capture fast-moving objects

with default shutter

Excellent 15-bit image quality

Patented design for viewing

along a ceiling or surface

Better contrast with AutoBlack

FlexiDomeXF

Perfect performance indoors and out

FlexiDomeXF offers a subtle proﬁle, the ruggedness of a

dome and the performance of the renouned DinionXF

camera. This compact, integrated dome solution is

available in a range of models tough enough for almost

any environment, yet attractive enough to be mounted

in any location.

Sharp images, whatever the lighting

Capture movement accurately without blurring and

maintain full image sensitivity in low-light conditions

using default shutter

Clearer detail where it matters most in the image

Adjust for deep shadows with programmable backlight

compensation

FlexiDomeXF stands strong in harsher conditions and

resists wind, rain, flying debris and tampering in:

Stairwells and staircases

High-security storage such as bank vaults

Indoor parking structures

Hotels, bars and nightclubs

Hospitals and medical centers

FlexiDomeXT+ combines award-winning Dinion imaging

quality and outstanding reliability in a tough-as-nails dome.

Or choose our FlexiDomeVF model as the ideal indoor

alternative.

FlexiDomeXT+ and FlexiDomeVF

Subtle surveillance virtually anywhere

More precise recognition

Achieve superior image quality with

540 TVL resolution

Expertly handle low light

Enhanced sensitivity with NightSense delivers more

details in darkened settings

FlexiDomeXT+ and FlexiDomeVF

offer worry-free imaging for:

Museums and art galleries

General surveillance in shopping centers and malls

Ofﬁces

Hallways and corridors

Schools, colleges and universities

VDC-485 FlexiDomeXF camera u

VDC-455 FlexiDomeXT+ camera u

FlexiDome and Dinion cameras |7

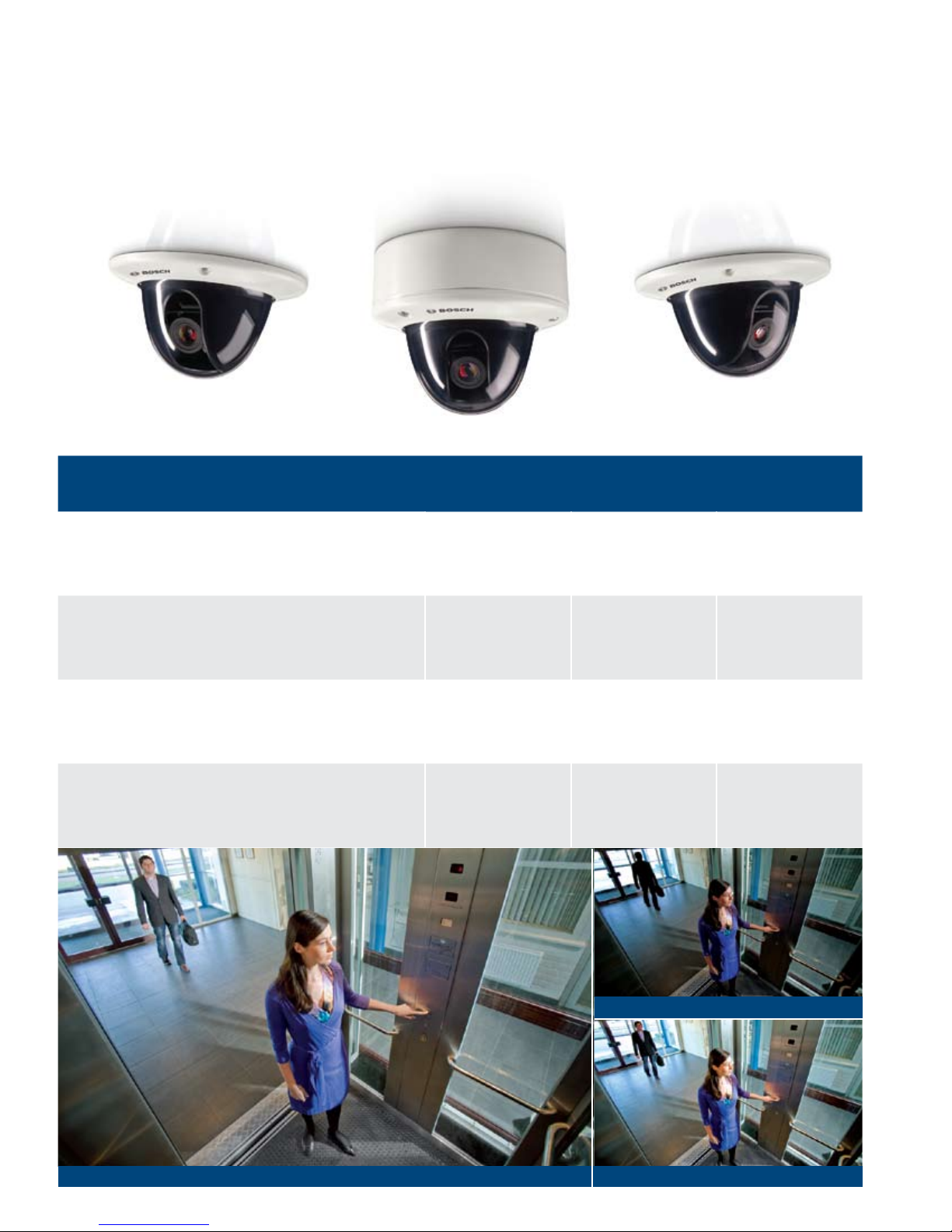

Selecting

the right FlexiDome

Applications FlexiDome 2X FlexiDomeXF FlexiDomeXT+ and

FlexiDomeVF

Elevators and entranceways

Backlighting makes areas of interest dark and obscures details.

Neutralize shadows with Smart backlight compensation (BLC).



Pedestrian and vehicle trafﬁc

Get the sharpest images where personal safety is at stake

by combining wide dynamic range with color sensitivity.



Warehouse

Critical details hide in shadows, making them difﬁcult to see.

Use Bosch cameras with XF-Dynamic to improve image capture

and eliminate viewing problems.



Reception lobby

High bursts of activity demand detailed, sharp pictures of the

entire scene. Use Bosch cameras with 540 TVL resolution.



Other cameras

Human eyeHigh quality FlexiDome 2X camera image

8 |FlexiDome and Dinion cameras

The ﬂagship of the Dinion range, the 20-bit Dinion 2X

Day/Night camera gives you a powerful solution capable

of handling the most demanding lighting situations, 24

hours a day.

Everything about the Dinion 2X is designed to expose

every possible detail in a scene:

Smart compensation for backlighting

Analyzes the image pixel by pixel for the best result

every time

Brings every detail into focus in both the dark and

light parts of a scene with Bosch’s 2X Dynamic

image processing

Produces clear images regardless of glare or shadows

using Day/Night infrared contrast with unequaled IR

sensitivity

Dinion 2X delivers optimal 20-bit

imaging in natural and artiﬁcial light

Exposing details in the most extreme lighting

For every scene, the Dinion 2X generates two images to

produce the clearest picture: one long exposure resolves

details in the scene’s darkest areas, while one short

exposure captures the brightest areas. The digital signal

processor then mixes pixels from each image to produce

the most detailed picture possible.

Images are enhanced pixel by

pixel to reveal all the details

Smart BLC handles

backlighting with ease

Privacy masking to hide

sensitive scene content

Day/Night operation

with switching IR ﬁlter

LTC 0498 Dinion 2X camera



High quality Dinion 2X camera image Other camera

FlexiDome and Dinion cameras |9

Enhanced low-light performance

Capture what the human eye can’t detect with

Bosch’s 2X DSP technology, wide dynamic range and

20-bit image processing

More detail in harsh lighting conditions

Reveal details for comprehensive, around-the-clock

surveillance and enhance the entire scene with Auto-

Black to boost the sharpness of each pixel

A smart solution to handle backlighting

Automatically compensate for backlighting

with Smart BLC

Dinion 2X outperforms other cameras in:

Outdoor perimeters

Trafﬁc monitoring

Outdoor parking lots

Ports

Freight terminals

Border control

10 |FlexiDome and Dinion cameras

DinionXF is the natural choice for high-performance

professional surveillance systems. Its many image

enhancement features ensure great performance and

reliability straight from the box.

DinionXF cameras are ideal surveillance partners

indoors or outdoors:

City surveillance and public areas

Public transportation

Commercial and government buildings

General warehouse surveillance

DinionXF

High performance camera

Vivid video images

Capture more true-to-life images with the DinionXF's

15-bit processing power

Optimum image quality in any lighting

Harsh light, low light or backlight – DinionXF

conquers them all while delivering excellent results

Default shutter to capture

fast moving objects

SensUp for improved

sensitivity

XF Dynamic to reveal

details in dark areas

In locations well-illuminated by natural or artiﬁcial

lighting, Bosch’s 10-bit Dinion cameras are the right

solution. A professional-standard CCTV camera that

delivers crisp, clear pictures, Dinion gives you

consistent, high-quality performance on which you

can stake your surveillance.

Dinion camera

The professional performer

The picture stays bright in fading light

Automatically switch from color to monochrome to

preserve image quality using NightSense, which

recognizes fading natural light

Details stay clear even when visibility is low

Enhance picture contrast and counteract fog, glare,

mist and smoke with AutoBlack

Typical Dinion application areas:

Ofﬁce spaces

Service counters such as bank teller windows

Gasoline stations and convenience stores

Self-storage units

NightSense extends

operational sensitivity

AutoBlack to

improve contrast

540 TVL resolution

LTC 0485 DinionXF camera u

LTC 0455 Dinion camera

Este manual sirve para los siguientes modelos

Otros manuales de Cámara de seguridad de Bosch

Bosch

Bosch series VG4-300 Manual de usuario

Bosch

Bosch FLEXIDOME IP starlight 8000i Manual de usuario

Bosch

Bosch DINION IP imager 9000 HD Manual de usuario

Bosch

Bosch VDN-240 Instrucciones de uso

Bosch

Bosch EX49N Manual de usuario

Bosch

Bosch Compact Day-Night WZ14N4-0 (NTSC) Manual de usuario

Bosch

Bosch NII-51022-V3 Manual de usuario

Bosch

Bosch KBE-335V28-20 Manual de usuario

Bosch

Bosch AUTODOME IP starlight 5100i Manual de usuario

Bosch

Bosch DINION 4000 AN Manual de usuario

Bosch

Bosch EX70MX404-N Manual de usuario

Bosch

Bosch EX70MNX804-N Manual de usuario

Bosch

Bosch DINION 5100i IR Manual de usuario

Bosch

Bosch VDC-240V03-1 Manual de usuario

Bosch

Bosch LTC-0498-21 Manual de instrucciones

Bosch

Bosch AVIOTEC 8000i IR Manual de usuario

Bosch

Bosch DINION IP 7000 HD NBN-71022 Manual de usuario

Bosch

Bosch VDN-5085 Manual de usuario

Bosch

Bosch EX49N Manual de usuario

Bosch

Bosch FlexiDomeXF VDC-485V03-10 Manual de usuario

Bosch

Bosch DinionHD NBN-832-38W Manual de usuario

Bosch

Bosch VBC?265 Series Manual de usuario

Bosch

Bosch NEI-Series Manual de usuario

Bosch

Bosch MIC IP ultra 7100i Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
