7 of 12ISSUED: 06-25-99 SHEET #: 039-9003-8 02-08-05
Q
P
R
DETAIL 2
K
Position TV onto support tray (A).Positionanti-rollouthooks(R) against front edge of TV.

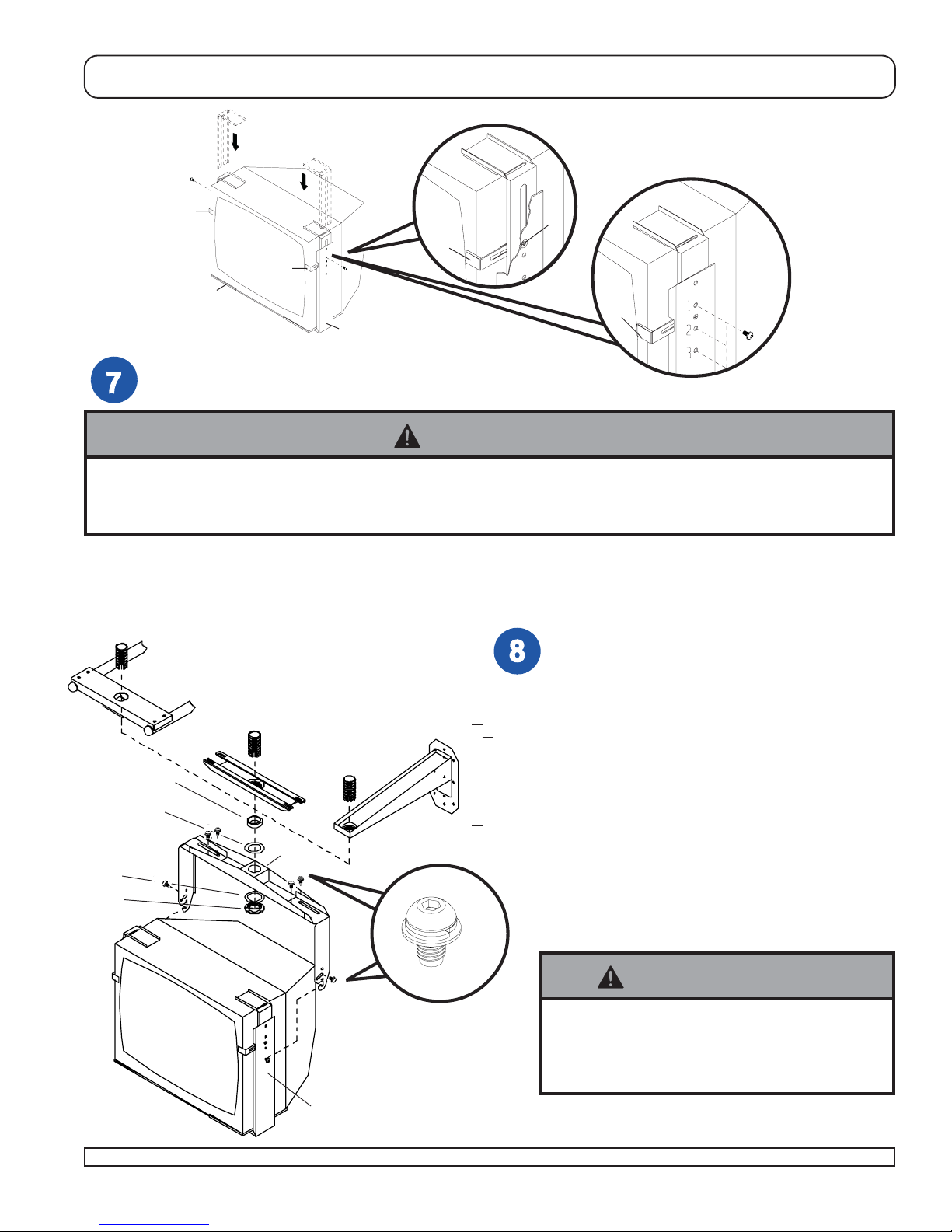

FIRST: From the top fully thread flush mount tube
(T) into threaded fitting in wall arm or ceiling plate.

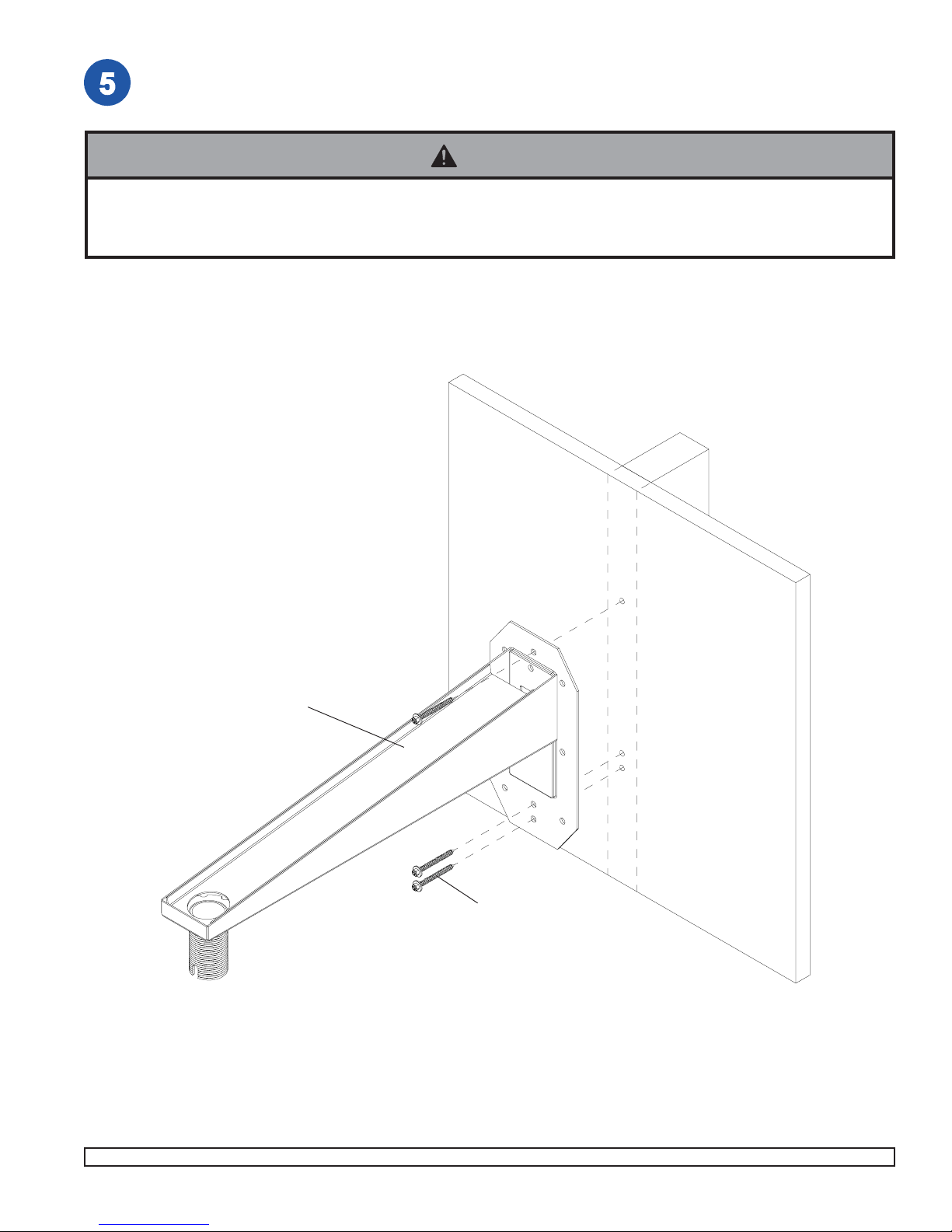

Install the wall arm or ceiling plate according to
instructions included with it.
NEXT: Attach right and left tilt brackets (AA &BB)
to horizontal support (S) using four screws &
washercombo(J).Beforetighteningscrewsmake
sure tilt brackets are adjusted horizontally to align
precisely with screws in the side of vertical support
arms (P). Attach horizontal support (S) to wallarm
or ceiling plate using fiber washers (M &N), spacer
(U,only includedwithsmaller models) andretaining

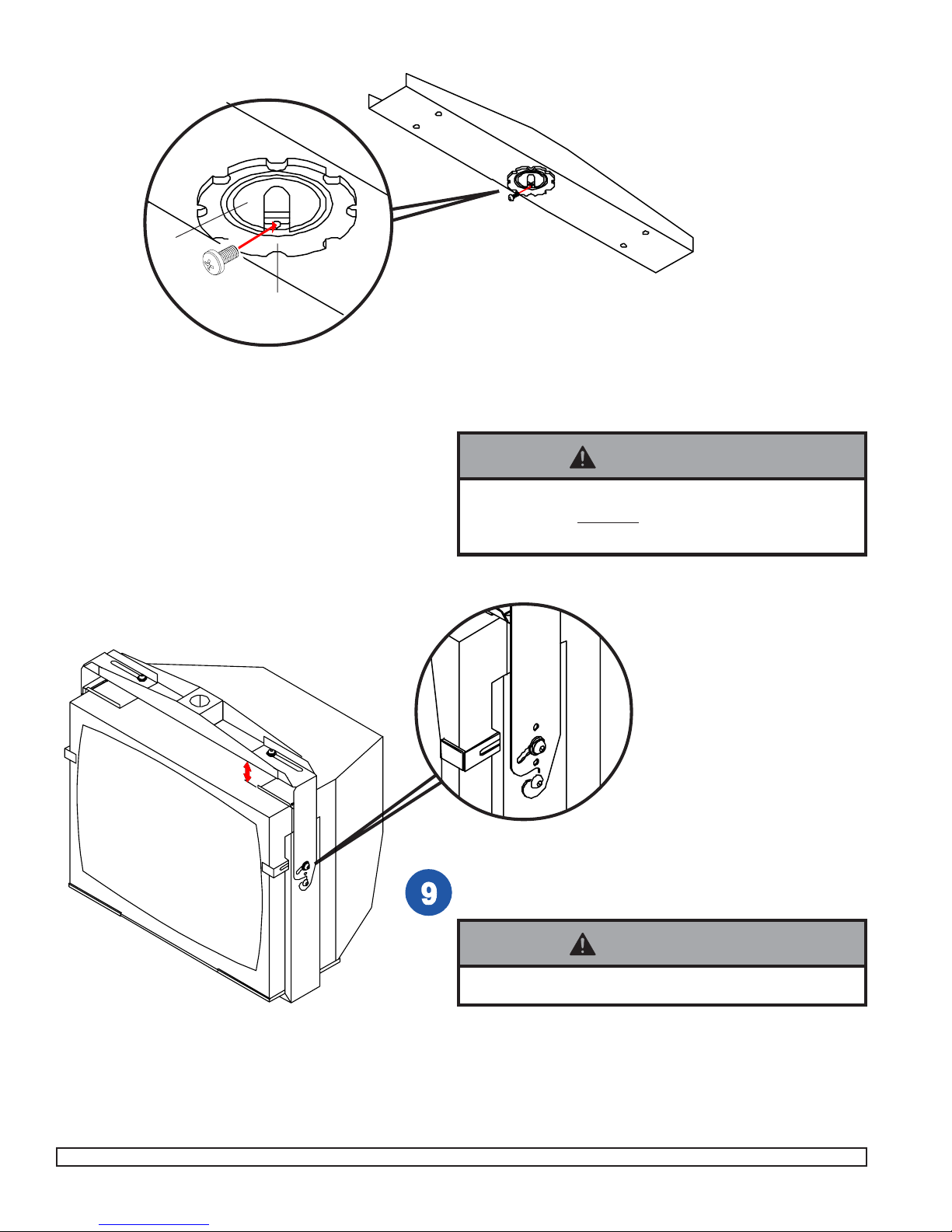

collar(O).IMPORTANT:Retainingcollar(O)
requiresasafetyscrew[refertoDETAIL3,page8].
FINALLY: Be sure that hooks in right and left tilt
brackets(AA&BB)areopenendforward.Hangthe
TV / bracket assembly.
AA
BB
Wall arms & ceiling plates
include their own
instructions. Fixed length
and adjustable extension
columns are also available.
CMJ 470,
CMJ 480,
CMJ 490
WMJ 018,
WMJ 022
P
M
O
U
N
T
T
S
*
*
Included with models
TC9217MM and
TC9220MM only.
**
**
Note: Slots in corners of top clamps (Q) and corners of vertical support arms (P) allow for the installation of safety belt
(model ACC 666, sold separately). If using this belt, install it now.
WMJ 025H
J
WARNING
• Each anti-rollout hook (R) should have at least 1/4” of surface contact with the front of theTV. If this is not the
case the support tray (A) must be adjusted smaller [see step 2], or the vertical support arms (P) adjusted inward
[see step 4].

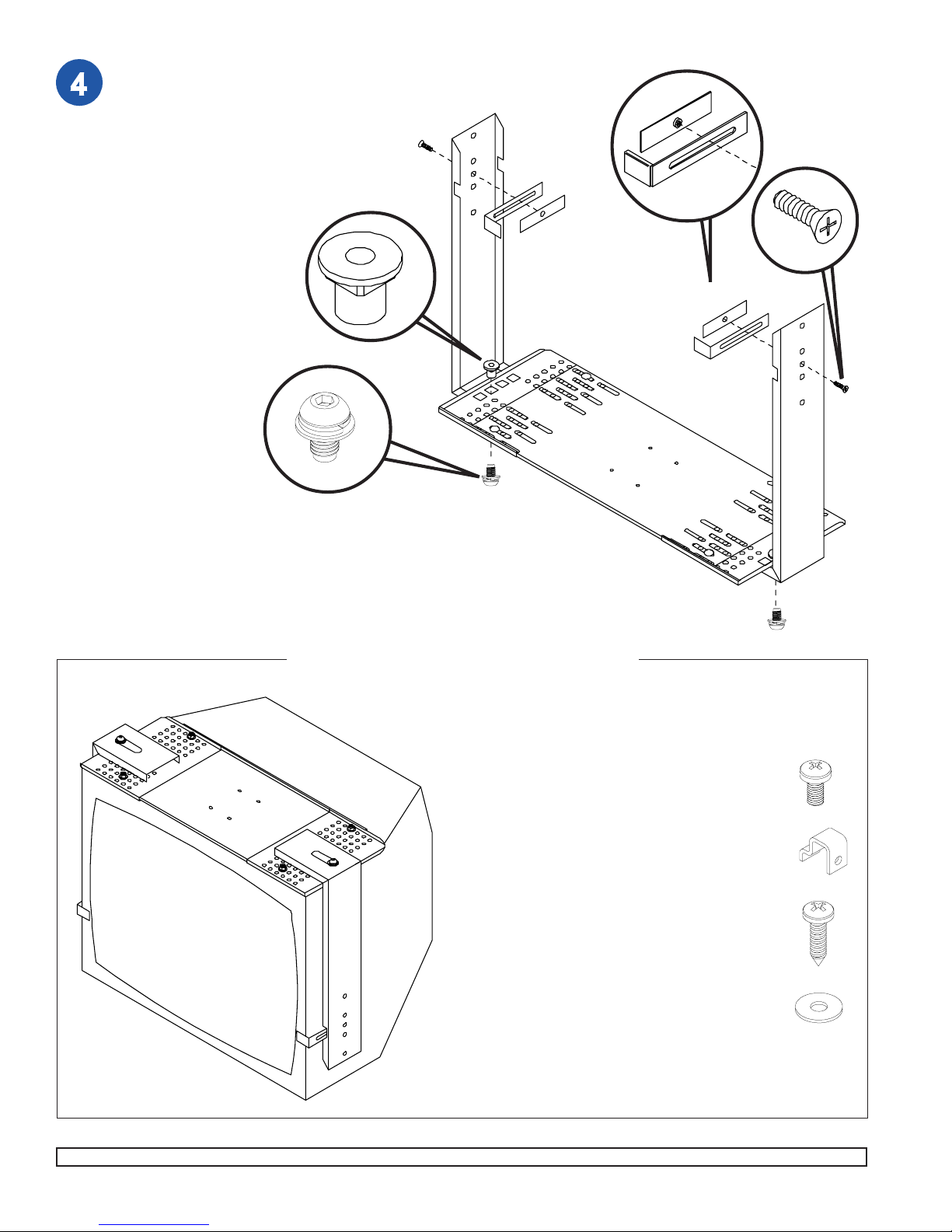

Inserttopclamps (Q). Note: Top clamps(Q)fit between rolloutprotectors(R)and vertical supportarms(P)
[DETAIL 1]. Press down on each top clamp (Q) while securely tightening each M6 screw (Z).
Byhand, threadone serratedflangeheadscrew(K)intoeach verticalsupport arm(P) intooneofthreethreaded

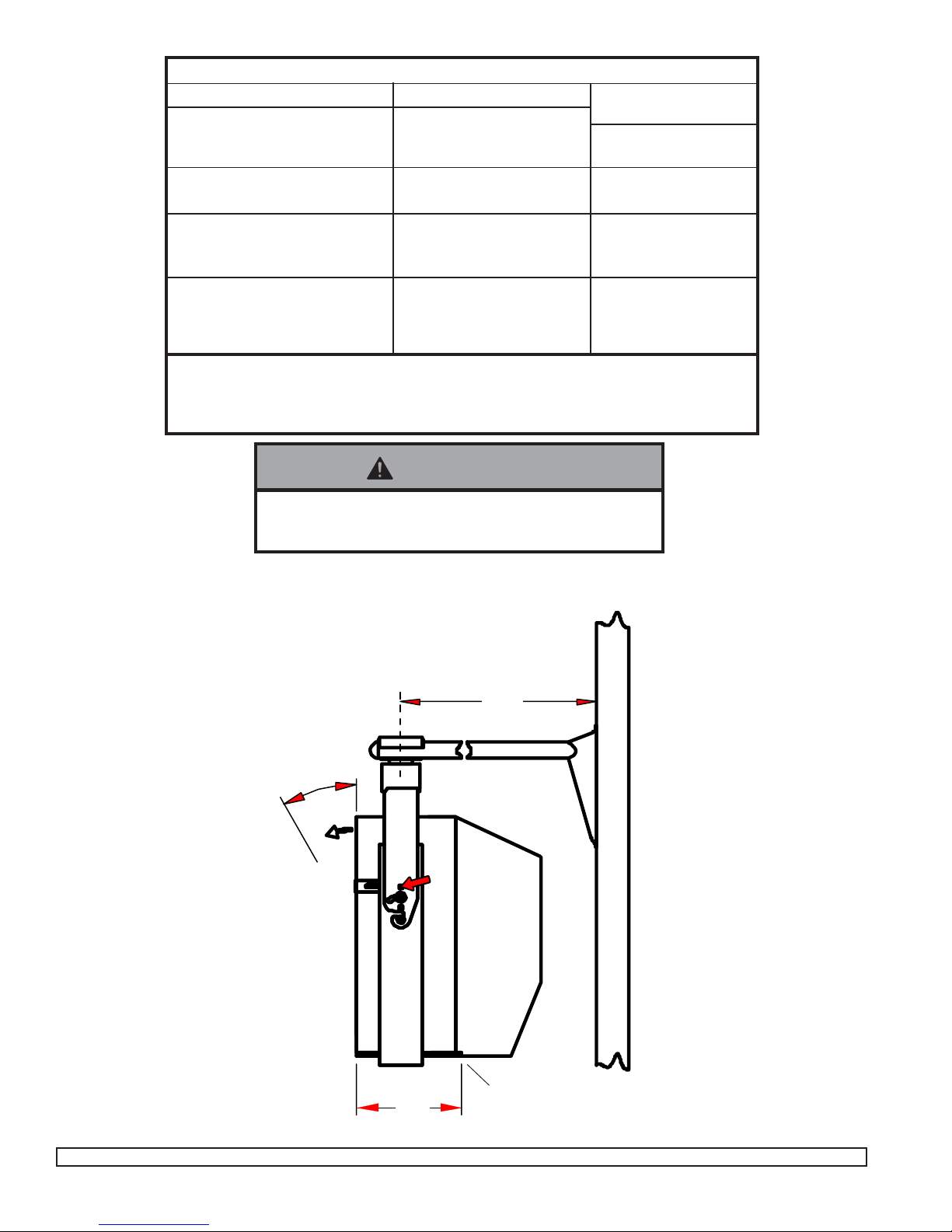

holes [1, 2, or 3; DETAIL 2]. Choose the threaded hole that will allow just enough tilt clearance [see step 9].
Leaveabout1/4"ofexposedthread.
• Donotliftmoreweightthanyoucanhandle!
Useadditional manpower ormechanicallifting
equipment to safely lift and hang the TV /
Bracketassembly!
WARNING
Insert one screw & washer combo (J) through slot
in each tilt bracket (AA & BB). Hand tighten.
P
R
R
Q
Q
A
Q
P
RZ
DETAIL 1
