i _ _ _A{{

8uiJt°in Microwave Oven

_ns_allationInstruclons

Fal Mode/s_ HMIB402_HMB405 HMB406

W _Trim K Is: tHMT472 HMT4?5 HMT476.HMZ402

Please read this entire manual before proceeding

RMPORTANT:

iNSTALLER:

OWN ER:

Local codes vary. Rnstallation, electrical connections, circuit breakers

and grounding must comply with aii applicable codes. Save these instruc

tions for your local electrical inspector's use.

Please leave these Installation Instructions with this unit for the

owner.

Please retain these instructions for future reference,

Disconnect power at the breaker before installing.

Step 1:

Step 2:

Step S:

Step 4:

Step 5:

Unpacking ............................................ 3

Cabinet Preparation ........................... 4

Electncai hstatiaqon .......................... 5

nnstalling the Microwave Oven _. 5- 7

nnstalling the Microwave Trim ........... 7

Step 1: Unpacking

A. Microwave Oven Model HMB

Open the box and carefully remove all fillers and packing material

Your new Bosch microwave includes the following:

, Care & Use manual (1)

o Quick Guide (1)

, Warranty Card (1)

, Turn Table (1)

, Turn Table Support (1)

lB. Trim Kit Models HMT

Open the box and carefully remove all fillers and packing materials.

Parts list:

" Trim Frame (1)

, Bottom Duct (1)

, Antitip Bracket (1)

" Side Duct (1)

" Upper Duct (1)

"installation instructions (1)

Bottom Bracket (1)

, Screws #6xl/2" (1 3)

, Screws #8x1" (6)

, Template (1)

Table 1

30" cabinet

27" cabinet

Trim Kits

HMT406 (Black)

H MT402 (White)

H MT405 (Stainless)

HMT476 (Black)

H MT472 (White)

H MT475 (Stainless)

Microwave Ovens

HMB406 (Black)

HMB402 (White)

HMB405 (Stainless)

HMB406 (Black)

HMB402 (White)

HMB405 (Stainless)

Caution:

Trim kits are designed for use only with the Bosch microwave oven models listed (See Table 1).

For safety, do not alter or modify any part of this kit or oven.

Step 2: Cabinet Preparation

• The cabinet cutout dimensions are shown in Fig-

ure 1,

When the microwave oven is installed at the end

of a cabinet run, adjacent to a perpendicular wail

or cabinet door, it is a good practice to allow at

bast 1/4" space between the side of the trim and

wail or door,

Trim Kits Dimensions

Width (B) HMT40x 28-1/2"

HMT47x 25-1/2"

Height (A) All Trim Kits 16-s!4"

Depth (C) All Trim Kits 22-s!4" o24"

• Your microwave oven can be installed into a cabb

net or wail by itself or above any of the following

Bosch wall ovens: HBL43, HBN/L44 or HBN/L74,

• Outlet can be located anywhere within the shaded

area as indicated in Figure 1,

Figure 1

Top of

microwave

shelf

Bosch

single wail

oven

Figure 2

3" minimum

Step 3: Electrical installation

The Bosch microwave oven is equipped with a grounded cord. The wall receptacle must be installed

and grounded in accordance with the national electrical code. Also, electrical connections and

grounding must comply with all applicable local codes.

The electrical requirements for a separate circuit serving only this microwave oven are: 120V, 60Hz,

15Amp.

Step 4: Installing the Microwave Oven

Step A Front

1/2" Screws (2)

Disconnect the microwave oven from the outlet

before proceeding with installation.

Remove any loose items (turntable, support, etc.)

from the microwave oven.

Fasten the bottom bracket to the bottom duct

by using two 1/2" screws.

4. Install bottom duct with four 1/2" screws to

bottom of microwave.

FRONT VIEW OF

.... _i tVI[CROWAVE

1/2" Screws (2)

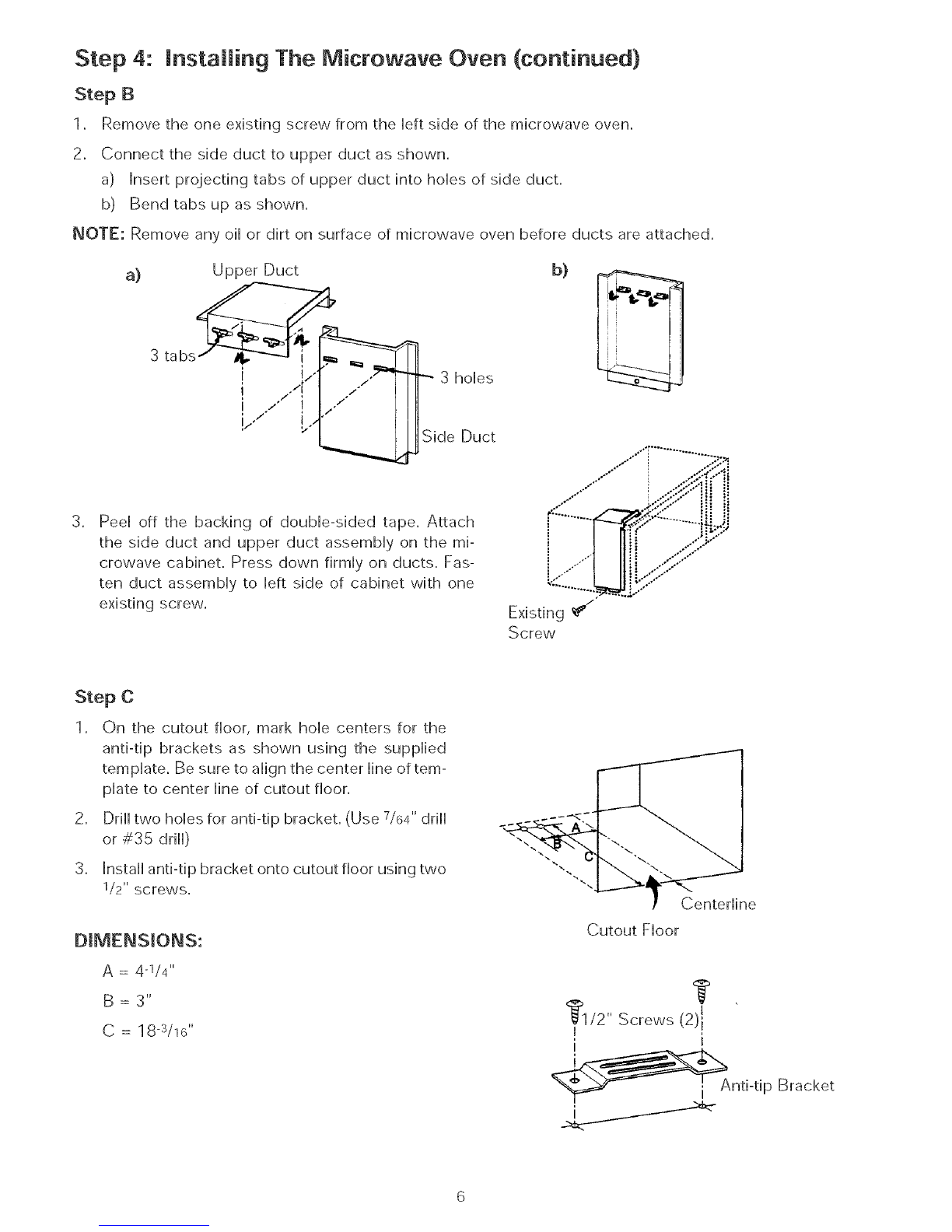

Step 4: installing The Microwave Oven (continued)

Step B

1, Remove the one existing screw from the Heftside of the microwave oven,

2, Connect the side duct to upper duct as shown,

a) hsert projecting tabs of upper duct into holies of side duct,

b) Bend tabs up as shown,

NOTE: Remove any oi[ or dirt on surface of microwave oven before ducts are attached,

a) Upper Duct b)

3 ta bs_

! 3 holies

Side Duct

,Pee[ off the backing of douMe-sided tape, Attach

the side duct and upper duct assemMy on the mi-

crowave cabinet, Press down firmHy on ducts, Fas-

ten duct assemMy to Heftside of cabinet with one

existing screw,

Step C

1, On the cutout floor, mark hole centers for the

anti-tip brackets as shown using the supplied

template, Be sure to align the center line of tem-

plate to center line of cutout floor,

2, Drill two holes for anti-tip bracket, (Use 7/64" drill

or #35 drill)

3, hstaH anti-tip bracket onto cutout floor using two

1/2" screws,

DIMENSIONS:

A = 4-1/4''

B=3"

C = 18-3/16 ''

ICenterline

Cutout Floor

71J2,,Screwst2/I

I I

nti-tip Bracket

Step 4: installing the Microwave Oven (continued}

Step D

1. Slide microwave oven part way into cabinet

opening. (Bottom bracket must be flat to the

cutout floor to engage correctly with anti-tip

brackets as shown).

2, Plug in the microwave oven,

3, Center the microwave oven within the cutout

opening and siide the microwave oven in the

anti-tip bracket, (Ensure the microwave oven is

accurateiy centered,

4, Drill[ piiot hobs (use 7/64" drill[ or #35 drii[)

through the positioning flange and then install[

three 1/2" screws at the front of the bottom duct

as shown.

Step 5: installing the Trim Kit

Bracket Bottom

Bracket

,("Z ,_.'"

1/2" screws flange

Cutout

opening

1. Place the trim kit frame over the microwave oven,

important Note: Trim kit frame orientation is

important, Orient the frame

so the louvers are sloping

downward to the front, (gee

Figure Detail A).

Make sure the trim kit is level and centered with

respect to microwave oven, Mark four hob cen-

ters through the four mounting hobs of the trim

kit,

NOTE: Center the trim kit frame equally on aii

four sides,

Remove the trim kit and drill four pilot hobs, (use

7/64 drill or #35 drill)

Attach the trim kit frame by using four 1" screws,

Make sure that the orientation is correct as

stated above,

Your trim kit is now fully installed° Replace

an}i loose items that have been removed from

inside microwave oven,

Please keep this installation instruction for future

reference,

WWA_W

" Screw[ i

' o

Pilot

hob

Trim Kit

Cutout

Opening

hob

Figure Detail of "A"

Bosch reserves the right to change specifications or design without notice, Some models are certified for use in

Canada, Bosch is not responsJble for products which are transported from the United States for use in Canada,

Check with your local Canadian distributor or dealer, Bosch, 5551 McFadden Avenue, Huntington Beach, CA 92649,

For the most up-to-date critical installation dimensions by fax, use your fax handset and phone 702/833-36OO,

Use code#8030,

BOSCH

BSH Home Appliances Corp.

Bosch Customer Support Call Center, 5551 McFadden Avenue, Huntington Beach_ CA 92649 ° (800) 828-9165

9000002507 Rev,A •_._u2003 BSH Home Appliances Corp,, Litho U,S,A, 12/03
