IP Matrix operation with KBD Digital

VJD‑8000 | VJD‑7513 | VJD‑7523

en Operation manual

IP Matrix operation with KBD Digital Table of contents | en 3

Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC

Table of contents

1Introduction 4

1.1 About the manual 4

1.2 Conventions in this manual 4

1.3 Additional documentation 4

2Requirements 5

3Restrictions 6

4Operation 7

4.1 Keyboard layout 7

4.2 Softkey description 8

4.2.1 Softkey mapping keypad section 8

4.2.2 Softkey mapping main menu 10

4.2.3 Softkey mapping extended functions 11

4.2.4 Softkey mapping playback menu 12

4.3 Keyboard operations 13

4.3.1 Connecting a camera to a monitor 13

4.3.2 Selecting a monitor 13

4.3.3 Controlling playback speed factor 13

4.3.4 Controlling PTZ cameras 14

4.3.5 Locking/unlocking the keyboard 14

5Troubleshooting 15

4en | Introduction IP Matrix operation with KBD Digital

2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.

1 Introduction

1.1 About the manual

This manual describes how to use the keyboard with the IPMatrix application.

1.2 Conventions in this manual

The symbols and notations that follow are used to draw attention to special situations:

Notice!

This symbol indicates special features and provides tips and information for easier, more

convenient use of the software.

Terms that you can find in the program, such as menu options, commands or text in the user

interface, are written in bold.

1.3 Additional documentation

Notice!

Read and follow the instructions in the hardware documentation

While setting up the hardware for IPMatrix, read and follow the instructions of the hardware

documentation. The documentation contains important safety messages. It is mandatory to

read and understand the safety messages prior to installation of the hardware.

More information

Find more information, software downloads, and documentation at:

www.boschsecurity.com and the respective product page.

IP Matrix operation with KBD Digital Requirements | en 5

Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC

2 Requirements

A prerequisite for using the keyboard is that the required hardware for an IPMatrix system is

available and configured appropriately.

Requirements for installed software

The Configuration Manager 7.60 program or later is required.

Requirements for operational purpose

Make sure the following requirements are fulfilled:

– 1 to 4ready-to-use Bosch VIDEOJET decoder with firmware 10.30 or later connected to a

surveillance network (fully installed and ready for operation)

– 1 to 4KBD-UXF or KBD-Digital keyboards (fully installed and ready for operation)

– 1 to 8 (16) displays with appropriate interface connections or adapters

Note: Up to 2 displays per decoder can be connected to VJD-8000 and VJD-7513, and up

to four displays to VJD-7523.

– Fixed or moving cameras connected to the surveillance network

– A PC with Bosch Configuration Manager program installed and connected to the

surveillance network (only for configuration purposes)

Notice!

Prior to operation, the IPMatrix application must be configured using the Configuration

Manager program.

IPMatrix configuration

The IPMatrix application can be configured using the Configuration Manager 7.60 program or

later.

For detailed configuration steps, refer to the IPMatrix configuration manual available on the

online product catalog.

6en | Restrictions IP Matrix operation with KBD Digital

2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.

3 Restrictions

Observe the following restrictions when using a IPMatrix system:

– The decoder dynamically adapts its performance to high loads by skipping frames, which

can cause juddering in the video stream.

– Playback is only possible from local recordings, not from recordings managed by VRM.

– A long i-frame distance leads to less exact navigation in playback mode and lower

performance in playback backwards mode.

IP Matrix operation with KBD Digital Operation | en 7

Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC

4 Operation

After configuring the IPMatrix application using a PC with the Configuration Manager

program, the IPMatrix application operates as a stand-alone CCTV surveillance system. All

operations are carried out using the attached keyboard.

4.1 Keyboard layout

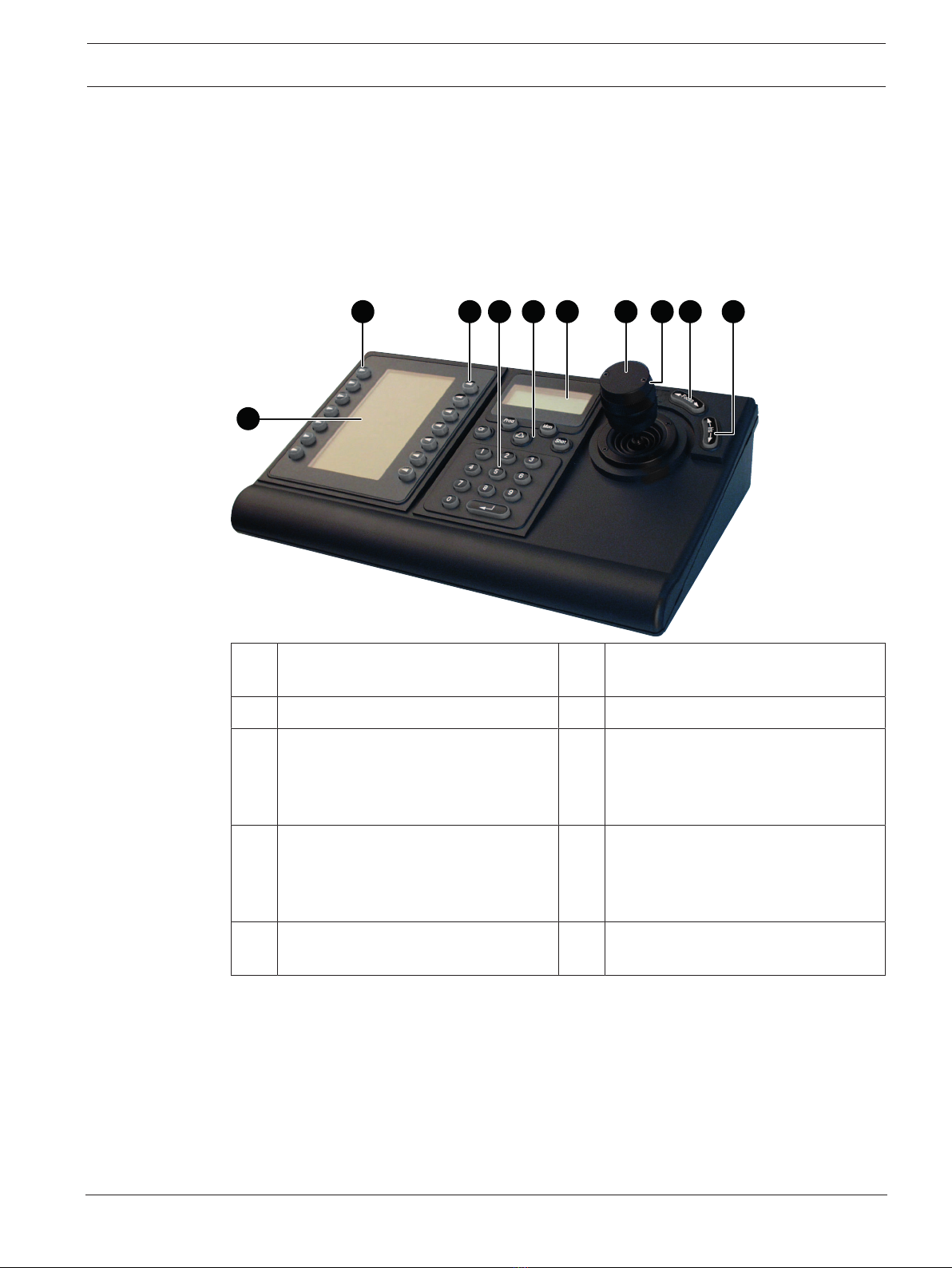

The following graphic illustrates the different groups of keys on the keyboard.

2 2 3 4 5 6 87 9

1Softkey display with soft key

description (mode dependent)

2Softkeys

3Keypad section: numeric keys 4Keypad section: function keys

5Keypad section: status display 6Joystick

Use to pan or tilt a PTZ device.

Use to move the field of view in a

digitally zoomed viewing pane

7Rotatable knob

Use to control the zoom function of a

device or the built-in digital zoom

factor.

8Focus

Press to adjust the Focus respectively.

9Iris

Press to adjust the Iris respectively.

8en | Operation IP Matrix operation with KBD Digital

2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.

4.2 Softkey description

4.2.1 Softkey mapping keypad section

Function keys

Prod - Selects the keyboard operation mode

4Press the key to select the operation mode of the keyboard.

Mon - Connects a specific camera to a monitor

4Press the key to connect a specific camera to a specific monitor.

Clr - Clear - cancels a function

4Press the key to cancel a function.

Alarm

Not used

Shot

To save a preposition:

1. Move the camera view to the intended position and press the key quickly three times to

save a preposition.

2. When the display indicates the saving mode, enter the preposition number using the

number keys.

3. Click enter.

To call a preposition:

1. Press the key once to call a saved preposition on a PTZ camera.

IP Matrix operation with KBD Digital Operation | en 9

Bosch Security Systems B.V. Operation manual 2023-03 | V02 | DOC

2. Enter the preposition number using the number keys.

3. Click enter.

1 …. 0 Number keys

4Use to select favorite views, sequences, prepositions, or single devices.

10 en | Operation IP Matrix operation with KBD Digital

2023-03 | V02 | DOC Operation manual Bosch Security Systems B.V.

4.2.2 Softkey mapping main menu

Main menu without playback permission Main menu with playback permission

Logout - Locks/unlocks the keyboard

4Press the key to lock or unlock the keyboard.

Extended Functions - Displays the extended functions menu

4Press the key to display the extended functions menu.

Playback Menu - Displays the playback functions

4Press the key to display the playback functions.

Note: Only available with playback permission

Previous Layout - Switches to previous layout with less monitors

4Press the key to decrease

the number of monitors on the current display.

Note: This key provides a round-trip function. The last layout starts again, if the first layout is

reached.

Next Layout - Switches to next layout with less monitors

4Press the key to increase the number of monitors on the current display.

Note: This key provides a round-trip function. The first layout starts again, if the last layout is

reached.

Previous Monitor - Selects the previous monitor

4Press the key to select the previous monitor.
