The BLA1-CC-N camera module provides an NTSC video sig-

nal of 512 (H) x 492 (V) effective pixels with electronic shutter

speeds from 1/60 second to 1/100000 second.

The BLA1-CC-P camera module provides a PAL video signal of

512 (H) x 582 (V) effective pixels with electronic shutter speeds

from 1/50 second to 1/100000 second.

Der Standardsockel wird aufgesetzt und rationell mit Schnappverbindungen be

BLA1-CC-N Color Camera Module

(NTSC format)

Order Number BLA1-CC-N

BLA1-CC-P Color Camera Module

(PAL format)

Order Number BLA1-CC-P

1 |Intrusion BLA1-CC Color Camera Modules

Security you can rely on.

Family 1.1.1

123 456789

Blue Line A1-CC

Color Camera Modules

The BLA1-CC color camera modules

attach to the Blue Line detectors.

These camera modules, available in

either NTSC or PAL formats, are small,

easy-to-mount, and attractive. The

camera can be set to run continuously

or to run for either 15 seconds or 90

seconds when triggered by the

detector alarm.

Series Features

• Color charge-coupled device (CCD) camera with 3.4 lx

light sensitivity

• NTSC or PAL video format

• 330 lines of horizontal resolution

• The camera may be left on or controlled by the detector

alarm

• Selectable (Form A or Form B) alarm relay outputs

• Includes video cable with BNC (Bayonet Neill-Concel-

man) connector

Series Listings, Certifications, and Approvals

Country Certification/Listing Number

Canada IC (R SS-210)

Europe 

US ANSR: Intrusion Detection Devices

(UL639)

FCC (Part 15)

2 | BLA1-CC Color Camera Modules

Series Application Information

Camera View

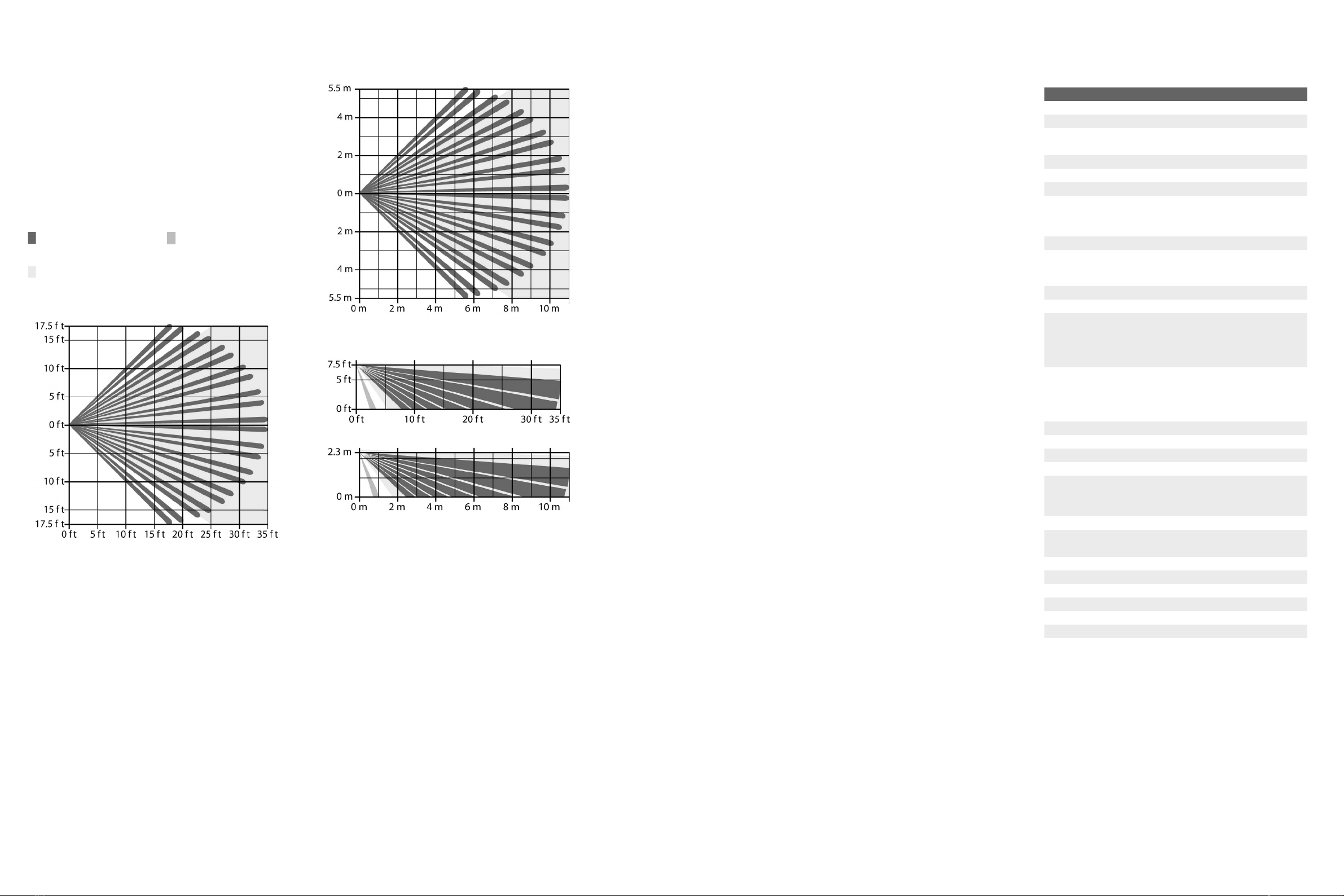

The camera's viewable area is shown below:

Note: The camera's field of view varies depending on the

size of the detector on which it is mounted and the

height at which it is installed. The passive-infrared

(PIR) coverage patterns and look-down zone

shown are for reference only.

Top View

Field-of-view legend

PIR coverage pattern look-down zone

camera's field of view

Side View

Power Considerations

Power Limits

Input power must be provided by an Approved Limited Power

Source. All outputs must be connected to SELV (Safety Extra-

Low Voltage) circuits only.

Standby Power

This detector has no internal standby battery. For UL Listed

product installations, 4 hr (20 mAh with camera off, 400 mAh

with camera on) of standby power must be supplied by the con-

trol unit or by a UL Listed burglary power supply.

BLA1-CC Color Camera Modules | 3

Video Connection

A video cable with a BNC connector at one end is supplied.

Connect this cable to up to 500 ft (152 m) of 75 ΩRG59/U or

similar coaxial cable.

Series Technical Specifications

BLA1-CC Series Specifications

Enclosure Design

Color: white

Dimensions (HxWxD): 2.2 in. x 2.4 in. x 1.9 in.

(5.6 cm x 6.1 cm x 4.8 cm)

Material: High-impact ABS plastic

Environmental Considerations

Relative Humidity: 0 to 95%, noncondensing

Operating Temperature: +14°F to +120°F (-10°C to +49°C)

For UL Listed product installations,

+32°F to +120°F (0°C to +49°C)

Input

Alarm: 5 V normally from sensor digital alarm

output, ground for 4 seconds during

alarm.

Outputs

Relay Timer: Selectable latch time of 15 s or 90 s.

Timed Relay: Solid state, selectable supervised Form

A normally-closed (NC) or unsuper-

vised Form B normally-open (NO) con-

tacts rated for 125 mA at 28 VDC, 3 W.

Tamper: Normally-closed (NC) contacts (with

cover on) rated at 28 VDC, 125 mA

maximum. Connect to detector tamper

circuit.

Power Requirements

Current (Alarm): 100 mA when camera is on.

Current (Standby): 5 mA maximum at 12 VDC

Voltage (Operating): 10 VDC to 14 VDC

Radio Frequency

Interference (RFI)

Immunity:

No alarm or setup on critical frequen-

cies in the range from 26 MHz to

2000 MHz at 30 v/m.

Video

CCD: 1/3-inch (8.5 mm) color with an elec-

tronic shutter

Lens: 3.6 mm fixed focal length lens

Resolution (horizontal): 330 lines minimum at center of picture

Scanning System: 2:1 interlaced

Sensitivity: <3.4 lx

Signal: 75 Ω(NTSC or PAL)

Signal to Noise Ratio: 45 dB minimum
