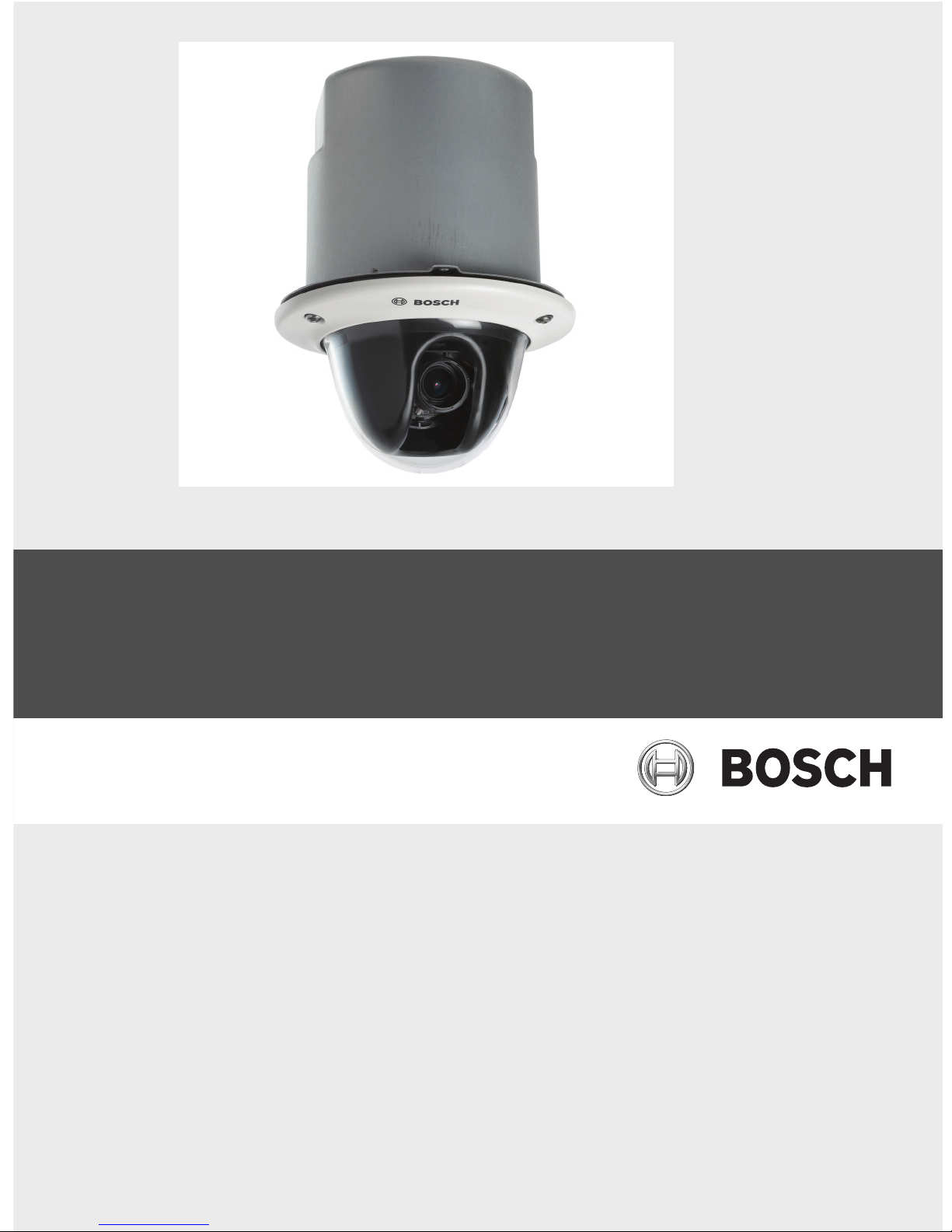

FLEXIDOME In-ceiling Housing for Plenums

VDA-PLEN-DOME

en Installation Manual

FLEXIDOME In-ceiling Housing for Plenums Installing a FLEXIDOME In-ceiling Housing for Plenums | en 3

Bosch Security Systems, Inc. Installation Manual F.01U.276.976 | 1.4 | 2012.12

1 Installing a FLEXIDOME In-ceiling Housing for Plenums

The graphic below illustrates the complete installation of a FLEXIDOME In-ceiling Housing for

Plenums. The table below the graphic identifies each main part and the quantity needed of

each part for installation.

Figure 1.1 FLEXIDOME In-ceiling Housing for Plenums installation

* Parts 1 - 3 come with the FLEXIDOME camera (sold separately). Parts 4 - 7 are included in

the VDA-PLEN-DOME kit. Part 8 is the VGA-IC-SP In-ceiling Support kit (sold separately).

Number Description Quantity Supplied

1 Clear bubble FLEXIDOME DN *

2 Bubble insert vandal FLEXIDOME DN *

3 FLEXIDOME camera *

4 FLEXIDOME In-ceiling Housing for Plenums,

formed 7490

1

5 Toggle bolt: #6-32x3" 2

6 Screw: #10-24x3/8, thread form 3

7 Cover, FLEXIDOME ceiling plate 1

8 G4 Ceiling mounting kit *

9 -- Ceiling --

1

2

3

45(2X)

9

8

7

6(3X)

4en | Installing a FLEXIDOME In-ceiling Housing for Plenums FLEXIDOME In-ceiling Housing for Plenums

F.01U.276.976 | 1.4 | 2012.12 Installation Manual Bosch Security Systems, Inc.

Installation Instructions

1. Cut a hole in the ceiling per the dimensions in the figure below. If you are installing the

camera in a hard ceiling, create three (3) recesses, 6.2 mm (1/4 in.) diameter x 6.2 mm

(1/4 in.) deep, in the ceiling at the camera mounting screw locations as shown on the

Flush Mount Template (included in the shipping box).

Figure 1.2 Ceiling hole cutout, oriented as the camera is when installed

2. Create hole(s) in the In-ceiling Housing for Plenums for 1/2-inch conduit fitting(s) in the

appropriate location.

3. Install two (2) #6 Toggle Bolt assemblies through the holes in the raised portions of the

mounting flange.

4. Install conduit fitting(s).

5. Connect external wiring, if appropriate.

6. Insert the In-ceiling Housing for Plenums assembly through the hole in the ceiling.

7. Tighten the toggle bolts.

8. Start two (2) of the #10 x 3/8-inch screws in the corresponding holes in the flange of the

In-ceiling Housing for Plenums.

9. Remove the screw holding the Earth Ground wire (yellow/green) and the wire clamp.

Figure 1.3 Earth Ground wire and wire clamp

Number Description

1 Earth Ground wire (yellow and green)

2Wireclamp

3Screw

R64.0

152.0

16.6

(5.98 in.)

mm

mm

mm

(2.52 in.)

(0.65 in.)

FLEXIDOME In-ceiling Housing for Plenums Installing a FLEXIDOME In-ceiling Housing for Plenums | en 5

Bosch Security Systems, Inc. Installation Manual F.01U.276.976 | 1.4 | 2012.12

10. Discard the wire clamp.

11. Re-install the Earth Ground, with the terminal oriented close to the housing body, with

the screw.

12. Tighten the screw securely.

13. Finish wiring the camera as appropriate.

14. Pull the wire bundle and rubber strain relief tightly to and slightly up over the housing.

15. Feed this up into the In-ceiling Housing for Plenums, with the keyhole mounting slots

over the two (2) pre-installed #10 screws.

16. Rotate the housing in the In-ceiling Housing for Plenums until the third slot allows

insertion of the third #10 screw.

17. Tighten all three (3) #10 screws.

18. Complete the installation following the instructions in the Installation Manual (included

on the CD in the shipping box).

6en | Installing a FLEXIDOME In-ceiling Housing for Plenums FLEXIDOME In-ceiling Housing for Plenums

F.01U.276.976 | 1.4 | 2012.12 Installation Manual Bosch Security Systems, Inc.

Bosch Security Systems, Inc.

850 Greenfield Road

Lancaster, PA17601

USA

www.boschsecurity.com

© Bosch Security Systems, Inc., 2012
