Bosch VEZ-A4-IC Manual de usuario

Mini PTZ Dome Accessories

VEZ-400 In-Ceiling Mount

en Installation Manual

Mini PTZ Dome Accessories Table of Contents | en 3

Bosch Security Systems, Inc. Installation Manual F.01U.261.808 | 1.0 | 2011.10

Table of Contents

1Safety 4

1.1 Safety precautions 4

2 Unpacking 5

2.1 Parts List 5

2.2 Additional Tools/Supplies Required 5

3 Installation Overview 6

4 Installing a Recessed Mount 7

4.1 Overview 7

4.2 Installing the Recessed Mount 7

4.3 Installing the Camera to the Recess Mount 11

5 Connection 14

4en | Safety Mini PTZ Dome Accessories

F.01U.261.808 | 1.0 | 2011.10 Installation Manual Bosch Security Systems, Inc.

1Safety

Before installing any of the accessories, please read this manual

carefully.

1.1 Safety precautions

WARNING!

Medium risk: Indicates a potentially hazardous situation.

If not avoided, this could result in minor or moderate bodily

injury.

CAUTION!

Low risk: Indicates a potentially hazardous situation.

If not avoided, this could result in property damage or risk of

damage to the unit.

NOTICE!

This symbol indicates information or a company policy that

relates directly or indirectly to the safety of personnel or

protection of property.

Mini PTZ Dome Accessories Unpacking | en 5

Bosch Security Systems, Inc. Installation Manual F.01U.261.808 | 1.0 | 2011.10

2 Unpacking

This equipment should be unpacked and handled with care. If

an item appears to have been damaged in shipment, notify the

shipper immediately.

Verify that all the parts listed in the applicable Parts List below

are included. If any items are missing, notify your Bosch

Security Systems Sales or Customer Service Representative.

The original packing carton is the safest container in which to

transport the unit and must be used if returning the unit for

service. Save it for possible future use.

2.1 Parts List

The following table lists the parts included in the In-ceiling

(recessed) mount (VEZ-A4-IC):

2.2 Additional Tools/Supplies Required

– No. 2 Phillips screwdriver

– Appropriate tool for cutting a hole in drywall or ceiling tile

(if applicable)

– 4 in. x 4 in. junction box (optional)

– LTC 9349MK mounting kit (optional) [for recessed

mounts]

– VEZ-400 Mini PTZ Dome (includes screws to mount the

camera)

– Wire Puller tool

– Suitable mounting screws/plugs to attach the wall/pipe

mount to the mounting surface

Quantity Part

1 In-ceiling mount: VEZ-A4-IC

1 White trim ring with 2 (two) M3 captive screws

1 Black trim ring with 2 (two) M3 captive screws

1 Security Torx wrench

1 Installation manual (this booklet)

6en | Installation Overview Mini PTZ Dome Accessories

F.01U.261.808 | 1.0 | 2011.10 Installation Manual Bosch Security Systems, Inc.

3 Installation Overview

The VEZ-400 Mini PTZ Dome camera comes with the hardware

and installation instructions necessary to mount the camera to

a concrete ceiling.

This following mounting accessories are available (and are

supplied with separate mounting instructions):

– Wall mount, used in applications where the camera is

mounted to a vertical wall.

– Pipe mount, used in applications where the camera is

mounted to a horizontal (high) ceiling.

– In-ceiling mount, used in applications where the camera is

mounted into a recessed ceiling.

The installation should be made by qualified installation

personnel and conform to the National Electrical Code and

applicable local codes.

Mini PTZ Dome Accessories Installing a Recessed Mount | en 7

Bosch Security Systems, Inc. Installation Manual F.01U.261.808 | 1.0 | 2011.10

4 Installing a Recessed Mount

4.1 Overview

This chapter details how to install a recessed mount for the

VEZ-400 Mini PTZ Dome.

4.2 Installing the Recessed Mount

To mount to a recess mount, do the following:

1. Determine a secure location for the recessed mount

(supplied separately).

Figure 4.1 Recess Mount Dimensions

NOTICE!

The image sensors in modern cameras are highly sensitive and

require special care for proper performance and extended

lifetime. Follow the guidelines for optimum results with your

camera:

– Do not expose to direct sunlight or bright spotlights in

operating and nonoperating conditions.

– Avoid bright lights in the field of view of the camera. Bright

lights cause a “smearing” effect, which is visible as white

lines above and below the highlight. Prolonged exposure to

bright lights may cause bleaching of the sensor's color

filters. This will be visible as colored spots in the picture

and is irreversible.

8en | Installing a Recessed Mount Mini PTZ Dome Accessories

F.01U.261.808 | 1.0 | 2011.10 Installation Manual Bosch Security Systems, Inc.

2. Drill or cut a 7 in. hole with a tolerance of +/- 1/8 in.

(177.8 mm +/- 2.2 mm).

3. Optional: if installing the camera to a suspended ceiling

tile or any other surface where additional support is

required, the LTC 9349MK mounting kit (sold separately)

is recommended. See the instruction book supplied with

the mounting bracket for installation instructions.

Figure 4.2 Mounting bracket

4. Align holes of mounting plate (supplied with dome) with

mounting bracket and attach with screws. Ensure that

both the crescent shape of the mounting plate and the

crescent shape of the mounting bracket are aligned.

5. Ensure that the clamping plates are angled inward by

pushing up and into the two slots.

6. Insert mount through the hole and into the ceiling. Slide

clamps out and down so that the drywall is clamped in

between the clamps and the bracket flange, 41.7 mm

(1.64 in.) maximum ceiling thickness and 12.7 mm

(0.50 in.) minimum ceiling thickness).

Mini PTZ Dome Accessories Installing a Recessed Mount | en 9

Bosch Security Systems, Inc. Installation Manual F.01U.261.808 | 1.0 | 2011.10

Figure 4.3 Attach Recess Mount to Ceiling

Figure 4.4 Attach Recess Mount to Ceiling

7. Tighten both clamps to the ceiling using supplied screws

and a #2 Phillips screwdriver.

10 en | Installing a Recessed Mount Mini PTZ Dome Accessories

F.01U.261.808 | 1.0 | 2011.10 Installation Manual Bosch Security Systems, Inc.

Figure 4.5 Tighten Mounting Clamps

NOTICE!

Over torquing the ceiling clamps can damage the clamp or

ceiling. Only tighten the clamp until it contacts the ceiling and

you start to feel some resistance. If using a power screwdriver,

set the torque level to the lowest setting.

Mini PTZ Dome Accessories Installing a Recessed Mount | en 11

Bosch Security Systems, Inc. Installation Manual F.01U.261.808 | 1.0 | 2011.10

4.3 Installing the Camera to the Recess Mount

To install the camera to the recess mount, follow these steps:

1. Route wires on the side of mounting plate with the

crescent shaped cut-out.

2. Connect the cables according to the instructions in the

VEZ-400 Installation Manual.

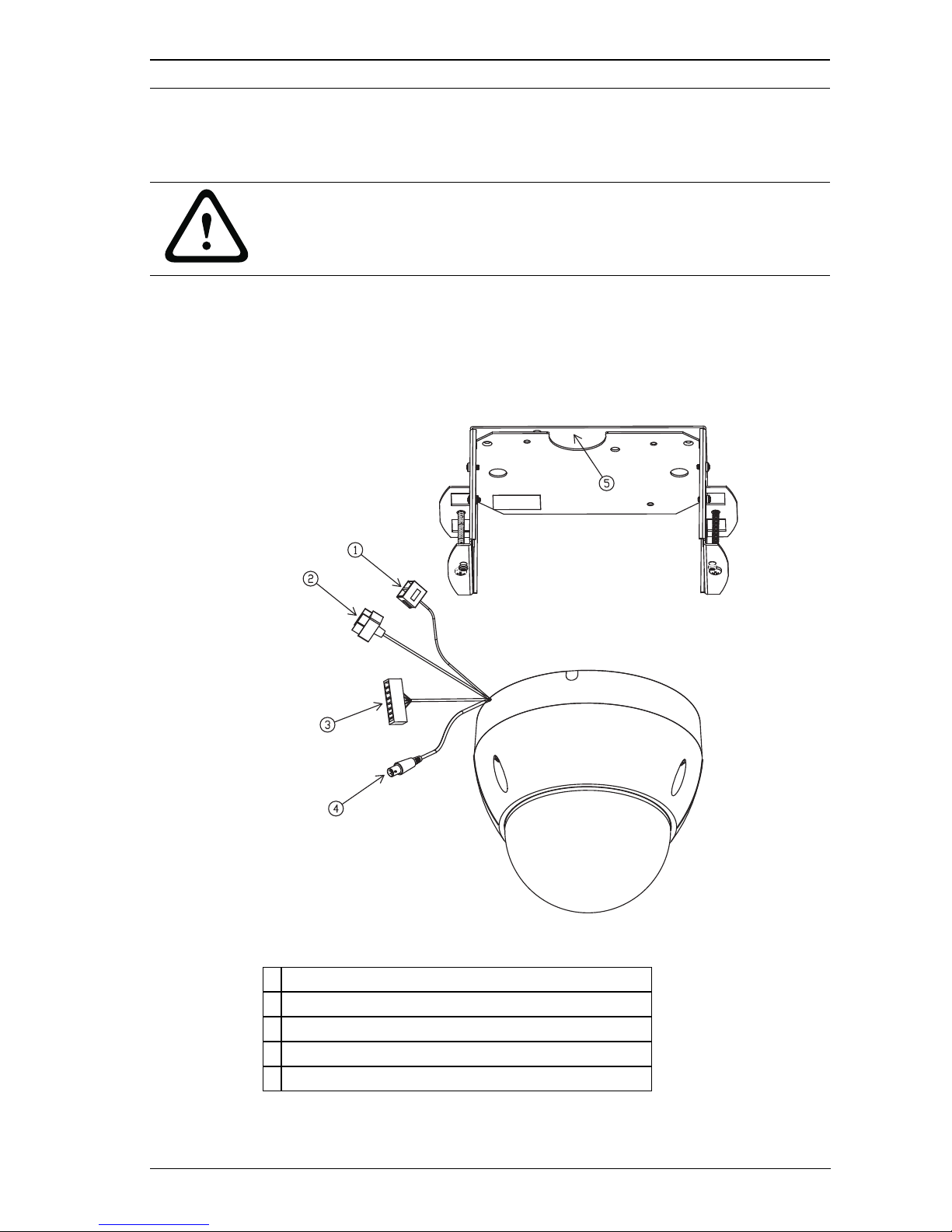

Figure 4.6 Match Connectors

3. Attach the camera to the recess mount by removing the

bubble from the camera (use the wrench supplied with the

CAUTION!

All wires for installation applications must be routed through a

grounded conduit.

1 24 VAC power (black with 2p connector)

2 RS-485 (white/blue with 2p connector)

3 I/O (multi color with 8p connector)

4 Video (black with yellow connector)

5Cutoutforcable
