1About these operating instructions

This document presents the SCD operating instructions, detailed SCD sensor characteristics as well

as communication and management features through Bluetooth.

This document refers to SCD firmware version 1.3.0.

Detailed instructions on how to proceed are available at: https://www.bosch-

connectivity.com/products/sense-connect-detect

Ensure that the SCD is working correctly by reading these instructions carefully before using the SCD

in your planned application.

1.1 Compliant use

The SCD is intended for the following application areas:

Environments

Residential, commercial, light-industrial, and industrial

During use, observe the following operating conditions:

Operating temperature range

-20 °C … +85 °C

Recommended storage temperature

+10 °C … +30 °C

Humidity range

0% RH … 100% RH

Validation and testing of any use or operation which requires specific requirements and standards not

explicitly mentioned in these documents is the customer s responsibility.

See also chapter 10.10 Restrictions of use.

1.2 Definition of special notices

Warning

Indicates a hazard that could lead to minor or moderate injuries.

Always follow these instructions.

Note

Points of emphasis and reminders of device-specific operational features that could affect

performance.

Always follow these instructions.

1.3 Definition of general notices

2Safety and environment

Warning: Do not open the housing without authorization! Opening the housing without

authorization will void any warranty and involves risk of injury to the user. Using the SCD

according to its intended use and functions does not require the opening of the housing.

INFO: General information and instructions that must be followed

Tip: Practical advice

Introduction

| Radio frequency radiation exposure and further information 6 |

Data subject not change without notice | Printed in Germany | October 19 | Version 1.0

BCDS/GM

2.1 Radio frequency radiation exposure and further information

The radiated output power of the device is far below the FCC radio frequency exposure limits.

Nevertheless, the device must be used in such a manner that the potential for human contact during

normal operation is minimized (see device specification, chapter 4.3).

2.2 Disposal

Disposing of this product correctly will help save valuable resources and prevent any potential

negative effects to human health and the environment, which could otherwise arise from inappropriate

waste handling. Please contact the responsible local authority for further details on your nearest

designated collection point. Penalties may apply for incorrect disposal of this waste, in accordance

with your national legislation. For further information, please refer to chapter 10.9.

3Introduction

The SCD is a multi-sensor device that measures acceleration, magnetic fields, temperature and light.

The robust housing and small design make it perfectly suited for industrial retrofit applications, such

as condition monitoring and predictive maintenance.

Configuring the device enables the user to address a broad variety of use cases.

3.1 Scope of delivery

•SCD device & built-in battery

•Quick Start Guide

•Packaging unit consists of 10 devices

Note

No additional labels or stickers may be attached to the SCD. Otherwise, the proper function of the light

sensor cannot be guaranteed.

On button

Green/Red LED

Screw holes

Technical

specification | Housing 7 |

Data subject not change without notice | Printed in Germany | October 19 | Version 1.0

BCDS/GM

4Technical specification

4.1 Housing

The SCD is built from a robust housing suited for industrial use with a self-adhesive back.

The compact design of the SCD fits perfectly in different industrial applications and enables easy, user-friendly

mounting in difficult-to-access environments.

For mounting instructions, please refer to chapter 5.1.Mounting the SCD.

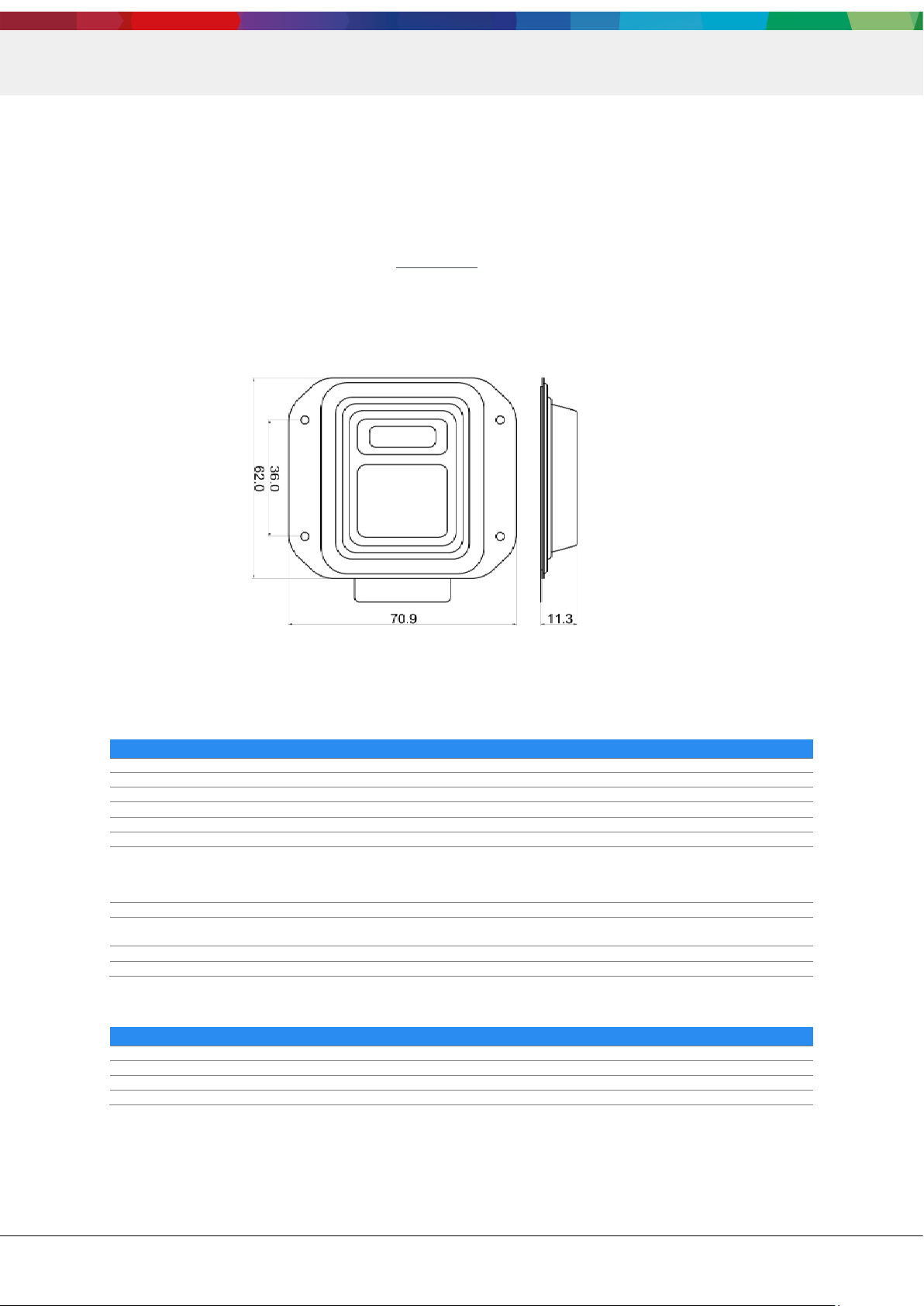

4.2 Dimensions

4.3 Device specification

4.4 Operating conditions

ATTRIBUTE

VALUE

Dimension

Length 70.9 mm x Width 62 mm x Height 11.3 mm

Weight

21 g

Power supply

non-rechargeable CR2450 3V Li/MnO2, 490 mAh

Battery Life

up to 2 years depending on configuration and use

Enclosure protection class

IP 67

Electrical protection class

III

Sampling rates (Hz)

Acceleration : 400, 800, 1600, 3200, 6400

Magnetometer : 10

Temperature: 0.05

Light: 1.25, 10

Memory capacity

1 MB

BLE (Bluetooth Low Energy) Activation

In Standby: On push button

During operation: Automatic activation every 3 hours

Country certifications

CE, FCC

Environmental certifications

RoHS, REACH

ATTRIBUTE

RANGE

Environments

Residential, commercial, light-industrial, and industrial

Operating temperature range

-20 °C … +85 °C

Recommended storage temperature

+10 °C … +30 °C

Humidity range

0% rH … 100% rH

Technical

specification | Measurement range and accuracies 8 |

Data subject not change without notice | Printed in Germany | October 19 | Version 1.0

BCDS/GM

4.5 Measurement range and accuracies

Note

Specified accuracies refer to the inbuilt sensors. The accuracy and responsiveness of the SCD110

might deviate from sensor specifications, depending on installation conditions and environmental

influences.

4.6 Resolution

4.7 Sensors

4.8 Communication

4.9 User interface

4.10 Communication interfaces

The SCD includes one Bluetooth Low Energy (BLE) communication interface.

BLE

•Bluetooth Low Energy V4.2 is currently supported. The SCD always acts as a peripheral device to which

other BLE devices like smartphones, tablets, etc. can establish a connection.

•The Bluetooth communication interface is used, e.g. by a gateway or a mobile app, to:

Configure the SCD.

Transfer data.

SENSOR

MEASUREMENT RANGE

ACCURACY

Acceleration

± 200 g

± 10%

Magnetometer

± 1300 µT (X, Y-Axis); ± 2500 µT (Z-

Axis)

± 5%

Temperature

-20 °C … + 85 °C

± 0.25 °C

Light

0 … 188000 Lux

± 15%

ENSOR

ESOLUTION

NIT

Acceleration

0.1

Magnetometer

µT

Temperature

0.1

°C

Light

lux

INERTIAL SENSORS

ENVIRONMENTAL SENSORS

Accelerometer (3-axis)

Temperature

Magnetometer (3-axis)

Light

ATTRIBUTE

VALUE

Communication

Bluetooth Low Energy

BLE 4.2

Range

up to 40 m (dependent on external influences)

ATTRIBUTE

VALUE

SCD Sensor App

Free smartphone application for configuration, read-out and

visualization

First

steps | Mounting the SCD 9 |

Data subject not change without notice | Printed in Germany | October 19 | Version 1.0

BCDS/GM

5First steps

5.1 Mounting the SCD

The SCD housing has a self-adhesive back for mounting.

The surface must be

•flat

•dry

•clean

in order to mount the SCD.

Mounting the SCD:

Peel off the protective film.

Stick SCD to the surface.

5.2 Connecting to the SCD

Download the SCD Sensor App. The SCD Sensor App is available for free in the Apple App Store

or Google Play Store.

Apple App Store

Google Play Store

Activate Bluetooth on your smartphone.

To activate the SCD, press the button on the device for 1 to 3 seconds.

Start the SCD Sensor App.

TIP: The SCD can also be attached to the respective device with screws using the premade holes

First

steps | Connecting to the SCD 10 |

Data subject not change without notice | Printed in Germany | October 19 | Version 1.0

BCDS/GM

After you start the app, the help screens offer you a short overview of the most important functions.

When starting the app, the search button is shown. Click on the search button to find devices.

TIP:In order to select the right SCD when multiple are available, move your smartphone/tablet close to the

desired SCD.

Otros manuales para SCD 110

Tabla de contenidos

Otros manuales de Accesorios de Bosch

Bosch

Bosch ISW-EN1247 Manual de usuario

Bosch

Bosch CleverMixx MSM1 IN Series Manual de usuario

Bosch

Bosch ISC-CDL1-WA15G Manual de usuario

Bosch

Bosch PFB2030 Manual de usuario

Bosch

Bosch Rexroth TS 1 5.4 Manual de usuario

Bosch

Bosch SIDEEXHAUST Manual de usuario

Bosch

Bosch SCD 110 Manual de usuario

Bosch

Bosch RADION Manual de usuario

Bosch

Bosch GHJ12V-1 Instrucciones de montaje

Bosch

Bosch Rexroth BS 1/M Manual de usuario

Bosch

Bosch GHJ 12+18V Unisex Manual de usuario

Bosch

Bosch Rexroth VarioFlow S Manual de usuario

Bosch

Bosch BME280 Manual de usuario

Bosch

Bosch LTC 9083/01 Manual de usuario

Bosch

Bosch Rexroth CIMS Mk IV Manual de usuario

Bosch

Bosch Rexroth TS 1 5.3 Manual de usuario

Bosch

Bosch DS924iPET Manual de usuario

Bosch

Bosch SCD 110 Manual de usuario

Bosch

Bosch Rexroth VarioFlow plus Manual de usuario

Bosch

Bosch SCD 110 Manual de usuario

Bosch

Bosch Deepfield Connect Premium Manual de usuario

Bosch

Bosch GPL 5 Professional Manual de usuario

Bosch

Bosch Rexroth HEDE 10-3 Series Manual de usuario

Bosch

Bosch PRS-1AIP1 Guía

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
