Bogen Nyquist NQ-S1810CT-G2 Hoja de instrucciones

Nyquist Gen 2 VoIP Speakers

Configuration Manual

NQ-S1810CT-G2, NQ-S1810WT-G2

2019 Bogen Communications, Inc.

740-00121A

190909

Contents

Configuring Nyquist Gen2 VoIP Speakers ................................................................. 1

1 Using the Dashboard...............................................................................3

2 Updating Firmware...................................................................................5

3 Setting Network Tab Parameters........................................................6

4 Setting Configuration Tab Parameters .............................................9

5 Accessing Log Files................................................................................ 10

6 Setting DSP Parameters....................................................................... 13

Configuring Nyquist

Gen2 VoIP

Configuring Nyquist Gen2

VoIP Speakers

The Nyquist VoIP Ceiling Speaker Gen 2 (NQ-S1810CT-G2) and

Nyquist VoIP Wall Baffle Speaker Gen 2 (NQ-S18110WT-G2) are VoIP

talkback speakers designed to work with the Nyquist Series IP net-

work based intercom and paging solution.

The ceiling talkback speaker assembly consists of an 8" cone speaker

and VoIP module pre-assembled onto a 13" steel ceiling grille

painted with bright white enamel.

The VoIP wall baffle talkback speaker assembly consists of an 8" cone

speaker and VoIP module pre-assembled onto a bright white injec-

tion molded wall baffle speaker enclosure.

Both types of speakers have a Form-C relay for controlling third-party

devices, are 802.3af compliant, and are designed to facilitate rapid

and efficient deployment using existing network Power over Ethernet

(PoE) ports. These VoIP speakers enable the ease of placement wher-

ever needed within a facility.

A short press of the appliance’s Reset button reboots the device. If

you press the Reset button for 10 seconds, the appliance returns to

the factory default configuration settings. Returning to the default

configuration settings does not change the appliance’s firmware.

You can let the Nyquist server automatically discover and configure

the Nyquist VoIP speakers, or you can manually configure the speak-

ers through their web-based user interface (web UI). The following

sections describe the process for manual configuration. For informa-

tion about using Nyquist’s automatic configuration process, refer to

the appropriate Nyquist System Administrator Manual.

To access the appliance’s UI:

Step 1 Access the appliance’s web UI by doing one of the fol-

lowing:

a On your web browser, enter the IP address for the

appliance as the URL.

b From the Nyquist web UI navigation bar, select Sta-

tions, select Stations Status, navigate to the device

that you want to configure, and then select the Link

icon.

Step 2 At the Nyquist Appliance - Login page, enter username

and password, and then select Login.|

The default username is admin; the default password is

bogen.

The dashboard for the selected appliance appears.

Figure 1, Nyquist Appliance Login

Note: Do not use third-party Chrome browser extensions with the

Nyquist user interface.

1 Using the Dashboard

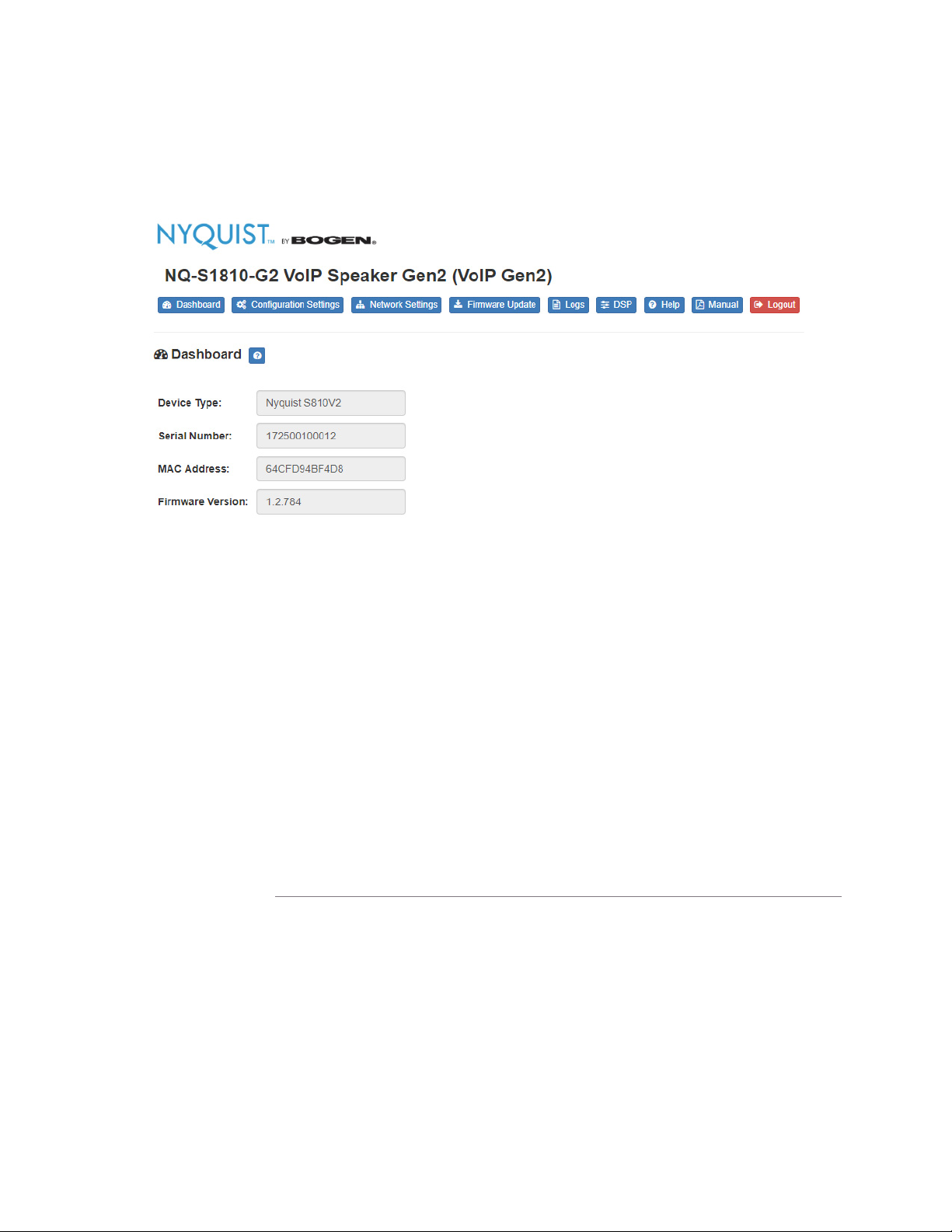

The dashboard displays the following read-only fields:

Figure 2,

Table 1, Appliance Dashboard Read-Only Fields

Device Type Identifies the physical device used by the

station.

Serial Number Identifies the serial number for the device.

MAC Address Specifies the Media Access Control (MAC)

address, which is a unique identifier

assigned to network interfaces for commu-

nications on the physical network segment.

Firmware Version Provides the firmware version installed on

the station.

The dashboard also contains the following buttons:

Table 2, Appliance Dashboard Buttons

Dashboard Refreshes the dashboard.

Configuration Set-

tings

Accesses the Configuration Settings page

where you can either manually set various

options, such as the SIP Username, or

select to receive configuration settings

from the server.

Network Settings Accesses the Network Settings page where

you can view and set network settings,

such as the static IP address.

Firmware Update Accesses the Firmware Update page where

you can view the current Nyquist version,

check for updates, restore factory settings,

and reboot the appliance.

Logs Accesses log files, which record either

events or messages that occur when soft-

ware runs and are used when trouble-

shooting the appliance.

DSP Accesses the DSP page where you can view

and set parameters for Digital Signal Pro-

cessing (DSP).

Help Accesses the appliance’s online help.

Manual Displays the Nyquist VoIP Speaker Configu-

ration Manual.

Logout Logs out of the appliance’s dashboard.

2Updating Firmware

When you select Firmware Update from the appliance’s web UI, the

Firmware Update page appears. From this page you can determine

which Nyquist version the appliance is using and if an update is

required. You can also use this page to restore factory settings and to

reboot the appliance.

To use the Firmware Update page:

Step 1 On the appliance web UI’s main page, select Firmware

Update to ensure you have the latest firmware version.

Step 2 Select Upload Firmware to upload firmware from the

server to the appliance.

If you select this option, a popup screen appears that

Note: A Nyquist appliance connected to the Nyquist network receives a config-

uration file from the Nyquist server that includes the latest firmware available

from the server. If the firmware is later than the one installed on the appliance, an

automatic firmware update occurs unless the Firmware parameter for the sta-

tion is left blank. Refer to the Nyquist System Administrator Manual for more

information.

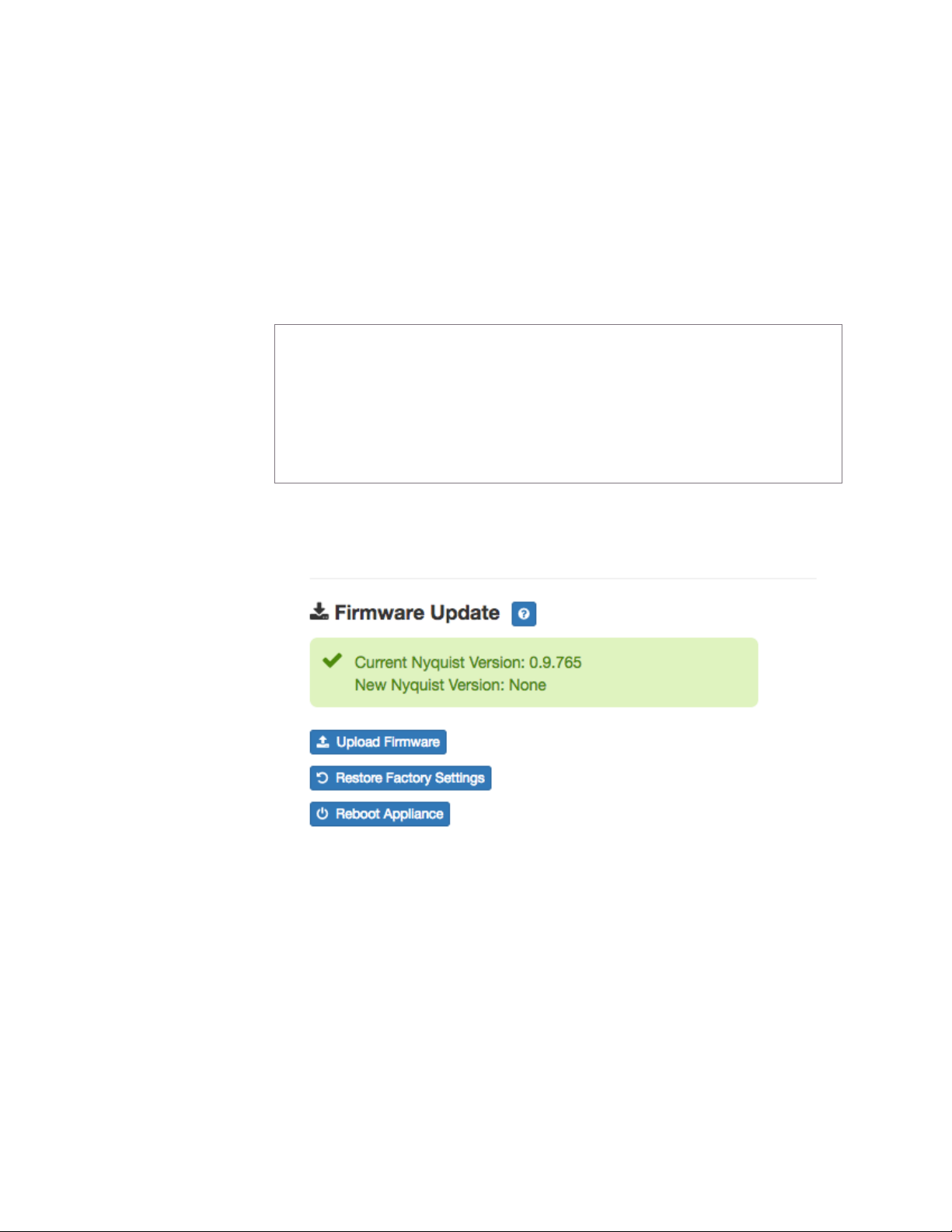

Figure 3, Firmware Update Page

allows you to select the file that you want to upload.

You can navigate to the file’s location. After you select

the file, select Upload. If Nyquist discovers a new firm-

ware version, the Firmware Update page displays an

Update Firmware button. Select this button if you

want to update the appliance’s firmware to the new

version.

Step 3 If you want to return your appliance to its original state

(undoing firmware updates), select Restore Factory

Settings.

Step 4 Select Reboot Appliance to restart your appliance.

3 Setting Network Tab Parameters

Network settings can be configured dynamically by the Nyquist

server or manually by using the appliance’s web UI.

To manually configure network settings:

Step 1 On the appliance web UI’s main page, select Network

Settings.

Step 2 Select your desired network settings.

Step 3 Select Save.
