Boge RATIO Manual de usuario

Operating
instructions
RATIO compressor
control for
screw compressors
Before installing or starting the
compressor for the first time, this
manual should be studied carefully to
obtain a clear knowledge of the unit
and of the duties to be performed while
operating and maintaining the unit.
RETAIN THIS MANUAL WITH UNIT.
This technical manual contains
IMPORTANT SAFETY DATA and should
be kept with the air compressor at all
times.

Index
BOGE – RATIO compressor control for screw compressors
Inhalt.pm6.5 - USA
Page I
Operating instructions
RATIO compressor control
for screw compressors
Issue: 09/2009
No. 596.0840.18
Nominal price: US $ 5.00
BOGE KOMPRESSOREN
Postfach 10 0713
D-33507 Bielefeld
Germany
Otto-Boge-Straße 1–7
D-33739 Bielefeld
Phone: ++49 / 52 06 / 6 01-0
Fax: ++49 / 52 06 / 6 01-200
Mail: info@boge.com
Net: www.boge.com

Page II BOGE – RATIO compressor control for screw compressors
Inhalt.pm6.5 - USA
Index

Index
BOGE – RATIO compressor control for screw compressors
Inhalt.pm6.5 - USA
Page III
Index
1.1 The BOGE control ........................................................................ 1.1
General .......................................................................................... 1.1
Microcontroller................................................................................ 1.1
1.2 The BOGE control concept ......................................................... 1.2
Operating and control panel ........................................................... 1.2
1.3 Operating elements ......................................................................1.3
1.4 Operation ...................................................................................... 1.6
Parameterization of frequency converter without running motor .. 1.11
1.5 Control Parameterization ........................................................... 1.12
Error key table .............................................................................. 1.12
General ........................................................................................ 1.13
Parameterization .......................................................................... 1.13
Enter Parameterization Code ....................................................... 1.13
Set the compressor servicing interval and restart ........................1.13
Set the motor servicing interval and restart .................................. 1.14
Set load cycles dependent servicing / inspection and restart ....... 1.14
Change target pressure values (Pmax and Pmin) ............................. 1.14
External output enable ................................................................. 1.15
Proportional control ...................................................................... 1.16
Timer ............................................................................................ 1.16
Switching
Local-Remote
via key switch ........................................ 1.16
Remote On-Off control ................................................................. 1.17
Enable network independent ON-OFF memory (Auto-Restart).... 1.18
Idling control for extremely short operating times
(Change after-running time) ......................................................... 1.18
Set continuous mode ................................................................... 1.19
Anti freeze operation (only in mode
ready for operation
) .............. 1.19
RS 485-Bus-Address ................................................................... 1.20
Parameter overview...................................................................... 1.20
1.6 Faults – General ......................................................................... 1.21
Automatic monitoring of the control systems ................................ 1.21
1.7 Fault messages of the control system ..................................... 1.22
Fault ............................................................................................. 1.22
Acknowledge messages ............................................................... 1.22
1.8 Warning messages of the control ............................................. 1.25
Part 1:
RATIO

Page IV BOGE – RATIO compressor control for screw compressors
Inhalt.pm6.5 - USA
Index

RATIO.pm6.5 - USA
Page 1.1
RATIO
BOGE – RATIO compressor control for screw compressors
These operating instructions contain a description of the RATIO con-
trol system.
BOGE compressors are equipped with a modern control.
RATIO, an integrated control and monitoring concept, with two objectives:
– Energy savings and thus reduction of ongoing costs.
– Prolonging the service life of the compressor due to minimum wear.
All programmed data is stored in a memory module (EEPROM).
Thus the stored information is even available following a power failure.
The BOGE-RATIO control adapts dynamically to the respective operating
conditions. A micro-controller assumes the following three tasks:
1. Automatic selection of the most economical operating mode
The micro-controller calculates the optimum operating mode from the
current operating state and a programmed ideal value, also taking into
account the constant compressor system data (e.g. delivery quantity,
receiver volume, motor switching cycles) as well as the current variables
(e.g. compressed air consumption, supply and non-supply times, pres-
sure increase and decrease speed).
In order to save operating costs, it always strives for the most economical
intermittent operation.
2. Automatic optimization of the motor switching cycles
The micro-controller calculates the optimum number of motor switching
cycles. This protects the drive motor and prolongs the service life of the
plant.
3. Automatic reminder of the maintenance intervals
The microcontroller monitors the maintenance intervals.
The BOGE control1.1
Microcontroller
General

RATIO.pm6.5 - USA
Page 1.2
RATIO
BOGE – RATIO compressor control for screw compressors
Operating and control panel
The BOGE control concept1.2

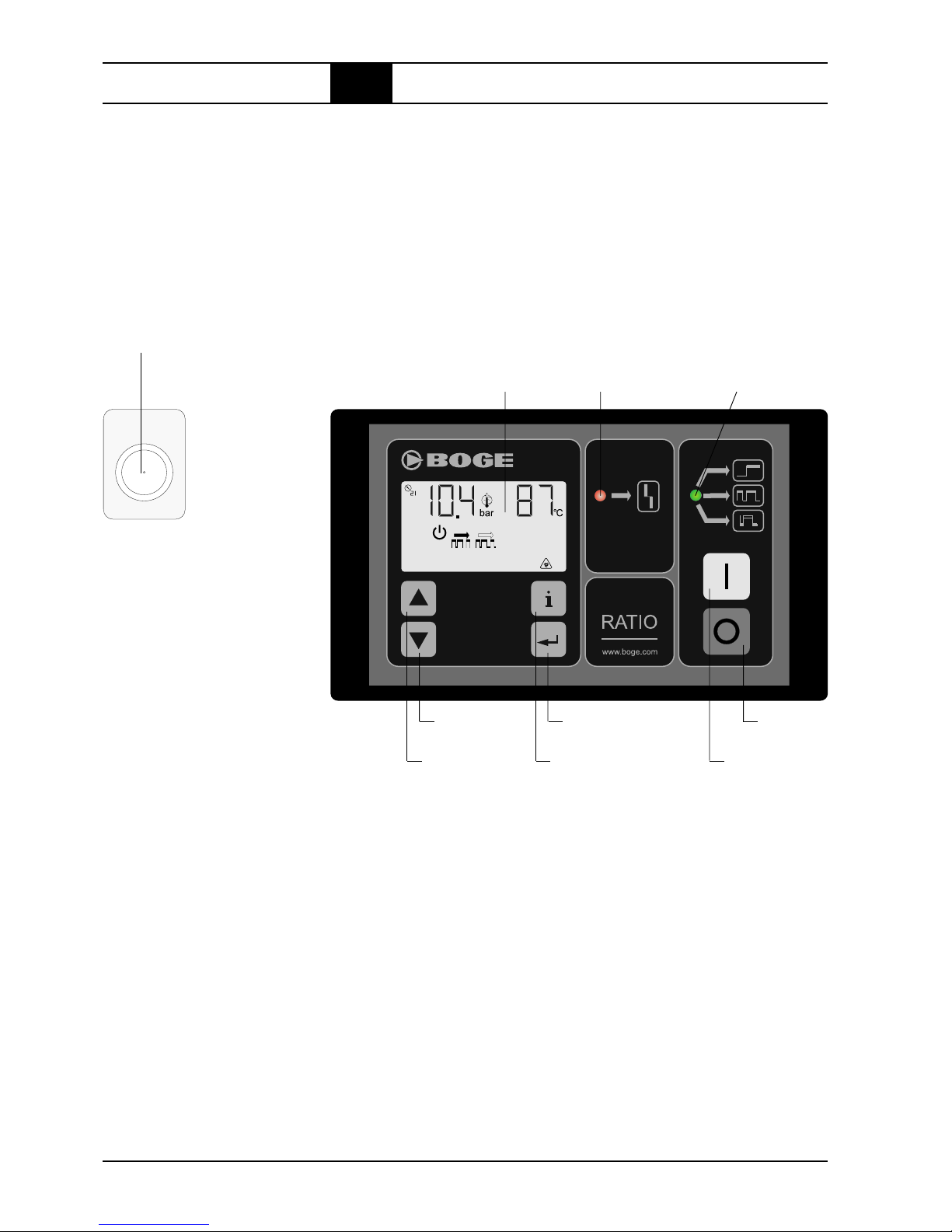

Fig. 1.1: RATIO operating panel
LC-
Display
Error:
red
Ready:
green
next
information Enter
ON
OFF
Indicator lamps
previous
information Main display
EMERGENCY OFF

RATIO.pm6.5 - USA
Page 1.3
RATIO
BOGE – RATIO compressor control for screw compressors
Operating elements1.3
Operating elements RATIO
Operating/control element Function
– Press the EMERGENCY OFF switch.
The switch engages and interrupts the control
voltage.
All displays are cut off from the power.
After rectifying the fault, unlock the EMERGENCY
OFF switch:
– Turn the EMERGENCY OFF switch a quarter
turn clockwise.
– Quit the display test by pressing OFF key .
– The compressor is ready to use.
Important!
Always switch the compressor off
with the OFF key. Only use EMER-
GENCY OFF in an emergency!
ON key – Press the ON key:
The operating status depends on the network
pressure:
1. Network pressure greater than lower cut-in
pressure. Compressor remains ready.
2. Network pressure lower than lower cut-in
pressure. Compressor starts.
To switch the
compressor on
OFF key If necessary, continues to run in idle until decrease
in system pressure.
To switch the
compressor off
EMERGENCY OFF switch To switch off the
compressor
in an emergency
Operation/Explanation
[Up] key The key has two functions:
1. It shows the previous information, one step
backward.
2. It normally increases the parameter value.
Display selection
in LC-Display
[Down] key The key has two functions:
1. It shows the next information one step for-
wards.
2. It normally reduces the parameter value.
Display selection
in LC-Display
INFO key – Press the INFO key.
The display shows the main information or fault/
warning message.
Select desired main
information
ENTER key – See parameterization section.For confirmation in
parameterization
and acknowledge-
ment of messages

RATIO.pm6.5 - USA
Page 1.4
RATIO
BOGE – RATIO compressor control for screw compressors
Operating/control element Function
The green indicator lamp indicates that the
machine is ready.
Lamp = red The red indicator lamp indicates a fault.Fault
Pressure gauge or target value (network).Network pressure
display
If parameterization has been started, this symbol
appears in the top left of the display.
Parameterization
Ready
Operation/Explanation
3-digit 7-segment display
P:
Shown in bar with a decimal point between the
second and third digit.
Displays:
Pressure
Lamp = green
3-digit 7-segment display
T:
In °C.Displays:
Temperature
Thermometer
Operating elements RATIO
Operating elements1.3
bar
°C
Compressed air parameterization start undergoing
parameterization or frost run = blinks.
Pressure gauge system pressure (compressor).System pressure
display

RATIO.pm6.5 - USA
Page 1.5
RATIO
BOGE – RATIO compressor control for screw compressors
Operating elements1.3
Operating/control element Function
The circle stands for three functions:
1. The compressor is switched off.
2. For motor servicing period.
3. Servicing symbol (receiver inspection)
(replace wearing parts).
Automatic standby.Stand by
(Automatic) idling phase.Idle
OFF or
motor or
receiver
Operation/Explanation
Operating elements RATIO
Output phase or output cycle.Load or load speed
Automatic mode with standby phases enabled.Automatic operating
mode selection
Automatic mode without standby phases enabled.Continuous
operation
Total motor operating hours.Total running time
Idle operating hours.Idle operation
Information on current or impending servicing.Servicing due
Energy-independent ON-OFF save function set.
Auto-Restart
(automatic restart
enabled after
network failure)
Remote output enable (e.g., from master control).External output
enable
Remote ON-OFF (e.g., from control panel).
Serial interface activated.
Remote On-Off
Mode
Online-Mode
