Bodet Profil 730 Manual de usuario

PROFIL 730

>> www.bodet-time.com <<

Réf.: 643P11L 04/22

1/3

Hour-Minute Hour-Minute-Second

981 5x7 - 24V minute impulse

- 981 4x7 24V second impulse

982 8x7 982 9x7 AFNOR

982 Fx7 982 Gx7 NTP / ETH

- 982 Hx7 NTP / ETH (silent)

982 Wx7 982 Yx7 NTP / Wi-Fi TBT*

982 2x7 982 3x7 DHF battery

982 4x7 982 5x7 DHF TBT

Substitute the « x » by the figure corresponding to the desired dial.

*NTP Wi-Fi AC : via an AC adapter power supply unit (ref: 982 001).

Power up to 2 Wi-Fi clocks maximum.

Example : Profil 730 NTP Wi-Fi AC HM Arabic figures : 982 W17 + 982 001.

DESCRIPTION

• Analogue display clock for indoor.

• Hour-Minute or Hour-Minute-Second display depending on the model.

• Background: PC/ABS.

• Crystal: heat-tempered glass.

• Casing (front): brushed stainless steel.

• Protection index: IP40, IK08.

• Optimal viewing distance: 20m.

• Dial markings: Arabic figures or minute notches or DIN.

• Optional: wall mount locking disc, wall mount thin bracket and single or double-sided

bracket for ceiling or wall hanging.

COMPLIANCE

• Directive EMC 2014/30/EU

• Directive LVD 2014/35/EU

• Directive RED 2014/53/EU

• IEEE 802.11 b/g (NTP/Wi-Fi model).

TECHNICAL FEATURES

Movement Power supply Operating

temperatures Weight

24V minute parallel impulse - - 10°C to +50°C 1.2 kg

24V second parallel impulse - - 10°C to +50°C 1 kg

AFNOR 6 to 24 VDC - 5°C to +50°C 1 kg

NTP / ETH

NTP / ETH (silent, sweeping second)

Power over Ethernet,

Class 0 device, 2W maximum - 5°C to +50°C 1 kg

NTP / Wi-Fi TBT 6 to 24 VDC - 5°C to +50°C 1 kg

NTP / Wi-Fi AC 100 - 240 VAC - 5°C to +50°C 1 kg

DHF battery 2x1.5V LR6 batteries - 5°C to +50°C 1 kg

DHF TBT 6 to 16 VDC - 5°C to +50°C 1 kg

REFERENCES

Dials models (x):

1 = Arabic

figures

2 = Minute

notch

3 = DIN

PROFIL 730

>> www.bodet-time.com <<

Réf.: 643P11L 04/22

2/3

MOVEMENTS AND SYNCHRONISATION

• 24V minute impulse

Slave clocks are connected to a distribution line and activated through electrical impulses sent every minute by the master clock.

• 24V second impulse

Slave clocks are connected to a distribution line and activated through electrical impulses sent every second by the master clock.

• AFNOR

The coded time distribution consists in transmitting a complete time message every second: the time on the receiver is

automatically and immediately set after connection to the clock line.

The AFNOR coded time does not interfere with any other transmissions, and is insensitive to other electrical interference.

Consumption TBT: 10 mA (6 VDC), 8 mA (24 VDC).

• Network Time Protocol (NTP / ETH)

Slave clocks are connected to the Ethernet network and powered by PoE (Power over Ethernet).

The time is synchronised by the time server or the master clock over the Ethernet network in unicast, multicast or DHCP

mode.

• Network Time Protocol (NTP / ETH) silent

Slave clocks are connected to the Ethernet network and powered by PoE (Power over Ethernet).

The time is synchronised by the time server or the master clock over the Ethernet network in unicast, multicast or DHCP

mode.

The second hand’s movement is continuous. The advantage of this clock is its very low noise level (<20dB at 1 metre).

• Network Time Protocol (NTP / Wi-Fi)

Slave clocks are connected to the network through the Wi-Fi access point.

The time is synchronised by the time server or the master clock over the network in unicast, multicast or DHCP mode.

• DHF

The DHF clocks pick up the time signal sent by the master clock via a radio signal and synchronise automatically. If radio

reception is poor, the clocks keep time thanks to their own time systems.

Consumption TBT: from 15mA at 6V to 8mA at 12V to 7mA at 16V.

PROFIL 730

>> www.bodet-time.com <<

Réf.: 643P11L 04/22

3/3

• 981 001........... Double-sided bracket

• 981 002........... Short double-sided bracket

• 981 003........... Thin wall bracket (Locking disk)

• 981 004........... Joining ring for double sided Profil 730 clocks

• 981 006........... Wall bracket (Locking disk)

• 981 010........... Single-sided bracket

• 938 914........... 230V recess mounting power supply for TBT clock

Power up to 10 clocks maximum except for Wi-Fi models

Power up to 2 Wi-fi clocks maximum

• 938 916........... 100-240V plug-in power supply for TBT clock

Power up to 10 clocks maximum except for Wi-Fi models

Power up to 2 Wi-fi clocks maximum

• 982 001........... 100-240V adapter power supply unit for NTP / Wi-Fi clocks only

Power up to 2 Wi-Fi clocks maximum

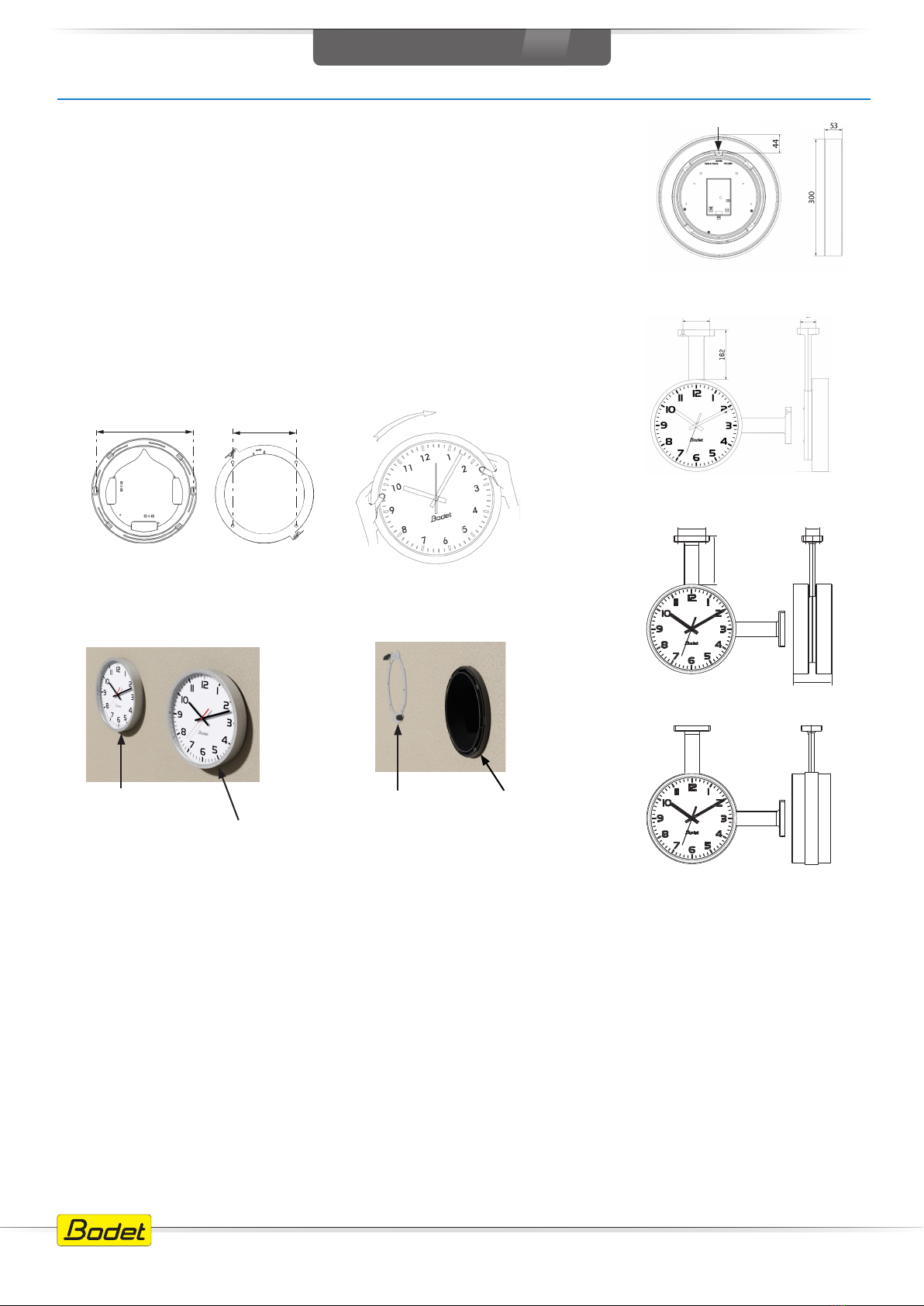

Double-sided bracket mounting

162

129.8

Double sided with joining ring

Wall bracket

(locking disk)

Thin wall bracket

12 mm between wall

and clock with locking disk

With thin bracket,

clock flush with wall

ACCESSORIES

Once the the bracket (wall or double-sided) is installed, turn the clock a quarter

turn in the clockwise direction so that the clock is in the correct position.

127,3 mm

208mm

Mounting screw

Wall bracket Thin wall bracket

Hanging point

Dimensions in mm

Single-sided bracket mounting

88 50
