Original BMW Accessories.

Installation Instructions.

Retrofit BMW Accessory Menu (ACM)

BMW 1 Series (E

87)

BMW 3 Series (E

90, E

91, E92)

BMW 5 Series (E

60, E

61)

BMW 6 Series (E

63, E

64)

Installation instructions only valid for cars with M-ASK or CCC.

Retrofit kit no.:

65 50 0 418 002 Retrofit kit BMW accessory menu ACM E90, E91, E92, E60, E61 and E63, E64

65 50 0 422 701 Retrofit kit BMW accessory menu ACM E87

Installation time

The installation time is approx 1.75 hours, but may vary depending on the condition of the car and the equipment

in it.

Cars without auxiliary connection only

In general the car must be upgraded to the latest I stage status by flashing before starting the work. Depending on

the production age of the car and the work already carried out on the car, the programming times will vary, which

means that we cannot quote a specific time at this point.

The installation time does not include any time for programming/encoding, as this depends on the age of the car

and the equipment in it.

Important information

These installation instructions are primarily designed for use within the BMW dealership organisation and by

authorised BMW service companies.

In any event, the target group for these installation instructions is specialist personnel trained on BMW cars with

the appropriate specialist knowledge.

All work must be completed using the latest BMW repair manuals, circuit diagrams, servicing manuals and work

instructions, in a rational order, using the prescribed tools (special tools) and observing current health and safety

regulations.

To avoid unnecessary extra work and/or costs, if any installation or function problem occurs, after a

brief troubleshooting session (approx. 0.5 hours), please contact the following:

1. Either your national subsidiary or your regional office, or

2. The Support team via the Aftersales Assistance Portal (ASAP) using the optional technical parts

support application.

Specify the chassis number and the part number of the installed retrofit kit and give a precise

description of the problem.

Do not archive the hard copy of these installation instructions since daily updates are made by ASAP!

Pictograms:

Denotes instructions that draw your attention to dangers.

Denotes instructions that draw your attention to special features.

Denotes the end of the instruction or other text.

Installation information

In countries in which image reproduction is permitted up to a particular speed, the red cable from PIN 2 must be

disconnected at branch A1, insulated and tied back.

Ensure that the cables/lines are not kinked or damaged as you install them in the car. Costs incurred as a result of

this will not be reimbursed by BMW AG.

Additional cables/lines that you install must be secured with cable ties.

If the specified PIN chambers are occupied, bridges, double crimps or twin-lead terminals must be used.

All pictures show LHD cars; proceed accordingly on RHD cars.

In cars without an ancillary connection, the retrofit must be programmed / coded using SSS (software service

station) via the CIP, retrofit aux-in connection path.

Special tools required

00 9 317, Trim wedge

Contents

Section Page

1. Parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2. Preparatory work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3. Retrofit cable connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4. Connection cable connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

5. Installation and cabling diagram for E87 cars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

6. Installation and cabling diagram for E90, E91 and E92 cars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

7. Installation and cabling diagram for E60, E61 and E63, E64 cars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

8. To install and connect the retrofit cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

9. To connect the electrical power supply and connection cable for E87 cars . . . . . . . . . . . . . . . . . . . . . . . . . . 15

10. To connect the electrical power supply and connection cable for E90, E91 and E92 cars . . . . . . . . . . . . . 17

11. To connect the electrical power supply and connection cable for E60, E61 and E63, E64 cars . . . . . . . . 19

12. To install the ACM unit and universal CAN interface for E87 cars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

13. To install the ACM unit and universal CAN interface for E90, E91 and E92 cars . . . . . . . . . . . . . . . . . . . . . . 21

14. To install the ACM unit and universal CAN interface for E60, E61 and E63, E64 cars . . . . . . . . . . . . . . . . . 23

15. Concluding work and coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

16. Initialisation of the ACM unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

17. Circuit diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

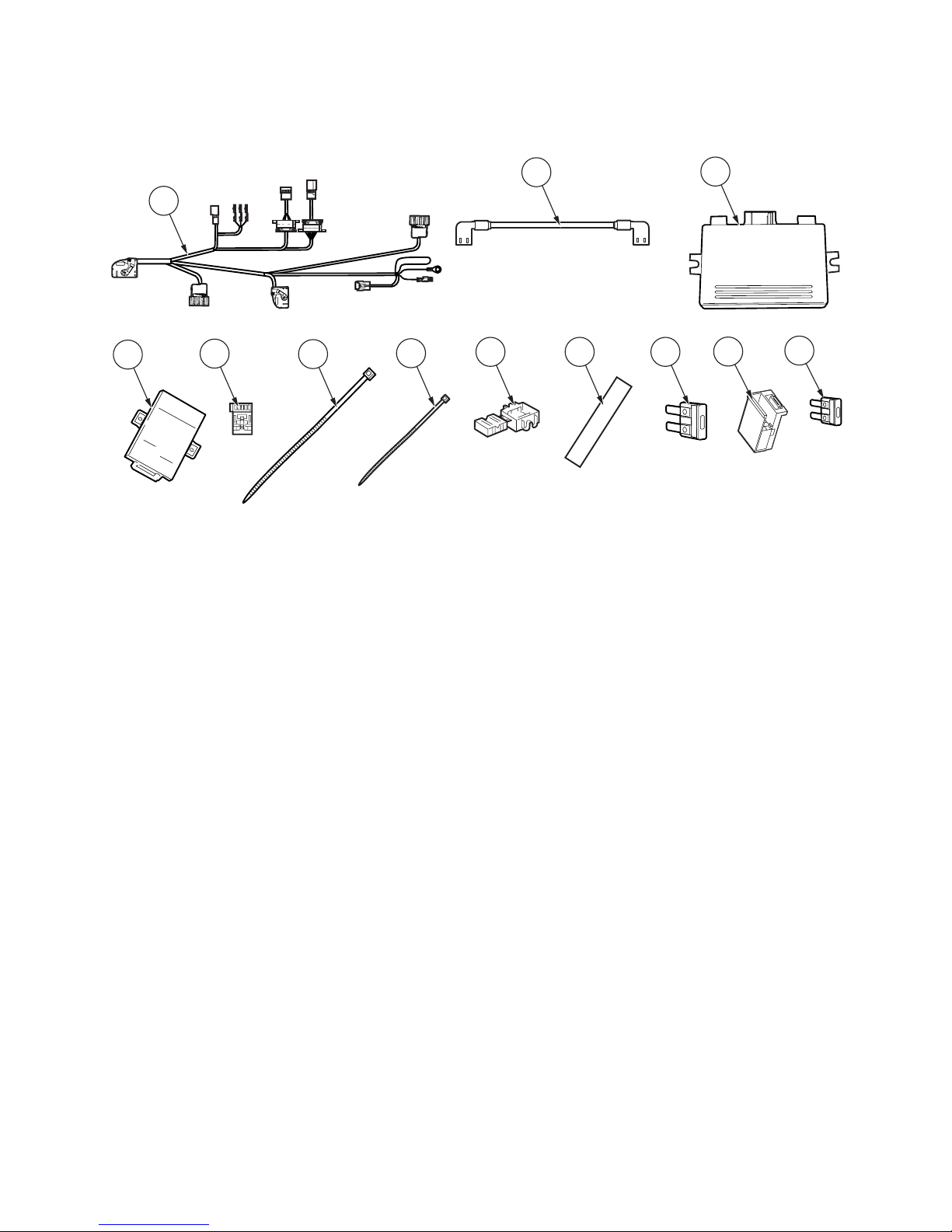

1. Parts list

Legend

ARetrofit cable

BConnection cable

CACM unit

DUniversal CAN interface

EBlack 3-pin socket casing

FCable tie 445 x 4.8 mm (4x)

GCable tie 200 x 3.6 mm (25x)

HMiniature connector (2x)

ISealing strip (5x)

JFusible link 7.5 A (large, for E60, E61, E63 and E64 cars)

KBlack 12-pin socket casing

LFusible link 7.5 A (small, for E87, E90, E91 and E92 cars)

DGH I J

060 1082 Z

2. Preparatory work

TIS No.

Conduct a brief test ---

Disconnect negative pole of battery 12 00 ...

The following components must be removed first of all

for E60, E61 and E63, E64 cars

Side backrest section on the rear seat or seat back 52 ...

Wheel arch trim in luggage compartment on left 51 47 151

Door sill strip from the rear left (interior) 51 47 030

Door sill strip from the front left (interior) 51 47 000

A pillar trim at bottom left 51 43 070

Trim at the bottom left of the door pillar 51 43 150

Pedal trim 51 45 185

Control display 65 82 050

M-ASK/CCC 65 83 010

Release the oddments box 51 16 200

The following components must be removed first of all

for E87, E90, E91 and E92 cars

Backrest side section on the rear seat, left 52 ...

Wheel arch trim in luggage compartment on left 51 47 151

Door sill strip from the rear left (interior) 51 47 030

Door sill strip from the front left (interior) 51 47 000

A pillar trim at bottom left 51 43 070

Trim at the bottom left of the door pillar 51 43 150

Pedal trim 51 45 185

M-ASK/CCC 65 83 010

Unfasten the controller (E87 cars only) 61 31 195

Release cover for oddments box (E90 and E91 cars) 51 16 212

Trim at the bottom right of the dashboard 51 45 181

Glove box with casing 51 16 366

Undo the fuse holder on the right ---

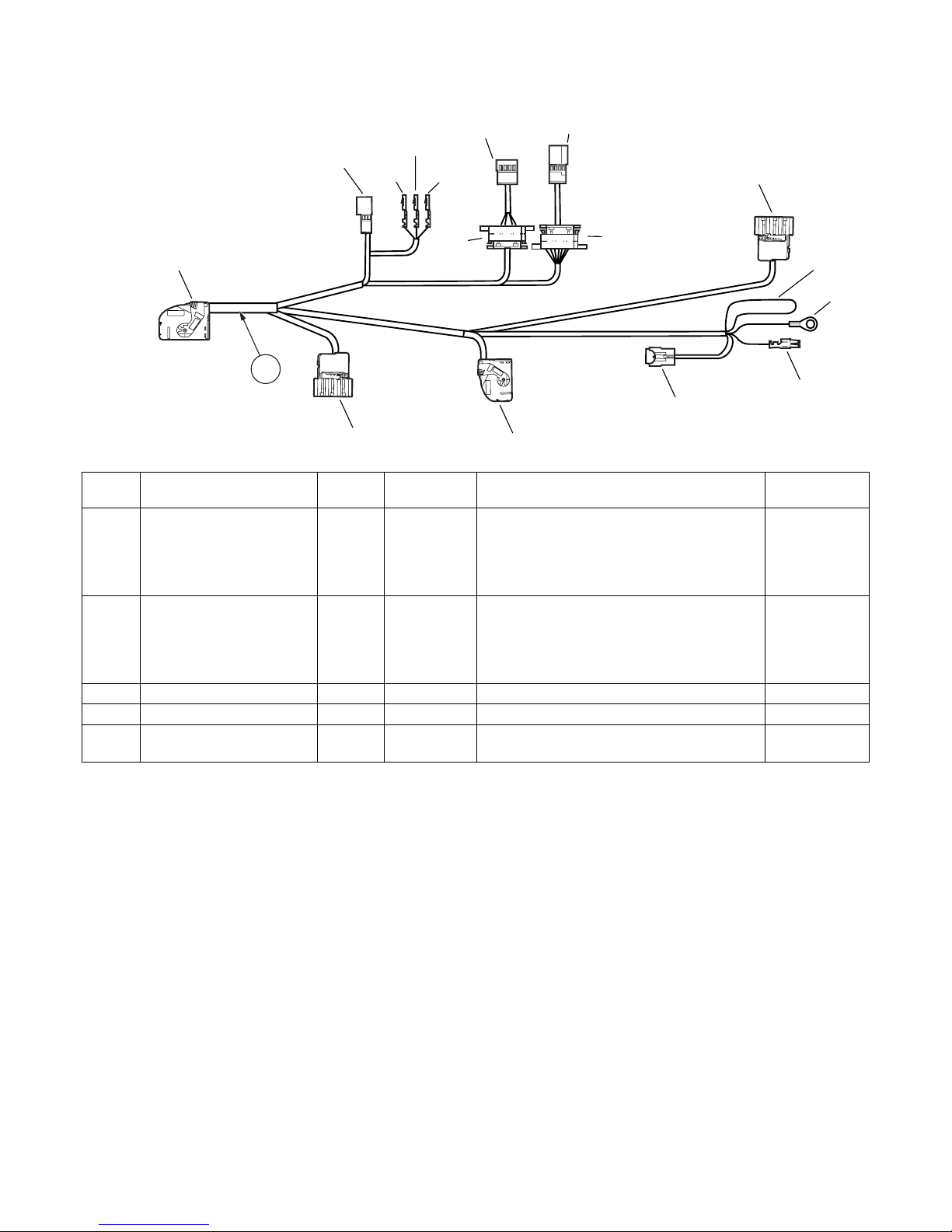

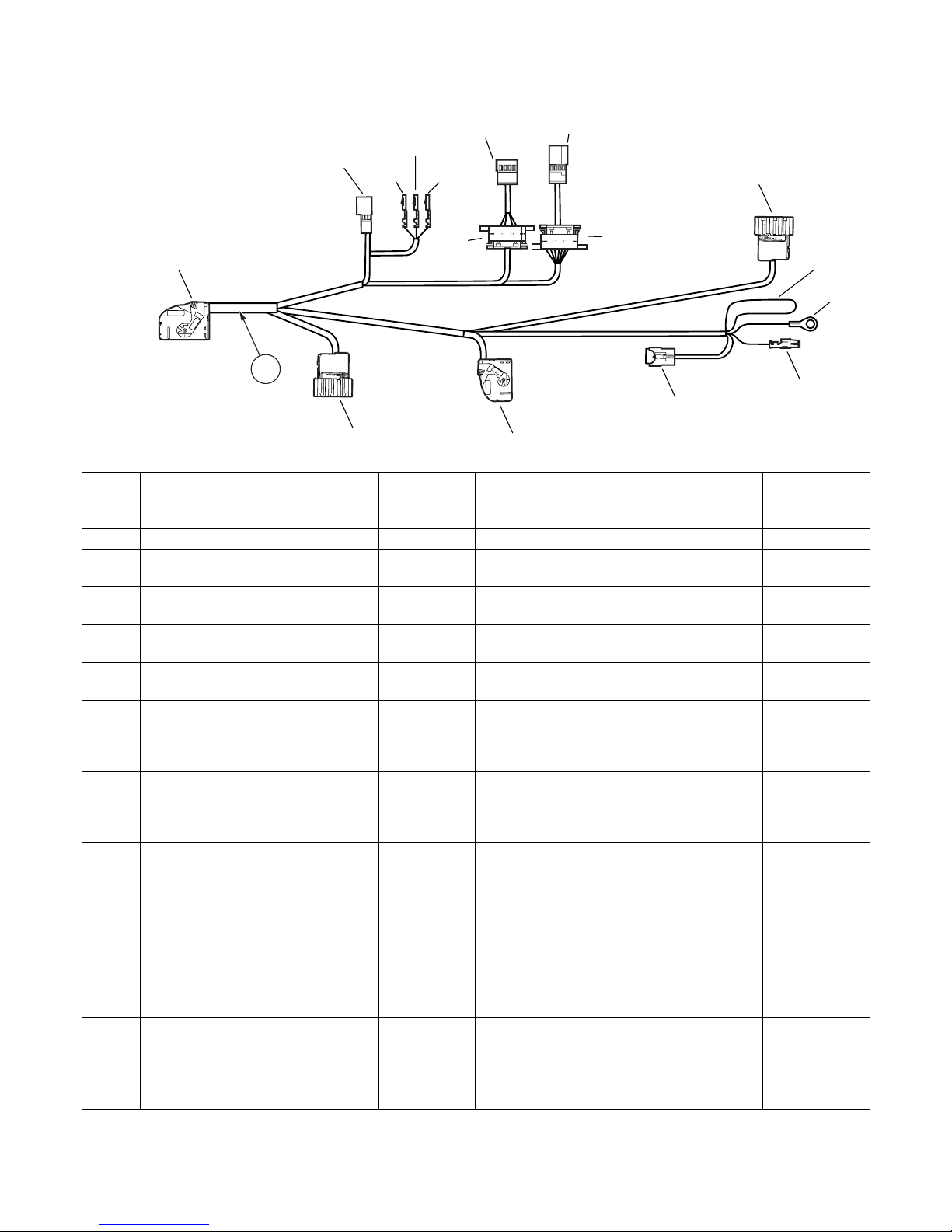

3. Retrofit cable connection diagram

Item Designation Signal Cable colour /

Cross-section

Connection location in the car Abbreviation /

Slot

A Retrofit cable --- --- --- ---

A1 Black 32-pin socket casing --- --- On the universal CAN interface D---

A2 Black 3-pin plug casing --- --- Cars with AUX jack only

With socket casing Eon the cable of the AUX jack ---

A3 Socket contact Audio L SW

0.35 mm2

On radio plug X13813

PIN 2

A4 Socket contact Audio R GE

0.35 mm2

On radio plug X13813

PIN 7

A5 Socket contact Audio GND WS

0.35 mm2

On radio plug X13813

PIN 8

A6 Black 4-pin socket casing

--- ---

E87, E90, E91 and E92 cars only

On controller

E60, E61 and E63, E64 cars only

Not required

X10387

A7 Black 4-pin plug casing

--- ---

E87, E90, E91 and E92 cars only

On connector of cable to controller

E60, E61 and E63, E64 cars only

Not required

X10387

A8 Black 8-pin plug connector

--- ---

E87, E90, E91 and E92 cars only

Leave the plug connector plugged in

E60, E61 and E63, E64 cars only

Disconnect the plug connector and plug it into

controller

X10387

A9 Black 8-pin plug connector

--- ---

E87, E90, E91 and E92 cars only

Leave the plug connector plugged in

E60, E61 and E63, E64 cars only

Disconnect the plug connector and plug it into

connector of cable to controller

X10387

A10 Black 18-pin plug casing --- --- In the luggage compartment on the left ---

A11 Cable loop Terminal

GE/RT

0.5 mm2

Cars with CCC only

Tie back

For cars with M-ASK only

Cut through, insulate and tie back

---

A2 A3

A6 A7

A10

A12

A11

A13

A14

A15

A16 060 1081 Z

3. Retrofit cable connection diagram

Item Designation Signal Cable colour /

Cross-section

Connection location in the car Abbreviation /

Slot

A12 Ring eyelet, 6 mm Terminal

1.0 mm2

E87, E90, E91 and E92 cars only

In footwell on the right

E60, E61 and E63, E64 cars only

Disconnect ring eyelet and connect with

miniconnector H

X490

X13822

PIN 3

A13 Socket contact Terminal

30g

1.0 mm2

E87, E90, E91 and E92 cars only

On right of fuse holder

E60, E61 and E63, E64 cars only

Disconnect ring eyelet and connect with

miniconnector H

X11003

PIN 3

X13822

PIN 1

A14 Fuse holder --- --- Tie back on wiring harness ---

A15 Black 26-pin socket casing --- --- To ACM unit C---

A16 Black 18-pin plug casing --- --- For camera system connection

Tie back on wiring harness ---

A2 A3

A6 A7

A10

A12

A11

A13

A14

A15

A16 060 1081 Z

4. Connection cable connection diagram

Item Designation Signal Cable colour /

Cross-section

Connection location in the car Abbreviation /

Slot

B Connection cable --- --- --- ---

B1 Violet 10-pin socket casing

--- ---

E87, E90, E91 and E92 cars only

To ACM unit C

E60, E61 and E63, E64 cars only

On control display

---

X13823

B2 White 10-pin socket casing

--- ---

E87, E90, E91 and E92 cars with M-ASK only

On M-ASK

E87, E90, E91 and E92 cars with CCC only

On CCC with coding removed

E60, E61 and E63, E64 cars only

To ACM unit C

X13820

---

090 1043 Z

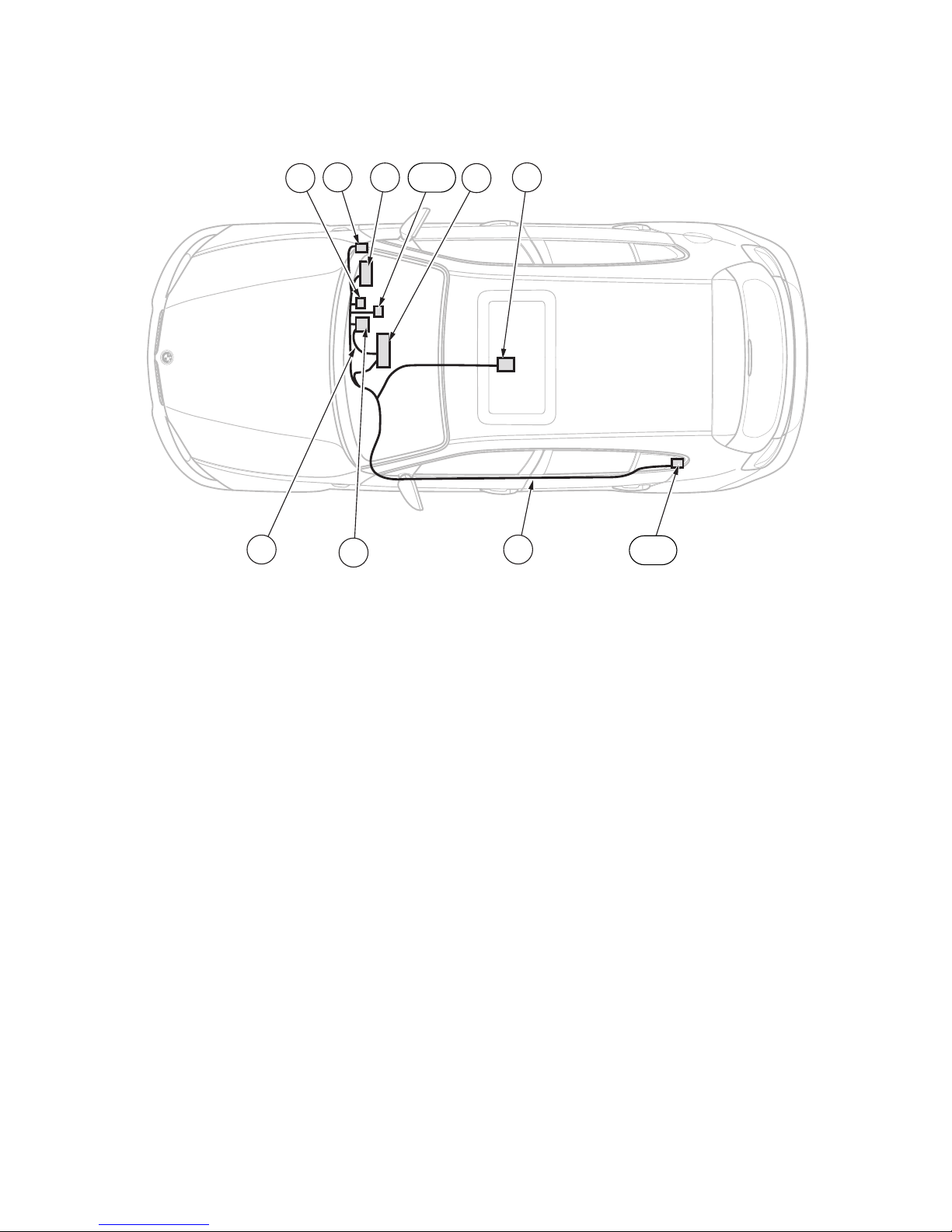

5. Installation and cabling diagram for E87 cars

Legend

ARetrofit cable

BConnection cable

CACM unit

DUniversal CAN interface

A10 Black 18-pin plug casing

A16 Black 18-pin plug casing

1Earth post connection X490

2Fuse holder

3Radio reception unit

4Controller

13D 4

AA10

A16

087 0752 Z

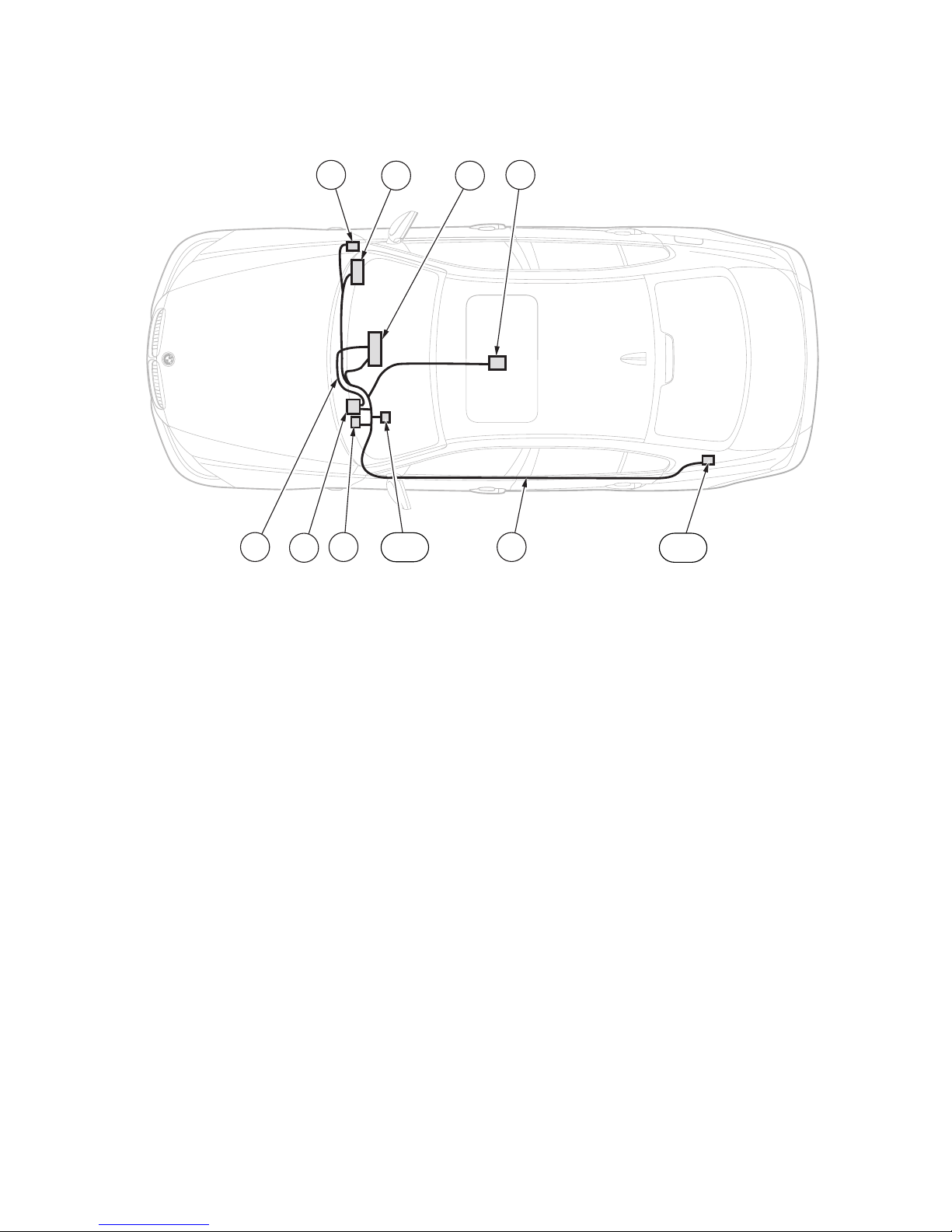

6. Installation and cabling diagram for E90, E91 and E92 cars

Legend

ARetrofit cable

BConnection cable

CACM unit

DUniversal CAN interface

A10 Black 18-pin plug casing

A16 Black 18-pin plug casing

1Earth post connection X490

2Fuse holder

3Radio reception unit

4Controller

132 4

B D A A10

A16

090 1034 Z
