Blyss NE10FB Manual de usuario

RADIANT GLASS PANEL

HEATER

NE10FB 1000W 3663602912996 / 3663602913030

NE15FB 1500W 3663602913016 / 3663602913047

NE20FB 2000W 3663602913023 / 3663602913054

Let’s

get started…

These instructions are for your safety. Please read through them thoroughly

before use and retain them for future reference.

Getting started… 02

Safety

Before you start

Quick start

In more detail… 17

Technical and legal information

Care and cleaning 18

23Environment protection

02EN

Safety

PLEASE READ SAFETY INSTRUCTIONS CAREFULLY

BEFORE USING THE UNIT.

This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision

or instruction concerning use of the appliance in a

safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be

made by children without supervision.

Children of less than 3 years should be kept away

unless continuously supervised.

Children aged from 3 years and less than 8 years

shall only switch on/off the appliance provided that

it has been placed or installed in its intended normal

operating position and they have been given

supervision or instruction concerning use of the

appliance in a safe way and understand the hazards

involved.

Children aged from 3 years and less than 8 years

shall not plug in, regulate and clean the appliance

or perform user maintenance.

CAUTION — Some parts of this product can become

very hot and cause burns. Particular attention has to

be given where children and vulnerable people are

present.

Safety

If the power cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

The appliance should not be placed immediately

below a socket.

WARNINGS: In order to avoid overheating, do

not cover the heater.

Do not use this heater with a programmer, timer,

separate remote control system or any other device

that turns on the heater automatically because

there is a risk of fire if the device is covered or

placed incorrectly.

CAUTION: To avoid hazard due to inadvertent

resetting of the thermal cutout, this appliance must

not be powered via an external switch, such as a

timer, or connected to a circuit that is regularly

switched on and off by the electricity supplier.

This heater must not be disposed of with household

waste; it must be taken to a local centre of

recovery and recycling of electrical appliances.

The heater must be installed so that switches and

other control devices can not be touched by a person

in the bath or shower.

A means of disconnection from the power supply

having a contact opening distance of all poles must

be included in the fixed wiring in accordance with

the installation requirements.

04EN

Safety

If being fitted in a bathroom, a 30mA RCD must

be used.

With respect to the details of how to install the

appliance onto the wall, refer to "INSTALLATION"

on pages 9-10.

05EN

WARNING: The heater must not be used if the

glass panels are damaged.

For domestic use only.

Never allow children or persons unable to operate the

appliance safely to use this appliance without supervision.

Please dispose of plastic bags carefully and keep them

away from children.

This appliance is for indoor use only.

Observe the minimum distances as shown in Fig. 1.

Do not install the unit in place where air flow that may

disturb its regulation(e.g. under an air conditioning unit)

Before you start

The power connection is made by the 2 cables via a

connection box. In places such as wet bathroom,

laundry, kitchen, install the appliance at least 250 mm from

the level of the ground.

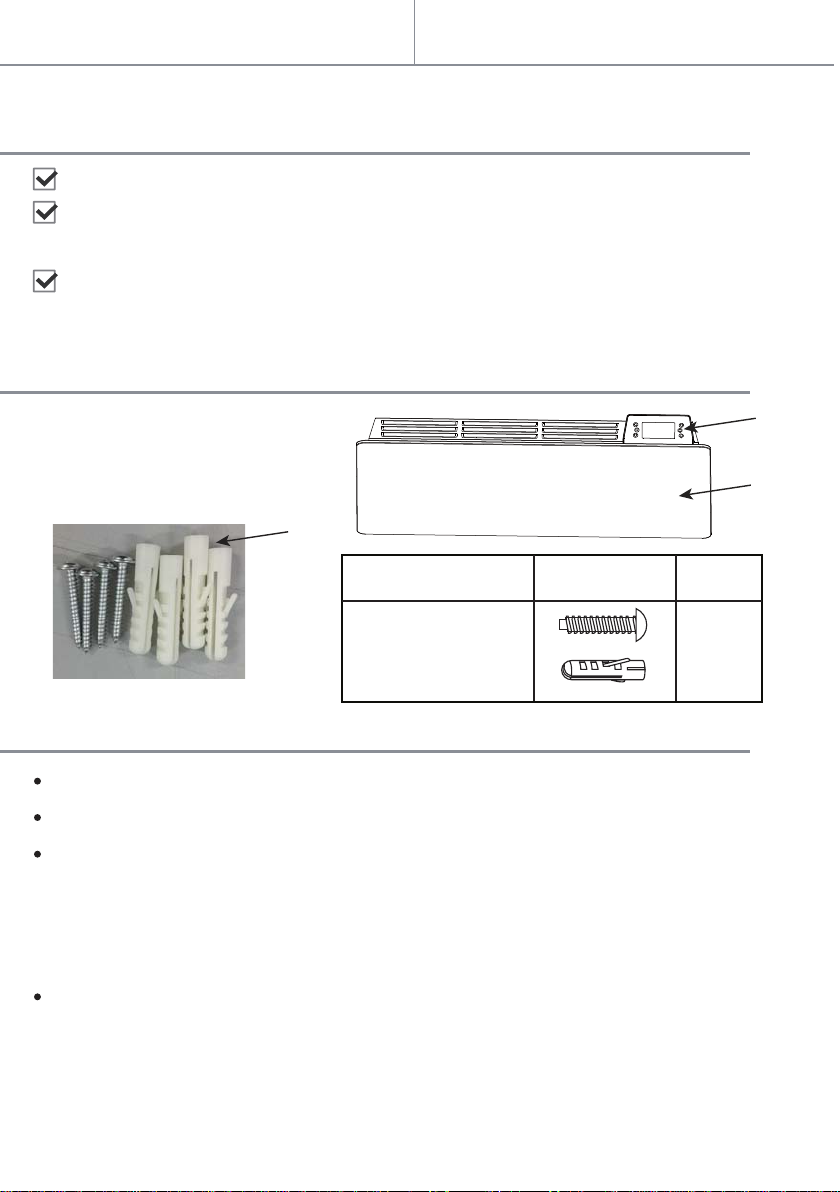

Things to check before you start

1. Body

2. Control panel

Your product

INSTALLING THE APPLIANCE?

3. Wall-mounted kits

Description Drawing QTY

Screw

Wall plug

Before you start

This heater is for wall mounting only. Do not attempt to use it

free standing.

You need to follow the below requirements when you install

your heater:

- Means for disconnection having a contact separation in all

poles must be incorporated in the fixed wiring in accordance

with the wiring rules.

- Warning: you need to connect the two conductors of the

supply cable to a connection block in respecting the

polarities as following:

IMPORTANT: The wires in the mains lead are coloured in

accordance with the following code:

Blue – Neutral

Brown – Live

The blue wire must be connected to the terminal marked with

an N or coloured black.

The brown wire must be connected to the terminal marked

with an L or coloured red.

WARNING: Never connect live or neutral wires to the earth

terminal.

This product is double insulated and must not be

earthed. If there are any incoming earth cables, they must be

joined together using a suitable connector (not supplied) and

well insulated with good quality insulation tape. This is to

ensure earth continuity throughout your property.

All fittings must be installed by a competent person in

accordance with the current IET Wiring Regulations

(BS7671). If in doubt, consult a qualified electrician.

THIS PRODUCT IS SUITABLE FOR BATHROOMS ZONE

2 AND OUTSIDE ZONE;

07EN

Before you start

This product is suitable for use in living areas, and Bathroom

dry (Outside) Zones only (see diagram below and current

IET Wiring Regulations for details). It is not suitable for

Bathroom Zones 0,1, or other areas where contact with

moisture is likely. If being fitted in a bathroom a 30mA RCD

must be used. This appliance does not come fitted/supplied

with a fused plug. DO NOT wire/fit a plug to this appliance.

The appliance must be electrical connected to a fused fixed

spur, which is fitted with a 13Amp fuse.

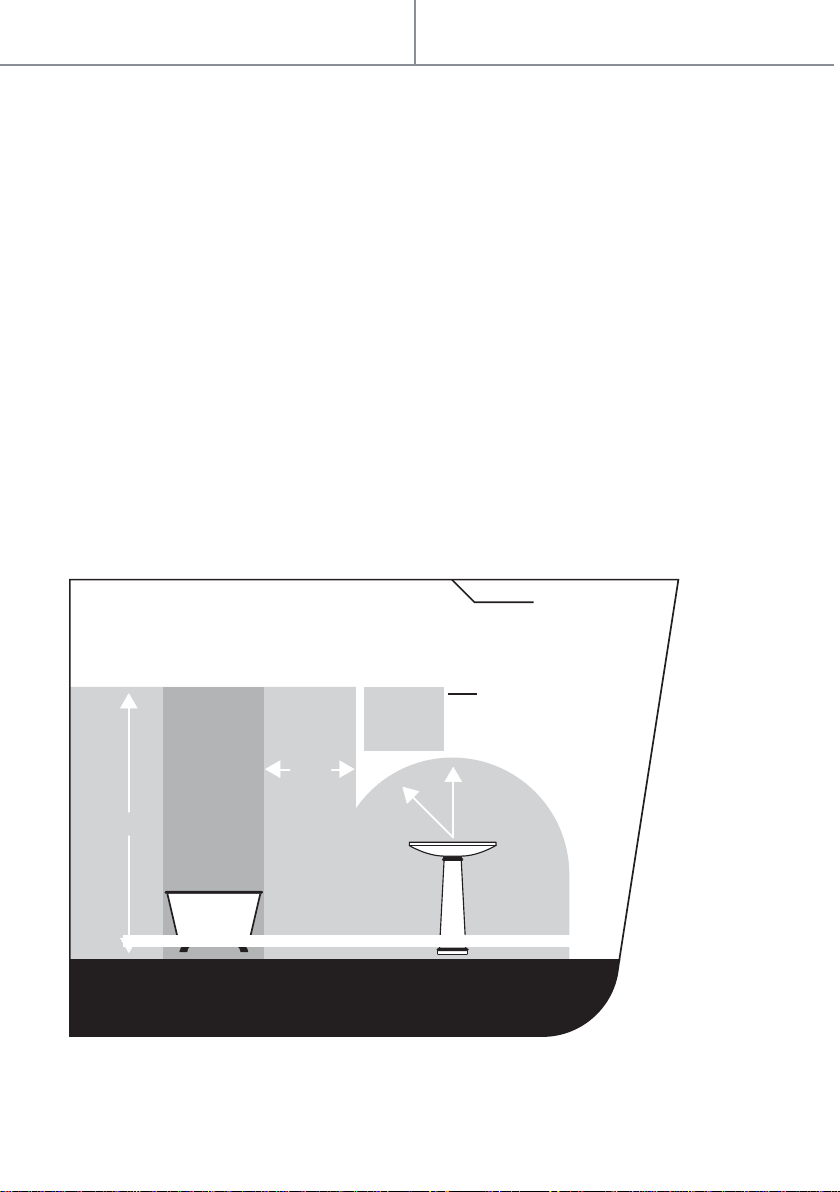

Always refer to the Reference Drawing for Bathroom

Installation.

Note: the below drawing is for reference only.

We suggest you to contact a professional electrician for any

help.

* Full details can be found in the current IET Wiring

Regulations (BS7671)

0.6m

ZONE

Window

recess

(DRY) OUTSIDE ZONES

ZONE

2.25m

Ceiling

THIS PRODUCT IS SUITABLE FOR BATHROOMS

ZONE 2 AND OUTSIDE ZONE;

ZONE

08EN

Before you start

INSTALLATION

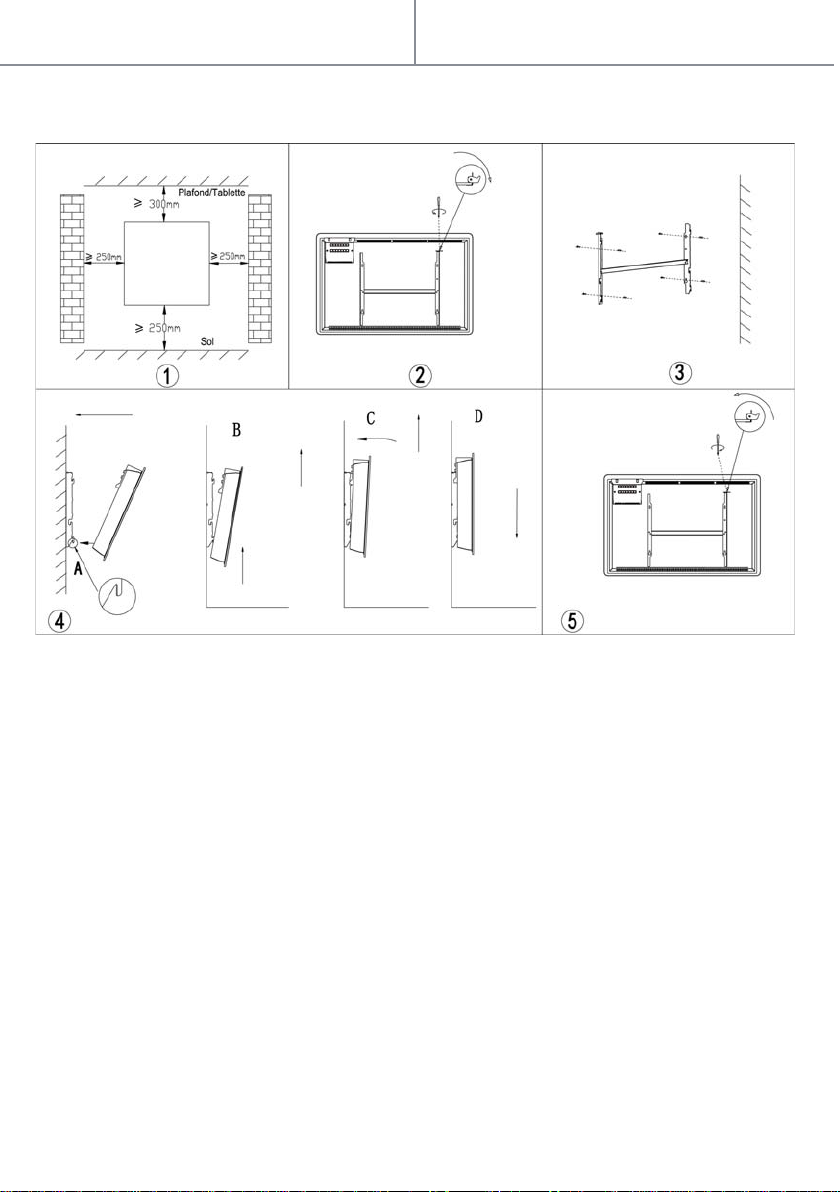

To hang the heater on the wall:

1. Choose a suitable installation location for the

heater. (Figure 1)

2. Disassemble the wall bracket by loosening the

screw (do not remove, only loosen) and slide the

metal plate out of the hole. Take out the bracket by

pulling down (Figure 2).

3. Verify that the bracket is horizontal with a spirit

level and mark the location of 4 holes on the wall.

Drill 4 holes in the wal

l using a drill adapted to

the diameter of wall plug. Insert the wall plug into

the holes,then screw securely wall mount bracket

onto the wall. (Figure 3)

4. Place the heater against bracket (Figure 4):

A : Align the heater on the 2 lower hooks that are

downwards.

B : Pull the heater upwards whilst retaining it in the

2 lower hooks.

C : Align the heater on the 2 upper hooks that are

upwards.

D : Pull the heater down.

5. Slide the metal plate into the hole, and fasten the

screw to lock the wall mount bracket (Figure 5).

09EN

Before you start

10EN
