Bluetti AC200MAX Manual de usuario

AC200 Portable Power

Station

User Manual

Safety instructions

Please observe the following instructions to ensure safe usage:

1. Do not alter or disassemble this product.

2. Do not move during charging or using it, because the vibration and impact during

3. moving will lead to poor contact of output interface.

4. In case of fire, use dry powder fire extinguishers for this product. Do not use water

fire extinguisher, which may cause electric shock.

5. Close supervision is required when using this product near children.

6. Please confirm the rated specification of your load, and do not use it beyond the

specification.

7. Do not place the product near heat sources, such as electric furnace and heaters.

8. Not permitted on aricrafts because the battery capacity exceeds 100Wh.

9. Do not touch the product or the plug-in points if your hands are wet.

10. Check the product and accessories prior to every use. Do not use if it is damaged or

broken.

11. Please unplug the AC adapter from the wall outlet immediately in case of lightning

stroke, which may cause heating, fire and other accidents.

12. Use original charger and cables.

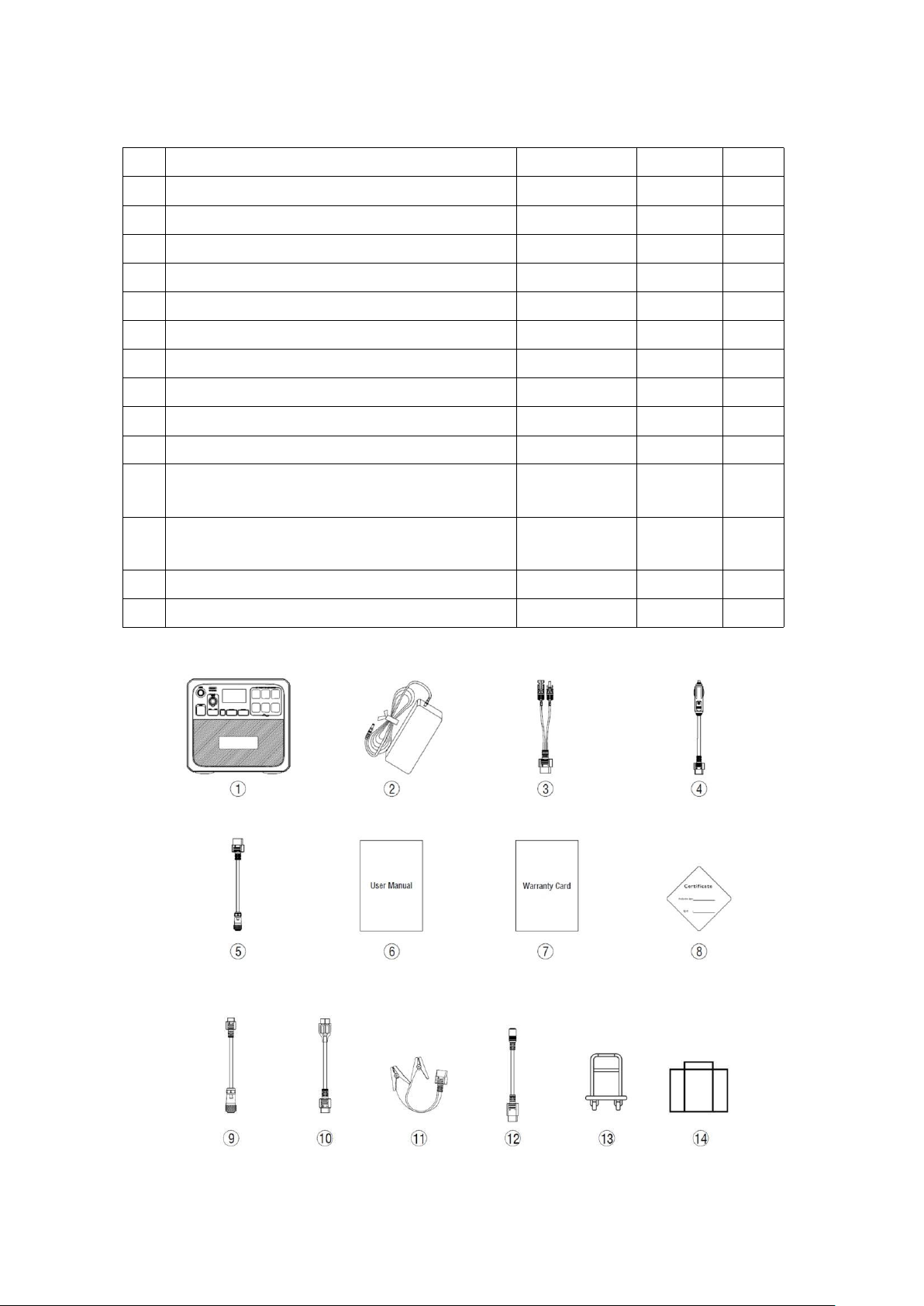

1. Packing list

No.

Product

Quantity(pcs)

standard

option

Power Station

√

AC adapter (including AC charging cable)

√

MC4 Solar charging cable (MC4 to XT90)

√

Car charging cable (car to XT90)

√

XT90 to aviation plug (input)

√

User manual

√

Warranty card

√

Certificate

√

12V / 25A aviation plug to XT60 (output)

√

12V / 25A XT60 to spc45 (output)

√

12V / 24V lead acid battery charging cable

XT90 to Red Black clamp (input)

√

Connector for dual AC adapter (Female 7909

to XT90)

√

Trolley

√

Carry bag

√

（1）Standard( accessories included)

（2）Options( not included, buy separately from seller)

The picture is for reference only, take the object for standard.

2. Function introduction

1. Power button 7. 12V / 25A output

2. 12V / 10A cigarette lighter port 8. 12V / 3A output

3. Type-C charging port 9. PV / car input port

4. Touchable interaction LCD display 10. AC adapter input port

5. USB output x 4pcs 11. Wireless charging x 2pcs

6. US AC output x 6pcs

(EU/UK AC output x 2 pcs)

Note:

AC stands for alternating current. PV stands for photovoltaic(solar charging).

DC stands for direct current. Car stands for automobile electric energy.

3. Startup and shutdown operation

(1) Start up: short press the power button, the indicator light is on, and the machine is in

standby mode.

(2) Shutdown: press and hold the power button for more than 2 seconds, and the

indicator light will be off and the machine shut off.

The LED indicator lamp status warning

BMS Over current or short circuit

protection

Turn off after the indicator light flashes

BMS Startup timeout

The indicator light flashes and not shut down

Normal startup

The indicator light on

Normal shutdown

The indicator light off

(3) DC power switch and AC power switch are integrated in the interaction LCD

screen(Figure 1),press“DC ON/OFF”button and “AC ON/OFF”button on the screen to turn

on/off the DC /AC output.

4. How to use the touch screen

Interaction LCD screen(Information Vision) supports below functions:

(1) Real time display of voltage, current, power, temperature and state of charge and

discharge.

(2) The user can adjust the output voltage, frequency, charging mode, power

consumption mode and time information according to the setting column.

(3) Support energy-saving, and enable Super ECO mode to save more than 30% of

useless energy loss.

(4) Support users to view fault information, historical fault information, software version

independently.

5. The operation steps of touch screen

Warm tip: ●The touchable LCD screen is a resistance screen. we recommend to press

the touch button by fingernail lightly until it "beeps".

●In order to maximize the lifespan of the LCD screen, please avoid direct sunlight on it.

(1) When press the power button,it will enter the main interface of the LCD display screen:

(

Figure

)

a. Homepage button g. Date/Time

b. Settings button h. DC load information display button

c. Data button i. DC ON/OFF button

d. Faults button j. AC ON/OFF button

e. PV/Car charging display button k. Adapter charging display button

f. BMS information display button l. AC load information display button

(2) Click the settings button in the main interface (Figure 2) to enter the setting interface

as follows (Figure 3) :

Warm tip:Please enter the setting interface to set the date and time according to the

local time zone, and check the output voltage, frequency and other parameters for the first

time.

The default:

JP output:100V/50Hz

US output:120V/60Hz

EU output:230V/50Hz

UK output:230V/50Hz

DC Input Source:PV (solar)

ECO Mode:NO

Press “Next” button to enter language and date setting as below（Figure 3）:

Language:Japanese, English

Date and time:2000-00-00、00：00：00

Please set the "Date and time" at least once every 2 weeks.

Press to configure it.

（

igure

）

（

igure

）

(3) Return to the main interface (Figure 1), click the “Data” button to enter the page

(Figure 4) :

●Click the “Product Info” button, you can view the product model, control software version,

monitoring software version, BMS monitoring software version and display software

version in turn;

●Click the “ Inverter & Charger Info” button, you can view the PV / Car operation and the

adapter operation status ,DC out operation and AC out operation in turn, which can also

be accessed directly from the shortcut key on the main interface;

●Click the “BMS Maintenance” button, you can view the operation information of BMS,

and this part can also be accessed directly from the shortcut key in the main interface;

●Click the “Fault History” button, you can view all the fault information generated by the

machine. All the fault codes recorded here. According to the fault codes, return to the

main interface and click the fault button to view the corresponding fault information. Fault

History is retained up to 10 years if not manually cleared.

(

igure

(4) Return to the main interface and click the fault button (Figure 1) to view the current

fault information: the fault button will display orange if there is a fault, click to enter the

corresponding fault information, then the gray light will turn into orange.

6. Charging the product

There are five ways to charge:

(1) Charging mode 1: From AC Wall outlet

● Press the main power button to start charging after connecting the product to the AC

wall outlet, the charging will automatically stop when it reaches 100%.

(2)Charging mode 2: From the solar panels

●Choose the solar panel with working voltage DC 35V-150V.

●Connect the solar panel to the product via solar charging cable included.

●Plug and play charging: it will start charging automatically after connecting the solar

panel to the product even it is off status.

● Max. current of the solar is 12A.

(3) Charging mode 3: From the car lighter port

●Press the power button and connect it to the cigarette lighter port through the car

charging cable.

●Enter the setting interface as shown in (Figure2) through the display screen to set DC

input source to car mode; The product can be charged with 8.2A maximum current.

(4) Charging Mode 4: From a generator (gasoline, propane or diesel)

●Connect the AC adapter input to the generator and the output port to the AC charging

port of the machine.

●Press the power button, the product will be charged, the charging will automatically stop

when it reaches 100%.

(5) Charging mode 5: from lead acid battery

●Connect to the positive and negative poles of the battery through the provided solar

charging cable(pay attention to distinguish the positive and negative poles of the battery,

the red head is the positive pole, and the black head is the negative pole) .

●Enter the setting interface as shown in (Figure 2) through the display screen to set DC

input source to “car mode” .The product can be used for car charging mode, with the

maximum current of 8.2A. The product has the function of anti over discharge for lead-

acid battery.

7. Discharging

(1) Turn on 12V / 25A, 12V / 3A, cigarette lighter port, USB and type C output: first, press

the power button, then enter the main interface through the touch screen, click the DC

ON/ OFF button and confirm, Turn off these output, and also click the DC on / off button

and confirm.

(2) Turn on AC output: first, press the power button, then enter the main interface through

the touch screen, click the AC ON/ OFF button and confirm. Turn off these AC output

ports, and also click the AC ON/ OFF button and confirm.

8. Application scenario

(1) Outdoor: Car equipment: car fridge, car vacuum cleaner and other car equipment;

Camping equipment: garden electric tools (power tools such as blowers, lawn mowers,

electric drills, electric saws), BBQ grills, LED lights, etc.

(2) Indoor: Refrigerator, kitchen devices such as kettle, toaster, blender, coffee maker,

rice cooker, laptops, phones, lighting, etc.
