Blomberg BOTR30200CSS Manual de usuario

www.blomberginternational.com

[email protected]

Over The Range Convection

Microwave Oven

Installation Manual

BOTR30200CSS

EN FR

Document number : 01M-8851303800-3516-02

Ths product has been manufactured n envronmental frendly modern plants wthout gvng any harm to the nature.

Please read this manual first!

Dear Customers!

Thank you for preferring a Blomberg product. We hope that you get the best results

fromyourproductwhichhas beenmanufactured withhigh qualityandstate-of-the-art

technology. Therefore, please read this entire user manual and all other accompanying

documents carefully before using the product and keep it as a reference for future use.

If you handover the product to someone else, give the user manual as well. Follow all

warnings and information in the user manual.

Meanings of the Symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about

usage.

AWARNING:

Warnings for dangerous situa-

tions concerning the safety of life and property.

Warning for electric shock.

Warning for hot surfaces.

3 / 63 EN

Over The Range Convection Microwave Oven / Installation Manual

CONTENTS

1 Important instructions 4

1.1 General safety........................................................... 4

1.1.1 Electrical safety......................................................5

2 Your over the range convection

microwave oven 6

2.1 Overview..................................................................... 6

2.2 Technical data.......................................................... 6

3 Mounting space 7

4External exhaust 8

4.1 Installing hood exhaust........................................ 8

4.1.1 Outside top exhaust (example only)........... 8

4.1.2 Outside back exhaust (example only)........ 9

4.1.3 Exhaust connection........................................... 9

4.1.4 Maximum duct length.....................................10

4.1.5 Elbows, transitions, wall and

roof caps, etc.,................................................................10

4.2 Damage – Shipment / Installation..................11

4.3 Parts Included .........................................................11

4.3.1 Hardware packet ................................................11

4.3.2 Additional parts................................................. 12

4.4 Tools and Materials Needed ............................ 13

5 Installation 14

5.1 Placement of the Mounting Plate ..................14

5.1.1 Removing the microwave oven from the

carton/ removing the mounting plate................. 14

5.1.2 Finding the wall studs .....................................14

5.1.3 Determining wall plate location

under your cabinet ......................................................14

5.1.4 Aligning the wall plate.....................................16

5.2 Installation Types (Choose A, B or C) ............ 17

5.2.1 Outside Top Exhaust (Vertical Duct) ......... 17

5.2.2 Outside Back Exhaust (Horizontal Duct).23

5.2.3 Recirculating (non-vented ductless) ........28

6 How to use the product 32

Over The Range Convection Microwave Oven / Installation Manual

4 / 63 EN

1 Important instructions

1.1 General safety

Read and save these in-

structions

Doing so will:

•make installation easier.

•help you in the future if you have

questions.

•help if you have an electrical in-

spection.

Call your dealer when you have

questions or need service. When

you call, you will need the micro-

wave model and serial numbers.

WARNING:

To reduce

the risk of fire, electric

shock, or injury to per-

sons, always exercise ba-

sic safety precautions, in-

cluding the following:

Read all instructions before using

the appliance.

This product requires a three-prong

grounded outlet. The installer must

perform a ground continuity check

on the power outlet box before

beginning the installation to in-

sure that the outlet box is properly

grounded.

If not properly grounded, or if the

outlet box does not meet elec-

trical requirements noted (under

ELECTRICAL REQUIREMENTS), a

qualified electrician should be em-

ployed to correct any deficiencies.

For personal safety, remove house

fuse or open circuit breaker before

beginning installation to avoid se-

vere or fatal shock injury.

For personal safety, the mounting

surface must be capable of sup-

porting the cabinet load, in addition

to the added weight of this 63–85

pound (28.5–38.5 kg) product, plus

additional oven loads of up to 50

pounds (22.7 kg) or a total weight of

113–135 pounds (51.3–61.2 kg).

For personal safety, this product

cannot be installed in cabinet ar-

rangements such as an island or a

peninsula. It must be mounted to

BOTH a top cabinet AND a wall.

For easier installation and personal

safety, it is recommended that two

people install this product.

For personal safety, this appliance

must be properly grounded to avoid

severe or fatal shock.

5 / 63 EN

Over The Range Convection Microwave Oven / Installation Manual

1 Important instructions

The power cord of this appliance

is equipped with a three-prong

(grounding) plug which mates with

a standard three-prong (grounding)

wall receptacle to minimize the pos-

sibility of electric shock hazard from

this appliance.

Do not, under any circumstances,

cut, deform or remove any of the

prongs from the power cord. Do not

use with an extension cord.

1.1.1 Electrical safety

Product rating is 120 volts AC, 60

Hertz, 15 amps and 1500 watts.

This product must be connected to

a supply circuit of the proper volt-

age and frequency.

Wire size must conform to the re-

quirementsoftheNationalElectrical

Code or the prevailing local code for

this kilowatt rating. The power sup-

ply cord and plug should be brought

to a separate 15- to 20- ampere

branch circuit single grounded out-

let. The outlet box should be located

in the cabinet above the microwave

oven. The outlet box and supply cir-

cuit should be installed by a quali-

fied electrician and conform to the

National Electrical Code or the pre-

vailing local code.

Over The Range Convection Microwave Oven / Installation Manual

6 / 63 EN

2 Your over the range convection microwave oven

2.1 Overview

2.2 Technical data

Product Dimensions

A-Height 15.7  (39.9 cm)

B-Width 29.9  (75.9 cm)

C-Depth 15.0  (38.1 cm)

Cutout Dimensions

Height (Min.) 16.75  (42.5 cm)

Height (Max.) 17.0  (43.2 cm)

Width (Min.) 30.0  (76.2 cm)

Depth (Min.) 12.0  (30.5 cm)

Depth (Max.) 13.0  (33.0 cm)

7 / 63 EN

Over The Range Convection Microwave Oven / Installation Manual

3 Mounting space

Bottom Edge of

Cabinet Needs to

be 30 (76.2 cm)

or More from the

Cooking Surface

Backsplash

66 (167.6 cm)

or More from

the Floor to the

Top of the

Microwave

“(76.2 cm)

2“ (5.1 cm)

30“

(76.2 cm)

min.

163⁄4“ (42.5 cm)

[12“ (30.5 cm) min.]

The space between the cabinets

must be 30“ (76.2 cm)wide and free

of obstructions.

If you are going to vent your micro-

wave oven to the outside, see Hood

Exhaust Section for exhaust duct

preparation.

When installing the microwave oven

beneath smooth, flat cabinets, be

careful to follow the instructions on

the top cabinet template for power

cord clearance.

Over The Range Convection Microwave Oven / Installation Manual

8 / 63 EN

4 External exhaust

4.1 Installing hood exhaust

Read these instructions only if you

plan to vent your exhaust to the out-

side. If you plan to recirculate the air

back into the room, proceed to title 5

4.1.1 Outside top exhaust

(example only)

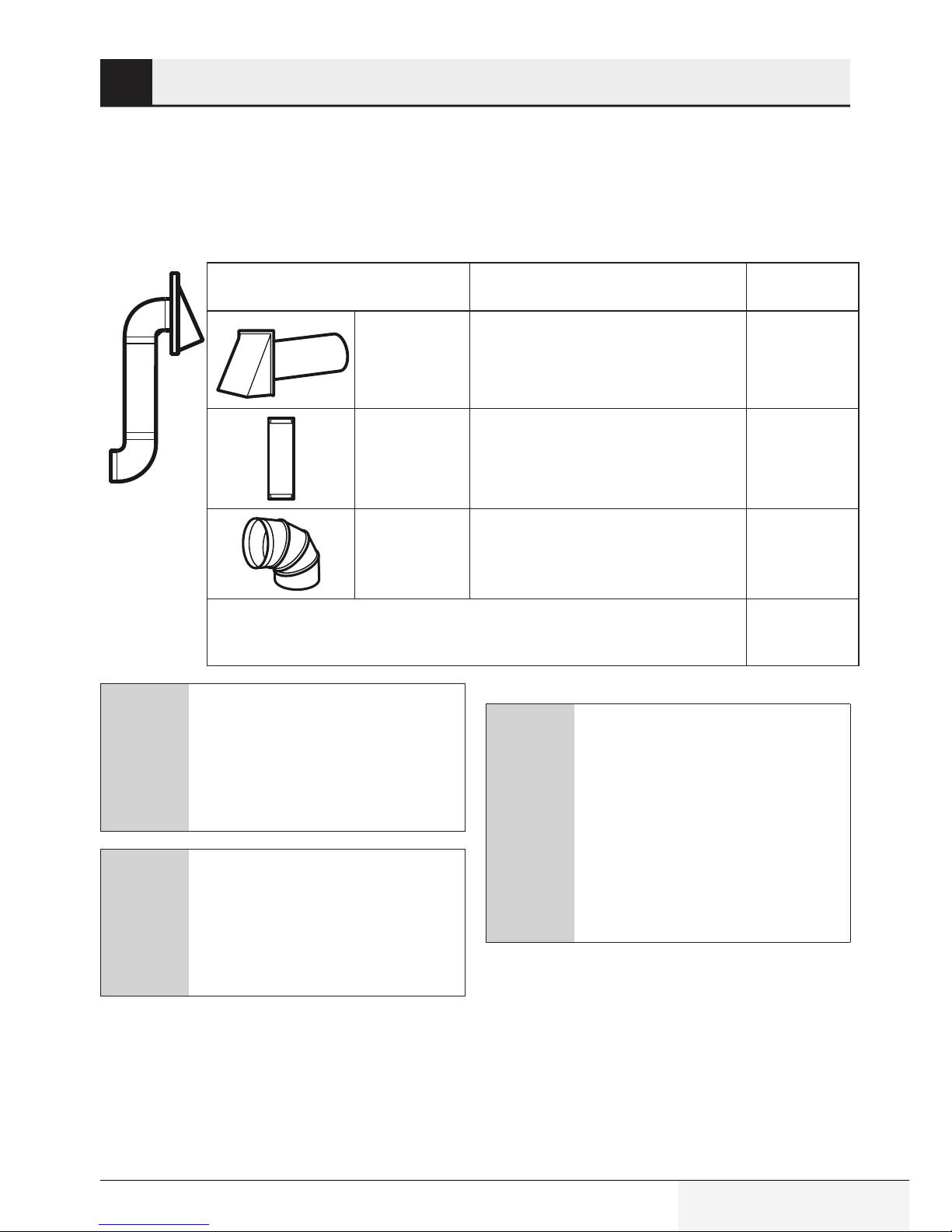

The following chart describes an example of one

possible ductwork installation.

Duct pieces Equivalent

Length

Number

used

Equivalent

Length

Roof Cap 24 Ft. (7.3 m) x (1) = 24 Ft. (7.3 m)

12 Ft. (3.6 m)

Straight Duct

(6”/15.2 cm

Round)

12 Ft. (3.6 m) x (1) = 12 Ft. (3.6 m)

Rectangular-to-

Round

Transition Adap-

tor*

5 Ft. (1.5 m) x (1) = 5 Ft. (1.5 m)

Equivalent lengths of duct pieces are based on actual tests

and reflect requirements for good venting performance

with any vent hood.

Total Length = 41 Ft. (12.5 m)

If a rectangular-to-round transition

adaptor is used, the bottom corners

of the damper will have to be cut to

fit, using the tin snips, in order to al-

low free movement of the damper.

9 / 63 EN

Over The Range Convection Microwave Oven / Installation Manual

4 External exhaust

4.1.2 Outside back exhaust

(example only)

The following chart describes an example of one

possible ductwork installation.

Duct pieces Equivalent

Length

Number

used

Equivalent

Length

Wall Cap 40 Ft. (12.2 m) x (1) = 40 Ft. (12.2 m)

3 Ft. Straight

Duct (31⁄4” x

10”/8.2 x 25.4

cm Rectangular)

3 Ft. (0.9 m) x (1) = 3 Ft. (0.9 m)

90° Elbow 10 Ft. (3 m) x (2) = 20 Ft. (3 m)

Equivalent lengths of duct pieces are based on actual tests

and reflect requirements for good venting performance with

any vent hood.

Total Length = 63 Ft. (19.2 m)

For back exhaust, care should betak-

en to align exhaust with space be-

tween studs, or wall should be pre-

pared at the time it is constructed by

leaving enough space between the

wall studs to accommodate exhaust.

If you need to install ducts, note

that the total duct length of 31⁄4” x

10” (8.2 x 25.4 cm) rectangular or

6” (15.2 cm) diameter round duct

should not exceed 120 equivalent

feet (36.5 m).

Outside ventilation requires a HOOD

EXHAUST DUCK. Read the following

carefully. It is important that venting

be installed using the most direct

route and with as few elbows as

possible. This ensures clear vent-

ing of exhaust and helps prevent

blockages. Also, make sure dampers

swing freely and nothing is blocking

the ducts.

4.1.3 Exhaust connection

The exhaust adaptor has been designed to mate

with a standard 31⁄4” x 10” (8.2 x 25.4 cm) rectan-

gular duct. If a round duct is required, a rectangu-

lar-to-round transition adaptor must be used. Do

not use less than a 6” 6” (15.2 cm) diameter duct.

Over The Range Convection Microwave Oven / Installation Manual

10 / 63 EN

4 External exhaust

4.1.4 Maximum duct length

For satisfactory air movement, the total duct

length of 31⁄4” x 10” (8.2 x 25.4 cm) rectangular or

6” (15.2 cm) diameter round duct should not ex-

ceed 120 equivalent feet (36.5 m).

4.1.5 Elbows, transitions, wall

and roof caps, etc.,

Present additional resistance to airflow and are

equivalent to a section of straight duct which is

longer than their actual physical size. When cal-

culating the total duct length, add the equivalent

lengths of all transitions and adaptors plus the

length of all straight duct sections. The chart be-

low shows you how to calculate total equivalent

ductwork length using the approximate feet of

equivalent length of some typical ducts.

Duct pieces Equivalent

Length

Number

used

Equivalent

Length

Rectangular-to-Round

Transition Adaptor* 5 Ft. (1.5 m) x ( ) = Ft. or m

Wall Cap 40 Ft. (12.2 m) x ( ) = Ft. or m

90° Elbow 10 Ft. (3 m) x ( ) = Ft. or m

45° Elbow 45° Elbow x ( ) = Ft. or m

90° Elbow 25 Ft. (7.6 m) x ( ) = Ft. or m

Otros manuales para BOTR30200CSS

Tabla de contenidos

Idiomas:

Otros manuales de Microondas de Blomberg

Blomberg

Blomberg MEE 2150 X Guía de configuración

Blomberg

Blomberg MKE 3140 Z Manual de usuario

Blomberg

Blomberg MEE 2020 Manual de usuario

Blomberg

Blomberg MEE 5370 Manual de usuario

Blomberg

Blomberg MEE 3150 X Guía de configuración

Blomberg

Blomberg BOTR30100SS Manual de usuario

Blomberg

Blomberg BOTR24100SS Manual de usuario

Blomberg

Blomberg BOTR30200CSS Manual de usuario

Blomberg

Blomberg BOTR30100B Manual de usuario

Blomberg

Blomberg BOTR30200CSS Manual de usuario

Blomberg

Blomberg MEE 4150 X Guía de configuración

Blomberg

Blomberg MEE 4040 Manual de usuario

Blomberg

Blomberg BOTR30102SS Manual de usuario

Blomberg

Blomberg BOTR24100SS Manual de usuario

Blomberg

Blomberg BOTR30102SS Manual de usuario

Blomberg

Blomberg MEE 4170 Manual de usuario

Blomberg

Blomberg MEE 1030 X Guía de configuración

Blomberg

Blomberg BOTR30100B Manual de usuario

Manuales populares de Microondas de otras marcas

Daewoo

Daewoo KOG-574R0S Manual de usuario

LG MH7040SS Manual de usuario

Sharp

Sharp R-895(AL)M Manual de usuario

Dometic

Dometic DOTRM13W Manual de usuario

Sanyo

Sanyo EM-X680 Manual de usuario

Sharp

Sharp R-393M Manual de usuario

KitchenAid

KitchenAid KMCX4510 Instrucciones de instalación

Smeg

Smeg S45MCX1 Manual de usuario

Russell Hobbs

Russell Hobbs RHM2044 Manual de usuario

Sunbeam

Sunbeam SMW759 Manual de usuario

Gallet

Gallet FMOE230S Manual de usuario

Bosch

Bosch CEG732X.1B Manual de usuario

Dometic

Dometic Roadmate 230 Manual de usuario

Samsung

Samsung SJ0396W Manual de usuario

Sanyo

Sanyo EM-P494WS Manual de usuario

Sharp

Sharp R-240 Manual de usuario

Electrolux

Electrolux EMS2840 Manual de usuario

Daewoo

Daewoo KOC-984T2S13 Manual de usuario
