MODEL CTB/CTBR

Half-size Electric Convection Oven

CTB/CTBR

OPTIONS AND ACCESSORIES

(AT ADDITIONAL CHARGE)

Legs/casters:

4" (102mm) black legs (not for use with stands)

6" (152mm) casters

Stands:

5-3/4" (146mm) stainless steel stand

7" (178mm) stainless steel stand

16" (406mm) stainless steel stand

19" (438mm) stainless steel stand with shelf

24" (610mm) stainless steel stand with shelf

33" (838mm) stainless steel stand with shelf

Solid state digital with cook and hold, and Pulse

Plus® with digital display

Vent riser: stainless steel

Cord set with receptacle

7.5 Kw elements

Extra oven racks

Oven Liner: Stainless steel

OPTIONS AND ACCESSORIES

(AT NO CHARGE)

Door Design: Solid stainless steel

Right hand hinged door

Project

Item No.

Quantity

Standard depth baking compartment - accepts 13" x 18" standard half-size

baking pans in front-to-back-position. CTBR model follows same specifications

as CTB, only with door opening on the right side and controls on left side.

All data is shown per oven section, unless otherwise indicated.

Refer to operator manual specification chart for listed model names.

EXTERIOR CONSTRUCTION

Full angle-iron frame

Stainless steel front, top, sides and back

Dual pane thermal glass window encased in stainless steel door frame

Single chrome plated door handle

Tilt-down modular front control panel

Solid mineral fiber insulation at top, back, sides and bottom

INTERIOR CONSTRUCTION

Double-sided porcelainized baking compartment liner (14 gauge)

Five chrome-plated racks, nine rack positions with a minimum of 1-5/8"

(41mm) spacing

OPERATION

Two tubular heaters (5kW)

Solid state thermostat with temperature control range of 200°F (93°C)

to 500°F (260°C)

Two speed fan motor

1/4 horsepower blower motor with automatic thermal overload protection

One control area cooling fan

STANDARD FEATURES

Solid state manual with separate dials to control thermostat and time**

Two year oven parts and one year labor warranty*

Five year oven door warranty*

* For all international markets, contact your local distributor.

** For control panels other than standard consult your local international

distributor for CE approvals.

BLODGETT OVEN COMPANY

www.blodgett.com

44 Lakeside Avenue, Burlington, VT 05401

Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183

MODEL CTB/CTBR

Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY

NOTE: The company reserves the right to make substitutions of components

without prior notice

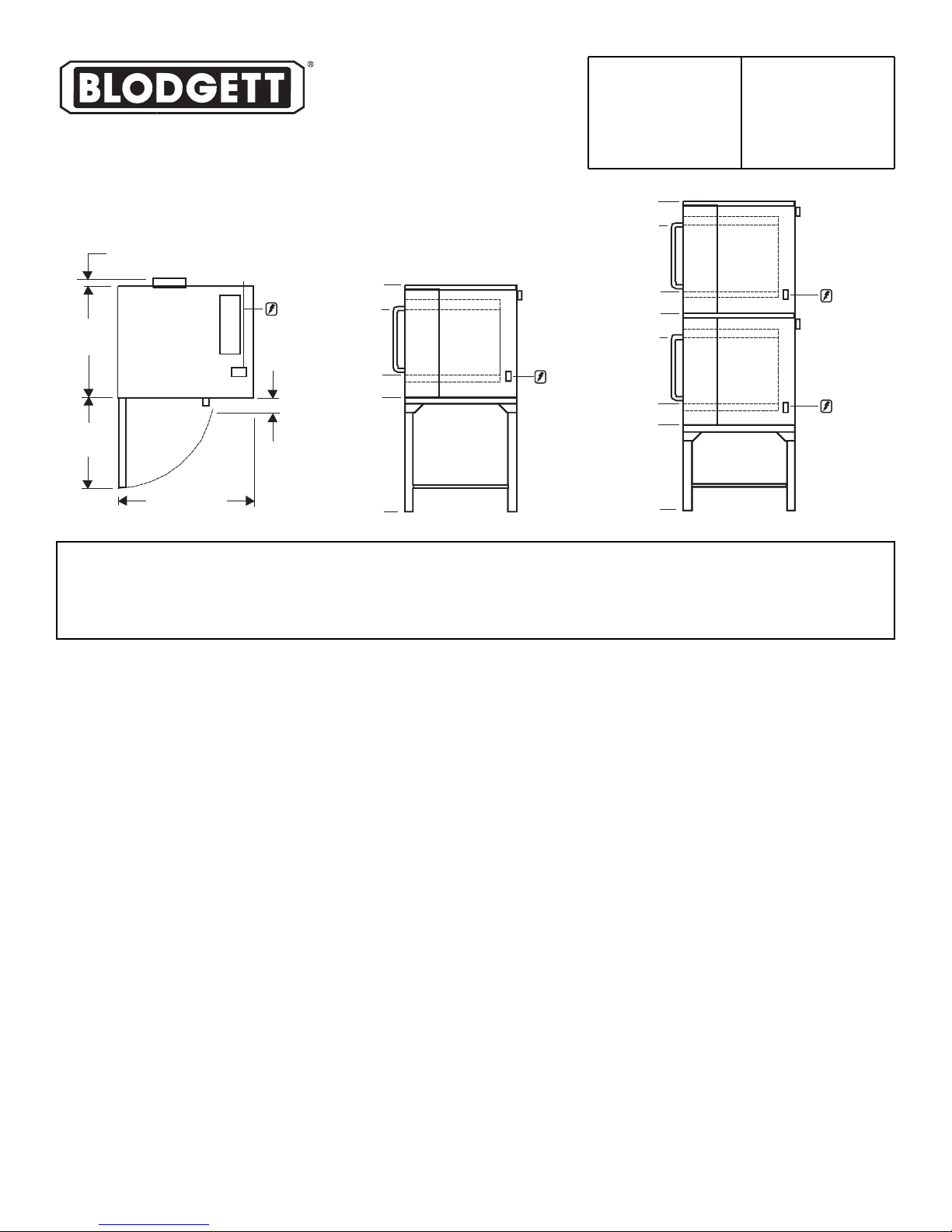

TOP VIEW

25-1/8”

(638mm)

1/2” (25mm)

20”

(508mm)

30-1/4” (768mm)

3-1/4”

(83mm)

CTB/CTBR SINGLE

0” (0mm)

25-1/8” (638mm)

29-15/16” (760mm)

42-15/16” (1091mm)

50-3/16” (1275mm)

28-1/8”

(714mm)

Optional Stand

0” (0mm)

CTB/CTBR DOUBLE

22”

(559mm)

47-1/16”

(1195mm)

19” (483mm)

23-13/16” (605mm)

44-1/16” (1119mm)

48-7/8” (1241mm)

36-13/16” (935mm)

61-7/8” (1571mm)

69-1/8” (1756mm)

Optional Stand

APPROVAL/STAMP

P/N 35020 Rev L (6/07)

SHORT FORM SPECIFICATIONS

Provide Blodgett half-size convection oven model CTB/CTBR (single. double) compartment. Each compartment shall have (porcelainized/stainless) steel liner and shall accept five 13"

x I8", standard half-size bake pans. Doors shall be (dual pane thermal glass/window/solid stainless steel door) with single chrome plated door handle. Stainless steel front, top, sides

and legs. Unit shall be electrically heated with two or three tabular heaters dependent on wattage (5 or 7.5 kW) selection. Air in baking chamber distributed by blower wheel powered

by two-speed, 1/4 horsepower motor with thermal overload protection. Each chamber shall be fitted with five chrome plated removable racks, and have nine rack positions. Control panel

shall be recessed with Cook/Cool Down mode selector, solid state (manual/digital) infinite thermostat (200°-500°F), and 60-minute timer. Provide options and accessories as indicated.

DIMENSIONS:

Floor space 30-1/4" (768mm) W x 25-1/8" (638mm) D

Product clearance 0" from combustible and non-combustible construction.

Interior 15-1/4" (387mm) W x 20" (508mm) H x 21" (533mm) D

MAXIMUM INPUT:

CTB/CTBR single 5.6KW (8.0 KW increase option available)

CTB/CTBR double 11.2KW (16 KW increase option available)

MINIMUM ENTRY CLEARANCE:

Uncrated 25-1/16" (636mm)

Crated 30-1/4" (775mm)

SHIPPING INFORMATION:

Approx. Weight:

Single 295 lbs. (134 kg)

Double 595 lbs. (270 kg)

Crate size:

30-1/2" (775mm) x 35" (889mm) x 33" (838mm)

POWER SUPPLY:

V.A.C. Hz Phase K.W.H. Amperes (L1-L2-L3)

STANDARD

208 60 1 5.6 27/0/27

208 60 3 5.6 24/12/15

220-240 60 1 5.6 24/0/24

220-240 60 3 5.6 21/11/14

INCREASED OUTPUT

208 60 1 8 35/0/35

208 60 3 8 22/20/21

220-240 60 1 8 32/0/32

220-240 60 3 8 20/18/19

EXPORT

208 50 1 5.6 27/0/27

220-240 50 1 5.6 24/0/24

220-240 50 1 8 35/0/35

220/380 50 3 WYE 5.6 10/8/8

220/380 50 3 WYE 8 14/12/12

240/415 50 3 WYE 5.6 11/0/9

240/415 50 3 WYE 8 13/11/11

230/400 50 3 WYE 5.6 11/0/10

230/400 50 3 WYE 8 13/11/11

1/4 H.P., 2 speed motor, 1140 and 1725 RPM (60Hz.)

1/4 H.P., 2 speed motor, 1425 and 950 (50Hz.)
