BLN nobel G5 Manual de usuario

G5 Weighing Instrument

Program version 2.0.1

Technical Manual

PM Legal for trade EN 45501, OIML 76-1

CONTENTS

1. Introduction........................................................ 1-1

General...............................................................1-1

Maintenance.......................................................1-2

Safety information............................................... 1-2

Technical data ....................................................1-3

Ordering information...........................................1-6

2. Installation.......................................................... 2-1

Mechanical installation ....................................... 2-1

Electrical installation...........................................2-2

Connection of cable shields................................ 2-2

Profibus-DP Fieldbus Adaptor............................2-7

DeviceNet Fieldbus Adaptor...............................2-9

ControlNet Fieldbus Adaptor..............................2-11

Front panel.......................................................... 2-12

3. Set-up.................................................................. 3-1

General...............................................................3-1

How to connect a PC to the instrument..............3-2

Menu system ......................................................3-2

Menu structure....................................................3-4

Parameters.........................................................3-6

4. Calibration.......................................................... 4-1

General...............................................................4-1

Common parameters..........................................4-2

Data sheet calibration.........................................4-4

Table calibration ................................................. 4-5

Deadweight calibration ....................................... 4-5

5. Operation............................................................ 5-1

General...............................................................5-1

Power-up sequence............................................ 5-1

Status LEDs........................................................5-1

Display at normal operation................................5-2

Security locks......................................................5-3

Taring.................................................................. 5-4

Gross/Net operation ...........................................5-5

Zero setting.........................................................5-5

Zero-tracking/Automatic zero setting..................5-6

Motion.................................................................5-6

Weight printing....................................................5-7

Long-term Data Store......................................... 5-10

Main Menu..........................................................5-12

Level supervision................................................5-14

Setpoint function.................................................5-15

Digital inputs and outputs ................................... 5-15

Analog output...................................................... 5-15

Filter function......................................................5-16

6. Communication..................................................6-1

General ...............................................................6-1

Serial interface....................................................6-1

Modbus RTU Slave.............................................6-1

Modbus TCP Slave.............................................6-2

FTP Server..........................................................6-3

Modbus protocol..................................................6-3

Fieldbus interface................................................6-24

Fieldbus Data Definitions....................................6-25

7. Remote Access ..................................................7-1

General ...............................................................7-1

Browser requirements.........................................7-1

Using the Remote Access...................................7-2

Security...............................................................7-2

Remote Access Login and Logout......................7-3

Remote / Local Access .......................................7-5

8. Maintenance........................................................8-1

General ...............................................................8-1

File Handling .......................................................8-1

Create Backup ....................................................8-1

Restore Backup...................................................8-1

Set Default ..........................................................8-1

Instrument Restart...............................................8-1

Program upgrade................................................8-2

9. Adaptation for legal weighing...........................9-1

General ...............................................................9-1

Non-Automatic Weighing Instrument..................9-1

Settings affecting legal functions ........................9-5

Parameters not protected by Legal Lock............9-11

Discontinuous Totalizing automatic Weighing ....9-11

Automatic Catchweighing Instrument .................9-12

Labels for legal weighing ....................................9-13

10. Troubleshooting...............................................10-1

General ...............................................................10-1

Error codes..........................................................10-1

Warnings.............................................................10-1

Technical Manual

PRECAUTIONS

READ this manual BEFORE operating or servicing this instrument. FOLLOW these

instructions carefully. SAVE this manual for future reference.

INTENDED USE

The G5 Instrument family are measuring and control devices intended for industrial

systems. Its basic function is to convert the signals from transducers to useful

information. Transducer excitation is included as well as parameter controlled signal

processing, indication of output levels, error supervision and operation of optional

external equipment. The instrument supports several types of communication

interfaces.

INSTRUMENT INSULATION AND GROUNDING

The cable connector for mains power supply should include protective grounding for

safety. The cable for 24VDC power supply (screw terminal connector) should include a

ground connected to terminal GND.

The input groups of the instrument are insulated from each other by functional

insulation. Terminals intended for connection of cable shields are connected to the

protective ground of the mains or GND terminal of 24VDC input but must not be

considered as protective grounding. Shield connection of load cell input is not

connected to mains protective ground or 24VDC GND terminal.

Change description

Revision 0: First release of this document.

WARNING

Only permit qualified personnel to install and service this instrument.

Exercise care when making checks, tests and adjustments that must be

made with power on. Failing to observe these precautions can result in

bodily harm.

DO NOT allow untrained personnel to operate, clean, inspect, maintain,

service, or tamper with this instrument.

G5 Weighing Instrument

1-1

1. Introduction

General

The G5 PM Indicator is a high performance single-channel weight indicator (PM model,

panel mounted) intended for industrial systems.

The basic function is to convert the signals from strain gauge transducers to useful

weight information. Transducer excitation is included as well as parameter controlled

signal processing, indication of output levels, error supervision and operation of

optional external equipment.

As long as the error supervision detects no error, a signal called ‘In process’ is then

present but if an error is detected, ‘In process’ will be off and a specific error

message will be displayed. ‘In process’ can be set to control any digital output. Note

that there are weighing channel specific and instrument specific error detection.

All functions in the G5 Instrument are controlled by set-up parameters. Setting of

parameter values can be done from the PM front panel. Maintenance functions can be

accessed locally or remotely.

It is possible to load new software into the instrument using a SD-Card.

The instrument has 4 level supervising functions and 4 set-point functions.

Power supply

The G5-PM (panel mount indicator) is available as 24 VDC model. All input and output

signals are galvanically isolated from the power supply.

Strain gauge input

Both excitation voltage and the output signal from the transducer are measured at the

transducer to avoid influence from voltage drop in the connection cable. Excitation to the

transducer, from the G5 Instrument is provided over separate wires.

A shielded 6-wire cable must be used to connect a distant transducer to the instrument.

The analog signals from the transducer are converted to digital form and filtered to give

an internal transducer signal with high resolution.

The transducer excitation and signal values are combined to form an internal

transducer signal, representing the load on the transducer. Influenced by calibration

data, this signal is converted to a digital measurement value, the weight value, which

can be presented at the local display window and at external equipment.

Communication

The instrument utilizes the serial interface, Ethernet and a fieldbus interface for

communication with control system or computer. The serial interface consists of a RS-

485/RS-422 connection that can be used with 2- or 4-wire connection.

Weight values, level status, error status etc. can be collected and commands given

through the communication interfaces. G5 Instruments can be controlled from a master

computer or PLC using the serial interface, Ethernet interface, field bus interface or

digital I/O.

Modbus RTU protocol is used for the serial interfaces, Modbus TCP and EtherNet/IP

for the Ethernet connection. Optional fieldbus interface for Profibus, DeviceNet or

ControlNet can be used.

Technical Manual

1-2

The serial port can also be used to connect a printer for printing of weight or for

showing weight on an external display unit.

Maintenance

The G5 instrument needs no maintenance, performed by the end-user. Any service

or repair work must be performed by qualified personnel.

Contact your supplier.

Cleaning

Before cleaning the G5, disconnect the power connection to the instrument. Use a soft

cloth to clean the exterior of the instrument. For cleaning the instrument front panel, a

soft, damp, cloth may be used.

Safety information

Utilization.

The instrument may only be utilized for the measurement and control functions,

described in this Technical Manual. It is especially important to adhere to the load limits

of the input/output connectors. We accept no responsibility for any damage arising from

improper operation.

Any changes to the instrument, which causes any function changes, may only be

carried out by the manufacturer or after discussion with and permission by the

manufacturer.

If G5 is used in a manner not specified, the protection provided may be impaired.

Meaning of symbols used in this manual

Direct current.

Alternating current.

Caution, risk of danger. Documentation needs to be consulted.

G5 Weighing Instrument

1-3

Technical data

Enclosure

types PM - Panel mount

Enclosure

design Plastic, PC

Dimensions WxHxD 226x126x100 mm

(8.9”x5.0”x3.9”)

Depth behind front 100 mm (3.9”)

Front panel depth 14 mm (0.55”)

Depth not including connectors, screw terminals or cables

Panel cut out WxH 186 ±1 x 91 ±1 mm

Display Color TFT LCD screen with backlighting, 4.3” 480x272 pixels

Keyboard 31 membrane keys

Temperature

range Legal for trade: -10 to +40 °C

Rated performance: -10 to +55 °C

Storage: -25 to +85 °C

Relative

humidity Max. 85% up to 40°C, decreasing linear to 50% at 55°C.

Non-condensing

Rated

pollution Pollution degree 2

Protection IP65 (panel), indoor use

Altitude Up to 2000 m

EMC, RF CE (Industrial)

Serial interface

RS485 For process data and control or printout data to a connected printer.

Isolated by operational insulation

Protocol Modbus RTU, ASCII serial printer

Baud rate Up to 115 kbaud

Cable ratings

Cable rated min 80°C when ambient temperature > 45°C

Cable rated min 70°C when ambient temp. < 45°C and > 35°C

Fieldbus For process data and control (optional)

Technical Manual

1-4

Types Profibus, DeviceNet or ControlNet

USB Version 2.0

USB Memory USB type for PC

For backup and restore of set-up parameters. Operational insulation,

max 500mA output.

SD-Card Micro SD, Micro SDHC types.

Ethernet 10/100BASE-T. For process data, control, file transfer and remote

access.

Protocols Modbus TCP, FTP, http.

RJ45 Indications Orange LED: 100 Mbit/s. Yellow LED: Receiving/Transmitting.

Power supply DC

PM DC model 24 V ±15% including fluctuations, 15W

Impulse withstand (overvoltage) category I of IEC 60364-4-443.

Cable ratings

Cable rated min 80°C when ambient temperature > 45°C.

Cable rated min 70°C when ambient temp. < 45°C and > 35°C.

Load cell input Operational insulation

Excitation voltage: Nominal 10 V. Below is actual excitation shown with 350 ohm load

cells.

1 LC => 9.72V, 2 LC => 9.46V, 3 LC => 9.21V, 4 LC => 8.97V,

5 LC => 8.75V, 6 LC => 8.54V, 7 LC => 8.33V, 8 LC => 8.14V,

Sense voltage Min 1.2V, max 10V. Sense common mode must be within +-0.5V

relative terminal 26 in the load cell input connector.

Max load Maximum 8 (350 ohm)

A/D conversion: 2.4 kHz, 16 000000 units (24 bits)

Input range +/- 3 mV/V

Update rate: 300 weight updates per second

Sensitivity: 0.1 µV

Zero drift: <10 nV/V/K

Span drift: <2 ppm/K

Digital I/O

4 inputs 24 V ±15%, 5 mA from external power supply, isolated by

operational insulation and with common return

4 outputs 24 V ±15%, max 100 mA from external power supply, isolated by

operational insulation and with common return

Cable ratings Cable rated min 80°C when ambient temperature > 45°C

Cable rated min 70°C when ambient temp. < 45°C and > 35°C

Analog output

Resolution 65000 units, 16 bits

Voltage output 0 – 10 V, -10 – 10 V, > 1 kohm load

G5 Weighing Instrument

1-5

Current output 4 – 20 mA, 0 – 20 mA, -12 – 20 mA, -20 – 20 mA,

< 500 ohm load. Current source, i.e. no external power supply

needed.

Update rate 300 Hz

Filter Weight filter + extra smoothing filter (on/off via set-up)

Fieldbus ProfibusDP, DeviceNet and ControlNet.

Fieldbus

data 16 bytes from fieldbus to instrument.

80 bytes from instrument to fieldbus.

See chapter ‘Communication’ section ‘Fieldbus communication interface’ for

details on fieldbus data mapping.

Settings All fieldbus settings are done with setup parameters in the instrument. No

settings are done on the module itself.

Mounting The fieldbus adaptor is mounted in the fieldbus slot with LED’s and connector

accessible.

Remove the plastic cover from the fieldbus slot. Insert the adaptor very

carefully and make absolutely sure that the adaptor slides correctly into the

guides in the connector on the PCB. Tighten the two fastening screws at the

adaptor front and check that the two securing hooks locks into the PCB.

Module

type Profibus-DP DeviceNet ControlNet

Connector Profibus 9-pin, female

D-sub (DB9F) 5 pin male connector. BNC.

Baud rate 9.6 kbps – 12 Mbps or

Auto set by parameter 125, 250, 500 kbps or

Auto set by parameter. Fixed 5 Mbit/s.

Address 1 – 125,

set by parameter 0 – 63,

set by parameter 1 – 99, set by parameter

Bus

Supply

Voltage

According to DeviceNet

(Node) specification:

nominal 24 VDC,

range 11 – 25 VDC.

Technical Manual

1-6

Ordering information

PM model, single channel weighing, 24VDC supply

Denomination: G5-PM-S-DC-S

P/N: 110860 (ordering number).

If an (optional) fieldbus module is needed it must be ordered together with the

instrument. Ordering numbers are shown below. If multiple instruments and/or fieldbus

modules are purchased in the same order it must be clearly specified which module

should be mounted in which instrument.

Optional ProfibusDP fieldbus module

P/N: 110559 (ordering number).

Optional DeviceNet fieldbus module

P/N: 110560 (ordering number).

Optional ControlNet fieldbus module

P/N: 110838 (ordering number).

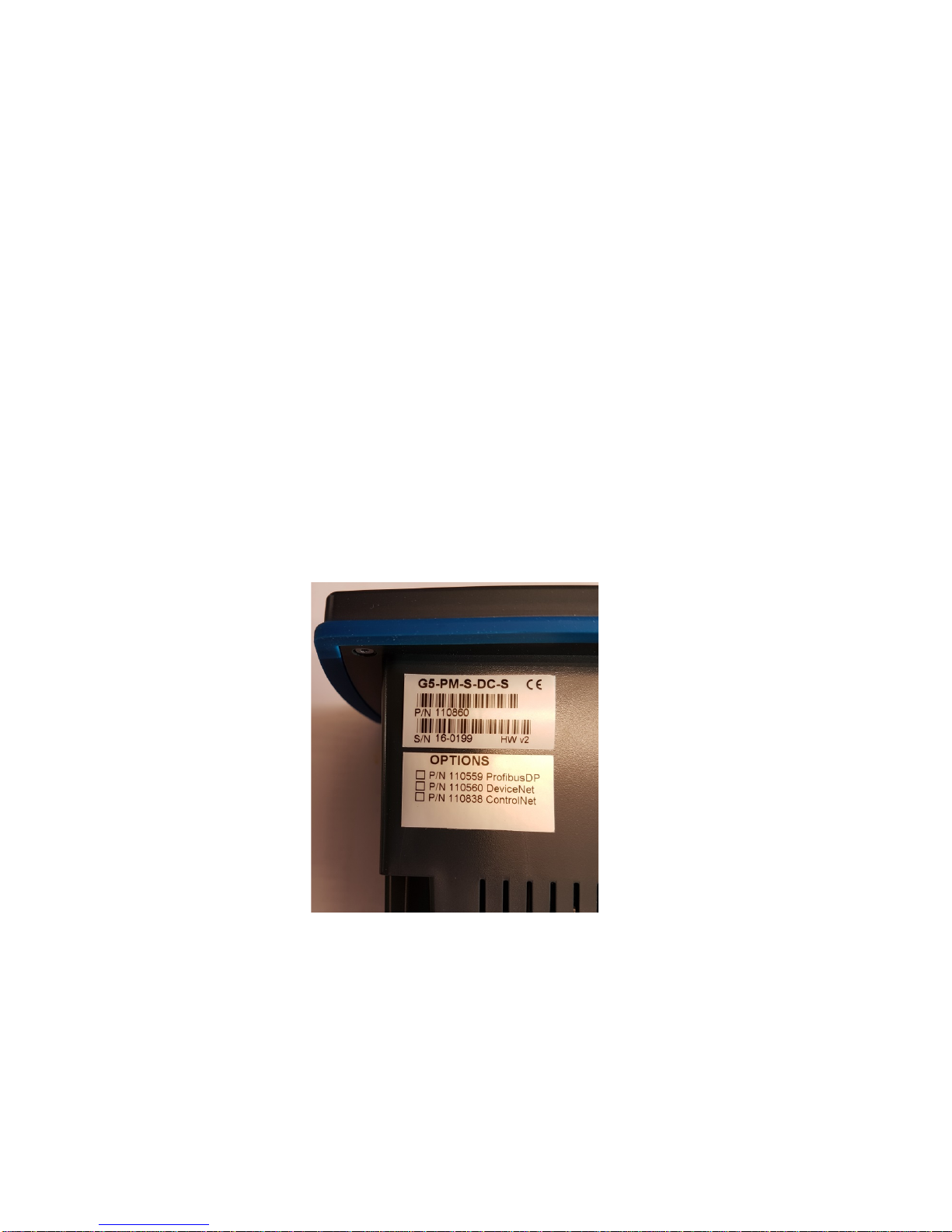

Example showing product information

and installed option(s).

Label shows:

G5-PM-S-DC-S=> G5, Panel Mount, Single load cell, DC power, Special program.

P/N 110860 => Part Number 110860 = Legal for trade

S/N 16-0199 => Serial Number, first two figures is year

HW v2 => Hardware version 2

Serial Number, Hardware version and Software version can also be found by pushing

INFO-key/Main Menu/System Information.

Tabla de contenidos

Manuales populares de Escala de otras marcas

AWS

AWS ZEO-50 Manual de usuario

Gima

Gima Glass Body Fat Analyzer Manual de lista de piezas

Seca

Seca 374 Manual de usuario

TEC

TEC TEC SL59 SERIES Manual de usuario

Axis

Axis B/E Series Manual de usuario

Alecto

Alecto ACW-40 Manual de usuario

Rice Lake

Rice Lake MSI-4260 IS Manual de usuario

IKA

IKA RCT basic safety control Manual de usuario

ADE

ADE M20011 Manual de usuario

Duronic

Duronic KS3000 Manual de usuario

Digi

Digi SM-720 Manual de usuario

Cardinal

Cardinal CS Series Manual de usuario

Korona

Korona Kastella Manual de usuario

A&D

A&D FC-50Ki Manual de usuario

BDA

BDA CAMARGUE Manual de usuario

Tanita

Tanita HD-357 Manual de usuario

Leifheit

Leifheit 03173 Manual de usuario

Lumme

Lumme LU-1340 Manual de usuario
