BLK BOX BINARY RACK Manual de usuario
OWNERS MANUAL & QUICK START GUIDE
BINARY RACK
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
21-0549-0A
#MADEINBELFAST
628mm x 1450mm x 2212mm
2128mm x 2950mm x 3076mm
65kg
PRODUCT SPECIFICATION
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
SAFE WORKING ZONE
-125kg
200kg
-
-
-
-
1
-
SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE
BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF
INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE).
WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
EACH PERSON SHOULD BE EQUIPPED WITH SAFETY GLASSES, STEEL TOE CAP BOOTS AND EAR PLUGS.
PLEASE BE AWARE OF THIS SYMBOL AS AN INDICATION TO CHECK THAT A PART IS LEVEL
OR PLUMB.
WARNING
SPIRIT LEVEL
10MM MASONRY
DRILL BIT
TOOLS REQUIRED
2x 30MM SPANNER
2x 17MM SPANNER
1x 13MM SPANNER
HAMMER
HAMMER DRILL VACUUM STEP LADDER
#MADEINBELFAST
TAPE MEASURE

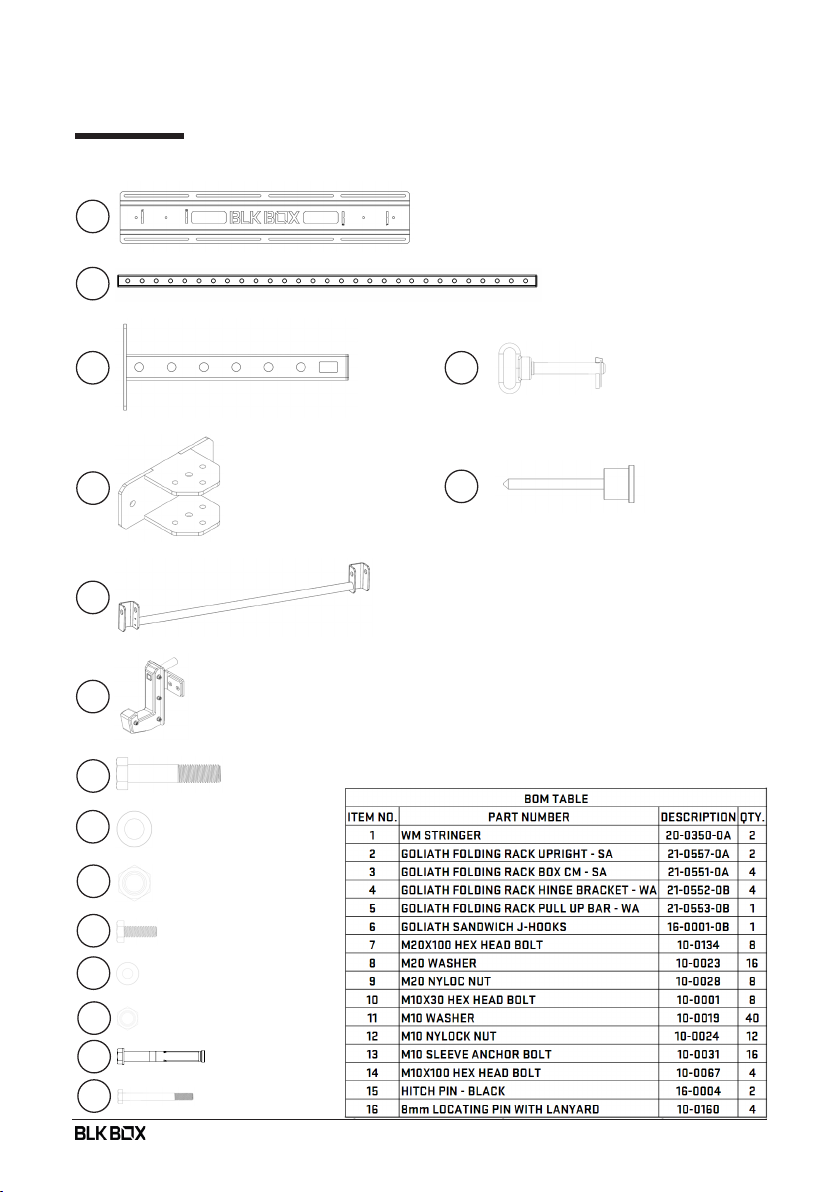

PARTS & ATTACHMENTS
#MADEINBELFAST
1
2
3
4
3
6
7
8
9
10
11
12
13
14
16
15
ASSEMBLY
1
PLACE THE WM STRINGER (20-0350-0A) IN A VERTICAL POSITION AGAINST THE WALL ,
PERPENDICULAR TO THE FLOOR.
MARK THE LOCATION OF THE INDICATOR ON THE WALL, USING THE POINT IN THE CENTRE
AS A GUIDE.
#MADEINBELFAST
#MADEINBELFAST
2
MOVE THE STRINGER 1200MM LEFT/RIGHT AND REPEAT STEP 1.
1200 MM
3
MARK OUT THE REST OF THE HOLES USING THE GUIDE BELOW.
#MADEINBELFAST
#MADEINBELFAST
4
CHECK THAT THE STRINGERS ARE LEVEL AND ALIGN WITH THE HOLES THAT HAVE BEEN
MARKED OUT. DRILL 10MM HOLES, 90MM DEEP. VACUUM OUT THE DUST
5
BOLT 4QTY HINGE BRACKET (21-0552-0B) TO 2QTY WM STRINGER WITH BOLTS
ASSEMBLY AS SHOWN.
#MADEINBELFAST
10-0031 x 2
10-0019 x 2
10-0019 x 2
10-0024 x 2
30
Nm
#MADEINBELFAST
6
SECURE STRINGERS TO THE WALL USING 16QTY M10 SLEEVE ANCHOR BOLTS (10-0031)
AND THE PREDRILLED HOLES.
30
Nm
7
BOLT 4QTY FOLDING RACK BOX CM (21-0551-0A) TO 2QTY UPRIGHT (21-0557-0A).
#MADEINBELFAST
10-0134 x 2
10-0023 x 2
10-0023 x 2
10-0028 x 2
10-0134 x 2
10-0023 x 2
10-0023 x 2
10-0028 x 2
