Communication

BT Drive Free 411 1 021 104 411

Contents

BT Drive Free 411.................................................................................................................3

Bluetooth technology........................................................................................................3

Safety and general information .....................................................................................4

Disposal notes ......................................................................................................................5

Scope of delivery.................................................................................................................5

Installation on the steering wheel ................................................................................5

Overview ................................................................................................................................6

Battery information ............................................................................................................6

Charging the battery..........................................................................................................7

Switching on/o..................................................................................................................8

Registering (pairing) and connecting with the cell phone ..................................8

Multi-connection function...............................................................................................9

Establishing a connection with two cell phones ....................................................9

Using the BT Drive Free 411.......................................................................................... 10

Resetting the BT Drive Free 411.................................................................................. 12

Light indicators and signal tones ............................................................................... 12

Fault removal ..................................................................................................................... 13

Declaration of conformity............................................................................................. 13

Warranty .............................................................................................................................. 13

Technical data.................................................................................................................... 14

BT Drive Free 411

This wireless Bluetooth hands-free system was developed specically for

users who want to use their cell phone while driving. The BT Drive Free 411 is

conveniently attached to the steering wheel. The multi-connection function

allows the simultaneous use of the BT Drive Free 411 with two cell phones. Its

improved microphone system and DSP technology for echo cancelling and

noise suppression achieve an excellent hand-free quality.

Bluetooth technology

BluetoothTM is a registered trademark of Bluetooth SIG, lnc. Bluetooth is a

wireless communication technology with short range. It enables wireless

connections between all compatible portable and stationary communication

devices. The technology is based on a radio connection that ensures a fast

and reliable transmission of voice and data information.

Bluetooth is oriented to the worldwide applicable standard for operating in

the internationally recognised ISM frequency band (Industrial Scientic &

Medical). Within the ISM band (2.4 GHz to 2.48 GHz), the Bluetooth transmis-

sion operates 1600 times per second between 79 dierent frequencies with

a data transmission range of up to 10 metres (Class 2).

Safety and general information

– Carefully read the operating instructions and follow the instructions.

– Observe all locally applicable laws for the use of cell phones and hands-free

systems while driving. Operate the BT Drive Free 411 only if the trac situ-

ation allows it and you are not creating a risk for other trac participants.

– To avoid any damages and malfunctions, do not drop the device from

an elevated height.

– Protect the device against humidity, water and other liquids. If the device

should have been exposed to water, humidity or other liquids, do not use

it since it may lead to damages of the device and to injuries from electrical

shock or explosion.

– Do not expose the device to extreme heat sources, such as direct sunlight.

This can cause explosions as well as reduce the performance and/or service

life of the battery.

– Do not make any changes or repairs to the device and do not attempt to

disassemble it. (Particularly not on the battery since the risk of explosion

exists.) It will immediately void the warranty.

– Do not place any heavy objects on the device.

– Use only the supplied charger.

– Repairs and service work may be performed only by a qualied service

centre or the manufacturer.

– In case of extended non-use or thunderstorms, disconnect the device

from the power supply.

Disposal notes

Use the return and collection systems available to dispose of the old

device.

Scope of delivery

The scope of delivery includes:

– BT Drive Free 411

– 12-volt DC vehicle charger adapter

– USB charger cable

– Operating instructions

Installation on the steering wheel

Fasten the BT Drive Free 411 to the steering wheel using the Velcro strap.

Firmly pull the Velcro strap together so that the device will not loosen while

driving. Attach the BT Drive Free 411 to the inside circle of the steering wheel

and select a position so that it does not interfere with steering the vehicle.

Warning: The BT Drive Free 411 may not be positioned within the deploy-

ment area of an air bag.

Overview

1 2 3 4 5 6 7

MF button (illuminated multifunction button)

Loudspeaker

Decrease volume (–)

Increase volume (+)

Microphone

Charging socket (micro USB port)

Velcro strap for fastening to the steering wheel

Battery information

The device is equipped with an integrated lithium-polymer battery. The

battery cannot be replaced. Do not attempt to remove the battery from the

device since it would damage the device. The full performance of a new bat-

tery is not achieved until after two or three complete charging-discharging

cycles. The battery can be charged and discharged several hundred times,

but it looses its capacity over time.

Disconnect the BT Drive Free 411 from the power supply as soon as the

battery is fully charged, since overcharging would reduce the service life of

the battery. A charged battery looses its capacity if it is not used.

Important: Ensure that the battery is fully charged if you do not use the device

for a longer period of time. To avoid a complete discharge of the battery, the

BT Drive Free 411 should be charged at least every 2 months.

Charging the battery

The BT Drive Free 411 is operated with a rechargeable battery. Charge the

battery completely before its rst use. Read the section "Battery information"

before starting the charging process.

You have to remove the BT Drive Free 411 from the steering wheel for the

charging procedure. The charging socket is located at the side of the hous-

ing that rests against the steering wheel. Connect the BT Drive Free 411 with

the vehicle charging adapter via the USB cable. Insert the vehicle charging

adapter into the cigarette lighter of the vehicle. The BT Drive Free 411 can

also be charged with the USB cable connected to the computer.

Note: As soon as the charger is connected, the BT Drive Free 411 switches o.

During the charging process, the MF button lights red. After the battery is

fully charged, the MF button lights blue. The charging process of the battery

lasts approx. 3 hours. Disconnect the BT Drive Free 411 from the charger after

it has been charged.

A completely charged battery supports a talk time of up to 7 hours and a

standby time of up to 300 hours. If the charge state of the battery becomes

low, the MF button ashes red every 3 seconds and you hear a warning beep

every 20 seconds.

Switching on/o

Switching on

To switch the unit on, press the MF button for approx. 3 seconds until you

hear a high-pitched signal tone and the MF button lights blue. Afterwards,

the MF button lights blue and the device is switched on.

Switching o

To switch the unit o, press the MF button for approx. 3 seconds until you

hear a low-pitched signal tone and the MF button lights red. Afterwards, the

device is switched o.

Registering (pairing) and connecting with the cell phone

Before you can use the BT Drive Free 411, you must register and connect it with

a Bluetooth-ready cell phone. Registering is a one-time process and required

only for the rst connection with the cell phone. The BT Drive Free 411 can

be registered with up to eight cell phones and be connected simultaneously

with two cell phones.

– Hold the BT Drive Free 411 within range of a Bluetooth-ready cell phone;

the distance should not exceed a metre.

– The BT Drive Free 411 must be switched o.

– Press the MF button for approx. 6 seconds until you hear a low-pitched

signal tone and the MF button intermittently ashes red and blue. The

device is in registration mode.

– Activate the Bluetooth function of the cell phone and start the search for

Bluetooth devices. (For further details, please read the operating instruc-

tions of your cell phone).

– From the list of devices found, select the "BT DF 411".

– If required, enter the PIN code "0000" and conrm the entry. If the pairing

process was successful, you hear a signal tone and the MF button lights

blue for 3 seconds. (Note: The PIN code is preprogrammed and cannot

be changed.)

– After registering, the BT Drive Free 411 automatically connects with the

cell phone. For some cell phones, you have to manually conrm the con-

nection. Next, the BT Drive Free 411 changes to standby mode and the

MF button ashes blue every 3 seconds.

Note: If the registering is not completed within 2 minutes, the BT Drive Free 411

switches o again. In this case, repeat the registering.

Multi-connection function

The multi-connection function allows the simultaneous use of the

BT Drive Free 411 with two cell phones. This is advantageous for users with

a personal and a business cell phone.

Establishing a connection with two cell phones

There are several options of connecting the BT Drive Free 411 with already

registered cell phones.

–Automatic connection

When switching on the BT Drive Free 411, a connection is automatically

established with the two most recently connected cell phones.

–Establishing a connection via the BT Drive Free 411

To manually establish a connection between the BT Drive Free 411 and

the two most recently connected cell phones, press the MF button. The

BT Drive Free 411 rst connects itself with the most recently connected

cell phone. Then it connects itself with the next most recently connected

one.

–Establishing a connection via the cell phone

If the cell phone is not one of the two most recently connected cell phones

with the BT Drive Free 411, you have to establish the connection via the

Bluetooth menu of the cell phone. After successful connection, you can

establish another connection with a second cell phone. This allows you

to determine the sequence of connections.

If two cell phones are connected with the BT Drive Free 411, the cell phone

connected rst is the rst device and the other one the second device. Another

connection can be established only after rst disconnecting one of the two

cell phones. The cell phone which is still connected afterwards becomes the

rst device in the sequence.

Note that voice dialing is available only for the rst device and the operation

for redialling the last number diers for the rst and the second device. The

other functions are executed the same way using the BT Drive Free 411 as a

connection with only one cell phone.

Using the BT Drive Free 411

After successfully completing the registration and charging the battery, the

following functions can be executed:

Making a call

–Voice dialing*

To activate voice dialing, briey press the MF button. You hear several

signal tones. After the signal tone, speak the voice command. After the

voice command has been recognized, the cell phone dials the number

associated with it.

Note: If two cell phones are connected with the BT Drive Free 411, the

voice commands are directed only to the cell phone connected rst.

–Redialling the last number*

Press the MF button twice. You hear a signal tone and the number dialled

last is being redialled.

Note: If two cell phones are connected with the BT Drive Free 411, hold

the "–" button pressed for 2 seconds to dial the last number of the cell

phone connected last.

–Call origination via cell phone

Select the desired number as usual via the cell phone.The call is automati-

cally transferred to the BT Drive Free 411.

Answering a call

To answer an incoming call, briey press the MF button.

Ending a call

Briey press the MF button to end a call.

Rejecting a call*

To reject a call, hold the MF button pressed until you hear a signal tone.

Adjusting the volume

During a phone call, adjust the volume with the buttons "+" and "–".

Muting the microphone

To mute the microphone during a call, press the "–" button for 3 seconds.The

MF button flashes red every 10 seconds and you hear two signal tones. Press

the "–" button again for 3 seconds to cancel mute.

Tabla de contenidos

Otros manuales de Accesorios para automóviles de Blaupunkt

Blaupunkt

Blaupunkt BT Drive Free 111 Manual de usuario

Blaupunkt

Blaupunkt BT Drive Free 311 Manual de usuario

Blaupunkt

Blaupunkt VELOCITY POWER BM 1200 WSN Manual de usuario

Blaupunkt

Blaupunkt 7 608 502 000 Manual de usuario

Blaupunkt

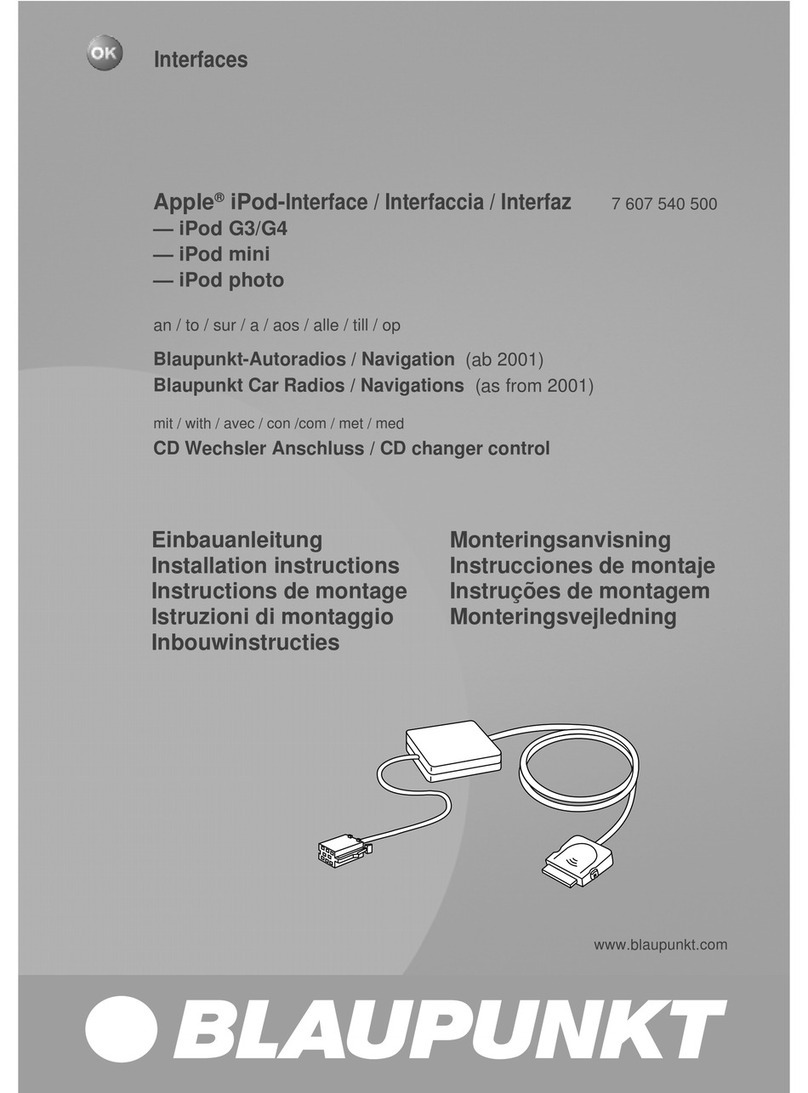

Blaupunkt iPod Interface Manual de usuario

Blaupunkt

Blaupunkt BT DRIVE FREE 211 Manual de usuario

Blaupunkt

Blaupunkt BC OE2 Manual de usuario

Blaupunkt

Blaupunkt AVMC 1.0 Manual de usuario

Blaupunkt

Blaupunkt TPMS HN1.0 Manual de usuario

Blaupunkt

Blaupunkt BP RSE AD 10.1 Manual de usuario

Blaupunkt

Blaupunkt BPA 3022 M Manual de usuario

Blaupunkt

Blaupunkt BT DRIVE FREE 112 Hoja de especificaciones

Blaupunkt

Blaupunkt BT DRIVE FREE 414 Manual de usuario

Blaupunkt

Blaupunkt RC TY 1.0 Manual de usuario

Blaupunkt

Blaupunkt CAN-Interface RCI-4A-VW Manual de usuario

Blaupunkt

Blaupunkt BPDW8913WR Manual de usuario

Blaupunkt

Blaupunkt TPMS TY1.0 Manual de usuario

Blaupunkt

Blaupunkt IVOD-1022 Manual de usuario

Blaupunkt

Blaupunkt A-R G 01-E Hoja de especificaciones

Blaupunkt

Blaupunkt BT DRIVE FREE 114 Manual de usuario

Blaupunkt

Blaupunkt BT DRIVE FREE 112 Manual de usuario

Blaupunkt

Blaupunkt Vx Series Manual de usuario

Blaupunkt

Blaupunkt IVHS-02 Manual de usuario

Blaupunkt

Blaupunkt NAV-Phone-Shark Manual de usuario

Manuales populares de Accesorios para automóviles de otras marcas

James Baroud

James Baroud Odyssey Manual de usuario

Motorola

Motorola i50sx Manual de usuario

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manual de usuario

Feniex

Feniex T3 Manual de usuario

Renault

Renault 77 11 423 180 Manual de usuario

Kia

Kia E8300-4D000 Manual de usuario

Brink

Brink 756843 Manual de usuario

Whispbar

Whispbar K085W Manual de usuario

v.link

v.link CI-VL2-PC-HSD Manual de usuario

Viking

Viking Stack-Rack Guía de configuración rápida

Aries

Aries 203015 Manual de usuario

Choetech

Choetech AT0005 Manual de usuario

ZZ2

ZZ2 ZZAIR-PRO Manual de usuario

Holman

Holman 4A80L Manual de usuario

Thule

Thule 2075 Manual de usuario

Motorola

Motorola T325 Manual de usuario

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guía de instalación

DV8

DV8 FBJL-02 Manual de usuario
