Instructions for the Use and Care and Installation of
Multi-fuel Freestanding Multifunction Cookers
FD9085WX
FD9085FCR
FD9085FB
FD9085FR
FD9085FG
FD9085FX
Dear Customer
Thank you for choosing our product.
Please read this hand book carefully before installing and using it, as you will find the
correct indications for the best installation, use and care of the product.
You will find that the clean lines and modern look of your Blanco oven blends in
perfectly with your kitchen décor. It is easy to use and performs to a high standard.
Blanco also makes a range of products that will enhance your kitchen – such as
cooktops, rangehoods, dishwashers, microwaves, sinks and taps. There are models
to complement your new Blanco oven.
Of course, we make every effort to ensure that our products meet all your requirements,
and our Customer Service Centre is at your disposal to answer all your questions and to
listen to all your suggestions.
Please complete the warranty section of this manual and keep your receipt as proof of
purchase. Retain all documents relating to the purchase of your Blanco product.
Blanco is committed to providing increasingly efficient products that are easy to use,
respect the environment and are attractive and reliable.
BLANCO
Index
GENERAL WARNINGS p. 5 - 8
Instructions for installation:
• Dimensions and installation features p. 9
• Electrical connection p. 10
• Ventilation and gas connection p. 11 - 12
• Adaptation to different types of gas p. 12
• Setting the minimum flame p. 13
• Burner and injector characteristic table p. 14
Instructions for use
• Description of the main parts of the appliance p. 15
• Ignition and operation of the burners p. 16
• Advice on the use of gas burners p. 17
• Oven function p. 18
• Component operation p. 19 - 21
Instructions for cooking p. 22 - 23
Instructions for the assembly
of bottom kick plate onto the cookers p. 24
Maintenance and cleaning p. 25 - 27
Blanco product warranty. p. 29
Blanco customer service p. 28
4
• Very important: keep this instruction booklet with the appliance in case you pass
it on to someone else.
•This appliance is designed for non professional use by private individuals
at home. It must be used by adults, do not allow children to play with it.
The front accessible parts of the equipment could overheat during use.
• This appliance is not intended for use by young children or infirm persons without
supervision.
• Young children should be supervised to ensure that they do not play with the
appliance.
• Don’t touch the heating elements inside the oven.
• When the grill is on all the accessible elements are hot, hence, keep children
away from these elements.
• This appliance shall be installed only by authorised persons and in accordance
with the manufacturer's installation instructions, local gas fitting regulations,
municipal building codes, electrical wiring regulations, local water supply regula-
tions, AS 5601/AG 601 - Gas Installations and any other statutory regulations.
• Before switching the appliance on check that it is correctly regulated for the type
of gas available (refer to page 11 and 12).
• Do not use the steams jets for cleaning.
• Before maintenance or cleaning disconnect the appliance from the mains and
wait for it to cool down.
• When the burners are lit check that the flame is always regular. Before removing
the saucepans turn the burners off.
• Servicing should be carried out only by authorised personnel.
General Warnings
5
• The use of a gas appliance produces heat and humidity in the room where it is
installed. Make sure that the room is well ventilated, keeping the natural ventila-
tion outlets open or installing a ventilation hood with drain duct.
• If a gas appliance is used for a long time it may require extra ventilation (opening
a window or increase of the forced exhaust of rangehood).
•Be careful not to place saucepans with unstable or deformed bottoms on the bur-
ners to avoid accidents by overturning or spilling of liquid.
• If a burner is turned off accidentally turn off the control knob and try to light it
again after waiting at least a minute.
• For any repairs always contact an authorised Service Centre and ask for
original spare parts. Repairs by untrained people will void your warranty on this
product.
• Keep packaging out of reach of children at all times.
General Warnings
Before using the oven for the first time, we suggest to:
• remove the special film covering the oven door glass
(when provided)
• heat the empty oven at max. temperature for 45 minutes
(to remove unpleasant smell and smoke caused by
working residues and by the thermal insulation)
• carefully clean inside the oven with soapy water and rinse it .
6
•Always use oven gloves to remove and replace food in the oven. Ensure that
you support the grill pan when removing it from the oven.
•Don't let children sit down or play with the oven door. Do
not use the drop down door as a stool to reach above
cabinets.
• DO NOT SPRAY AEROSOLS IN THE VICINITY OF
THIS APPLIANCE WHILE IT IS IN OPERATION.
• DO NOT STORE OR USE FLAMMABLE LIQUIDS OR ITEMS IN THE VICINITY
OF THIS APPLIANCE.
•THIS PRODUCT IS NOT FOR USE IN MARINE CRAFT, CARAVANS OR
MOBILE HOMES.
Warning:
Never use the food-warmer drawer set at the bottom of the range to store
inflammable substances or matters that cannot withstand heat such as:
wood, paper, spray cans, rags, etc.
General Warnings
This electric appliance complies with the following directives:
- 2004/108/EEC (electromagnetic compatibility)
- 89/109/EEC (foodstuffs)
- 2006/95/EEC (low voltage)
- 2009/142/CE ex 90/396/CE (gas fittings)
7

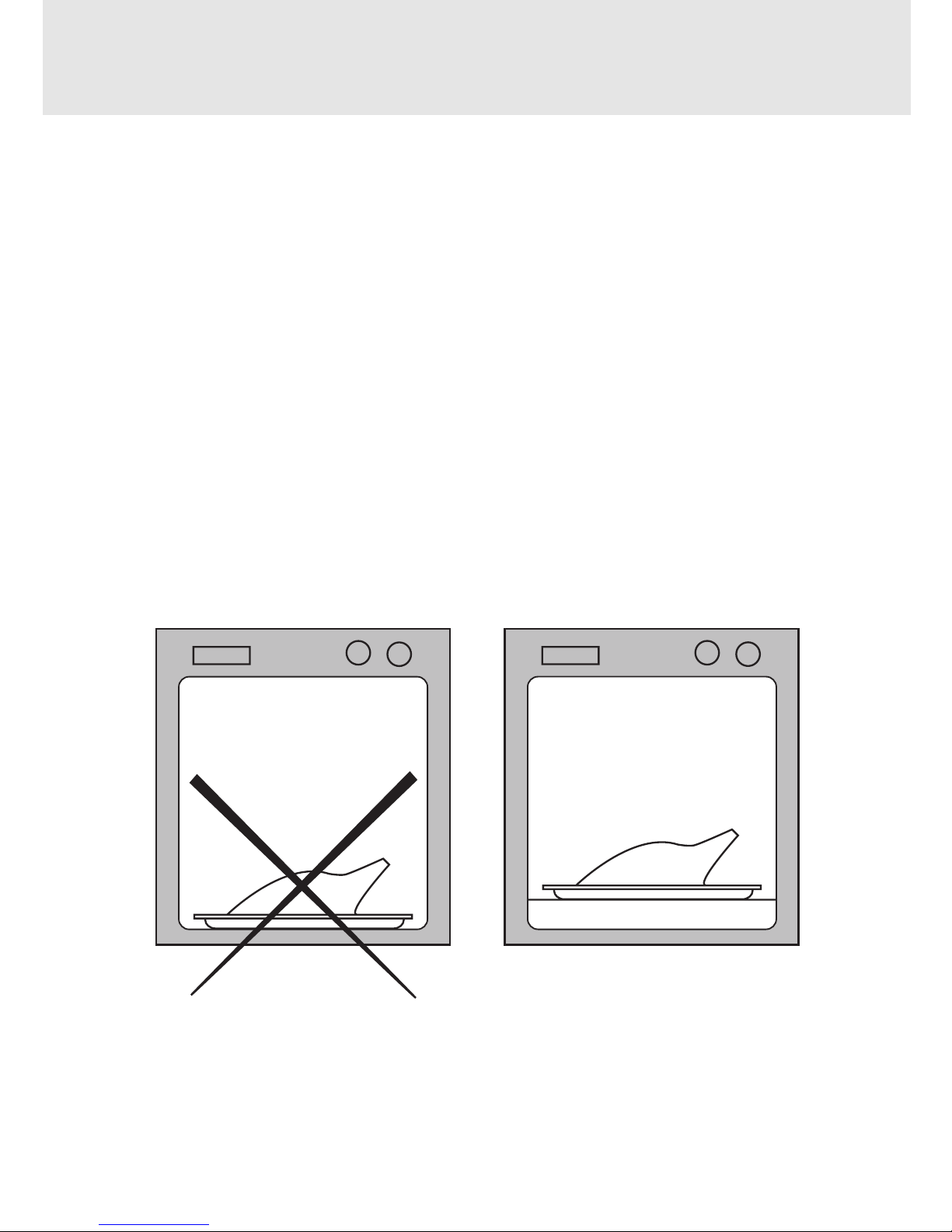

NO YES
The base element is concealed beneath the bottom of the oven to make the oven easier
to clean and contribute to better access into the oven.
Because the element is concealed beneath the oven the following rules will need to be
observed during cooking to ensure optimum performance from the oven.
DO NOT PLACE ALUMINIUM FOIL OR METAL OBJECTS ON THE BASE OF THE OVEN
DURING COOKING.
Foil or dishes must never be placed on the base of the oven during cooking as the con-
centration of the direct and reflected heat will damage the enamel surface. Provisions of
the warranty do not cover damage resulting from such use.
General Warnings
8
IMPORTANT NOTICE TO THE USER
Instructions for Installation
DIMENSIONS AND INSTALLATION FEATURES
900
600
970 ÷ 980
150 min
600 min
TO FIT THE STABILISING CHAINS
In order to prevent tipping of the appliance it is equipped
with 2 chains for stabilising means and must be installed
and is required for safety reasons.
After the connection to gas and electrical supply is
completed and oven is located in its final position. The
following MUST be done:
The 2 chains are fitted in the upper part of the rear right
and the rear left side. These two chains enable the cooker
to be fixed to the wall
1. The anchor used to attach the chains to the rear wall
must be of a type suitable for the purpose
2. If the appliance is installed between two cupboards, drill
a hole big enough on each side of the cupboards, to allow
the chains to pass through the holes and anchor the chains
within each cupboards
3. If the appliance is installed next to drawers, remove the
drawers, then carry out the procedure described in point 2.
Ensure the anchor does not interfere with the operation of the
drawers. If the cooker is to be installed next to an appliance,
such as a dishwasher, temporarily remove the appliance for
access to fit the stabilising chains.
4. Make sure the fixing to the wall is as close as possible to the
chain anchor point on the cooker and that the chains are
taught to effectively prevent the appliance from tilting.
Important: For a unique situation where the stabilising chains cannot be fitted, please contact
Blanco Technical Department for advice.
When the oven is moved for servicing – THE CHAINS MUST BE RE-ATTACHED by the Technician.
THE MANUFACTURER DECLINES ANY AND ALL RESPONSIBILITIES FOR DAMAGES TO
PROPERTY OR INJURIES TO PERSONS OR ANIMALS DERIVING FROM INCORRECT
INSTALLATION OR USE OF THE EQUIPMENT SET OUT IN THE MANUAL.
Nominal volume of the oven
101 lt
9
ELECTRICAL CONNECTION
The appliance is fitted with an Australian approved 15 Amp flexible cord and plug
which must be connected to a correctly earthed socket outlet.
The manufacturer is not liable for any direct or indirect damage caused by faulty
installation or connection. It is therefore necessary that all installation and connec-
tion operations are carried out by qualified personnel complying with the local and
general regulations in force.
CONNECTION OF THE FEEDING CABLE TO THE MAINS
Connect the feeding cable to a plug suitable for the load indicated on the rating plate
of the product. In case of a direct connection to the mains (cable without plug), it is
necessary to insert a suitable omnipolar switch before the appliance, with minimum
opening between contacts of 3 mm (the grounding wire should not be interrupted by
the switch).
Before connecting to the mains, make sure that:
• The electrical counter, the safety valve, the feeding line and the socket are ade-
quate to withstand the maximum load required (see rating plate).
•The supply system is regularly grounded, according to the regulations in force.
•The socket or the omnipolar switch can easily be reached
after the installation of the oven
•After carrying out the connection to the mains, check that the
supplying cable does not come into contact with parts
subject to heating.
•Never use reductions, shunts, adaptors which can cause
overheating or burning.
The manufacturer is not liable for any direct or indirect
damage caused by faulty installation or connection. It is therefore necessary
that all installation and connection operations are carried out by qualified per-
sonnel complying with the local and general regulations in force.
Instructions for Installation
Electrical features
Oven light 2x25 W
Upper heating element 1100 W
Bottom heating element 1500 W
Grill heating element 2600 W
Circular heating element 2600 W
10
