Black Stone PRO Series Manual de usuario

North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com

28" GRIDDLE

COOKING STATION

Parts & Assembly

MODEL 

Before proceeding, make certain

that you read and understand the

Owner’s Manual included with

your griddle.

Hazardous fire or explosion may

result if instructions are ignored.

It is the consumer’s responsibility

to see that the griddle is prop-

erly assembled, installed, and

maintained. Failure to follow the

instructions in this manual could

result in bodily injury and/or

property damage.

SAFETY ALERT KEY

Read and follow all of the notices

found throughout the manual.

INSTALLER/ASSEMBLER:

Leave these instructions with consumer.

CONSUMER:

Keep this manual for future reference.

TO REGISTER your Blackstone product please go to

www.blackstoneproducts.com/register-griddle

Model Number _____________________________

Serial Number______________________________

Date Purchased ____________________________

!DANGER

Indicates an imminently

hazardous situation which, if not

avoided, will result in death or

serious injury.

!WARNING

Indicates the possibility of serious

bodily injury if the instructions

are not followed.

!CAUTION

Indicates a potentially

hazardous situation which, if not

avoided, may result in minor or

moderate injury.

28” Pro Series Griddle Cooking Station | Parts & Assembly

PARTS & ASSEMBLY

ILLUSTRATED PARTS LIST

01. Griddle body (1 piece) 02. Griddle top & hood (1 piece) 03. Side shelf (2 pieces)

04. Cabinet handle (2 pieces) &

Hood handle (1 piece) 05. Inner shelf (1 piece) 06. Knobs (2 pieces) &

Grease cup (1 piece)

07. Wheels (2 pieces) 08. Caster wheels (2 pieces) 09. Grease cup (1 piece) & Garbage

bag holder (1 piece)

10. Black cap (4 pieces) 11. Mica sheet (2 pieces) 12. Metal pegs (6 pieces) &

Washers (6 pieces)

13. M6X12 screws (14 pieces)

M6X16 screws (4 pieces) 14. Small thumbscrew (1 piece) NOT INCLUDED - 20lb LP Gas Tank

& AA Battery

28” Pro Series Griddle Cooking Station | Parts & Assembly

ASSEMBLY INSTRUCTIONS

Please read all instructions thoroughly before proceeding. Make sure all

the plastic packing material is removed before assembling

Find a large, clean area to assemble your griddle. Please refer to the parts list

and assembly diagrams as necessary.

Griddle assembly involves large components; therefore, it is advised to have

two people assemble the unit.

TOOLS NEEDED: Phillips Head

Screwdriver & Adjustable Wrench

STEP 01

With the help of another person, place the griddle unit on a smooth at

surface. Install the control knobs by pushing them into place.

28” Pro Series Griddle Cooking Station | Parts & Assembly

!CAUTION

Two people are recommended for

the assembly of this product.

!WARNING

The manufacturer has made every

eort to eliminate any sharp

edges. However, you should

handle all components with care

to avoid accidental injury.

Some parts may contain sharp

edges, especially as noted

in these instructions. Wear

protective gloves if necessary.

!WARNING

The use of alcohol, prescription

or non-prescription drugs may

impair the consumer’s ability

to properly assemble or safely

operate the appliance.

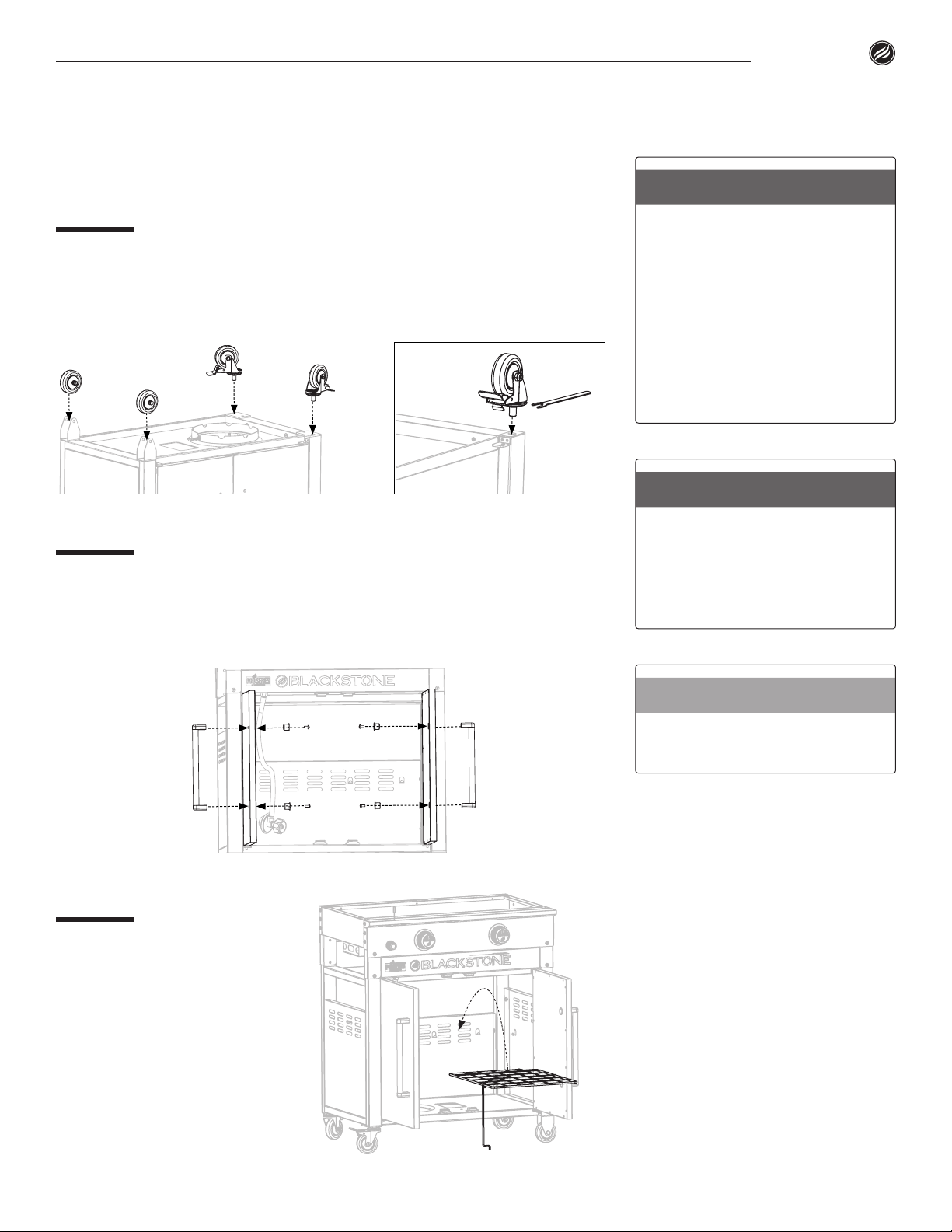

STEP 02

With the help of another person, place the griddle upside down. Unscrew the

bolt and nut from the two (2) wheels and use them to attach the wheel to the

le side of the unit. Then, lock the caster wheels to keep them from spinning

and screw them into the griddle base.

STEP 03

With the help of another person, set the griddle unit on its wheels. Attach

the handle to right cabinet door with two (2) M6X12 screws and two (2) black

caps. Repeat this with the le cabinet door using two (2) M6X12 scews and

two (2) black caps.

STEP 04

Place the inside shelf onto the

four built-in hooks on the inside

of the griddle unit cabinet.

28” Pro Series Griddle Cooking Station | Parts & Assembly

STEP 05

Attach the paper towel holder on to the griddle body by a small thumbscrew.

Place the garbage bag holder on the le side of the griddle body into the holes

on the griddle unit.

STEP 06

Unscrew the three metal pegs and washers from the back of both the right

and le side shelves and then attach them to the front. Attach the right side

shelf to the griddle body with four (4) M6X12 screws. Attach the le side shelf

to the griddle body with four (4) M6X12 screws.

Insert one AA battery (not included)

into the battery socket with the

positive terminal facing out, and

then screw on the Ignition Button

until tight, be careful not to

over tighten.

28” Pro Series Griddle Cooking Station | Parts & Assembly

STEP 07

With the help of another person, place the griddle top and hood onto the

griddle body by aligning the four pins to the holes on top of the griddle unit.

Make sure the pins are fully seated in the holes.

STEP 08

Attach the handle to the hood with two (2) M6X16 screws and two (2) mica

sheets as shown. Place the grease cup at the rear of the griddle.

STEP 09

Proceed to seasoning instructions (pg 18) in the Owner’s Manual. Enjoy

cooking outdoors on your Blackstone 28” Griddle!

NEED HELP? Call Blackstone Information

Center for missing parts, assembly or and

operation questions: 435-252-3030

or email us at:

support@blackstoneproducts.com

ÉTAPE

28” Pro Series Griddle Cooking Station | Parts & Assembly

North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com

28" PLANCHA

ESTACIÓN DE COCINA

MODELO 

Piezas y ensamblaje

Antes de continuar, asegúrese

de leer y comprender el Manual

del propietario incluido con

su plancha.

Se pueden producir incendios

o explosiones peligrosas si se

ignoran las instrucciones.

Es responsabilidad del

consumidor ver que la plancha

esté correctamente ensamblada,

instalada y mantenida. Si no se

siguen las instrucciones de este

manual, se podrían producir

lesiones corporales y/o daños

a la propiedad.

LLAVE DE ALERTA DE

SEGURIDAD

Lea y siga todos los avisos que

se encuentran en el manual.

INSTALADOR/ENSAMBLADOR:

Entréguele estas instrucciones al consumidor.

CONSUMIDOR:

Guarde este manual para futuras referencias.

PARA REGISTRAR su producto Blackstone, vaya

a www.blackstoneproducts.com/register-griddle

Número de modelo__________________________

Número de serie ____________________________

Fecha de compra ___________________________

!PELIGRO

Indica una situación de peligro

inminente que, si no se evita,

causará la muerte o lesiones graves.

!ADVERTENCIA

Indica la posibilidad de lesiones

corporales graves si no se siguen

las instrucciones.

!PRECAUCIÓN

Indica una situación

potencialmente peligrosa que,

si no se evita, puede resultar

en una lesión moderada.

Plancha de 28“ Serie Pro | Piezas y montaje
