Black Stone 1833 Manual de usuario
North Atlantic Imports LLC | 513 West 2500 North, North Logan UT 84341 | Blackstoneproducts.com
22" TABLETOP
GRIDDLE
Parts & Assembly
MODEL
Before proceeding, make certain
that you read and understand the
Owner’s Manual included with
your griddle.
Hazardous fire or explosion may
result if instructions are ignored.
It is the consumer’s responsibility
to see that the griddle is prop-
erly assembled, installed, and
maintained. Failure to follow the
instructions in this manual could
result in bodily injury and/or
property damage.
SAFETY ALERT KEY
Read and follow all of the notices
found throughout the manual.
INSTALLER/ASSEMBLER:
Leave these instructions with consumer.
CONSUMER:
Keep this manual for future reference.
TO REGISTER your Blackstone product please go to
www.blackstoneproducts.com/register-griddle
Model Number _____________________________
Serial Number______________________________
Date Purchased ____________________________
!DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
!WARNING
Indicates the possibility of serious
bodily injury if the instructions
are not followed.
!CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
22” Tabletop Griddle | Parts & Assembly
PARTS & ASSEMBLY
ILLUSTRATED PARTS LIST
01. Body (1 piece) 02. Griddle Top (1 piece) 03. Griddle Stand (1 piece)
04. Side Shelf (1 piece) 05. Hood Handles (1 piece) 06. Handle Grommet (2 pieces)
07. Regulator (1 piece) 08. Griddle Feet (4 pieces) 09. Grease cup (1 piece)
10. M6 Bolt (2 pieces) NOT INCLUDED - LP Gas Bottle
22” Tabletop Griddle | Parts & Assembly
01
ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench
STEP 01
Place griddle on a smooth at surface and attach the four (4) griddle feet
to the bottom of the griddle in the pre-threaded holes. Ensure that the fuel
nozzle is housed within the burner opening.
STEP 02
Remove the griddle stand from packaging. Adjust the legs to desired height
then open the stand legs. Once the legs are fully open, the locking pins will
engage. To close the legs, pull on the locking pins to disengage them.
22” Tabletop Griddle | Parts & Assembly
02
!CAUTION
Two people are recommended for
the assembly of this product.
!WARNING
The manufacturer has made every
eort to eliminate any sharp
edges. However, you should
handle all components with care
to avoid accidental injury.
Some parts may contain sharp
edges, especially as noted
in these instructions. Wear
protective gloves if necessary.
!WARNING
The use of alcohol, prescription
or non-prescription drugs may
impair the consumer’s ability
to properly assemble or safely
operate the appliance.
STEP 03
Attach the side shelf by sliding the tear-shaped holes over the pre-inserted
screws on the right side of the griddle stand. Push the shelf down to lock it
into place.
STEP 04
Place the griddle on the stand. The four (4) feet on the bottom of the griddle
will line up with the corresponding holes for secure placement.
STEP 05
Attach the handle and grommets to the hood with two (2) M6 bolts.
22” Tabletop Griddle | Parts & Assembly
03

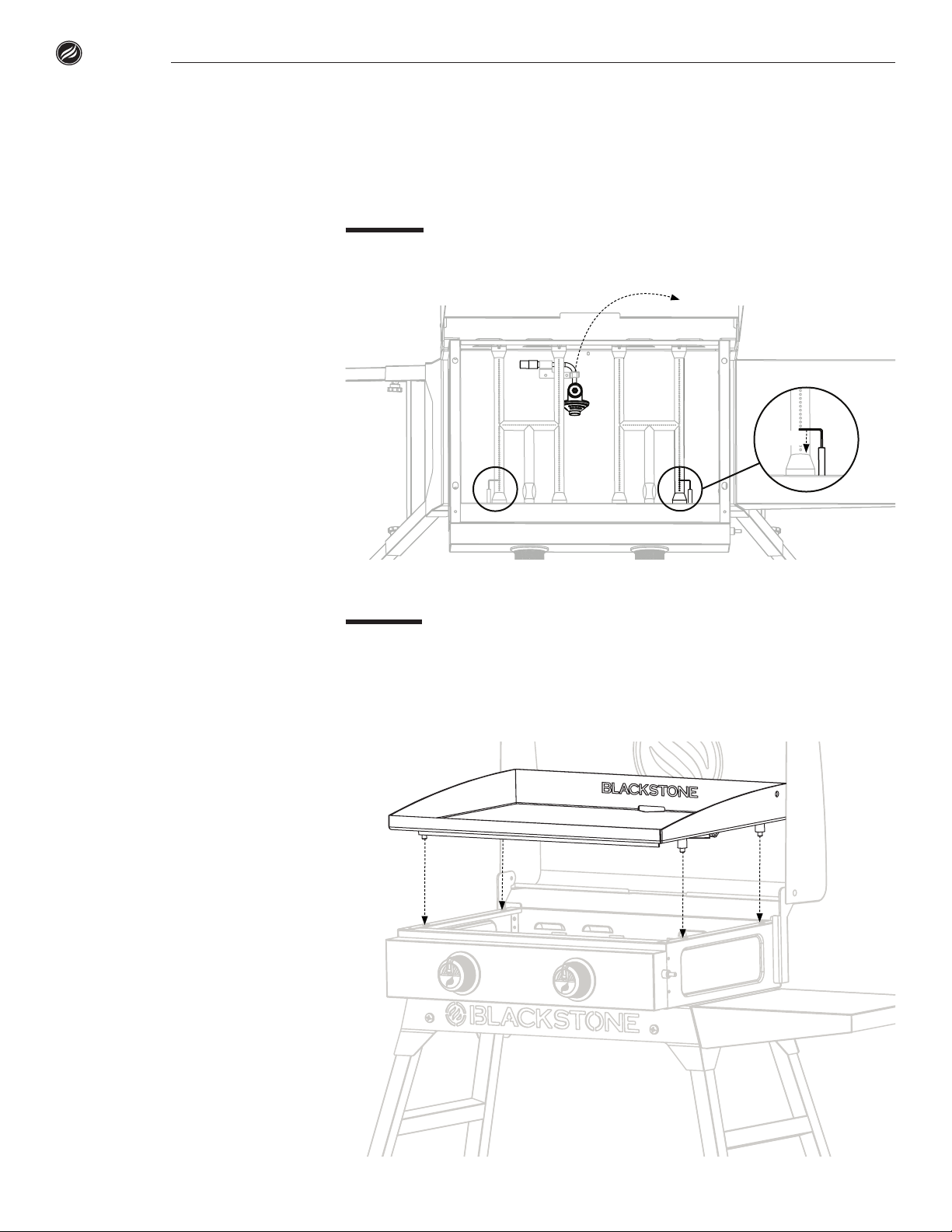

STEP 06
Ensure that the two ignition needles are set 3-7mm above the burner tube.
Take the regulator out and set aside.
STEP 07
Place the griddle top onto the griddle body by aligning the four pins to the
corresponding holes. Make sure the pins are fully seated in the holes. Place
the grease cup on the back of the griddle body in the center of the unit.
3-7mm
22” Tabletop Griddle | Parts & Assembly
04
NEED HELP? Call Blackstone Information
Center for missing parts, assembly or and
operation questions: 435-252-3030
or email us at:
support@blackstoneproducts.com
STEP 08
Screw in the LP bottle into the gas regulator, turning the tank clockwise.
STEP 09
Insert the gas regulator into the gas line of the griddle turning the collar of
the gas regulator clockwise to secure it into the fuel line.
STEP 10
Proceed to seasoning instructions (pg 18) in the Owner’s Manual. Enjoy
cooking outdoors on your Blackstone 22” Tabletop Griddle!
22” Tabletop Griddle | Parts & Assembly
05
North Atlantic Imports LLC | 513 West 2500 North, North Logan UT 84341 | Blackstoneproducts.com
North Atlantic Imports LLC | 513 West 2500 North, North Logan UT 84341 | Blackstoneproducts.com
22" DE MESA
PLANCHA
MODELO
Piezas y ensamblaje
Antes de continuar, asegúrese
de leer y comprender el Manual
del propietario incluido con
su plancha.
Se pueden producir incendios
o explosiones peligrosas si se
ignoran las instrucciones.
Es responsabilidad del
consumidor ver que la plancha
esté correctamente ensamblada,
instalada y mantenida. Si no se
siguen las instrucciones de este
manual, se podrían producir
lesiones corporales y/o daños
a la propiedad.
LLAVE DE ALERTA DE
SEGURIDAD
Lea y siga todos los avisos que
se encuentran en el manual.
INSTALADOR/ENSAMBLADOR:
Entréguele estas instrucciones al consumidor.
CONSUMIDOR:
Guarde este manual para futuras referencias.
PARA REGISTRAR su producto Blackstone, vaya
a www.blackstoneproducts.com/register-griddle
Número de modelo__________________________
Número de serie ____________________________
Fecha de compra ___________________________
!PELIGRO
Indica una situación de peligro
inminente que, si no se evita,
causará la muerte o lesiones graves.
!ADVERTENCIA
Indica la posibilidad de lesiones
corporales graves si no se siguen
las instrucciones.
!PRECAUCIÓN
Indica una situación
potencialmente peligrosa que,
si no se evita, puede resultar
en una lesión moderada.
22” De Mesa Plancha | Piezas y montaje
