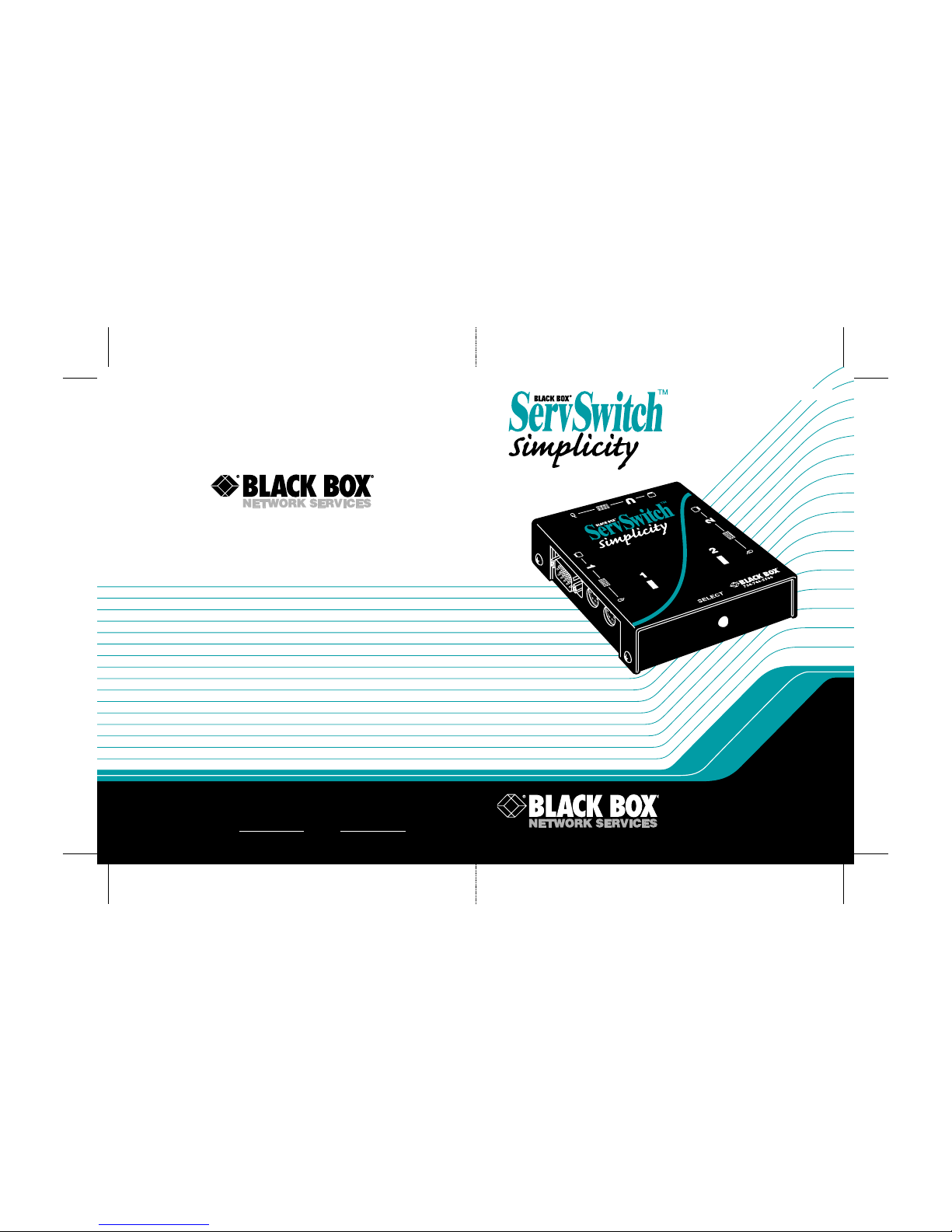

Black Box SW613A Manual de usuario

JUNE 2000

SW613A

SW613A-K

FREE tech support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746.

Mailing address: Black Box Corporation, 1000 Park Dr., Lawrence, PA 15055-1018

World-Wide Web: www.blackbox.com • E-mail: [email protected]

Customer Support Information:

THE SERVSWITCH™ FAMILY

Welcome to the

ServSwitch™ Family!

Thank you for purchasing a BLACK BOX®ServSwitch™Brand KVM switch! We

appreciate your business, and we think you’ll appreciate the many ways that your

new ServSwitch keyboard/video/mouse switch will save you money, time, and

effort.

That’s because our ServSwitch family is all about breaking away from the

traditional, expensive model of computer management. You know, the one-size-

fits-all-even-if-it-doesn’t model that says, “One computer gets one user station, no

more, no less.” Why not a single user station (monitor, keyboard, and mouse) for

multiple computers—even computers of different platforms? Why not a pair of

user stations, each of which can control multiple computers? Why not multiple

user stations for the same computer?

With our ServSwitch products, there’s no reason why not. We carry a broad

line of robust solutions for all these applications. Do you have just two PCs, and

need an economical alternative to keeping two monitors, keyboards, and mice

on your desk? Or do you need to share dozens of computers, including a mix of

IBM®PC, RS/6000®, Apple®Macintosh®, Sun Microsystems®, and SGI®

compatibles among multiple users with different access levels? Does your switch

have to sit solidly on a worktable and use regular everyday cables? Or does it have

to be mounted in an equipment rack and use convenient many-to-one cables?

No matter how large or small your setup is, no matter how simple or how

complex, we’re confident we have a ServSwitch system that’s just right for you.

The ServSwitch™family from Black Box—the one-stop answer for all your

KVM-switching needs! *

This manual will tell you all about your new ServSwitch™ Simplicity,

including how to install, operate, and troubleshoot it. For an introduction to the

ServSwitch Simplicity, see Chapter 2. The ServSwitch Simplicity product codes

covered in this manual are:

SW613A

SW613A-K

SERVSWITCH™ SIMPLICITY

FEDERAL COMMUNICATIONS COMMISSION (FCC) AND

INDUSTRY CANADA (IC)

RADIO-FREQUENCY INTERFERENCE STATEMENTS

Class B Digital Device. This equipment has been tested and found to comply with

the limits for a Class B computing device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation. However, there is no guarantee that

interference will not occur in a particular installation. This equipment generates,

uses, and can radiate radio frequency energy, and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. If this equipment does cause harmful interference to radio or

telephone reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult an experienced radio/TV technician for help.

Caution:

Changes or modifications not expressly approved by the

party responsible for compliance could void the user’s

authority to operate the equipment.

To meet FCC requirements, shielded cables and power cords are required to

connect this device to a personal computer or other Class B certified device.

This digital apparatus does not exceed the Class A limits for radio noise emission from

digital apparatus set out in the Radio Interference Regulation of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de classe A prescrites dans le Règlement sur le

brouillage radioélectrique publié par Industrie Canada.

VCCI STATEMENT, DECLARATION OF CONFORMITY

VOLUNTARY CONTROL COUNCIL ON INTERFERENCE (VCCI)

RADIO-FREQUENCY INTERFERENCE STATEMENT

EUROPEAN UNION DECLARATION OF CONFORMITY

This equipment has been tested and found to comply with the requirements of

the European EMC directive 89/336/EEC.

SERVSWITCH™ SIMPLICITY

NORMAS OFICIALES MEXICANAS (NOM)

ELECTRICAL SAFETY STATEMENT

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,

cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,

etc..

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales

que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más

allá a lo descrito en las instrucciones de operación. Todo otro servicio

deberá ser referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama,

sofá, alfombra o superficie similar puede bloquea la ventilación, no se

debe colocar en libreros o gabinetes que impidan el flujo de aire por los

orificios de ventilación.

NOM STATEMENT

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del

tipo descrito en el instructivo de operación, o como se indique en el

aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la

polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen

del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no

sea usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del

aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en

su desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

SERVSWITCH™ SIMPLICITY

Contents

Chapter Page

1. Specifications ......................................................................... 7

2. Introduction .......................................................................... 9

2.1 Overview ........................................................................ 9

2.2 Features and Benefits ................................................. 11

2.3 The Complete Package .............................................. 12

2.4 The ServSwitch Simplicity Illustrated ........................ 13

3. Installation ........................................................................... 14

3.1 What You Will Need ................................................... 14

3.2 Placement .................................................................... 16

3.3 Connecting Your Devices ........................................... 17

4. Operation ............................................................................. 20

5. Troubleshooting .................................................................. 22

5.1 Common Problems ..................................................... 22

5.2 Calling Black Box ........................................................ 25

5.3 Shipping and Packaging ............................................. 26

CHAPTER 1: Specifications

1. Specifications

Compliance — CE; FCC Part 15 Subpart J Class B,

IC Class/classe B; VCCI Class A

Standards — VGA, SVGA, or XGA video

Interfaces — Video: VGA;

Keyboard and mouse: IBM PS/2 compatible

Resolution — Up to 1024 x 768 noninterlaced at up to

85 Hz

Scan Interval — In autoscan mode, pauses at each computer

for 5 seconds

Maximum

Distance — 10 ft. (3 m) from the Switch to any attached

device

User Controls — Keyboard commands;

(1) Front-mounted SELECT pushbutton for

switching between computers

Indicators — (2) Top-mounted “selected computer” LEDs

SERVSWITCH™ SIMPLICITY

Connectors — All side-mounted:

For user equipment:

(1) HD15 female for monitor

attachment;

(2) 6-pin mini-DIN female for keyboard

and mouse attachment;

For each computer:

(1) HD15 male for video attachment;

(2) 6-pin mini-DIN female for keyboard

and mouse attachment

Maximum

Altitude — 10,000 ft. (3048 m)

Temperature

Tolerance — Operating: 41 to 104˚F (5 to 40˚C);

Storage: –4 to +140˚F (–20 to +60˚C)

Humidity

Tolerance — 5 to 80% noncondensing

Enclosure — Steel

Power — 5 VDC from attached CPUs’ keyboard

interfaces

Size — 1.2"H x 3.6"W x 4.2"D (3 x 9.1 x 10.7 cm)

Weight — 12 oz. (341 g)

CHAPTER 2: Introduction

2. Introduction

2.1 Overview

The ServSwitch™ Simplicity is a high-performance

keyboard-, monitor-, and mouse-sharing device that

supports a wide range of IBM®PC compatible hardware

and software platforms. Use it to access two desktop

computers from a single keyboard, monitor, and mouse.

Setup is fast and easy: Plug in the cables from the user

equipment into the Simplicity, then run extension

cables from the Simplicity to the computer CPUs, and

then turn ON the CPUs and the monitor. There’s no

software to worry about, nothing to configure, and no

need for a power supply!

You can switch between the computers either by

pressing the Select button on the front of the Simplicity

or by sending a hotkey command from the attached

keyboard. You can also have the Simplicity scan back

and forth between the computers, displaying the video

from each one in turn.

Otros manuales para SW613A

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Black Box

Black Box

Black Box ServSwitch CX Quad IP Manual de usuario

Black Box

Black Box MT760A-232/232 Manual de usuario

Black Box

Black Box SW1003A Manual de usuario

Black Box

Black Box LB9019A-R4 Manual de usuario

Black Box

Black Box SW056A Manual de usuario

Black Box

Black Box LPB5028A Manual de usuario

Black Box

Black Box IC562A Manual de usuario

Black Box

Black Box ServSwitch Manual de usuario

Black Box

Black Box LE2425A Manual de usuario

Black Box

Black Box LGB708A-R2 Manual de usuario

Black Box

Black Box AVSW-DP2X1 Manual de usuario

Black Box

Black Box IC248A Manual de usuario

Black Box

Black Box SERVSWITCH Series Instrucciones de instalación y mantenimiento

Black Box

Black Box LE2700A Manual de usuario

Black Box

Black Box LB9002A-SC-R3 Manual de usuario

Black Box

Black Box AVSW-HDMI2X1A Manual de usuario

Black Box

Black Box LEV2525A Guía de seguridad

Black Box

Black Box KV9104A Manual de usuario

Black Box

Black Box HS523 Manual de usuario

Black Box

Black Box LPH1004A Manual de usuario

Black Box

Black Box 2-Port ServSwitch KV7002A Manual de usuario

Black Box

Black Box LBG1000A-R2 Manual de usuario

Black Box

Black Box Maverick SW161A Manual de usuario

Black Box

Black Box LB9019A Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
