Black Box NetRack RM500A-R2 Manual de usuario

1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: [email protected]

CUSTOMER

SUPPORT

INFORMATION

JUNE 2000

RM500A-R2 RM505A-R2

RM501-R2 RM506-R2

RM502 RM507

RM503-R2 RM508-R2

NetRack

What You Should Have Received

Please take a moment to make sure that you received everything that’s included with your order. Each product is

described below.

RM500A-R2: (1) NetRack, black. The Rack is 85"H x 26"W x 32"D (215.9 x 66 x 81.3 cm). It consists of a welded

frame with 2 sets of adjustable rails, a full-length steel rear door with a lock, and 2 perforated

shelves. It also has vented, lift-off side panels, a removable top panel, an open bottom for

wire/cable access, and a locking plexidoor.

RM501-R2: (1) Top fan panel, black.

RM502: (2) Bottom-mount tower shelves, black. (For a complete list of the included hardware, see page 2.)

RM503-R2: (1) 12-gauge-steel caster base with four 3-inch non-locking casters, black.

RM505A-R2: (1) NetRack, beige. The Rack is 85"H x 26"W x 32"D (215.9 x 66 x 81.3 cm). It consists of a welded

frame with 2 sets of adjustable rails, a full-length steel rear door with a lock, and 2 perforated

shelves. It also has vented, lift-off side panels, a removable top panel, an open bottom for

wire/cable access, and a locking plexidoor.

RM506-R2: (1) Top fan panel, beige.

RM507: (2) Bottom-mount tower shelves, beige. (For a complete list of the included hardware, see page 2.)

RM508-R2: (1) 12-gauge-steel caster base with four 3-inch non-locking casters, beige.

NETRACK

The NetRack

These fully welded and assembled racks are constructed of heavy 12-gauge steel. The mounting angles, also

made of 12-gauge steel, are tapped with #10-32 thread in the E.I.A. RS 310-D universal pattern. There’s ample

space inside the frame sides for cabling, so large bundles of wire and cable fit without a problem. Plus, there’s a

locking door with a “slam latch” that provides quick access and security. And the doors can easily be changed

from left- to right-opening with a quick-release pin.

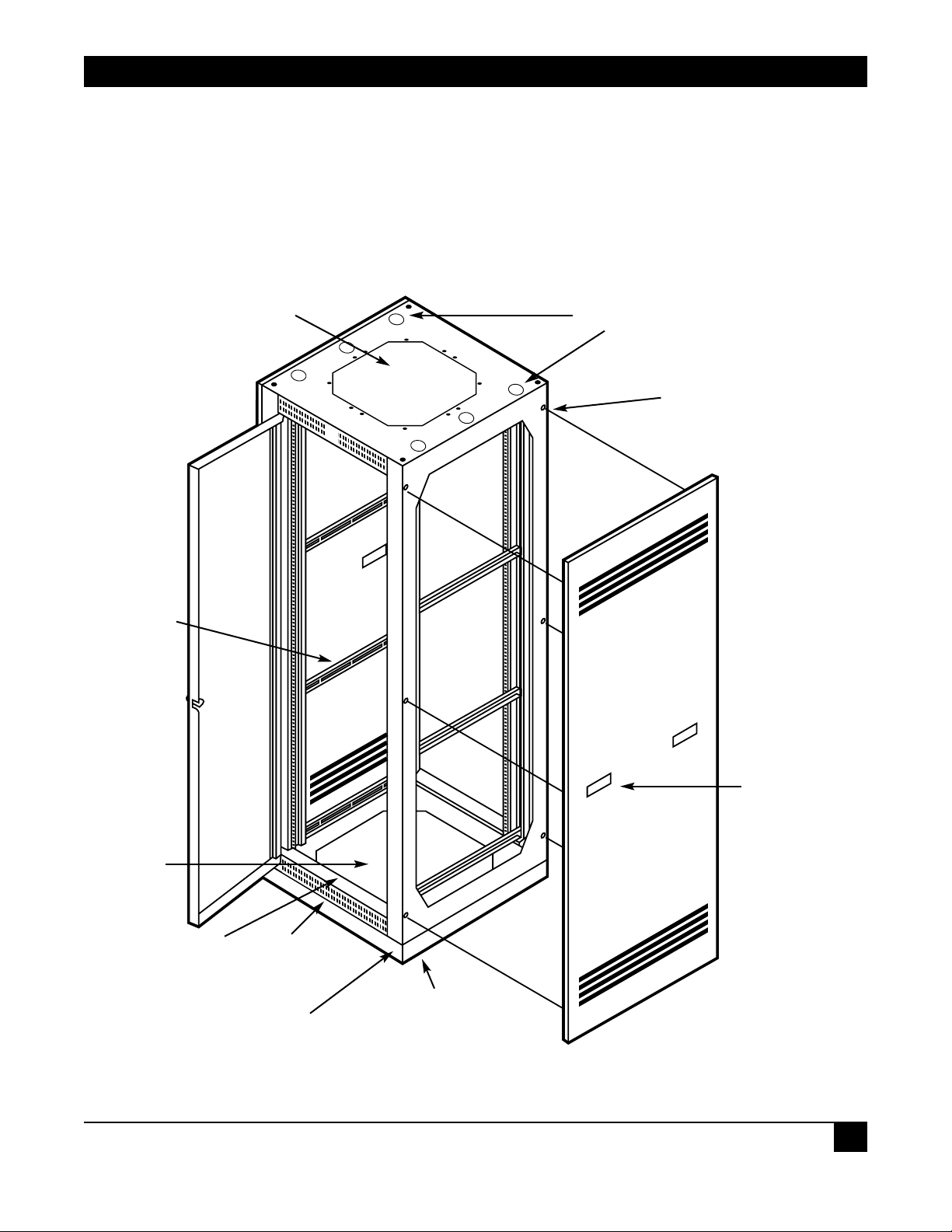

Standard knockouts for

cables or conduit

Removable top panel for

cable entry and exit

Mounting angles

adjust to any depth

within the frame

Open bottom

panel

1⁄2-13 weldnut for

levelers or 3⁄8"

diameter anchor

bolts (4 places)

Frames may be

bolted to the floor

Frames may be

joined together for

modular use

Easy-lift handles on

the side panels with

locking feature

Vented side panels

“snap” into place

Vents

NETRACK

Bottom-Mount Tower Shelves (RM502, RM507)

The following items are included with the RM502 or RM507.

Table 1. Items included with the RM502 or RM507

Key Description Quantity

1 Support plate 4

21⁄4-20 x 1⁄2" hexbolt 8

2A 1⁄4-20 x 1⁄2" carriage bolt 8

31⁄4-20 hexnut 8

4 Slide bracket 4

5 Slide assembly 4

6 10-32 x 3⁄8" panhead screw (included with slide) 8

7 10-32 hexnut (included with slide) 8

8 10-32 x 5⁄8" cuphead screw 16

9 Shelf assembly 2

You must supply the following tools:

•3⁄8" nutdriver or socket

•7⁄16" socket and ratchet

•7⁄16" end wrench

NOTE

Shelves may be installed to slide out toward the front or the rear of the cabinet,

whichever you prefer.

1. Attach support plates (item 1) to the cabinet base. Make sure that the flange is oriented as shown in

Figure 1, and attach it using 1⁄4-20 x 1⁄2" hexbolts (item 2) or 1⁄4-20 x 1⁄2" carriage bolts (item 2A) and

1⁄4-20 hexnuts (item 3). If the unit has round holes, use item 2. If the unit has square holes, use item 2A.

Tighten the hardware securely. Repeat for remaining plates.

NETRACK

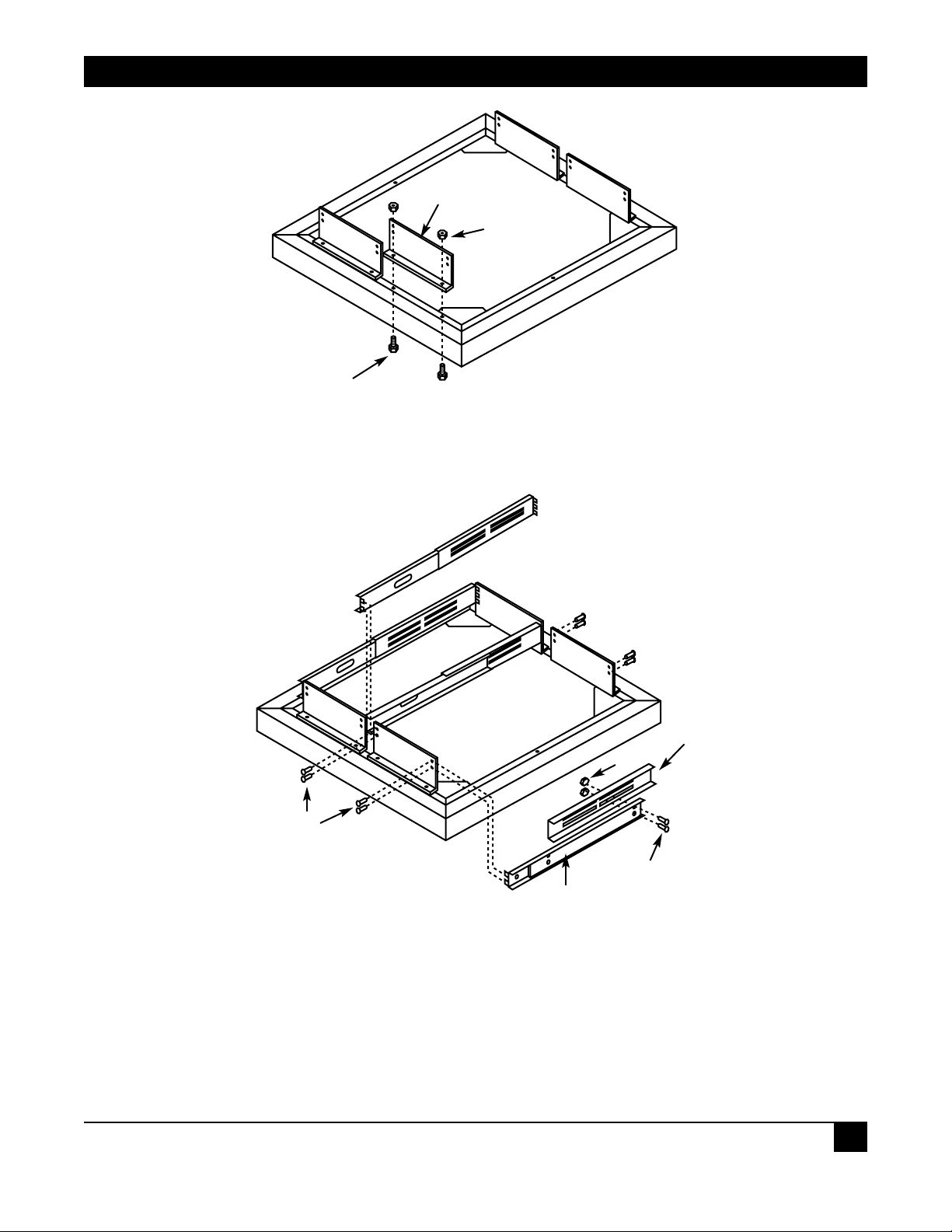

Figure 1. Attaching support plates to the cabinet base.

2a. Loosely attach the slide bracket (item 4) to the rear of the slide (item 5) as shown below, using two 10-32 x

3⁄8" panhead screws (item 6) and two 10-32 hexnuts (item 7). Do not tighten at this time.

Figure 2. Attaching the slide bracket to the rear of the slide.

2b. Extend the slide/bracket assembly so that it will extend around the outside of the support plates installed

in step 1. Attach the slide/bracket assembly to support plates with four 10-32 x 5⁄8" cuphead screws (item 8)

and tighten securely. (Keep the slide/bracket assembly tight against the side of the support plate when

tightening.)

2c. Tighten the screws and hexnuts installed in step 2a.

2d. Repeat 2a, 2b, and 2c for the remaining slides.

NETRACK

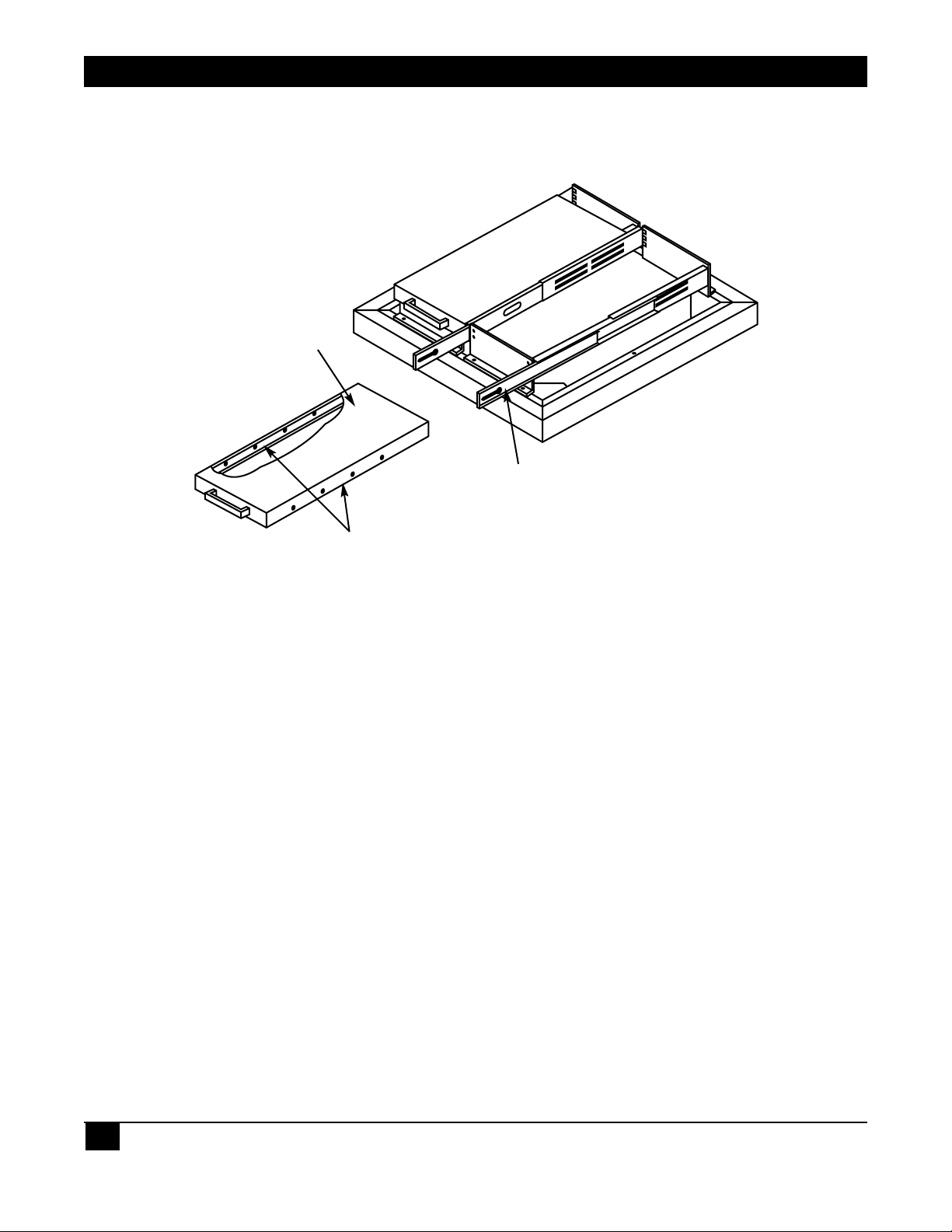

3a. Extend the inner slide members of slides to the front of the unit until they lock in place. Take the shelf

assembly (item 9) and carefully insert slide members attached to the inside of the shelf into extended slide

members. Slide the drawer all the way to the rear of the cabinet to engage.

Figure 3. Sliding the drawer into the cabinet.

3b. Test the shelf by extending and retracting to assure proper engagement.

TRADEMARKS

Any trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

Engage slide members attached

inside shell at factory to slide

members on frame

Extend inner slide members until

they lock in position
